Sinotruk Ace 7 Series 143hp 4X2(6 wheels) 3.1m dump truck (China VI)

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Transmission: WLY
Curb Weight:: 4.495ton
Wheelbase:: 2800mm
Tire Size:: 7.00R16LT 8PR/245/70R17.5 18PR
Rated payload: 1.645ton
Drive 4X2 (6 wheels)
Horsepower 143
Cargo box length: 3.1m

Overview

The Sinotruk Ace 7 Series 143hp 4X2(6 wheels) 3.1m dump truck (China VI) is a Light Truck featuring 1.645t payload, 2.8t GVW, 3.1m cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei Power490PLUS1 engine, 143 hp, China VI emissions and WLY transmission.

China VI 143 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CDW3044C281CFH
Drive type: 4X2
Wheelbase: 2800mm
engine: Yunnei Power490PLUS1
transmission: WLYWLY8G45
Rear Axle Ratio: 4.875
Cab length: 5.595m
Cab width: 2.1m
Cab height: 2.07m
Front track width: 1605mm
rear track: 1570mm
Curb Weight: 4.495ton
Rated payload: 1.645ton
GVWR: 2.8ton
Origin: Chengdu, Sichuan
tonnage class: Light Truck
Approach angle: 17°
departure angle: 17°
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei Power490PLUS1
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.499L
Emission standard: China VI
Max output power: 105kW
Max hp: 143Horsepower
Max torque: 400N·m
Max torque speed: 1300-2400rpm
Rated speed: 3000rpm
Transmission Parameters
Transmission Model: WLYWLY8G45
Transmission Brand: WLY
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box length: 3.1m
Cargo box width: 1.8m
Cargo box height: 0.6m
Cab parameters
seating capacity: 2Personnel
fuel tank
Fuel tank capacity: 90L
Chassis Specs
Front axle description: G020D
Front axle allowable load: 1920kg
rear axle description: D035C
rear axle allowable load: 2575kg
Axle ratio: 4.875
Leaf spring count: 5/7+5
Tire
Tire Size: 7.00R16LT 8PR/245/70R17.5 18PR
Number of tires: 4pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Electronic Central Lock:
Exterior features
Aluminum air tank:

Photos

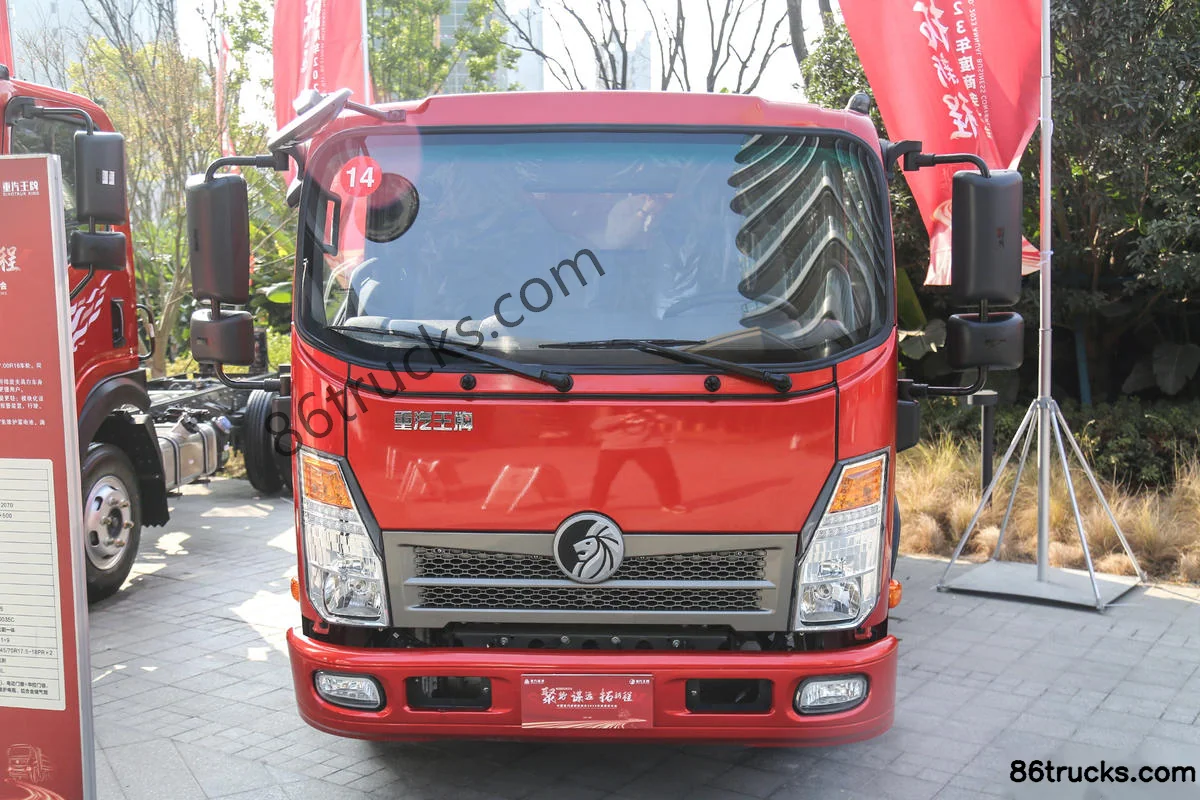

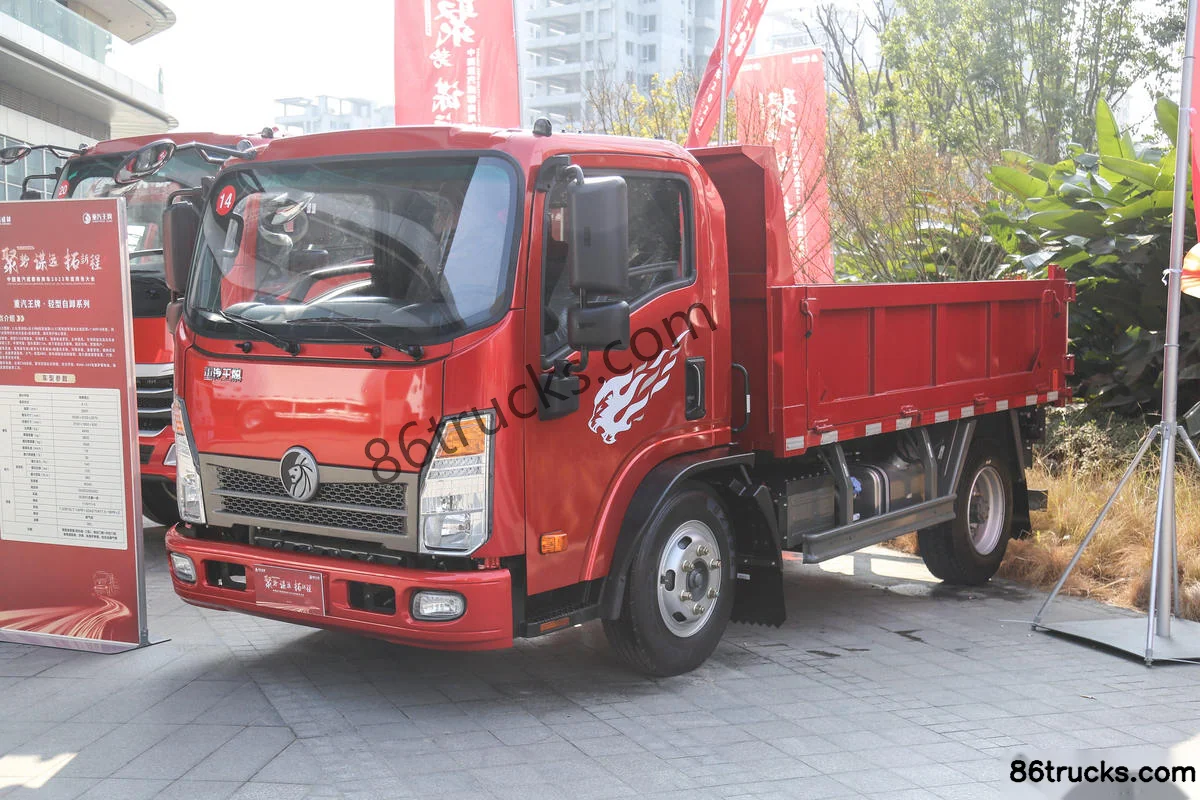

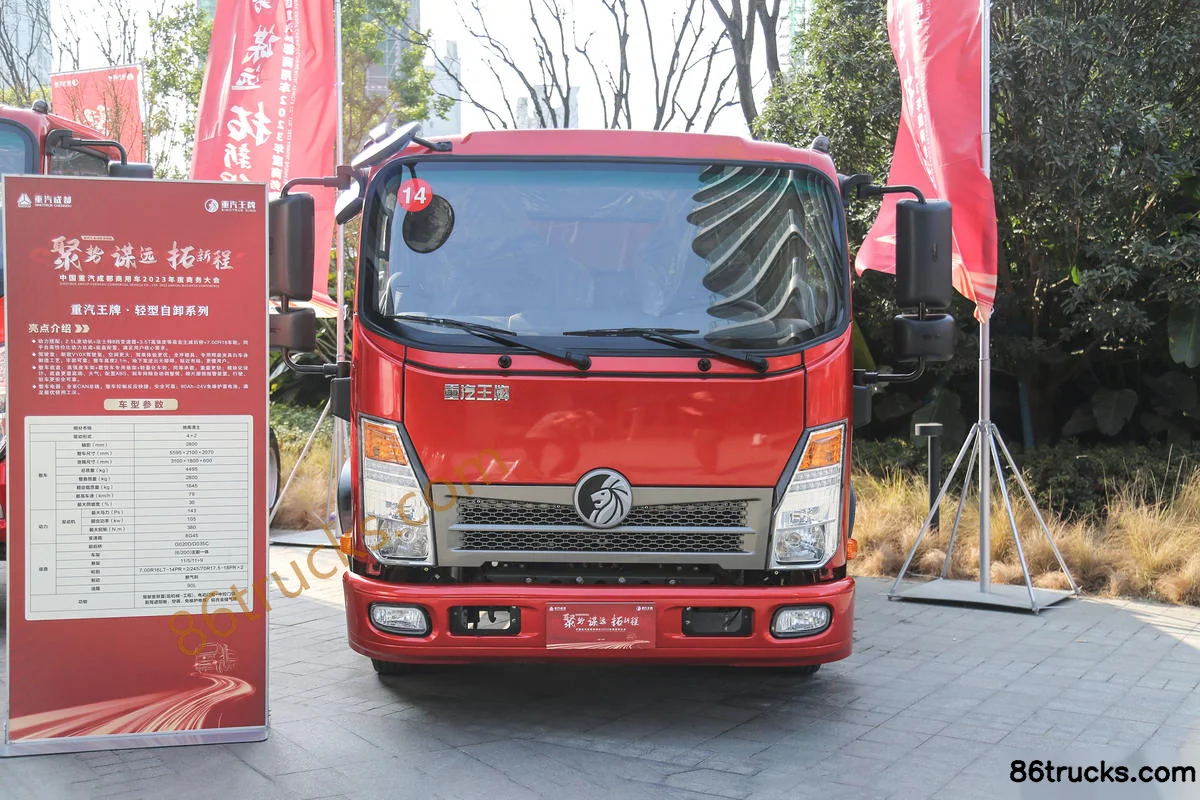

Exterior3

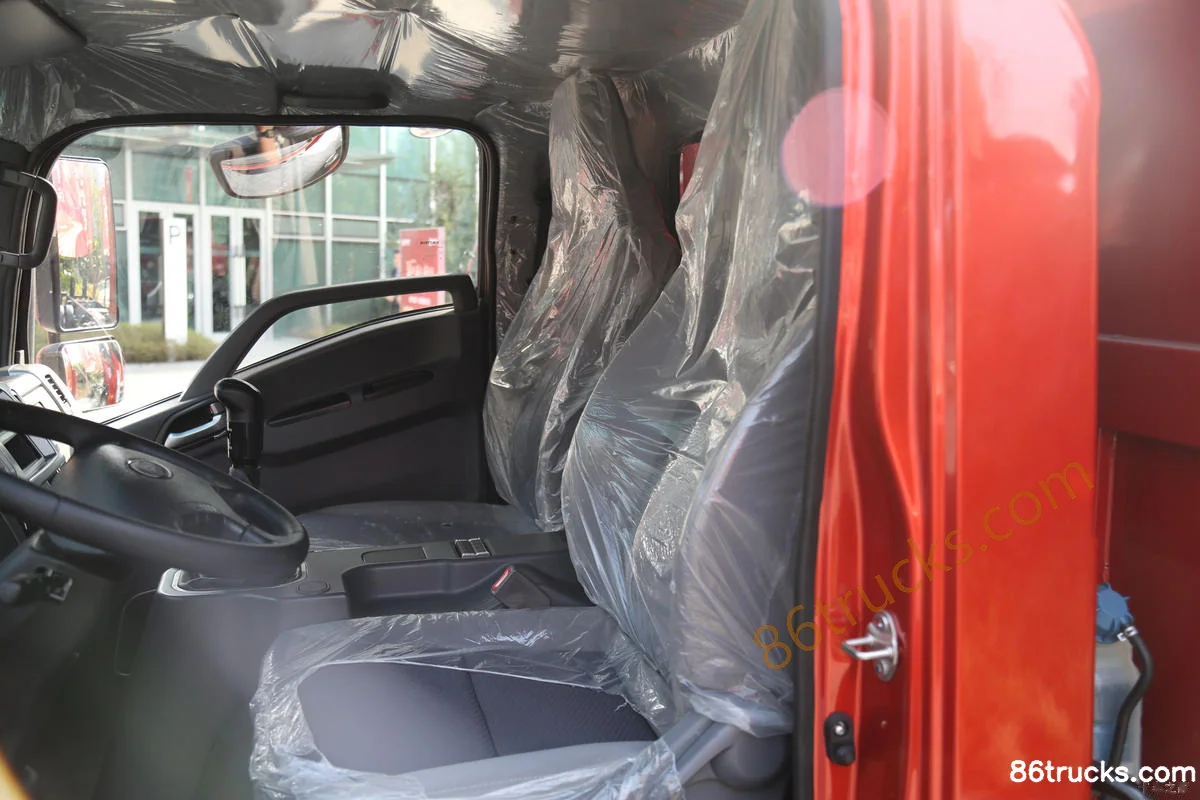

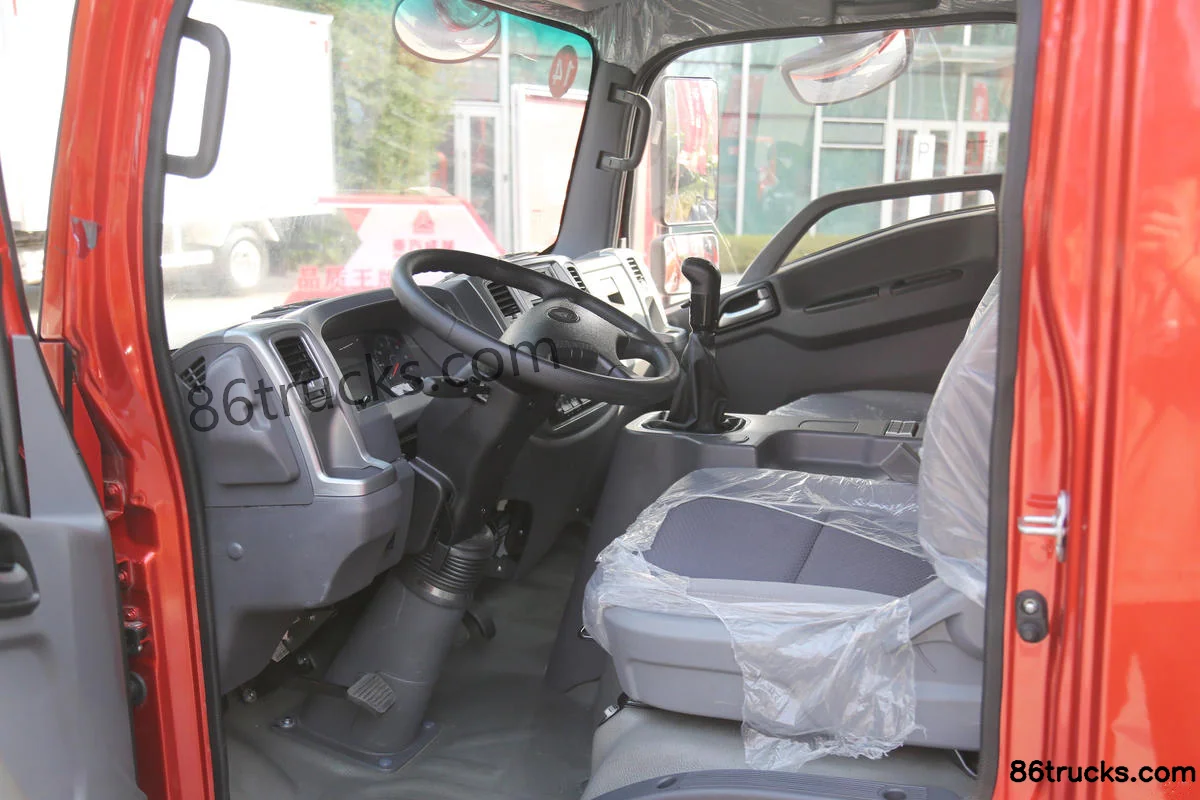

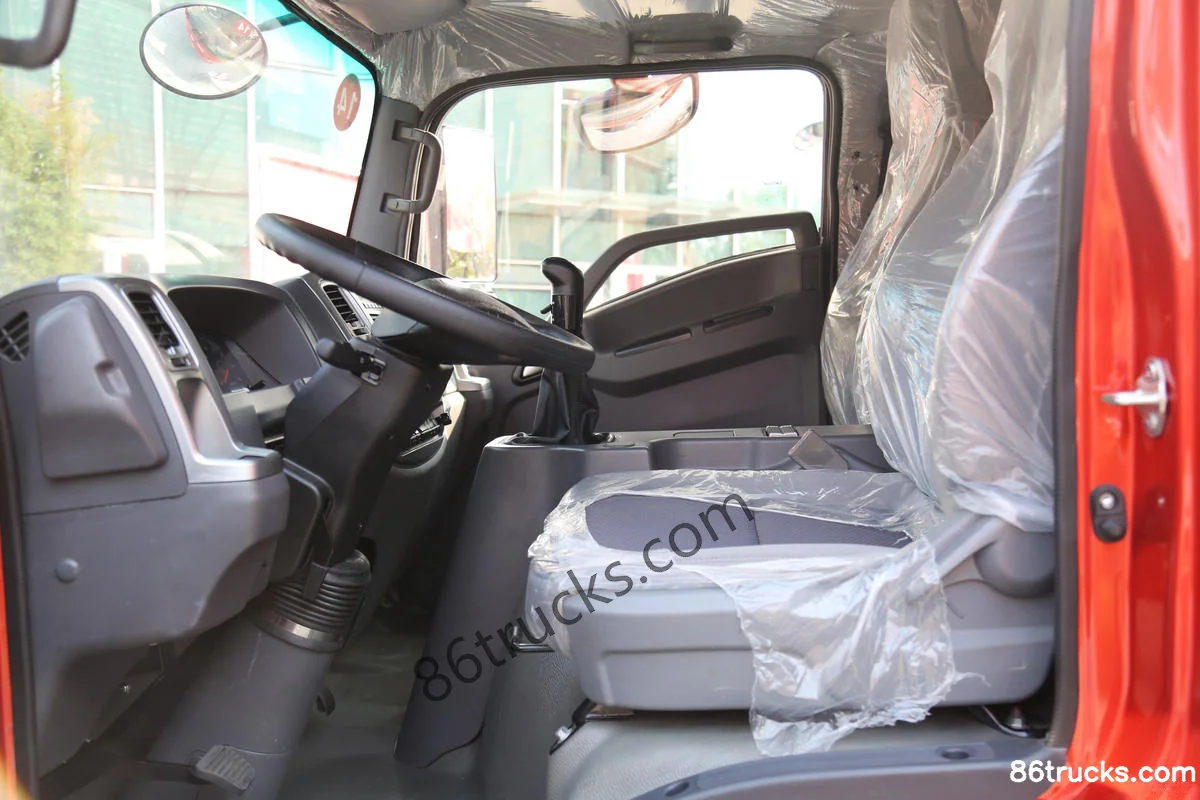

Cab3

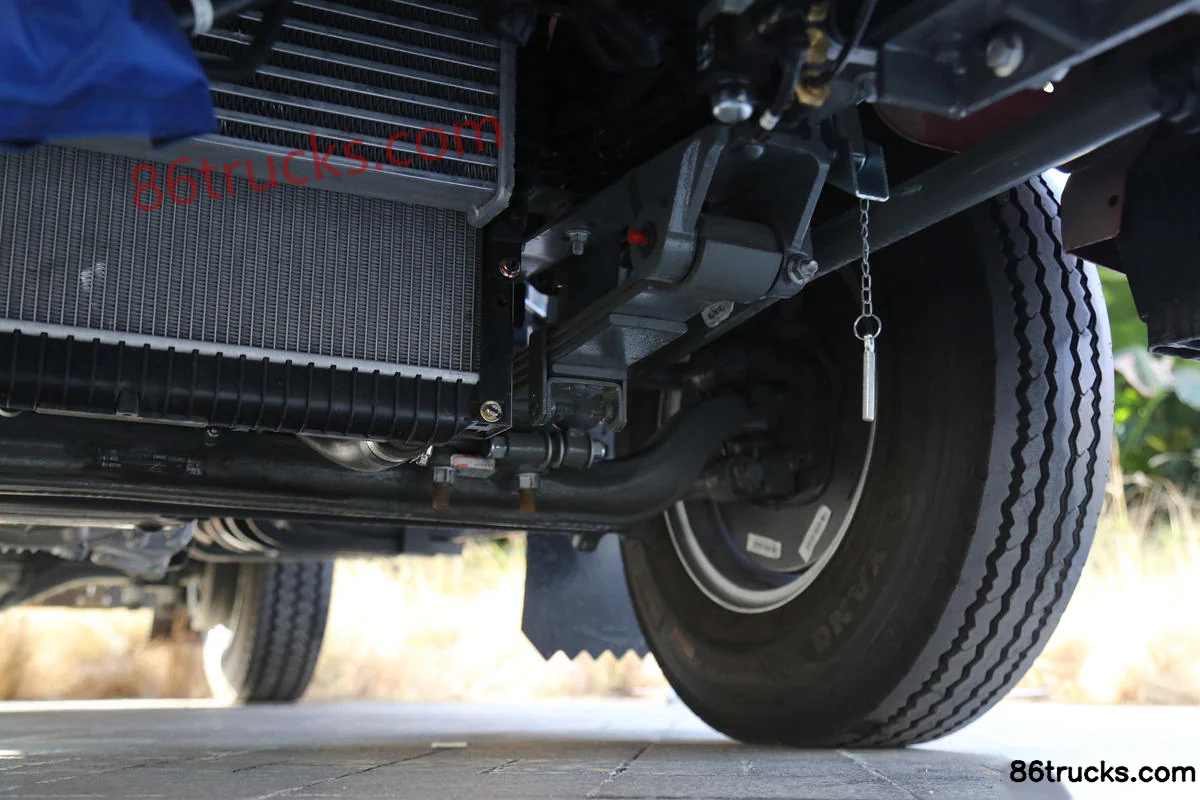

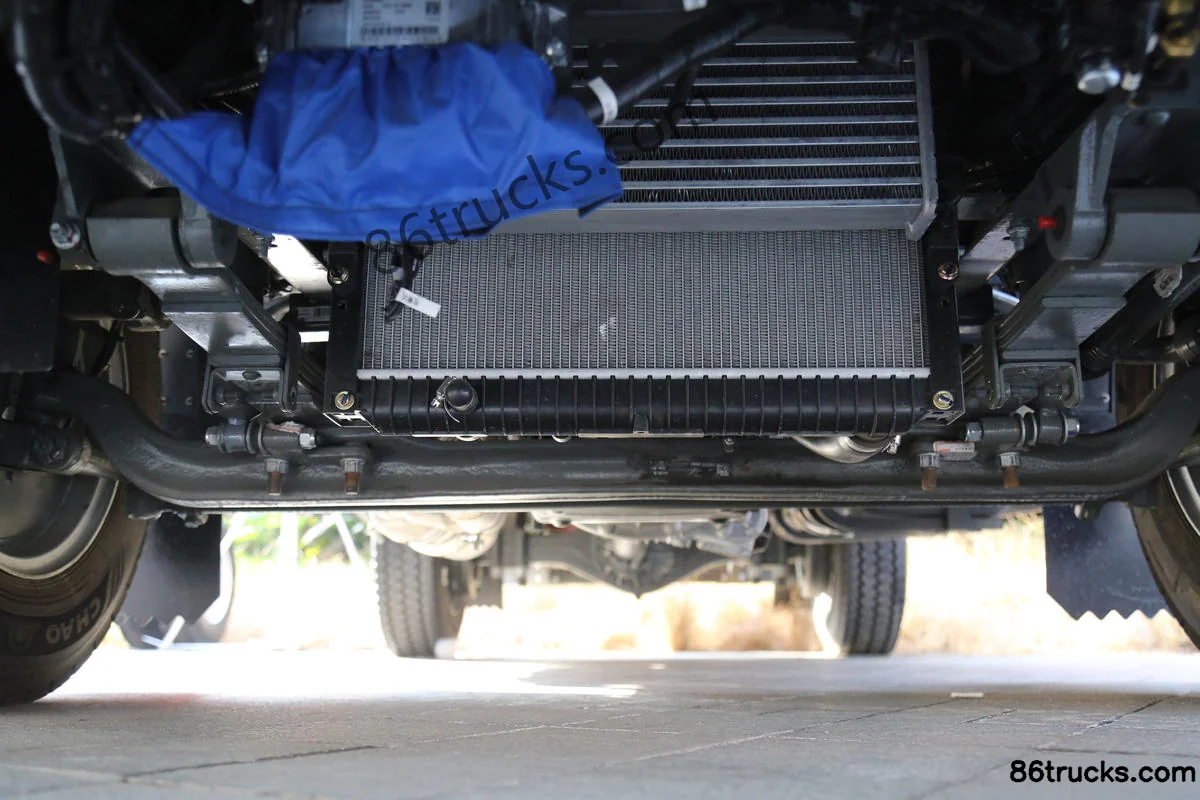

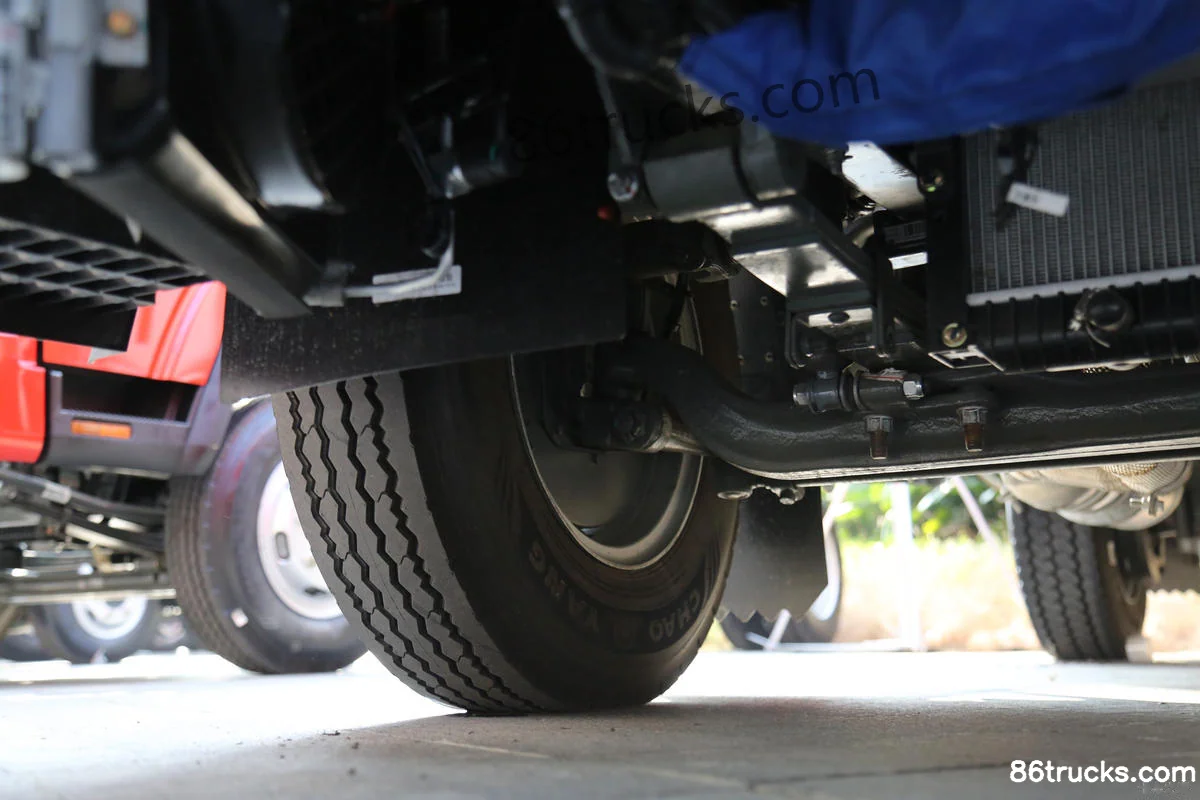

Chassis3

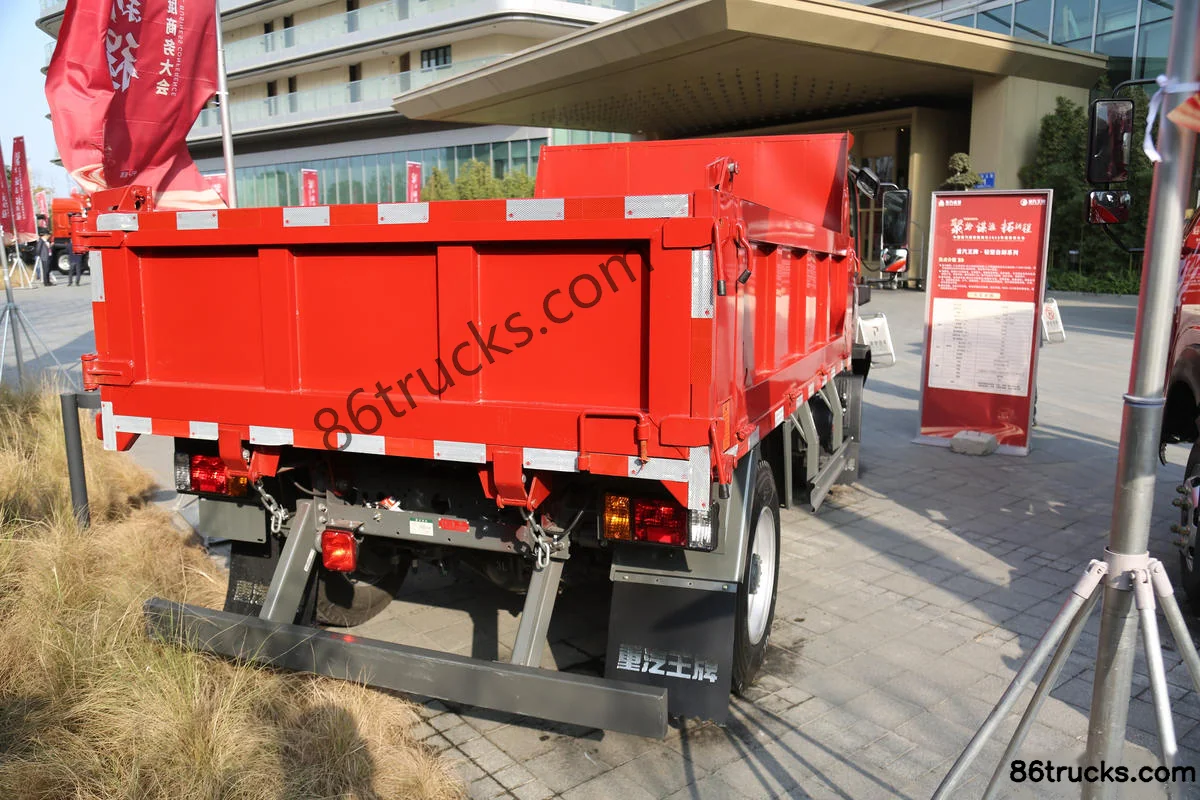

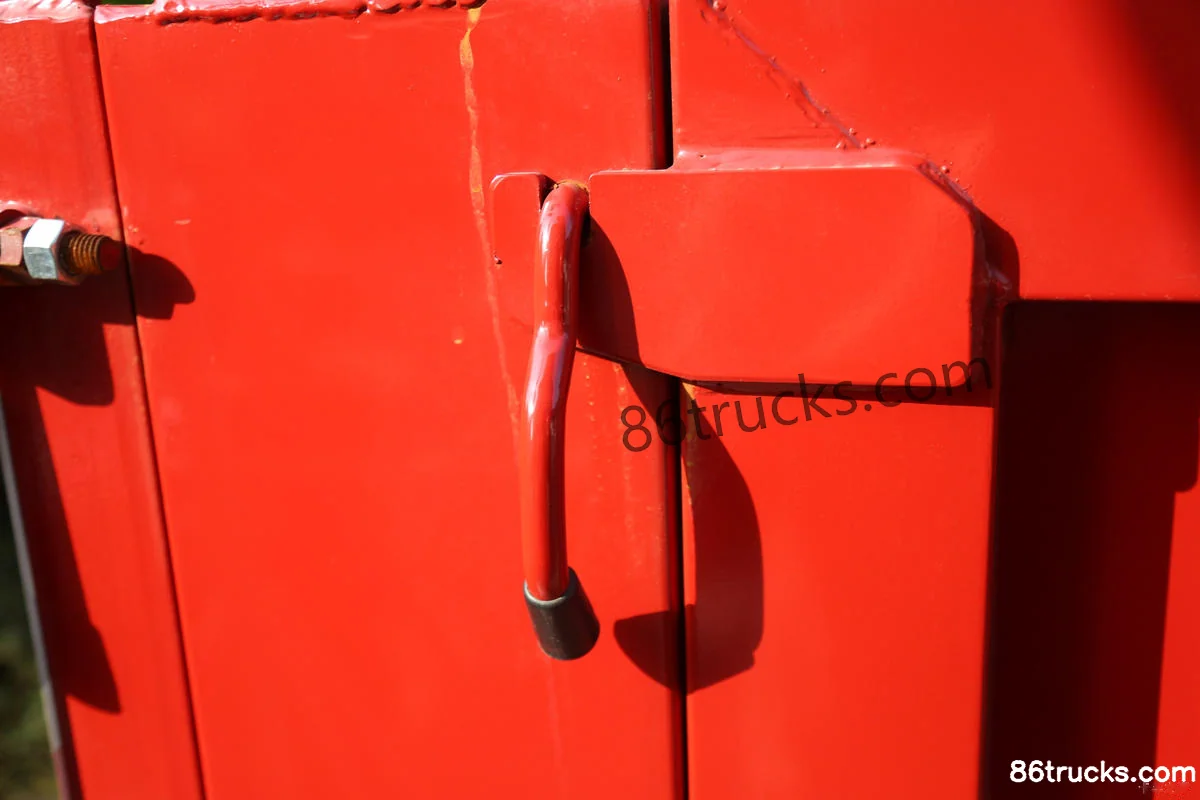

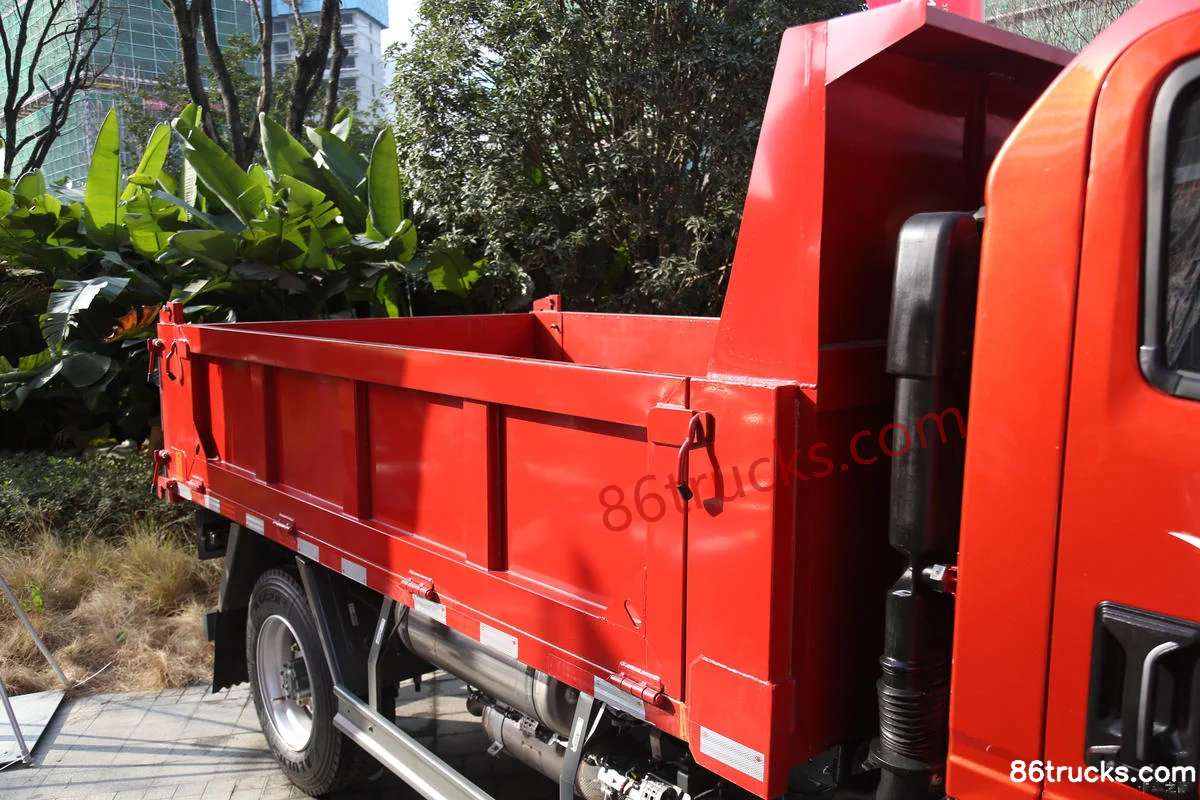

Body3

12 photos

FAQ

What emission standard does Sinotruk Ace 7 Series 143hp 4X2(6 wheels) 3.1m dump truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Ace 7 Series 143hp 4X2(6 wheels) 3.1m dump truck (China VI)?

Key specs of Sinotruk Ace 7 Series 143hp 4X2(6 wheels) 3.1m dump truck (China VI): Drive: 4x2; Horsepower: 143 hp; Emission: China VI; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Ace 7 Series 143hp 4X2(6 wheels) 3.1m dump truck (China VI) suited for?

Sinotruk Ace 7 Series 143hp 4X2(6 wheels) 3.1m dump truck (China VI) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk Ace 7 Series 143hp 4X2(6 wheels) 3.1m dump truck (China VI) differ from other variants in the same series?

Sinotruk Ace 7 Series 143hp 4X2(6 wheels) 3.1m dump truck (China VI) belongs to Sinotruk Wangpai 7 series light truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Ace 7 Series 143hp 4X2(6 wheels) 3.1m dump truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Ace 7 Series 143hp 4X2(6 wheels) 3.1m dump truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
