Tangjun Ouling T1 series 115hp 4X2(6 wheels) 3.02m dump truck
EXW
From $15,000
Export quote
Tangjun Ouling T1 Light Truck Dump Trucks
Main model photos
309 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Tangjun Ouling T1 series 115hp 4X2(6 wheels) 3.02m dump truck | 4x2 / 115hp / China VI | From $15,000 |
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Tangjun Ouling T1 Series 110hp 4X2(6 wheels) 2.8m Dump Truck | 4x2 / 110hp / China V | From $12,222 | |
| Tangjun Ouling T1 Series 110hp 4X2(6 wheels) 3.37m Dump Truck | 4x2 / 110hp / China V | From $15,000 | |
| Tangjun Ouling T1 Series 110 hp 4X2(6 wheels) 3.2m Dump Truck | 4x2 / 110hp / China V | From $14,694 | |
| Tangjun Ouling T1 Series 110hp 4X2(6 wheels) 3.7m Dump Truck | 4x2 / 110hp / China V | From $11,389 | |
| Tangjun Ouling T1 Series 110 hp 4X2(6 wheels) 3.02 m dump truck | 4x2 / 110hp / China V | From $10,347 |
Tangjun Ouling T1 Series 110hp 4X2(6 wheels) 2.8m Dump Truck
EXW
From $12,222
Export quote
Tangjun Ouling T1 Series 110hp 4X2(6 wheels) 3.37m Dump Truck
EXW
From $15,000
Export quote

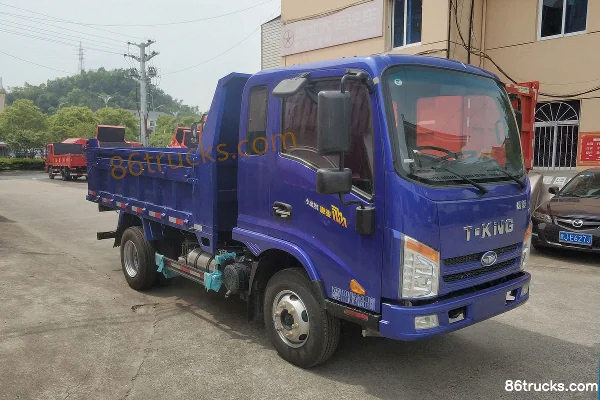

Tangjun Ouling T1 Series 110 hp 4X2(6 wheels) 3.2m Dump Truck
EXW
From $14,694
Export quote

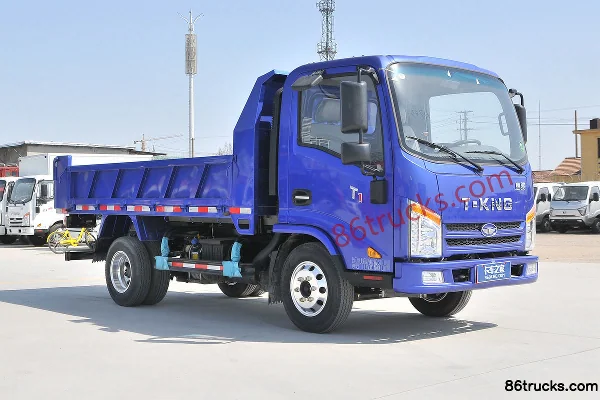

Tangjun Ouling T1 Series 110hp 4X2(6 wheels) 3.7m Dump Truck
EXW
From $11,389
Export quote
Tangjun Ouling T1 Series 110 hp 4X2(6 wheels) 3.02 m dump truck
EXW
From $10,347
Export quote
Series Specs
Basic Info
Model code (announced): ZB3040KDC2L / ZB3041KDC1V / ZB3041KDC6V / ZB3040KDC1V / ZB3040KPD5V
Drive type: 4X2
Wheelbase: 2650 / 2600 / 2850 / 3300mm
Engine Model: QuanchaiQ23-115E60 / WeichaiWP2.3Q110E50 / Sida PowerSD4D25R-70 / Yunnei PowerYN33CRE2 / WeichaiWP2.1Q82E50
Transmission Model: WLYWLY7TS40 / WLYWLY10H35 / WLYＷLY10H35 / FAW JiefangZQCAS5-25 / MengwoMW525HQ-1ZB1 / MengwoMW525HQ
Rear Axle Ratio: 4.875 / 6.833 / 5.833
Cab length: 5.065 / 5.43 / 5.575 / 5.555 / 5.03 / 5.9m
Cab width: 1.97 / 2.04 / 2.04/1.97 / 1.93 / 2.1m
Cab height: 2.23 / 2.34 / 2.34/2.18 / 2.18 / 2.46 / 2.45m
Front track width: 1545 / 1530 / 1500 / 1510 / 1505mm
rear track: 1530 / 1540 / 1395 / 1525mm
Curb Weight: 2.72 / 2.726 / 2.5ton
Rated payload: 1.645 / 1.643 / 1.495ton
GVWR: 4.495 / 4.499 / 4.125ton
Origin: Zichuan, Shandong / Zibo, Shandong
tonnage class: Light Truck
Approach angle: 21 / 20 / 23°
departure angle: 25 / 24 / 16°
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai / Weichai / Sida Power / Yunnei Power
Number of cylinders: 4cylinder
Displacement: 2.3 / 2.29 / 2.545 / 3.298 / 2.088L
Emission standard: China VI / China V
Max output power: 85 / 81 / 70 / 75 / 60kW
Max hp: 115 / 110 / 95 / 102 / 82Horsepower
Max torque: 320 / 280 / 235 / 265 / 215N·m
Max torque speed: 2000 / 1700-2300 / 1600-2400rpm
Rated speed: 3000 / 3200rpm
Engine Type: Inline 4-cylinder, water-cooled, 4-stroke, turbocharged with intercooler, high-pressure common rail / Common Rail+SCR / 4-cylinder inline, 8-valve, turbocharged intercooled, high-pressure common rail fuel injection
Transmission Parameters
Transmission Brand: WLY / FAW Jiefang / Mengwo
shift method: Manual
Forward gears: 7 / 5Gear
Number of Reverse Gears:
Cargo box parameters
hydraulic cylinder brand & model: 90 dual lift
Unloading Type: Dump type / Rear-dump body
Cargo box length: 3.02 / 2.8 / 3.37 / 3.2 / 3.7 / 3.5m
Cargo box width: 1.82 / 1.81 / 1.83 / 1.83/1.21 / 1.9m
Cargo box height: 0.65 / 0.45 / 0.36 / 0.8m
Cab parameters
Cab: Single Row / Tangjun Dump T1
Cab tilting: Manual
FAQ
What kind of truck is Tangjun Ouling T1 Light Truck Dump Trucks?
Tangjun Ouling T1 Light Truck is an export-oriented Dump Trucks lineup with about 11 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Tangjun Ouling T1 Light Truck Dump Trucks?
Tangjun Ouling T1 Light Truck Dump Trucks export reference is about $10,347 – $15,000. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Tangjun Ouling T1 Light Truck Dump Trucks cover?
Tangjun Ouling T1 Light Truck Dump Trucks mainly covers: Drive: 4x2; Horsepower: 110 hp / 115 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Tangjun Ouling T1 Light Truck Dump Trucks?
For Tangjun Ouling T1 Light Truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Tangjun Ouling T1 Light Truck Dump Trucks include?
Tangjun Ouling T1 Light Truck Dump Trucks currently lists about 11 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Tangjun Ouling T1 Light Truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
