Beiben V3 Heavy Truck 430hp 8X4(12 wheels) 6.5m Dump Truck (China VI)
EXW
Export quote
Beiben V3 heavy truck Dump Trucks
Main model photos
279 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Beiben V3 Heavy Truck 430hp 8X4(12 wheels) 6.5m Dump Truck (China VI) | 8x4 / 430hp / China VI | ||
| Beiben V3 Heavy Truck 320 hp 8X4(12 wheels) 5.6m Dump Truck | 8x4 / 320hp / China VI |

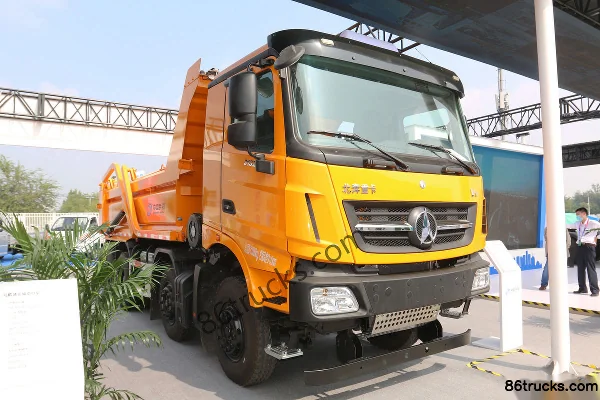

Beiben V3 Heavy Truck 320 hp 8X4(12 wheels) 5.6m Dump Truck
EXW
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Beiben V3 Heavy Truck 375hp 8X4(12 wheels) 7.4m Dump Truck | 8x4 / 375hp / China V | ||
| Beiben V3 Heavy Truck Southwest King 550hp 6X4(10 wheels) 6m Dump Truck | 6x4 / 550hp / China V | ||
| Beiben V3 heavy truck 430hp 8X4(12 wheels) 6.5m dump truck | 8x4 / 430hp / China V | From $51,361 | |
| Beiben V3 Heavy Truck Composite Version 375hp 8X4(12 wheels) 5.8m Dump Truck | 8x4 / 375hp / China V | From $59,069 | |
| Beiben V3 heavy truck 375 hp 8X4(12 wheels) 6.8 m dump truck | 8x4 / 375hp / China V | From $56,944 |
Beiben V3 Heavy Truck 375hp 8X4(12 wheels) 7.4m Dump Truck
EXW
Export quote
Beiben V3 Heavy Truck Southwest King 550hp 6X4(10 wheels) 6m Dump Truck
EXW
Export quote
Beiben V3 heavy truck 430hp 8X4(12 wheels) 6.5m dump truck
EXW
From $51,361
Export quote
Beiben V3 Heavy Truck Composite Version 375hp 8X4(12 wheels) 5.8m Dump Truck
EXW
From $59,069
Export quote
Beiben V3 heavy truck 375 hp 8X4(12 wheels) 6.8 m dump truck
EXW
From $56,944
Export quote
Series Specs
Basic Info
Model code (announced): ND3310DD5J7Z01 / ND3310DD6J7Z01 / ND3250BD5J7Z08 / ND3310DD5J7Z06 / ND3310DD6J7Z05 / ND3310DD5J6Z00 / ND3310DD5J7Z07 / ND3250BD5J7Z07
Drive type: 8X4 / 6X4
Wheelbase: 1950+3700+1450 / 1950+3150+1350 / 4100+1450 / 1950+2550+1350 / 1950+3100+1450 / 1950+4600+1450 / 1950+4300+1450 / 1950+3400+1450 / 4400+1450 / 1950+4000+1450 / 1950+2500+1450 / 3800+1450 / 1950+3750+1350 / 4150+1350 / 3850+1350mm
Engine Model: WeichaiWP12.375E50 / WeichaiWP12.430E62 / WeichaiWP13.550E501 / WeichaiWP12.430E50 / WeichaiWP10H375E50 / WeichaiWP8.320E61 / WeichaiWP12.460E50
Transmission Model: Fast Gear12JS200T+QH50 / Fast Gear 12-speed / Fast GearC12JSDQXL260T / Fast Gear12JSDX220T-B / Fast Gear12JSD200T / Fast Gear10JSD140T+QH / Fast Gear12JSDX220T / Fast Gear12JSDX240T / Fast Gear12JSD180T / Fast Gear12JS200T / Fast Gear10JSD140T
Rear Axle Ratio: 5.263 / 4.769
Cab length: 10.535 / 9.165 / 9.185 / 9.775 / 8.795 / 9.705 / 11.915 / 11.715 / 11.165 / 9.735 / 11.315 / 9.355 / 10.865 / 10.485 / 10.105 / 8.935 / 8.635 / 8.945 / 9.915 / 11.435 / 10.935 / 9.635 / 10.665 / 10.235 / 8.535 / 8.835 / 8.385m
Cab width: 2.55m
Cab height: 3.484 / 3.63m
Front track width: 2042/2042 / 2004/2004 / 2004mm
rear track: 1878/1878 / 1874/1874 / 1904/1904mm
Curb Weight: 14.87 / 15.5 / 12.5 / 15.2 / 15.59 / 15.4 / 15.3 / 12.45 / 12.35ton
Rated payload: 16 / 15.37 / 12.37 / 15.67 / 15.28 / 15.47 / 15.57 / 12.42 / 12.52ton
GVWR: 31 / 25ton
Origin: Baotou, Inner Mongolia
tonnage class: Heavy truck
Approach angle: 17°
departure angle: 25 / 21 / 35 / 36 / 37 / 26°
Remarks: QH50 / QH50 PTO / Transmission QH50 (spline) / QH50 PTO, optional ratio 5.921 / QH50 PTO, optional ratio 5.921, optional transmission 12JSDX240T+QH50 (spline) / QH50 PTO, optional ratio 5.921, 400L aluminum / QH50 PTO, optional 16T Beiben dual reduction axle 5.921, 400L aluminum / QH50 PTO, transmission optional 12JSD200T; ratio optional 5.921 / QH50 PTO, optional 13T Beiben dual reduction axle 5.921, 400L aluminum
Version: composite version
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Number of cylinders: 6cylinder
Displacement: 11.596 / 11.6 / 12.54 / 9.5 / 7.8L
Emission standard: China V / China VI
Max output power: 276 / 316 / 405 / 235 / 338kW
Max hp: 375 / 430 / 550 / 320 / 460Horsepower
Max torque: 1800 / 2100 / 2550 / 2060 / 1400 / 2110N·m
Max torque speed: 1000-1400rpm
Rated speed: 1900 / 2100rpm
Engine Type: Inline, water-cooled, six-cylinder, electronically controlled high-pressure common rail SCR / CR+DOC+DPF+Hi_SCR / Inline 6-cylinder, electronically controlled high-pressure common rail + SCR / Electronic high-pressure common rail + SCR / Inline 6-cylinder, water-cooled, 4-stroke, high-pressure common rail, turbocharged intercooled, EGR / Inline, water-cooled, six-cylinder, electronically controlled high-pressure common rail + SCR
Transmission Parameters
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12 / 10Gear
Number of Reverse Gears: 2pcs
Housing Material: aluminum housing
Cargo box parameters
Unloading Type: Dump type / Rear-dump body
Cargo box type: square box / Dump type / Rear-dump body
Cargo box length: 7.4 / 6.5 / 6 / 5.6 / 6.8 / 8.8 / 8.6 / 8 / 8.2 / 6.2 / 7.6 / 7.2 / 5.8 / 7.8 / 5.4m
Cargo box width: 2.35 / 2.3m
FAQ
What kind of truck is Beiben Truck Beiben V3 heavy truck Dump Trucks?
Beiben Truck Beiben V3 heavy truck is an export-oriented Dump Trucks lineup with about 96 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Beiben V3 heavy truck Dump Trucks?
Beiben V3 heavy truck Dump Trucks export reference is about $41,778 – $63,833. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Beiben V3 heavy truck Dump Trucks cover?
Beiben V3 heavy truck Dump Trucks mainly covers: Drive: 6x4 / 8x4; Horsepower: 320 hp / 375 hp / 430 hp / 550 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Beiben V3 heavy truck Dump Trucks?
For Beiben V3 heavy truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Beiben V3 heavy truck Dump Trucks include?
Beiben V3 heavy truck Dump Trucks currently lists about 96 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Beiben V3 heavy truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
