Dongfeng Tianjin KS 220 hp 6X2(8 wheels) 6X2R 4.3m dump truck (lift axle)
EXW
From $30,556
Export quote
Dongfeng Tianjin KS light truck Dump Trucks
Main model photos
28 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng Tianjin KS 220 hp 6X2(8 wheels) 6X2R 4.3m dump truck (lift axle) | 6x2 / 220hp / China V | From $30,556 | |
| Dongfeng Tianjin KS 180 hp 4X2(6 wheels) 4.5m dump truck (8-speed) | 4x2 / 180hp / China V | From $21,111 | |
| Dongfeng Tianjin KS 220 hp 6X2(8 wheels) 4.3m Dump Truck | 6x2 / 220hp / China V | From $28,889 | |
| Dongfeng Tianjin KS 220 hp 6X2(8 wheels) 4.8m Dump Truck | 6x2 / 220hp / China V | From $28,889 | |
| Dongfeng Tianjin KS 220hp 6X2(8 wheels) 4.6m dump truck | 6x2 / 220hp / China V | From $28,194 |

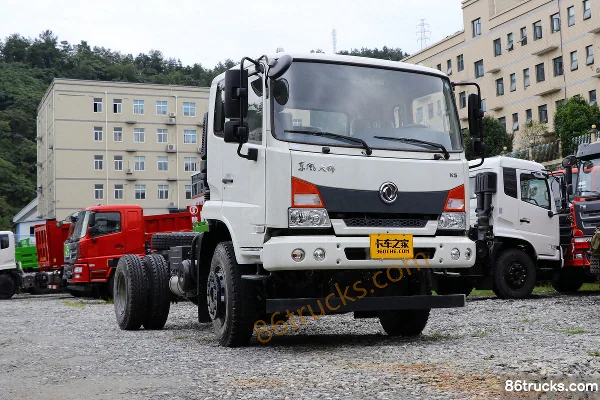

Dongfeng Tianjin KS 180 hp 4X2(6 wheels) 4.5m dump truck (8-speed)
EXW
From $21,111
Export quote
Dongfeng Tianjin KS 220 hp 6X2(8 wheels) 4.3m Dump Truck
EXW
From $28,889
Export quote
Dongfeng Tianjin KS 220 hp 6X2(8 wheels) 4.8m Dump Truck
EXW
From $28,889
Export quote
Dongfeng Tianjin KS 220hp 6X2(8 wheels) 4.6m dump truck
EXW
From $28,194
Export quote
Series Specs
Basic Info
Model code (announced): DFV3250GD5D / EQ3160GZ5D / LDW3240GD5D / EQ3240GSZ5D / EQ3180GD5D / EQ3180GD5D1 / EQ3240GD5D / EQ3160GZ5D1
Drive type: 6X2 / 4X2
Wheelbase: 2400+1250 / 3800 / 2550+1250 / 1800+4500 / 1850+4000 / 1800+2150 / 1800+2700 / 1800+5200 / 1800+3900 / 4200 / 4500 / 3400 / 3650 / 3950 / 5100mm
Engine Model: YuchaiYC6JA220-50 / YuchaiYC6JA180-50 / YuchaiYC4EG220-50 / YuchaiYC4E160-56 / YuchaiYC4EG185-50
Transmission Model: Fast Gear10JS90A-B / Fast Gear8JS85E / Fast Gear10JS90 / Fast Gear 10-Speed / Fast Gear8JS118A / Fast Gear10JS90A
Rear Axle Ratio: 6.33 / 4.88 / 4.875 / 5.286 / 5.57 / 6.17 / 5.83 / 6.83 / 5.14
Cab length: 6.8 / 7.18 / 7.05 / 9.65 / 9.1 / 6.9 / 7.45 / 7.65 / 8.05 / 10.05 / 8.45 / 8.85 / 10.45 / 7.75 / 6.45 / 7.4 / 6.85 / 6.88 / 7.88 / 7.25 / 8.6m
Cab width: 2.55 / 2.4m
Cab height: 3.45 / 3.18 / 2.7 / 2.8 / 3.15 / 3.21 / 3.31 / 3.25m
Front track width: 1810/1810 / 1810 / 1910/1910 / 1940 / 1965/1965 / 1900mm
rear track: 1860 / 1800 / 1750 / 1860/1860mm
Curb Weight: 8.6 / 7.675 / 10.6 / 10.2 / 9.99 / 9 / 9.59 / 7.88ton
Rated payload: 16.205 / 7.93 / 14.305 / 14.005 / 8.805 / 14.705 / 7.725 / 15.605ton
GVWR: 25 / 15.8 / 24.49 / 24.4 / 18ton
Origin: Shiyan, Hubei / Hubei Laohekou / Xiangyang, Hubei / Wuhan, Hubei
tonnage class: Medium-duty truck / Light Truck
Approach angle: 19 / 28 / 20 / 29 / 23°
departure angle: 13 / 16 / 17 / 24 / 20°
Remarks: Optional 300L aluminum alloy fuel tank, optional 5.57 rear axle ratio / Ratio optional 6.83, fuel tank optional 200L aluminum alloy
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Number of cylinders: 6 / 4cylinder
Displacement: 6.87 / 4.73 / 4.26L
Emission standard: China V
Max output power: 162 / 132 / 160 / 118 / 136kW
Max hp: 220 / 180 / 160 / 185Horsepower
Max torque: 860 / 700 / 800 / 600N·m
Max torque speed: 1200-1800 / 1300-1700 / 1300-1600 / 1300-1800rpm
Rated speed: 2300 / 2500 / 2600rpm
Engine Type: Vertical, inline, water-cooled, four-stroke / Vertical, inline, water-cooled, four-stroke, high-pressure common rail
Technology route: Common Rail SCR
Transmission Parameters
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10 / 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body / Dump type
Cargo box length: 4.3 / 4.5 / 4.8 / 4.6 / 6.8 / 6.2 / 4.4 / 5.2 / 7.2 / 5.6 / 6 / 7.6 / 5.4 / 3.8 / 4.2 / 4.75 / 6.5m
Cargo box width: 2.2 / 2.35m
Cargo box height: 1.5 / 0.8 / 1.3 / 0.6m
Cab parameters
Cab: Flat Roof D530-J / Tianjin D530 / Sleeper cab / D530-J(KS) / Jiayun Flat Roof
FAQ
What kind of truck is Dongfeng Dongfeng Tianjin KS light truck Dump Trucks?
Dongfeng Dongfeng Tianjin KS light truck is an export-oriented Dump Trucks lineup with about 32 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Dongfeng Tianjin KS light truck Dump Trucks?
Dongfeng Tianjin KS light truck Dump Trucks export reference is about $17,361 – $32,986. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Dongfeng Tianjin KS light truck Dump Trucks cover?
Dongfeng Tianjin KS light truck Dump Trucks mainly covers: Drive: 4x2 / 6x2; Horsepower: 180 hp / 220 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Dongfeng Tianjin KS light truck Dump Trucks?
For Dongfeng Tianjin KS light truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Dongfeng Tianjin KS light truck Dump Trucks include?
Dongfeng Tianjin KS light truck Dump Trucks currently lists about 32 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Dongfeng Tianjin KS light truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
