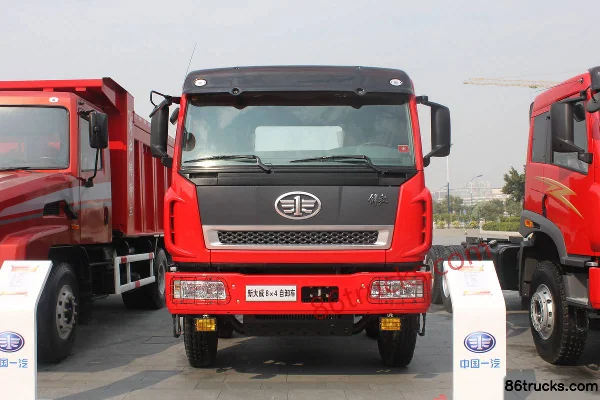

FAW Jiefang Qingdao Xindawei Heavy Truck 380 hp 8X4(12 wheels) 7.6m Dump Truck
EXW
Export quote
FAW Jiefang Qingdao New Dawei Heavy Truck Dump
Main model photos
155 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| FAW Jiefang Qingdao Xindawei Heavy Truck 380 hp 8X4(12 wheels) 7.6m Dump Truck | 8x4 / 380hp / China III / Euro III | ||
| FAW Jiefang Qingdao Xindawei Heavy Truck 375 hp 8X4(12 wheels) 8.6m Dump Truck | 8x4 / 375hp / China III / Euro III | ||
| FAW Jiefang Qingdao Xindawei Heavy Truck 330 hp 8X4(12 wheels) 9.5m Dump Truck | 8x4 / 330hp / China III / Euro III | ||
| FAW Jiefang Qingdao New Dawei Heavy Truck 380 hp 8X4(12 wheels) 8 m LNG Dump Truck | 8x4 / 380hp / China IV | ||
| FAW Jiefang Qingdao New Dawei Heavy Truck 380 hp 8X4(12 wheels) 8 m Dump Truck | 8x4 / 380hp / China III / Euro III |
FAW Jiefang Qingdao Xindawei Heavy Truck 375 hp 8X4(12 wheels) 8.6m Dump Truck
EXW
Export quote
FAW Jiefang Qingdao Xindawei Heavy Truck 330 hp 8X4(12 wheels) 9.5m Dump Truck
EXW
Export quote
FAW Jiefang Qingdao New Dawei Heavy Truck 380 hp 8X4(12 wheels) 8 m LNG Dump Truck
EXW
Export quote
FAW Jiefang Qingdao New Dawei Heavy Truck 380 hp 8X4(12 wheels) 8 m Dump Truck
EXW
Export quote
Series Specs
Basic Info
Model code (announced): CA3312P2K2L4T4EA80 / CA3310P2K8L5T4EA80 / CA3310P2K2L7T4EA82 / CA3310P2K2L5T4NA80 / CA3310P2K2L5T4EA82 / CA3310P2K2L4T4EA82 / CA3301P2K2L7T4EA80 / CA3300P2K2L1T4EA81 / CA3257P2K2T1EA80 / CA3256P2K2T1NA80 / CA3256P2K2T1EA80 / CA3251P2K2L3T1E4A80 / CA3245P2K2T1EA82 / CA3245P2K2T1EA80 / CA3208P2K2L2T1EA80 / CA3256P2K2T1EA81 / CA3300P2K2L2T4EA80 / CA3256P2K2L3T1EA80 / CA3166P2K2T1EA80 / CA3300P2K2L1T4EA80
Drive type: 8X4 / 6X4
Wheelbase: 1860+3960+1350 / 1860+4310+1450 / 1860+4660+1350 / 1860+4360+1350 / 1860+2800+1350 / 4600+1350 / 3775+1450 / 3740+1350 / 3700+1350 / 3200+1350 / 4080+1350 / 1860+3700+1350 / 3825+1350mm
Engine Model: WeichaiWP10.380E32 / YuchaiYC6M375-33 / XichaiCA6DL2-33E3 / WeichaiWP12NG380E40 / WeichaiWP12.380E32 / XichaiCA6DM2-37E3F / WeichaiWP10.375 / WeichaiWP10.336NE31 / WeichaiWP12NG350E40 / WeichaiWP10.300NE31 / WeichaiWP10.336E40 / XichaiCA6DL2-33E3F / YuchaiYC6L290-33 / WeichaiWP10.336N / WeichaiWP10.290 / WeichaiWP10.300N
Transmission Model: Fast Gear12JSD160T / Fast GearRT-11509C / Fast Gear12JSD200TA / FAW JiefangCA10TA190M / Fast Gear12JSD180T / Fast Gear12JSD160TA / FAW JiefangCA10TAX160M / Fast Gear9JS119 / Fast Gear8JS118
Rear Axle Ratio: 5.921 / 5.26 / 4.875 / 5.73 / 5.285 / 5.926
Cab length: 10.028 / 11.058 / 11.99 / 10.888 / 10.208 / 11.993 / 9.648 / 9.36 / 8.193 / 8.383 / 7.66 / 8.705 / 9.86 / 8.592 / 8.86m
Cab width: 2.5 / 2.49m
Cab height: 3.185 / 3.25 / 3.28 / 3.3m
Front track width: 2020/2020 / 2050/2050 / 1939 / 2026 / 2020 / 1914mm
rear track: 1840/1840 / 1847/1847mm
Curb Weight: 14.77 / 15.5 / 15.2 / 15.08 / 15.12 / 14.28 / 12.28 / 12.08 / 12.13 / 11.88 / 10.1 / 14.94 / 12.5 / 7.96 / 14.84ton
Rated payload: 16.035 / 15.305 / 15.605 / 15.725 / 14.925 / 15.425 / 12.505 / 12.79 / 12.675 / 11.925 / 9.905 / 14.805 / 12.37 / 7.925 / 14.865ton
GVWR: 31 / 30.24 / 29.9 / 24.98 / 25 / 24 / 20.2 / 29.94 / 16.08ton
Origin: Qingdao, Shandong
tonnage class: Heavy truck
Approach angle: 24 / 25 / 27 / 18°
departure angle: 39 / 18 / 11 / 34 / 32 / 42 / 12°
Remarks: Optional environmental cover; dump body unloads by rear tipping. Optional front face cab. When overall length is 8193 and 8393 mm, body interior lengths are 5400 and 5600 mm respectively, wheelbase 3740+1350 mm, rear overhang 1610 and 1810 mm, curb weight 7960 kg, payload 7925 kg, 7990 kg, payload utilization factor 1.02; when overall length is 8643 and 8843 mm, body interior lengths are 6000 and 6200 mm respectively, wheelbase 4110+1350 mm, rear overhang 1690 and 1890 mm, curb weight 8040 kg, payload 7845 kg, 7910 kg, payload utilization factor 1.0. Front/rear overhang (mm) also: 1493/1890. / GCW vs engine: WP10.336N 18000kg, WP10.300N 12800kg, CA6DL1-29E3 11600kg, WP10.336NE31 9900kg, WP10.310NE31 9900kg, WP10.300NE31 9900kg, WP10.290NE31 9900kg, WP10.340E32 9900kg, WP10.310E32 9900kg, WP10.290E32 9900kg. Optional modified front cab; optional high-top cab and environmental cover; dump body rear unloading.
Version: LNG Edition
Energy Type: Diesel / LNG (liquefied natural gas)
Engine parameters
Engine Brand: Weichai / Yuchai / Xichai
Number of cylinders: 6cylinder
Displacement: 9.726 / 9.839 / 8.57 / 11.596 / 11.04 / 8.4L
Emission standard: China III / Euro III / China IV
Max output power: 280 / 276 / 249 / 275 / 247 / 257 / 221 / 213kW
Max hp: 380 / 375 / 330 / 370 / 336 / 350 / 300 / 290Horsepower
Max torque: 1600 / 1460 / 1350 / 1500 / 1650 / 1390 / 1400 / 1100 / 1250 / 1160N·m
Max torque speed: 1500-1800 / 1400-1600 / 1300-1500 / 1300-1400 / 1300 / 1200-1600 / 1350-1500 / 1500 / 1300-1600 / 1600 / 1200-1500rpm
Rated speed: 2200 / 2100 / 1900rpm
Engine Type: Water-cooled, four-stroke, with exhaust brake, direct injection, turbocharged intercooled / Inline, turbocharged with intercooler, inline pump, built-in EGR / Inline, direct injection, turbocharged, intercooled, electronically controlled unit pump / Water-cooled, wet cylinder liner, turbocharged intercooled, electronically controlled premixed, spark plug ignition, lean burn, single-point injection + oxidation catalyst / 6-cylinder inline, direct injection, turbocharged intercooled, inline pump + EGR / Water-cooled, 4-stroke, with exhaust brake, direct injection, turbocharged intercooled / Water-cooled, four-stroke, with exhaust brake / 6-cylinder inline, direct injection, turbocharged intercooled, inline pump EGR / Vertical, inline, water-cooled, four-stroke, direct injection
Transmission Parameters
Transmission Brand: Fast Gear / FAW Jiefang
shift method: Manual
Forward gears: 12 / 9 / 10 / 8Gear
Number of Reverse Gears: 2 / 1pcs
Cargo box parameters
Unloading Type: Rear-dump body / Dump type
Cargo box length: 7.6 / 8.6 / 9.5 / 8 / 6.8 / 6.5 / 5.4 / 4.8 / 6.2 / 7 / 5.6 / 6m
Cargo box width: 2.31 / 2.3m
Cargo box height: 1.08 / 0.99 / 0.87 / 1.06 / 0.96 / 0.855 / 1.19 / 0.88 / 1.23 / 0.8 / 1.065 / 1.12 / 1.29m
fuel tank
Fuel tank capacity: 400 / 500 / 300L
FAQ
What kind of truck is FAW Jiefang Qingdao FAW Jiefang Qingdao New Dawei Heavy Truck Dump Trucks?
FAW Jiefang Qingdao FAW Jiefang Qingdao New Dawei Heavy Truck is an export-oriented Dump Trucks lineup with about 21 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does FAW Jiefang Qingdao New Dawei Heavy Truck Dump cover?
FAW Jiefang Qingdao New Dawei Heavy Truck Dump mainly covers: Drive: 8x4; Horsepower: 330 hp / 375 hp / 380 hp; Emission: China III / Euro III / China IV; Fuel: Diesel / LNG (liquefied natural gas). Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in FAW Jiefang Qingdao New Dawei Heavy Truck Dump?
For FAW Jiefang Qingdao New Dawei Heavy Truck Dump: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does FAW Jiefang Qingdao New Dawei Heavy Truck Dump include?
FAW Jiefang Qingdao New Dawei Heavy Truck Dump currently lists about 21 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for FAW Jiefang Qingdao New Dawei Heavy Truck Dump?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
