SHACMAN Delong M3000 290 hp 6X4(10 wheels) 5.4m Dump Truck
EXW
Export quote
SHACMAN Delong M3000 Light Heavy Truck Dump Trucks
Main model photos
99 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| SHACMAN Delong M3000 290 hp 6X4(10 wheels) 5.4m Dump Truck | 6x4 / 290hp / China IV | ||
| SHACMAN Delong M3000 310 hp 6X4(10 wheels) 5.6m Dump Truck | 6x4 / 310hp / China III / Euro III | ||
| SHACMAN Delong M3000 290hp 8X4(12 wheels) 7.4m Dump Truck | 8x4 / 290hp / China III / Euro III | ||
| SHACMAN Delong M3000 310 hp 8X4(12 wheels) 7.6m Dump Truck | 8x4 / 310hp / China III / Euro III | From $45,278 |

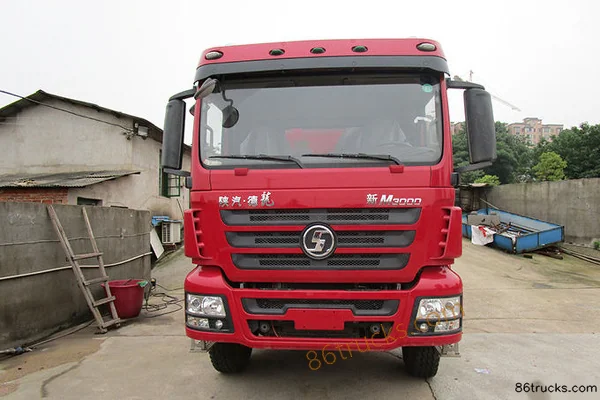

SHACMAN Delong M3000 310 hp 6X4(10 wheels) 5.6m Dump Truck
EXW
Export quote

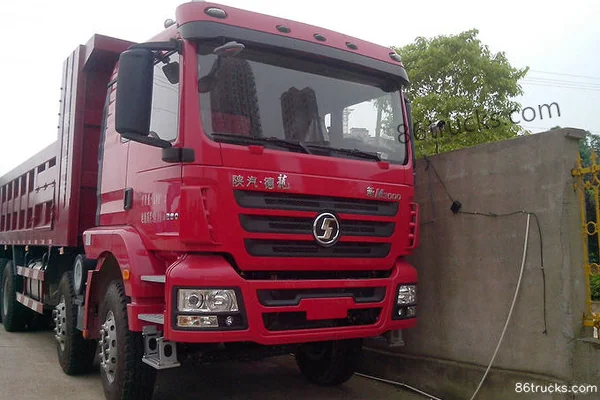

SHACMAN Delong M3000 290hp 8X4(12 wheels) 7.4m Dump Truck
EXW
Export quote
SHACMAN Delong M3000 310 hp 8X4(12 wheels) 7.6m Dump Truck
EXW
From $45,278
Export quote
Series Specs
Basic Info
Model code (announced): SX3256MR354 / SX3257HR384 / SX3315HR366
Drive type: 6X4 / 8X4
Wheelbase: 3575+1400 / 3775+1400 / 1800+3575+1400mm
Engine Model: WeichaiWP10.290E40 / WeichaiWP10.310E32 / WeichaiWP10.290E32
Transmission Model: Fast Gear10JSD140 / Fast Gear10JSD120
Rear Axle Ratio: 4.8 / 5.73 / 4.625
Cab length: 8.085 / 8.475 / 10.21 / 10.41m
Cab width: 2.49m
Cab height: 3.45m
Front track width: 2036 / 2011 / 2011/2011mm
rear track: 1860/1860 / 1860mm
Curb Weight: 12.195 / 12.255 / 14.95ton
Rated payload: 12.675 / 12.615 / 15.92ton
GVWR: 25 / 31ton
Origin: Xi'an, Shaanxi
tonnage class: Heavy truck
Approach angle: 27 / 22°
departure angle: 13 / 12 / 11°
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Number of cylinders: 6cylinder
Displacement: 9.726L
Emission standard: China IV / China III / Euro III
Max output power: 213 / 228kW
Max hp: 290 / 310Horsepower
Max torque: 1420 / 1250 / 1160N·m
Max torque speed: 1200-1500 / 1200-1600rpm
Rated speed: 1900 / 2200rpm
Engine Type: Electronic high-pressure common rail + SCR / Water-cooled, 4-stroke, with exhaust brake, direct injection, turbocharged intercooled / Water-cooled, four-stroke, with exhaust brake, direct injection, turbocharged intercooled
Transmission Parameters
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type / Rear-dump body
Cargo box length: 5.4 / 5.6 / 7.4 / 7.6m
Cargo box width: 2.3m
Cargo box height: 1.2 / 1.14 / 1.1m
fuel tank
Fuel tank capacity: 400L
Chassis Specs
Front axle allowable load: 7000kg
rear axle description: Hande 16-ton MAN-technology double reduction axle / 16t STR double reduction axle / Tandem axle
FAQ
What kind of truck is SHACMAN SHACMAN Delong M3000 Light Heavy Truck Dump Trucks?
SHACMAN SHACMAN Delong M3000 Light Heavy Truck is an export-oriented Dump Trucks lineup with about 4 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for SHACMAN Delong M3000 Light Heavy Truck Dump Trucks?
SHACMAN Delong M3000 Light Heavy Truck Dump Trucks export reference is about From $45,278. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does SHACMAN Delong M3000 Light Heavy Truck Dump Trucks cover?
SHACMAN Delong M3000 Light Heavy Truck Dump Trucks mainly covers: Drive: 6x4 / 8x4; Horsepower: 290 hp / 310 hp; Emission: China III / Euro III / China IV; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in SHACMAN Delong M3000 Light Heavy Truck Dump Trucks?
For SHACMAN Delong M3000 Light Heavy Truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does SHACMAN Delong M3000 Light Heavy Truck Dump Trucks include?
SHACMAN Delong M3000 Light Heavy Truck Dump Trucks currently lists about 4 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for SHACMAN Delong M3000 Light Heavy Truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
