Foton Xiaojingang 102 hp 4X2(6 wheels) 2.7m dump truck
EXW
From $13,333
Export quote
Foton Xiaojingang Mini Truck Dump Trucks
Main model photos
274 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton Xiaojingang 102 hp 4X2(6 wheels) 2.7m dump truck | 4x2 / 102hp / China VI | From $13,333 | |
| Foton Xiaojingang C Edition 95hp 4X2(6 wheels) 2.79m dump truck | 4x2 / 95hp / China VI | From $11,667 | |
| Foton Xiaojingang Q Edition 1.6L 122 hp gasoline 4X2(6 wheels) 2.36 m dump truck | 4x2 / 122hp / China VI | From $8,583 | |
| Foton Xiaojingang C Edition 95hp 4X2(6 wheels) 2.83m dump truck | 4x2 / 95hp / China VI | From $12,944 | |
| Foton Xiaojingang Q Edition 1.6L 122hp Gasoline 4X2(6 wheels) 2.36m Dump Truck (China VI) | 4x2 / 122hp / China VI | From $10,014 |
Foton Xiaojingang C Edition 95hp 4X2(6 wheels) 2.79m dump truck
EXW
From $11,667
Export quote

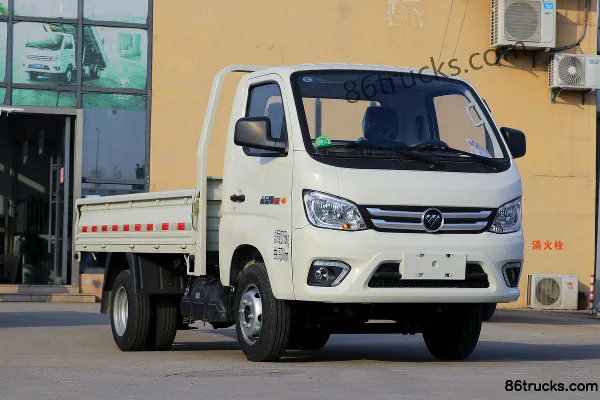

Foton Xiaojingang Q Edition 1.6L 122 hp gasoline 4X2(6 wheels) 2.36 m dump truck
EXW
From $8,583
Export quote
Foton Xiaojingang C Edition 95hp 4X2(6 wheels) 2.83m dump truck
EXW
From $12,944
Export quote
Foton Xiaojingang Q Edition 1.6L 122hp Gasoline 4X2(6 wheels) 2.36m Dump Truck (China VI)
EXW
From $10,014
Export quote
Upcoming
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton Xiaojingang I 95hp 4X2(6 wheels) 3.6m dump truck (China VI) | 4x2 / 95hp / China VI |
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton Xiaojingang Flatbed Type 95 hp 4X2(6 wheels) 3.6m Single Row Dump Truck (China VI) (Air Brake) | 4x2 / 95hp / China VI | From $12,486 | |
| Foton Xiaojingang Engineering Type 95 hp 4X2(6 wheels) 2.8m Single Row Dump Truck (China VI) (Air Brake) | 4x2 / 95hp / China VI | From $12,347 | |
| Foton Xiaojingang Q Edition 122 hp 4X2(6 wheels) 2.7m Dump Truck (China VI) | 4x2 / 122hp / China VI | ||
| Foton Xiaojingang C version 95 hp 4X2(6 wheels) 3.6m dump truck (China VI) | 4x2 / 95hp / China VI | ||
| Foton Xiaojingang C version 95 hp 4X2(6 wheels) 3.3m dump truck (China VI) | 4x2 / 95hp / China VI |
Foton Xiaojingang Flatbed Type 95 hp 4X2(6 wheels) 3.6m Single Row Dump Truck (China VI) (Air Brake)
EXW
From $12,486
Export quote
Foton Xiaojingang Engineering Type 95 hp 4X2(6 wheels) 2.8m Single Row Dump Truck (China VI) (Air Brake)
EXW
From $12,347
Export quote
Foton Xiaojingang Q Edition 122 hp 4X2(6 wheels) 2.7m Dump Truck (China VI)
EXW
Export quote
Foton Xiaojingang C version 95 hp 4X2(6 wheels) 3.6m dump truck (China VI)
EXW
Export quote
Foton Xiaojingang C version 95 hp 4X2(6 wheels) 3.3m dump truck (China VI)
EXW
Export quote
Series Specs
Basic Info
Model code (announced): BJ3042D9JA3-02 / BJ3042D9PBA-03 / BJ3031D4AV4-01 / BJ3032D4AV5-05 / BJ3032D4PV4-05 / BJ3032D4JV4-05 / BJ3042D9ABA-03 / BJ3042D8ABA-08 / BJ3042D9PBA-04 / BJ3042D9JBA-03 / BJ3042D9JBA-04 / BJ3042D8PBA-01 / BJ3042D9JBA-02 / BJ1045V9JBA-54 / BJ3042D8ABA-01 / BJ3031D3AV4-02 / BJ3031D3JV3-02
Drive type: 4X2
Wheelbase: 2400 / 2700 / 2800 / 2850 / 2450 / 2950 / 2550 / 3100mm
Engine Model: Yunnei PowerD20TCIF67 / QuanchaiQ23-95E60 / DonganDAM16KL / QuanchaiQ23-95C60
Transmission Model: WLY 5-speed / MengwoMW5G28 / DonganDAT18R / DonganDAT18RA / Mengwo5G28 / 5-speed gearbox / WLYWLY5G28 / 5-speed transmission
Rear Axle Ratio: 5.833 / 5.286 / 4.875 / 5.125
Cab length: 4.63 / 4.975 / 4.995 / 4.99 / 4.999 / 4.76 / 4.7 / 4.65 / 4.755 / 4.695 / 5.48 / 5.1 / 4.86 / 4.8 / 5.52 / 5.2 / 4.84 / 5.51 / 5.27 / 5.235 / 4.56 / 5.025m
Cab width: 1.865 / 1.95 / 1.82 / 1.92 / 1.78 / 1.8 / 1.77 / 1650 / 1550m
Cab height: 1.999 / 2.03 / 1.95 / 2.07 / 2.05 / 1.99 / 1.96m
Front track width: 1430 / 1475 / 1305 / 1432 / 1445 / 1320mm
rear track: 1490 / 1547 / 1410 / 1515 / 1528 / 1510 / 1330 / 1280mm
Curb Weight: 2.37 / 2.57 / 1.68 / 2.005 / 2.51 / 2.46 / 2.45 / 2.56 / 2.5 / 2.425 / 2.6 / 1.74 / 1.63ton
Rated payload: 1.995 / 1.795 / 1.245 / 1.165 / 1.315 / 1.36 / 1.66 / 1.455 / 1.905 / 1.505 / 1.535 / 1.915 / 1.805 / 1.545 / 1.495 / 1.94 / 0.745 / 0.995ton
GVWR: 4.495 / 3.25 / 3.495 / 4.29 / 4.125 / 4.42 / 2.81 / 2.755ton
Origin: Shandong Zhucheng
tonnage class: mini truck / Light Truck
Approach angle: 22 / 21°
departure angle: 23 / 30 / 19 / 18°
Remarks: Standard: Daytime running lights, T-BOX; Optional: Tubeless radial tires 6.00R15 (without spare tire), Tube-type radial tires 6.00R15 (without spare tire), Multimedia (MP5). / Standard: Daytime running lights, T-BOX; Optional: Tubeless radial tires 6.00R15 / Tube-type radial tires 6.00R15, Multimedia (MP5). / Brake type: hydraulic brake; optional multimedia; optional T-BOX; electric power steering
Version: C Edition / Chuangyeban / Q cab / Heavy-duty type / Flatbed type
Energy Type: Diesel / gasoline
Engine parameters
Engine Brand: Yunnei Power / Quanchai / Dongan
Number of cylinders: 4cylinder
Displacement: 1.999 / 2.3 / 1.597L
Emission standard: China VI
Max output power: 75 / 70 / 90kW
Max hp: 102 / 95 / 122Horsepower
Max torque: 240 / 158N·m
Max torque speed: 2000rpm
Rated speed: 3000 / 6000rpm
Transmission Parameters
Transmission Brand: WLY / Mengwo / Dongan
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
hydraulic cylinder brand & model: 70 double lift / 2TG-E70×400
Unloading Type: Rear-dump body / Dump type
Cargo box length: 2.7 / 2.79 / 2.36 / 2.83 / 2.85 / 2.6 / 2.8 / 3.1 / 2.29 / 3.09 / 3.3 / 3.6 / 3.2m
Cargo box width: 1.7 / 1.65 / 1.8m
Cargo box height: 0.45 / 0.65 / 0.4 / 0.6 / 0.36/0.4 / 0.36m
Body Parameters
Lifting type: 2TG-E70×370 dual lift cylinders / Double Lift Cylinder
FAQ
What kind of truck is Foton Foton Xiaojingang Mini Truck Dump Trucks?
Foton Foton Xiaojingang Mini Truck is an export-oriented Dump Trucks lineup with about 71 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Foton Xiaojingang Mini Truck Dump Trucks?
Foton Xiaojingang Mini Truck Dump Trucks export reference is about $8,583 – $13,528. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Foton Xiaojingang Mini Truck Dump Trucks cover?
Foton Xiaojingang Mini Truck Dump Trucks mainly covers: Drive: 4x2; Horsepower: 95 hp / 102 hp / 122 hp; Emission: China VI; Fuel: Diesel / gasoline. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Foton Xiaojingang Mini Truck Dump Trucks?
For Foton Xiaojingang Mini Truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Foton Xiaojingang Mini Truck Dump Trucks include?
Foton Xiaojingang Mini Truck Dump Trucks currently lists about 71 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Foton Xiaojingang Mini Truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
