FAW Jiefang Qingdao New Hanwei J5M heavy truck 290 hp 8X4(12 wheels) 7.2m dump truck
EXW
From $38,889
Export quote
FAW Jiefang Qingdao New Hanwei J5M Heavy Truck Dump
Main model photos
132 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| FAW Jiefang Qingdao New Hanwei J5M heavy truck 290 hp 8X4(12 wheels) 7.2m dump truck | 8x4 / 290hp / China IV | From $38,889 | |
| FAW Jiefang Qingdao New Hanwei J5M Heavy Truck 280hp 8X4(12 wheels) 7m LNG Dump Truck | 8x4 / 280hp / China IV | ||
| FAW Jiefang Qingdao New Hanwei (J5M) Heavy Truck 336 hp 8X4(12 wheels) 8m Dump Truck | 8x4 / 336hp / China III / Euro III | ||
| FAW Jiefang Qingdao New Hanwei (J5M) Heavy Truck 240 hp 8X4(12 wheels) 7.2m Dump Truck | 8x4 / 240hp / China III / Euro III | ||
| FAW Jiefang Qingdao New Hanwei (J5M) Heavy Truck 270 hp 8X4(12 wheels) 6.8m Dump Truck | 8x4 / 270hp / China III / Euro III |

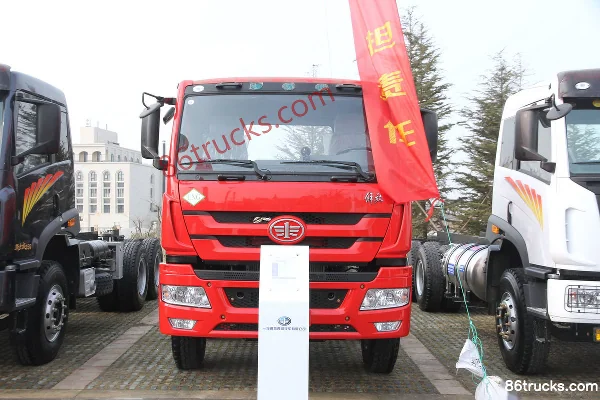

FAW Jiefang Qingdao New Hanwei J5M Heavy Truck 280hp 8X4(12 wheels) 7m LNG Dump Truck
EXW
Export quote

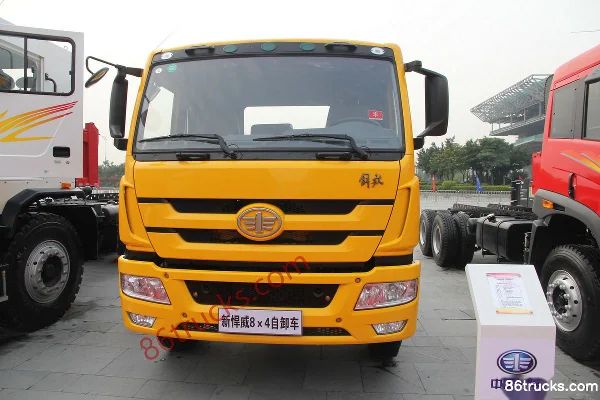

FAW Jiefang Qingdao New Hanwei (J5M) Heavy Truck 336 hp 8X4(12 wheels) 8m Dump Truck
EXW
Export quote
FAW Jiefang Qingdao New Hanwei (J5M) Heavy Truck 240 hp 8X4(12 wheels) 7.2m Dump Truck
EXW
Export quote
FAW Jiefang Qingdao New Hanwei (J5M) Heavy Truck 270 hp 8X4(12 wheels) 6.8m Dump Truck
EXW
Export quote
Series Specs
Basic Info
Model code (announced): CA3310P1K2L4T4E4A80 / CA3310P1K15L3T4NA80 / CA3300P2K2L5T4EA80 / CA3310P2K2L3T10EA80 / CA3300P1K2L3T4EA80 / CA3310P1K2L3T4EA80
Drive type: 8X4
Wheelbase: 1900+3450+1350 / 1900+3650+1350 / 1860+4360+1350mm
Engine Model: XichaiCA6DL1-29E4 / WeichaiWP10NG280E40 / WeichaiWP10.336NE31 / DachaiCA6DE3-24E3F / WeichaiWP10.270NE31 / XichaiCA6DF3-26E3F
Transmission Model: FAW JiefangCA10TAX130M / FAW JiefangCA10TA130M / Fast GearRT-11509C / Fast Gear8JS118 / Fast Gear9JSD135
Rear Axle Ratio: 5.286 / 5.26 / 4.875
Cab length: 10.095 / 10.005 / 10.888 / 9.955 / 9.805 / 10.205m
Cab width: 2.5 / 2.49m
Cab height: 3.25 / 3.28m
Front track width: 1964/1964 / 2020/2020 / 1922/1922 / 1912/1912mm
rear track: 1847/1847 / 1840/1840mm
Curb Weight: 14.77 / 15 / 14.785 / 14.495ton
Rated payload: 16.035 / 14.925 / 16.02 / 14.9ton
GVWR: 31 / 30.12 / 29.59ton
Origin: Qingdao, Shandong
tonnage class: Heavy truck
Approach angle: 21 / 24 / 23°
departure angle: 36 / 42 / 39 / 33 / 34°
Remarks: Qingdao / Optional: Yuchai YC6L310-33 / Yuchai YC6L290-33 / Yuchai YC6L270-33
Version: LNG Edition
Energy Type: Diesel / LNG (liquefied natural gas)
Engine parameters
Engine Brand: Xichai / Weichai / Dachai
Number of cylinders: 6cylinder
Displacement: 7.7 / 9.726 / 6.618 / 7.12L
Emission standard: China IV / China III / Euro III
Max output power: 216 / 206 / 247 / 177 / 199 / 192kW
Max hp: 290 / 280 / 336 / 240 / 270 / 260Horsepower
Max torque: 1150 / 1060 / 1390 / 890 / 1270 / 930N·m
Max torque speed: 1300-1700 / 1400-1600 / 1350-1500 / 1400 / 1300-1500rpm
Rated speed: 2300 / 2200 / 1900rpm
Engine Type: 8-cylinder inline, direct injection, turbocharged intercooled, electronic common rail / Water-cooled, wet cylinder liner, turbocharged intercooled, electronically controlled premixed, spark plug ignition, lean burn / Water-cooled, 4-stroke, with exhaust brake, direct injection, turbocharged intercooled / Water-cooled, four-stroke, with exhaust brake, direct injection, turbocharged intercooled / 6-cylinder inline, direct injection, turbocharged intercooled, electronic common rail
Transmission Parameters
Transmission Brand: FAW Jiefang / Fast Gear
shift method: Manual
Forward gears: 10 / 9 / 8Gear
Number of Reverse Gears: 2 / 1pcs
Cargo box parameters
Unloading Type: Dump type / Rear-dump body
Cargo box length: 7.2 / 7 / 8 / 6.83m
Cargo box width: 2.31 / 2.3m
Cargo box height: 1.17 / 0.94 / 1.175 / 1.095m
fuel tank
Fuel tank capacity: 450 / 600 / 300L
FAQ
What kind of truck is FAW Jiefang Qingdao FAW Jiefang Qingdao New Hanwei J5M Heavy Truck Dump Trucks?
FAW Jiefang Qingdao FAW Jiefang Qingdao New Hanwei J5M Heavy Truck is an export-oriented Dump Trucks lineup with about 6 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for FAW Jiefang Qingdao New Hanwei J5M Heavy Truck Dump?
FAW Jiefang Qingdao New Hanwei J5M Heavy Truck Dump export reference is about From $38,889. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does FAW Jiefang Qingdao New Hanwei J5M Heavy Truck Dump cover?
FAW Jiefang Qingdao New Hanwei J5M Heavy Truck Dump mainly covers: Drive: 8x4; Horsepower: 240 hp / 270 hp / 280 hp / 290 hp / 336 hp; Emission: China III / Euro III / China IV; Fuel: Diesel / LNG (liquefied natural gas). Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in FAW Jiefang Qingdao New Hanwei J5M Heavy Truck Dump?
For FAW Jiefang Qingdao New Hanwei J5M Heavy Truck Dump: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does FAW Jiefang Qingdao New Hanwei J5M Heavy Truck Dump include?
FAW Jiefang Qingdao New Hanwei J5M Heavy Truck Dump currently lists about 6 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for FAW Jiefang Qingdao New Hanwei J5M Heavy Truck Dump?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
