FAW Jiefang Qingdao New Hanwei J5M Heavy Truck 280hp 8X4(12 wheels) 7m LNG Dump Truck

Export reference
MSRP N/A
Emission: China IV
Fuel: LNG (liquefied natural gas)
Transmission: FAW Jiefang
Curb Weight:: 14.77ton
Wheelbase:: 1900+3650+1350mm
Tire Size:: 11.00R20 16PR
Rated payload: 16.035ton
Drive 8X4 (12 wheels)
Horsepower 280
Cargo box type: Rear-dump body

Overview

The FAW Jiefang Qingdao New Hanwei J5M Heavy Truck 280hp 8X4(12 wheels) 7m LNG Dump Truck is a Heavy truck featuring 16.035t payload, 31t GVW, Rear-dump body cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a WeichaiWP10NG280E40 engine, 280 hp, China IV emissions and FAW Jiefang transmission.

China IV 280 LNG (liquefied natural gas) 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA3310P1K15L3T4NA80
Drive type: 8X4
Wheelbase: 1900+3650+1350mm
engine: WeichaiWP10NG280E40
transmission: FAW JiefangCA10TA130M
Rear Axle Ratio: 5.286
Cab length: 10.005m
Cab width: 2.5m
Cab height: 3.25m
Front track width: 1964/1964mm
rear track: 1847/1847mm
Curb Weight: 14.77ton
Rated payload: 16.035ton
GVWR: 31ton
Origin: Qingdao, Shandong
tonnage class: Heavy truck
Approach angle: 24°
departure angle: 42°
Remarks: Qingdao
Version: LNG Edition
Energy Type: LNG (liquefied natural gas)
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP10NG280E40
Number of cylinders: 6cylinder
fuel type: LNG (liquefied natural gas)
Displacement: 9.726L
Emission standard: China IV
Max output power: 206kW
Max hp: 280Horsepower
Max torque: 1060N·m
Max torque speed: 1400-1600rpm
Rated speed: 2200rpm
Engine Type: Water-cooled, wet cylinder liner, turbocharged intercooled, electronically controlled premixed, spark plug ignition, lean burn
Transmission Parameters
Transmission Model: FAW JiefangCA10TA130M
Transmission Brand: FAW Jiefang
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 7m
Cargo box width: 2.31m
Cargo box height: 1.17m
fuel tank
Fuel tank capacity: 450L
Chassis Specs
rear axle description: 457 stamped-welded axle
rear axle allowable load: 18000kg
Axle ratio: 5.286
Leaf spring count: 12/12/10,3/3/10,12/12/-,3/3/-
Tire
Tire Size: 11.00R20 16PR
Number of tires: 12pcs

Photos

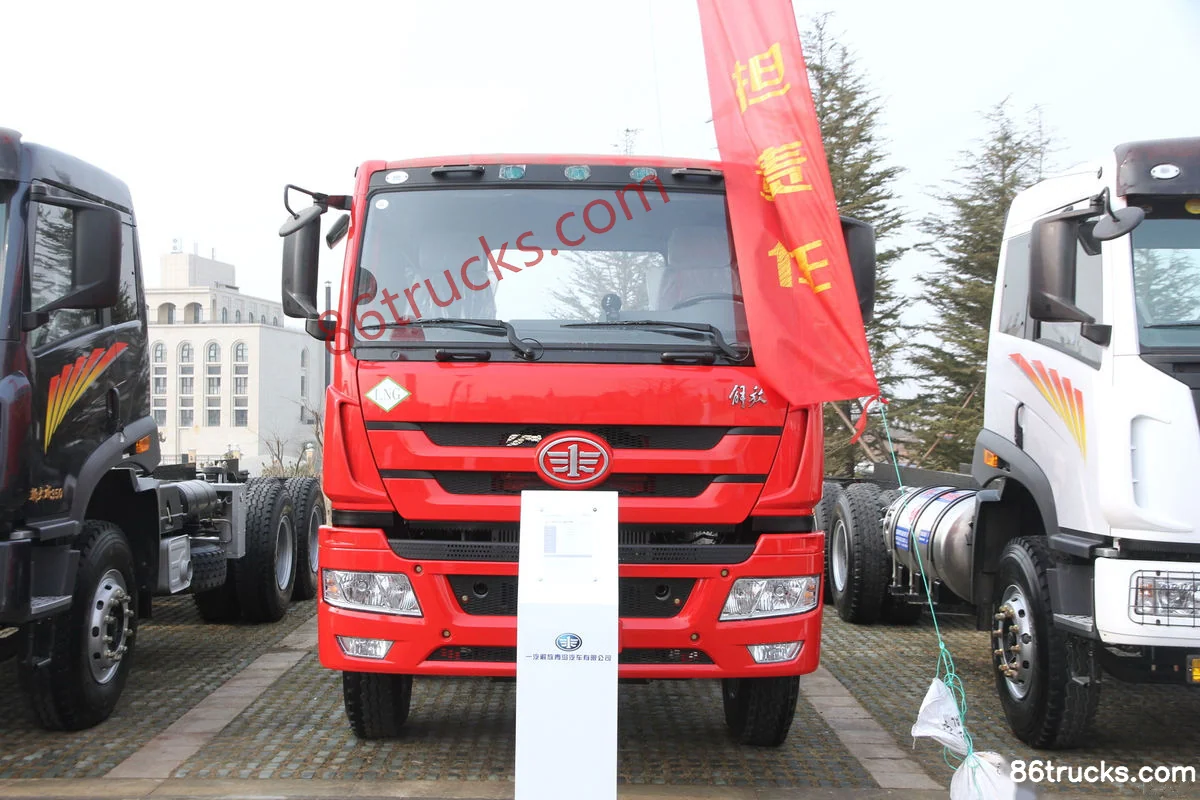

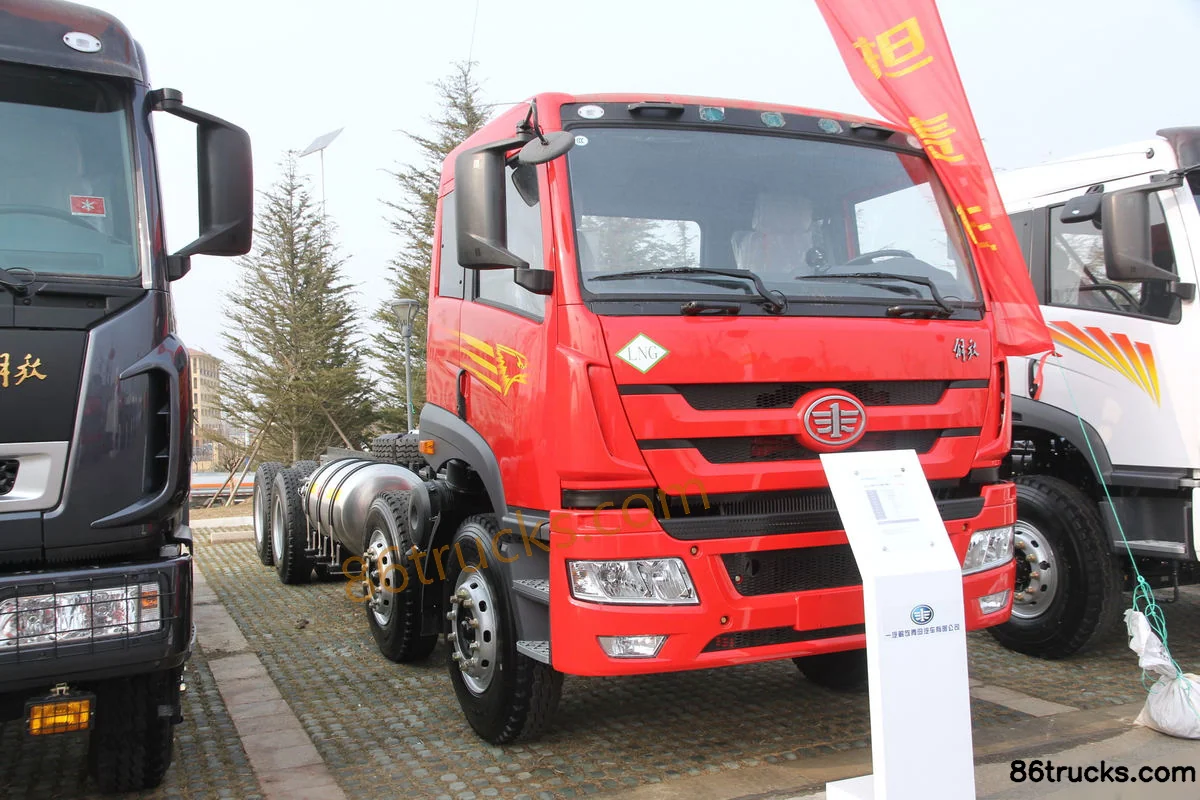

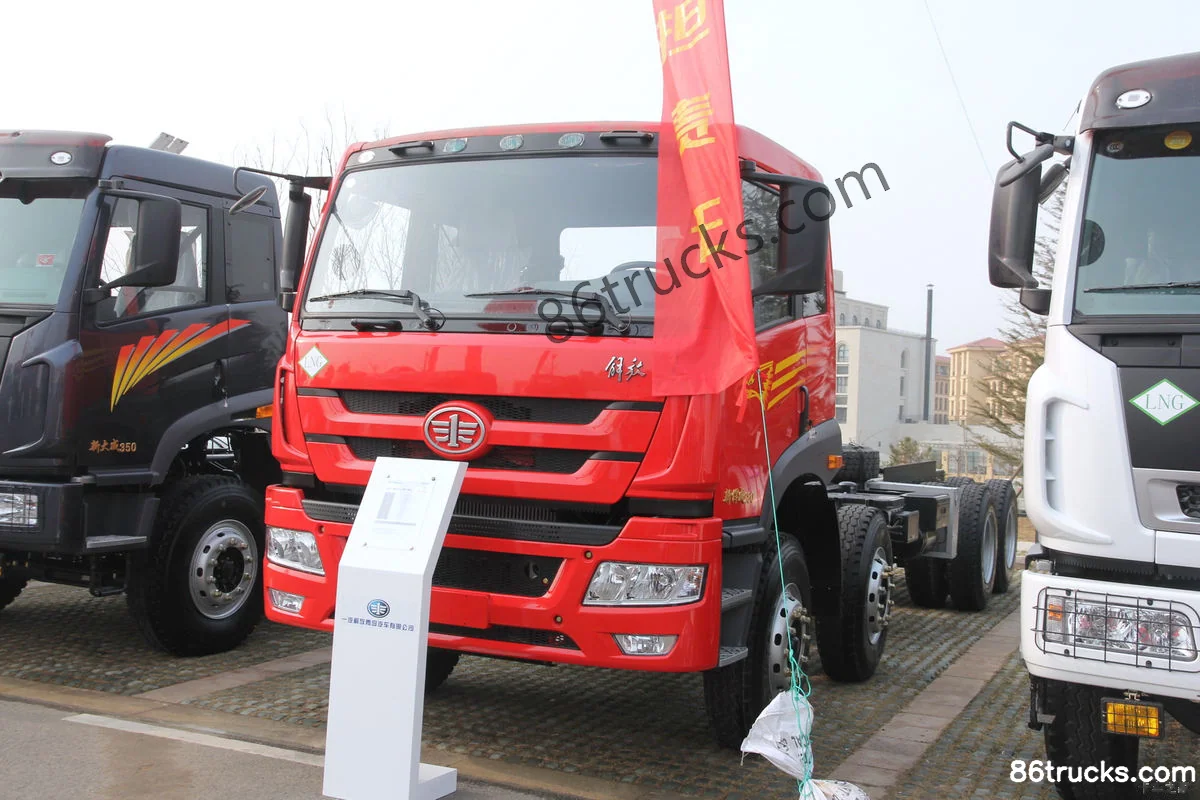

Exterior3

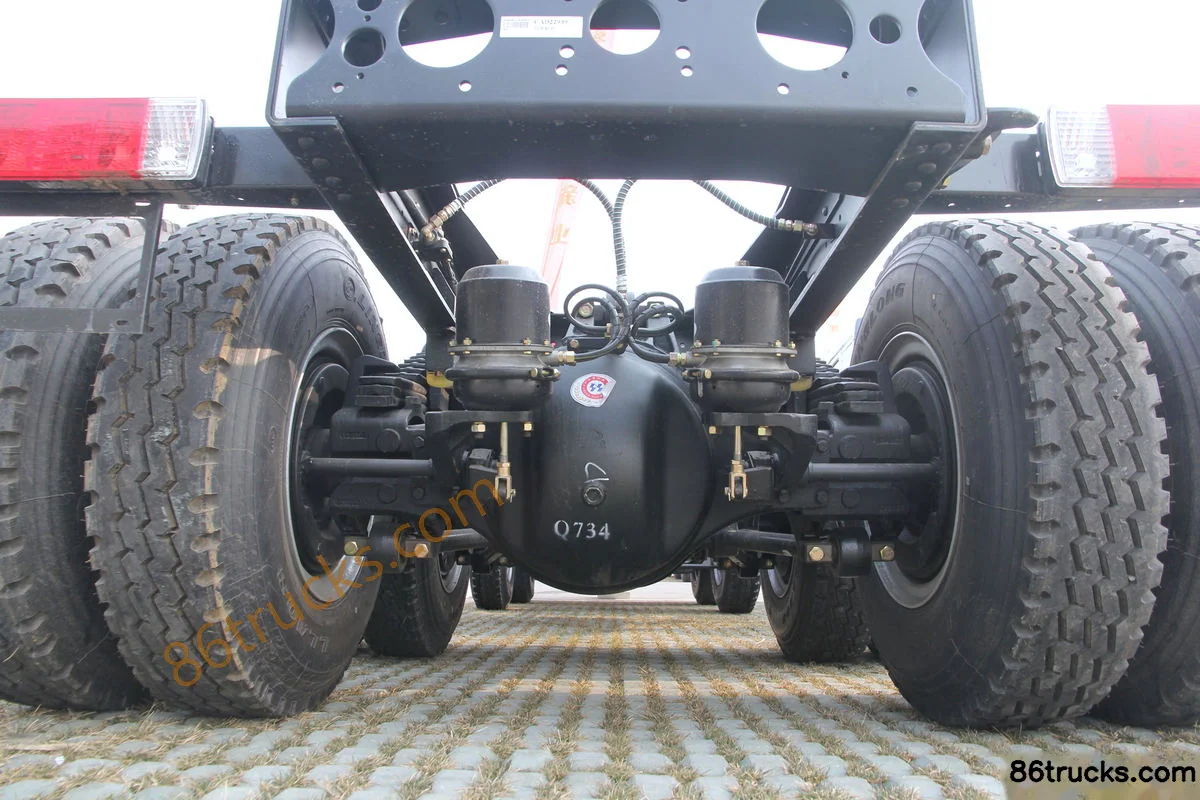

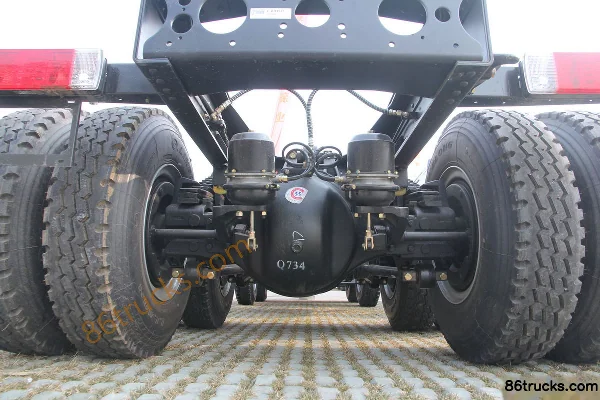

Chassis3

6 photos

FAQ

What emission standard does FAW Jiefang Qingdao New Hanwei J5M Heavy Truck 280hp 8X4(12 wheels) 7m LNG Dump Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao New Hanwei J5M Heavy Truck 280hp 8X4(12 wheels) 7m LNG Dump Truck?

Key specs of FAW Jiefang Qingdao New Hanwei J5M Heavy Truck 280hp 8X4(12 wheels) 7m LNG Dump Truck: Drive: 8x4; Horsepower: 280 hp; Emission: China IV; Fuel: LNG (liquefied natural gas); Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao New Hanwei J5M Heavy Truck 280hp 8X4(12 wheels) 7m LNG Dump Truck suited for?

FAW Jiefang Qingdao New Hanwei J5M Heavy Truck 280hp 8X4(12 wheels) 7m LNG Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Jiefang Qingdao New Hanwei J5M Heavy Truck 280hp 8X4(12 wheels) 7m LNG Dump Truck differ from other variants in the same series?

FAW Jiefang Qingdao New Hanwei J5M Heavy Truck 280hp 8X4(12 wheels) 7m LNG Dump Truck belongs to FAW Jiefang Qingdao New Hanwei J5M Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao New Hanwei J5M Heavy Truck 280hp 8X4(12 wheels) 7m LNG Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao New Hanwei J5M Heavy Truck 280hp 8X4(12 wheels) 7m LNG Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
