Hyundai Commercial Vehicle (formerly Sichuan Hyundai) Xin Hongyun 140 hp 4X2(6 wheels) 4.5m dump truck
EXW
From $23,333
Export quote
Hyundai Commercial Vehicle New Hongyun light truck
Main model photos
20 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Hyundai Commercial Vehicle (formerly Sichuan Hyundai) Xin Hongyun 140 hp 4X2(6 wheels) 4.5m dump truck | 4x2 / 140hp / China V | From $23,333 | |
| Sichuan Hyundai New Hongyun 130hp 4X2(6 wheels) 4.1m dump truck | 4x2 / 130hp / China IV | From $21,944 | |
| Sichuan Hyundai New Hongyun 160hp 4X2(6 wheels) 4.3m Dump Truck | 4x2 / 160hp / China IV | ||
| Sichuan Hyundai New Hongyun 130hp 4X2(6 wheels) 4.1m dump truck | 4x2 / 130hp / China IV | From $20,556 | |
| Sichuan Hyundai New Hongyun 140hp 4X2(6 wheels) 4m dump truck | 4x2 / 140hp / China IV |

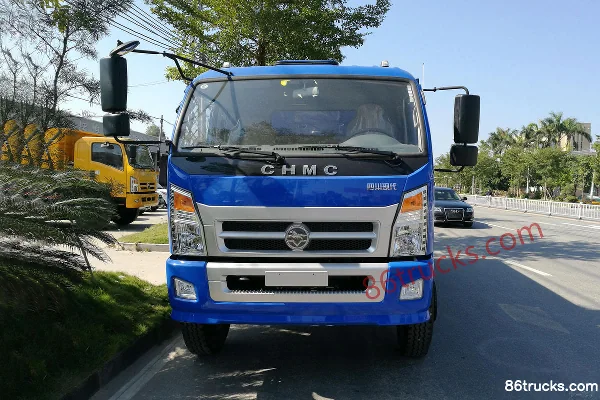

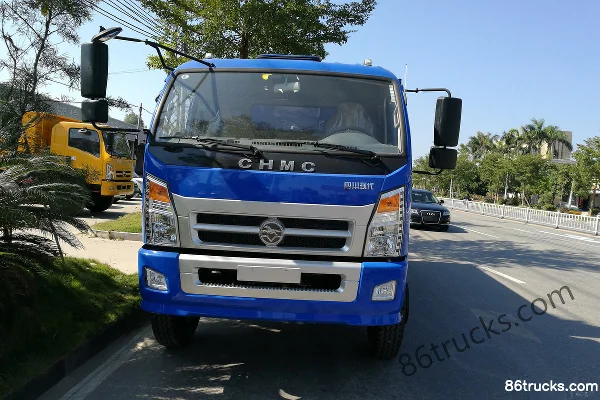

Sichuan Hyundai New Hongyun 130hp 4X2(6 wheels) 4.1m dump truck
EXW
From $21,944
Export quote
Sichuan Hyundai New Hongyun 160hp 4X2(6 wheels) 4.3m Dump Truck
EXW
Export quote
Sichuan Hyundai New Hongyun 130hp 4X2(6 wheels) 4.1m dump truck
EXW
From $20,556
Export quote
Sichuan Hyundai New Hongyun 140hp 4X2(6 wheels) 4m dump truck
EXW
Export quote
Series Specs
Basic Info
Model code (announced): CNJ3180GPA38V / CNJ3060ZGP37M / CNJ3160ZGP37M / CNJ3120ZGP37M
Drive type: 4X2
Wheelbase: 3850 / 3700 / 3400mm
Engine Model: YuchaiYC4E140-56A / YuchaiYC4D130-41 / YuchaiYC4E160-45 / YuchaiYC4E140-42
Transmission Model: WLYWLY6HQ-53DY2KQ / WLYWLY6HQ-53DY3Q / WLYWLY6-speed / WLYWLY5-43
Rear Axle Ratio: 6.833 / 6.93
Cab length: 6.9 / 6.5 / 6.75 / 6.3m
Cab width: 2.4 / 2.38 / 2.46 / 2.36m
Cab height: 2.74 / 2.7m
Front track width: 1750 / 1900mm
rear track: 1700 / 1750 / 1660 / 1860 / 1650mm
Curb Weight: 7.81 / 3.365 / 7.6 / 6.5 / 7.05ton
Rated payload: 9.995 / 1.995 / 8 / 4.99 / 8.55ton
GVWR: 18 / 5.555 / 15.795 / 11.685ton
Origin: Ziyang, Sichuan
tonnage class: Light Truck
Approach angle: 28°
departure angle: 24°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Number of cylinders: 4cylinder
Displacement: 4.26 / 4.214L
Emission standard: China V / China IV
Max output power: 103 / 96 / 118kW
Max hp: 140 / 130 / 160Horsepower
Max torque: 450 / 420 / 550 / 430N·m
Max torque speed: 1300-1600 / 1400-1800rpm
Rated speed: 2600 / 2800rpm
Engine Type: Vertical, inline, water-cooled, four-stroke / Electronic unit pump SCR / Vertical, inline 4-cylinder, water-cooled, 4-stroke, electronic direct injection
Transmission Parameters
Transmission Brand: WLY
Forward gears: 6 / 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type / Rear-dump body
Cargo box length: 4.5 / 4.1 / 4.3 / 4m
Cargo box width: 2.3 / 2.16 / 2.2m
Cargo box height: 0.8m
Cab parameters
Cab: Flat Roof Semi-Sleeper
fuel tank
Fuel tank capacity: 300 / 150 / 164L
Chassis Specs
Front axle allowable load: 6500 / 2080 / 5920kg
rear axle description: 457 / 153 Shortened Axle / 153 rear axle
FAQ
What kind of truck is Hyundai Commercial Vehicle Hyundai Commercial Vehicle New Hongyun light truck Dump Trucks?
Hyundai Commercial Vehicle Hyundai Commercial Vehicle New Hongyun light truck is an export-oriented Dump Trucks lineup with about 5 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Hyundai Commercial Vehicle New Hongyun light truck?
Hyundai Commercial Vehicle New Hongyun light truck export reference is about $20,556 – $23,333. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Hyundai Commercial Vehicle New Hongyun light truck cover?
Hyundai Commercial Vehicle New Hongyun light truck mainly covers: Drive: 4x2; Horsepower: 130 hp / 140 hp / 160 hp; Emission: China IV / China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Hyundai Commercial Vehicle New Hongyun light truck?
For Hyundai Commercial Vehicle New Hongyun light truck: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Hyundai Commercial Vehicle New Hongyun light truck include?
Hyundai Commercial Vehicle New Hongyun light truck currently lists about 5 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Hyundai Commercial Vehicle New Hongyun light truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
