Sinotruk Wangpai W5B-M Heavy Truck 270hp 8X4(12 wheels) 6.8m Dump Truck
EXW
From $39,861
Export quote
Sinotruk Wangpai W5B near-heavy truck Dump Trucks
Main model photos
101 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk Wangpai W5B-M Heavy Truck 270hp 8X4(12 wheels) 6.8m Dump Truck | 8x4 / 270hp / China IV | From $39,861 | |
| Sinotruk W5B-H Heavy Truck 310 hp 8X4(12 wheels) 6.8m Dump Truck | 8x4 / 310hp / China V | From $40,625 | |
| Sinotruk Wangpai W5B-H Heavy Truck 310 hp 8X4(12 wheels) 6.8m Dump Truck | 8x4 / 310hp / China IV | From $40,139 |

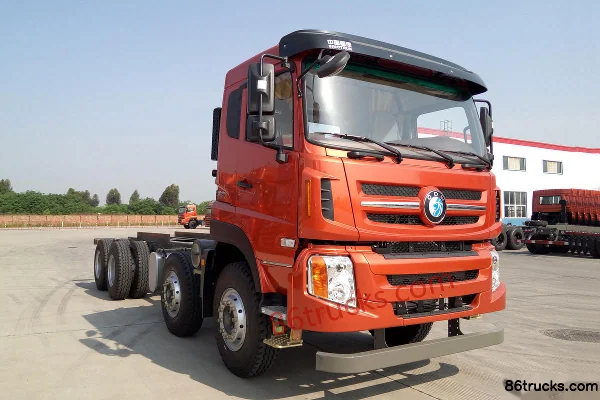

Sinotruk W5B-H Heavy Truck 310 hp 8X4(12 wheels) 6.8m Dump Truck
EXW
From $40,625
Export quote
Sinotruk Wangpai W5B-H Heavy Truck 310 hp 8X4(12 wheels) 6.8m Dump Truck
EXW
From $40,139
Export quote
Series Specs
Basic Info
Model code (announced): CDW3310A1S4 / CDW3310A1S5 / CDW3310A1S4J
Drive type: 8X4
Wheelbase: 1850+3200+1300 / 1800+3200+1350mm
Engine Model: YuchaiYC6A270-40 / SinotrukMC07.31-50 / SinotrukMC07.31-40
Transmission Model: Fast Gear10JSD120A / SinotrukHW13710
Rear Axle Ratio: 5.571
Cab length: 9.67m
Cab width: 2.5m
Cab height: 3.775 / 3.46m
Front track width: 2017/2017 / 2020/2020mm
rear track: 1860/1860mm
Curb Weight: 14.815 / 14.88ton
Rated payload: 15.99ton
GVWR: 31ton
Origin: Chengdu, Sichuan
tonnage class: Heavy truck
Approach angle: 24°
departure angle: 17 / 18°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai / Sinotruk
Number of cylinders: 6cylinder
Displacement: 7.255 / 6.87L
Emission standard: China IV / China V
Max output power: 199 / 225 / 228kW
Max hp: 270 / 310Horsepower
Max torque: 1000 / 1230N·m
Max torque speed: 1400-1600 / 1200-1800rpm
Rated speed: 2300rpm
Engine Type: BOSCH high-pressure common rail SCR / Inline, water-cooled, 4-stroke, turbocharged with intercooler
Transmission Parameters
Transmission Brand: Fast Gear / Sinotruk
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 6.8m
Cargo box width: 2.3m
Cargo box height: 1.235 / 1.23 / 1.15m
fuel tank
Fuel tank capacity: 300L
Chassis Specs
Front axle allowable load: 6500/6500kg
FAQ
What kind of truck is Sinotruk Sinotruk Wangpai W5B near-heavy truck Dump Trucks?
Sinotruk Sinotruk Wangpai W5B near-heavy truck is an export-oriented Dump Trucks lineup with about 3 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Sinotruk Wangpai W5B near-heavy truck Dump Trucks?
Sinotruk Wangpai W5B near-heavy truck Dump Trucks export reference is about $39,861 – $40,625. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Sinotruk Wangpai W5B near-heavy truck Dump Trucks cover?
Sinotruk Wangpai W5B near-heavy truck Dump Trucks mainly covers: Drive: 8x4; Horsepower: 270 hp / 310 hp; Emission: China IV / China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Sinotruk Wangpai W5B near-heavy truck Dump Trucks?
For Sinotruk Wangpai W5B near-heavy truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Sinotruk Wangpai W5B near-heavy truck Dump Trucks include?
Sinotruk Wangpai W5B near-heavy truck Dump Trucks currently lists about 3 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Sinotruk Wangpai W5B near-heavy truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
