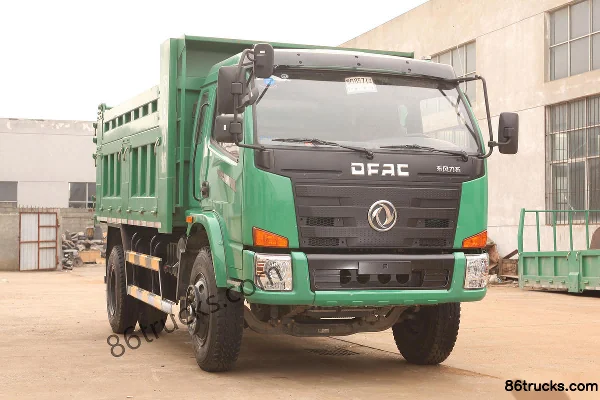

Dongfeng Lituo 4110 160hp 4X2(6 wheels) 3.75m Dump Truck (8-speed Transmission)
EXW
Export quote
Dongfeng4110 light truck Dump Trucks
Main model photos
15 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng Lituo 4110 160hp 4X2(6 wheels) 3.75m Dump Truck (8-speed Transmission) | 4x2 / 160hp / China IV | ||
| Dongfeng Lituo 4110 140hp 4X2(6 wheels) 4.2m dump truck (8-speed gearbox) | 4x2 / 140hp / China IV | ||
| Dongfeng Lituo 4110 140 hp 4X2(6 wheels) 4.2m dump truck (6-speed transmission) | 4x2 / 140hp / China IV | ||
| Dongfeng Lituo 4110 160 hp 4X2(6 wheels) 4.2m dump truck (6-speed transmission) | 4x2 / 160hp / China IV | ||
| Dongfeng Lituo 4110 160 hp 4X2(6 wheels) 4.2m dump truck (8-speed transmission) | 4x2 / 160hp / China IV |
Dongfeng Lituo 4110 140hp 4X2(6 wheels) 4.2m dump truck (8-speed gearbox)
EXW
Export quote

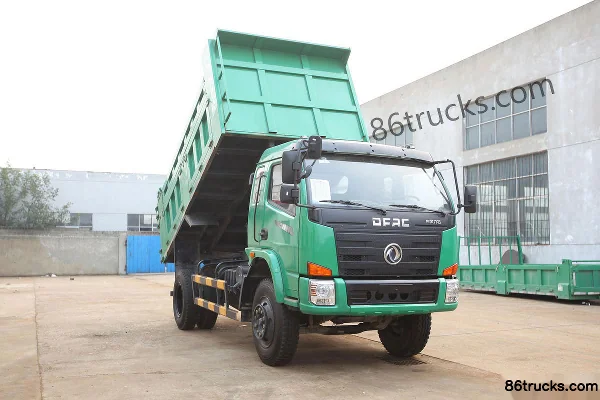

Dongfeng Lituo 4110 140 hp 4X2(6 wheels) 4.2m dump truck (6-speed transmission)
EXW
Export quote
Dongfeng Lituo 4110 160 hp 4X2(6 wheels) 4.2m dump truck (6-speed transmission)
EXW
Export quote
Dongfeng Lituo 4110 160 hp 4X2(6 wheels) 4.2m dump truck (8-speed transmission)
EXW
Export quote
Series Specs
Basic Info
Model code (announced): EQ3042GDAC
Drive type: 4X2
Wheelbase: 3700mm
Engine Model: YuchaiYC4E160-45 / YuchaiYC4E140-45
Transmission Model: Fast Gear8JS85F / WLYWLY675H
Rear Axle Ratio: 6.833 / 6.333
Cab length: 5.998m
Cab width: 2.25m
Cab height: 2.68m
Front track width: 1640mm
rear track: 1650mm
Curb Weight: 2.7ton
Rated payload: 1.6ton
GVWR: 4.495ton
Origin: Xiangyang, Hubei
tonnage class: Light Truck
Approach angle: 31°
departure angle: 16°
Remarks: Φ160 engineering top; differentiated option; clutch booster; spring brake; brake type: air brake; power steering; no A/C; power supply 24V
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Number of cylinders: 4cylinder
Displacement: 4.26L
Emission standard: China IV
Max output power: 118 / 103kW
Max hp: 160 / 140Horsepower
Max torque: 550 / 430N·m
Max torque speed: 1300-1600rpm
Rated speed: 2600rpm
Engine Type: Vertical, inline 4-cylinder, water-cooled, 4-stroke, electronic direct injection / Vertical, inline 4-cylinder, water-cooled, 4-stroke, electronic unit pump
Technology route: Unit pump DOC POC
Transmission Parameters
Transmission Brand: Fast Gear / WLY
shift method: Manual
Forward gears: 8 / 6Gear
Number of Reverse Gears: 2 / 1pcs
Cargo box parameters
Unloading Type: Dump type / Rear-dump body
Cargo box length: 3.75 / 4.2m
Cargo box width: 2.2m
Cargo box height: 0.8 / 1.2m
Chassis Specs
Frame Dimensions: 250×(8+5)×800mm
FAQ
What kind of truck is Dongfeng Dongfeng4110 light truck Dump Trucks?
Dongfeng Dongfeng4110 light truck is an export-oriented Dump Trucks lineup with about 5 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Dongfeng4110 light truck Dump Trucks cover?
Dongfeng4110 light truck Dump Trucks mainly covers: Drive: 4x2; Horsepower: 140 hp / 160 hp; Emission: China IV; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Dongfeng4110 light truck Dump Trucks?
For Dongfeng4110 light truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Dongfeng4110 light truck Dump Trucks include?
Dongfeng4110 light truck Dump Trucks currently lists about 5 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Dongfeng4110 light truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
