Dongfeng Lituo 4110 160 hp 4X2(6 wheels) 4.2m dump truck (6-speed transmission)

Export reference
MSRP N/A
Emission: China IV
Fuel: Diesel
Transmission: WLY
Curb Weight:: 2.7ton
Wheelbase:: 3700mm
Tire Size:: 10.00R20
Rated payload: 1.6ton
Drive 4X2 (6 wheels)
Horsepower 160
Cargo box type: Dump type

Overview

The Dongfeng Lituo 4110 160 hp 4X2(6 wheels) 4.2m dump truck (6-speed transmission) is a Light Truck featuring 1.6t payload, 4.495t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYC4E160-45 engine, 160 hp, China IV emissions and WLY transmission.

China IV 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): EQ3042GDAC
Drive type: 4X2
Wheelbase: 3700mm
engine: YuchaiYC4E160-45
transmission: WLYWLY675H
Rear Axle Ratio: 6.333
Cab length: 5.998m
Cab width: 2.25m
Cab height: 2.68m
Front track width: 1640mm
rear track: 1650mm
Curb Weight: 2.7ton
Rated payload: 1.6ton
GVWR: 4.495ton
Origin: Xiangyang, Hubei
tonnage class: Light Truck
Approach angle: 31°
departure angle: 16°
Remarks: Φ160 engineering top; differentiated option; clutch booster; spring brake; brake type: air brake; power steering; no A/C; power supply 24V
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4E160-45
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.26L
Emission standard: China IV
Max output power: 118kW
Max hp: 160Horsepower
Max torque: 550N·m
Max torque speed: 1300-1600rpm
Rated speed: 2600rpm
Engine Type: Vertical, inline 4-cylinder, water-cooled, 4-stroke, electronic direct injection
Technology route: Unit pump DOC POC
Transmission Parameters
Transmission Model: WLYWLY675H
Transmission Brand: WLY
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.2m
Cargo box width: 2.2m
Cargo box height: 1.2m
Chassis Specs
Frame Dimensions: 250×(8+5)×800mm
rear axle description: 13T
rear axle allowable load: 2695kg
Axle ratio: 6.333
Leaf spring count: 9/12+10
Tire
Tire Size: 10.00R20
Number of tires: 6pcs

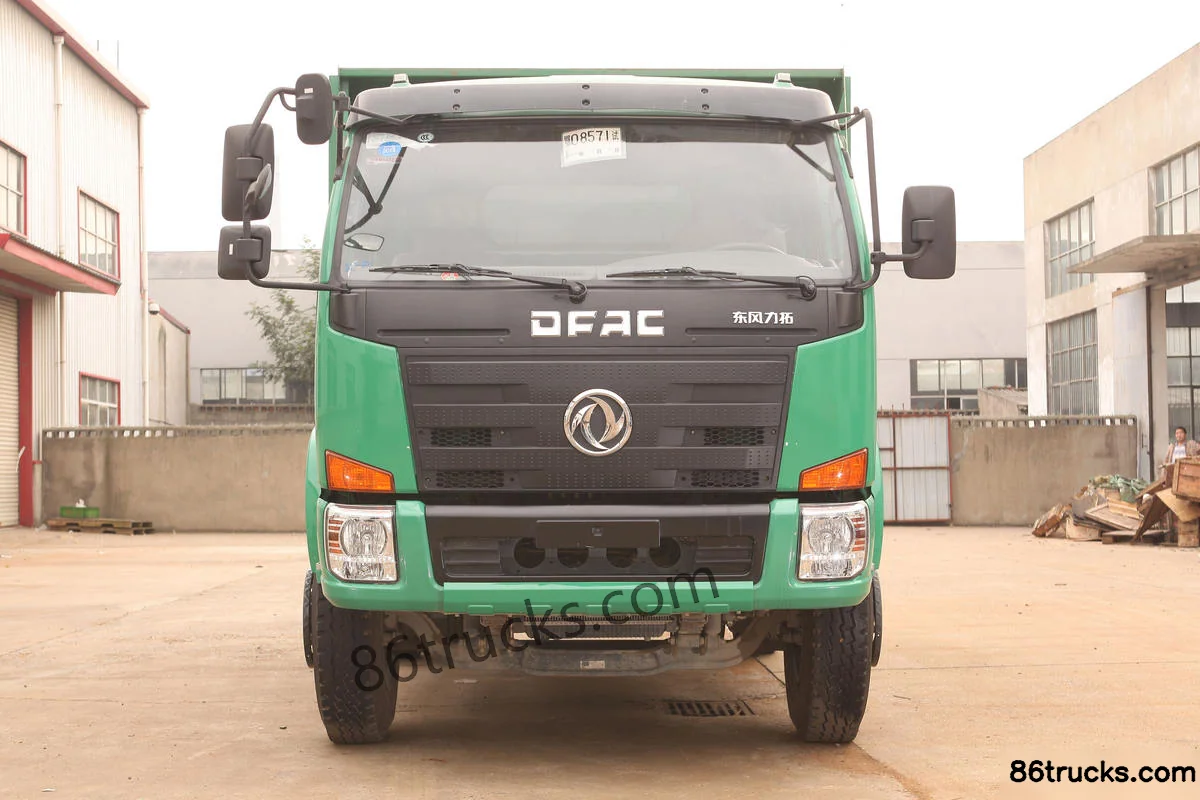

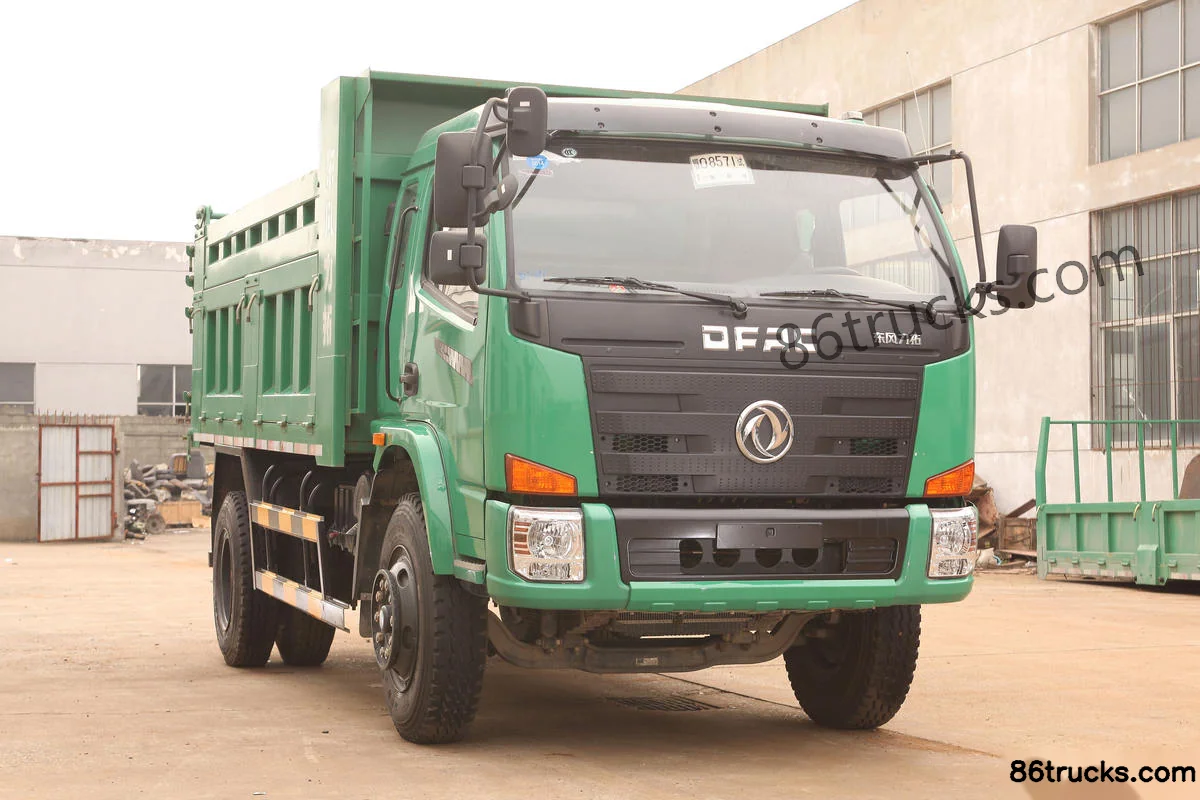

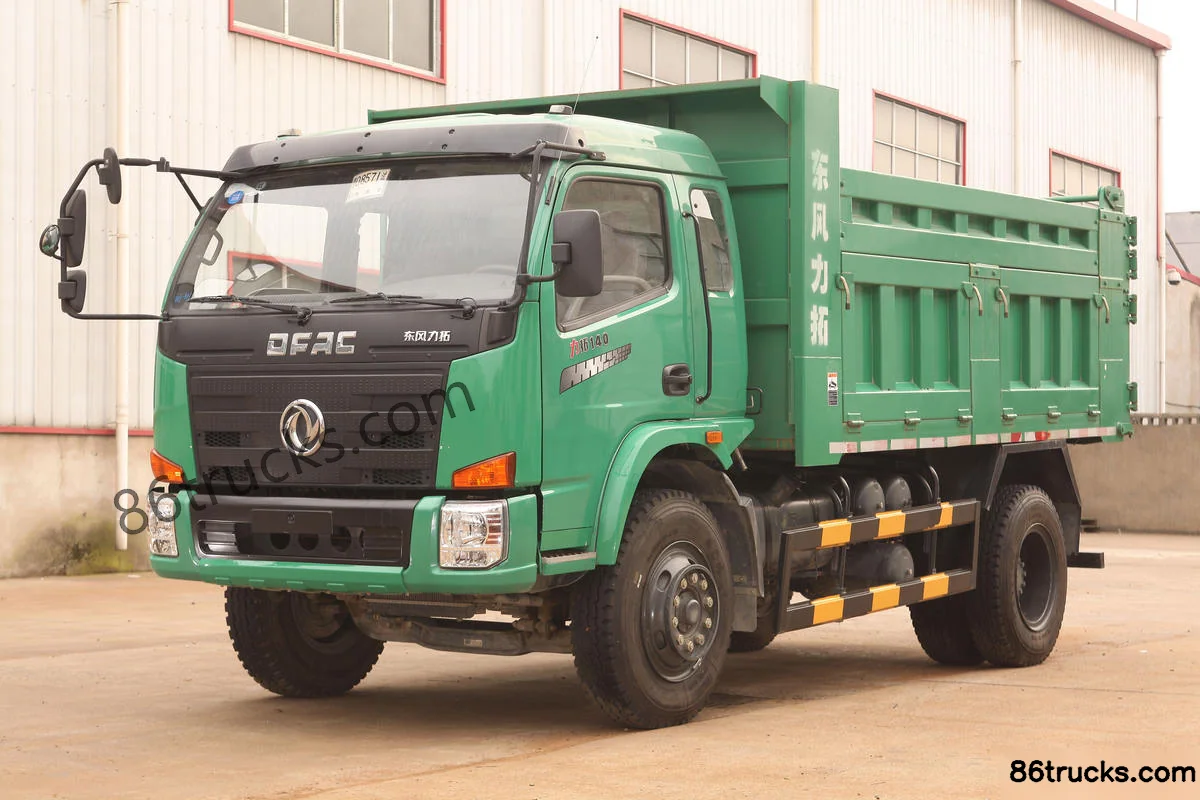

Photos

Exterior3

3 photos

FAQ

What emission standard does Dongfeng Lituo 4110 160 hp 4X2(6 wheels) 4.2m dump truck (6-speed transmission) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Lituo 4110 160 hp 4X2(6 wheels) 4.2m dump truck (6-speed transmission)?

Key specs of Dongfeng Lituo 4110 160 hp 4X2(6 wheels) 4.2m dump truck (6-speed transmission): Drive: 4x2; Horsepower: 160 hp; Emission: China IV; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Lituo 4110 160 hp 4X2(6 wheels) 4.2m dump truck (6-speed transmission) suited for?

Dongfeng Lituo 4110 160 hp 4X2(6 wheels) 4.2m dump truck (6-speed transmission) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng Lituo 4110 160 hp 4X2(6 wheels) 4.2m dump truck (6-speed transmission) differ from other variants in the same series?

Dongfeng Lituo 4110 160 hp 4X2(6 wheels) 4.2m dump truck (6-speed transmission) belongs to Dongfeng4110 light truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Lituo 4110 160 hp 4X2(6 wheels) 4.2m dump truck (6-speed transmission)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Lituo 4110 160 hp 4X2(6 wheels) 4.2m dump truck (6-speed transmission)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
