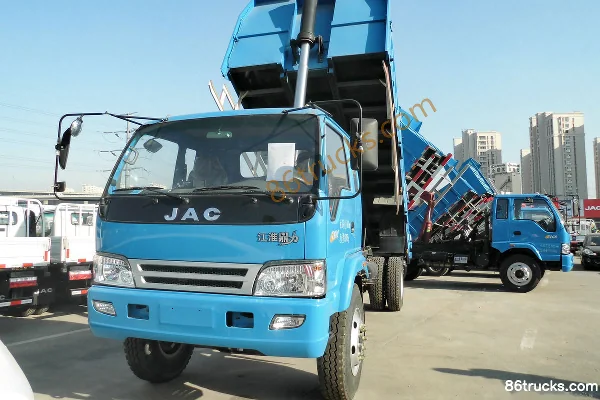

JAC Kangling Dingli 160 hp 4X2(6 wheels) 6.5m dump truck (Changtai)
EXW
Export quote
JAC Dingli light-duty truck Dump Trucks
Main model photos
42 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JAC Kangling Dingli 160 hp 4X2(6 wheels) 6.5m dump truck (Changtai) | 4x2 / 160hp / China IV | ||
| JAC Kangling Dingli 160 hp 4X2(6 wheels) 6.5m dump truck | 4x2 / 160hp / China IV | ||
| JAC Kangling Dingli 120 hp 4X2(6 wheels) 4m dump truck | 4x2 / 120hp / China IV | ||
| JAC Kangling Dingli 82hp 4X2(6 wheels) 3.3m Dump Truck | 4x2 / 82hp / China IV | ||
| JAC Kangling Dingli 129 hp 4X2(6 wheels) 4.6m Dump Truck | 4x2 / 129hp / China IV | From $15,278 |
JAC Kangling Dingli 160 hp 4X2(6 wheels) 6.5m dump truck
EXW
Export quote

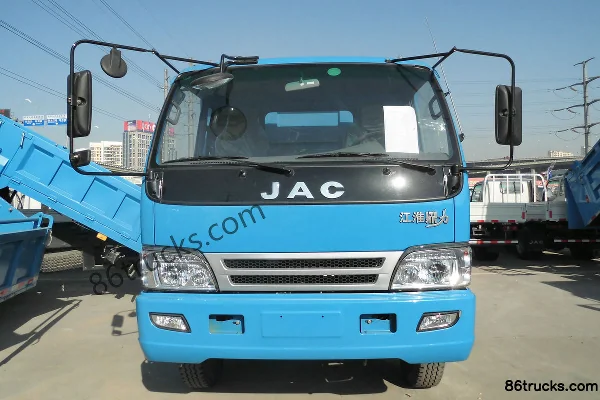

JAC Kangling Dingli 120 hp 4X2(6 wheels) 4m dump truck
EXW
Export quote
JAC Kangling Dingli 82hp 4X2(6 wheels) 3.3m Dump Truck
EXW
Export quote
JAC Kangling Dingli 129 hp 4X2(6 wheels) 4.6m Dump Truck
EXW
From $15,278
Export quote
Series Specs
Basic Info
Model code (announced): HFC3166KR1QZ / HFC3167KR1Z / HFC3046KPZ / HFC3060KR1Z
Drive type: 4X2
Wheelbase: 5000 / 3500 / 2850 / 3600mm
Engine Model: YuchaiYC4E160-45 / YuchaiYC4D120-45 / Quanchai4B1-82C40 / Yunnei PowerYN38CRD1
Transmission Model: Changtai SC9T85 / Fast Gear 9-speed / WLYWLY525H / WLYWLY5-speed
Rear Axle Ratio: 6.83 / 5.571 / 5.83 / 5.833
Cab length: 8.95 / 6.25 / 5.46 / 6.76m
Cab width: 2.495 / 2.32 / 2 / 2.31m
Cab height: 2.8 / 2.675 / 2.22 / 2.425m
Front track width: 1860 / 1725 / 1420 / 1560mm
rear track: 1725 / 1665 / 1425 / 1650mm
Curb Weight: 7.805 / 7.605 / 2.39 / 3.36ton
Rated payload: 7.995 / 1.495 / 1.99ton
GVWR: 15.995 / 15.795 / 4.015 / 5.545ton
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 19 / 23°
departure angle: 12 / 26 / 18°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai / Quanchai / Yunnei Power
Number of cylinders: 4cylinder
Displacement: 4.26 / 4.214 / 2.27 / 3.76L
Emission standard: China IV
Max output power: 118 / 90 / 60 / 95kW
Max hp: 160 / 120 / 82 / 129Horsepower
Max torque: 550 / 380 / 205 / 315N·m
Max torque speed: 1300-1600 / 1400-1800 / 2000 / 1600-2400rpm
Rated speed: 2600 / 2800 / 3200 / 3000rpm
Engine Type: Vertical, inline 4-cylinder, water-cooled, 4-stroke, electronic direct injection / Electronic unit pump EGR POC DOC / High-pressure common rail, water-cooled, vertical / Electronic control, water-cooled EGR technology, electronic high-pressure common rail fuel injection technology, aftertreatment DOC+POC
Technology route: Common Rail SCR
Transmission Parameters
Transmission Brand: Changtai / Fast Gear / WLY
shift method: Manual
Forward gears: 9 / 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Rear-dump body / Dump type
Cargo box length: 6.5 / 4 / 3.3 / 4.6m
Cargo box width: 2.3 / 2.1 / 1.81m
Cargo box height: 0.8 / 0.4 / 0.6m
fuel tank
Fuel tank capacity: 130 / 180 / 120 / 90L
Chassis Specs
Frame Dimensions: 280x75x（8+5） / 230x75x（6.5+5）/140 / 170x65x5mm
FAQ
What kind of truck is JAC JAC Dingli light-duty truck Dump Trucks?
JAC JAC Dingli light-duty truck is an export-oriented Dump Trucks lineup with about 5 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for JAC Dingli light-duty truck Dump Trucks?
JAC Dingli light-duty truck Dump Trucks export reference is about From $15,278. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does JAC Dingli light-duty truck Dump Trucks cover?
JAC Dingli light-duty truck Dump Trucks mainly covers: Drive: 4x2; Horsepower: 82 hp / 120 hp / 129 hp / 160 hp; Emission: China IV; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in JAC Dingli light-duty truck Dump Trucks?
For JAC Dingli light-duty truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does JAC Dingli light-duty truck Dump Trucks include?
JAC Dingli light-duty truck Dump Trucks currently lists about 5 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for JAC Dingli light-duty truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
