JAC Kangling Dingli 160 hp 4X2(6 wheels) 6.5m dump truck

Export reference
MSRP N/A
Emission: China IV
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 7.805ton
Wheelbase:: 5000mm
Tire Size:: 10.00R20
Rated payload: 7.995ton
Drive 4X2 (6 wheels)
Horsepower 160
Cargo box type: Rear-dump body

Overview

The JAC Kangling Dingli 160 hp 4X2(6 wheels) 6.5m dump truck is a Light Truck featuring 7.995t payload, 15.995t GVW, Rear-dump body cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYC4E160-45 engine, 160 hp, China IV emissions and Fast Gear transmission.

China IV 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC3166KR1QZ
Drive type: 4X2
Wheelbase: 5000mm
engine: YuchaiYC4E160-45
transmission: Fast Gear 9-speed
Rear Axle Ratio: 6.83
Cab length: 8.95m
Cab width: 2.495m
Cab height: 2.8m
Front track width: 1860mm
rear track: 1725mm
Curb Weight: 7.805ton
Rated payload: 7.995ton
GVWR: 15.995ton
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 19°
departure angle: 12°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4E160-45
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.26L
Emission standard: China IV
Max output power: 118kW
Max hp: 160Horsepower
Max torque: 550N·m
Max torque speed: 1300-1600rpm
Rated speed: 2600rpm
Engine Type: Vertical, inline 4-cylinder, water-cooled, 4-stroke, electronic direct injection
Technology route: Common Rail SCR
Transmission Parameters
Transmission Model: Fast Gear 9-speed
Transmission Brand: Fast Gear
Forward gears: 9Gear
Number of Reverse Gears:

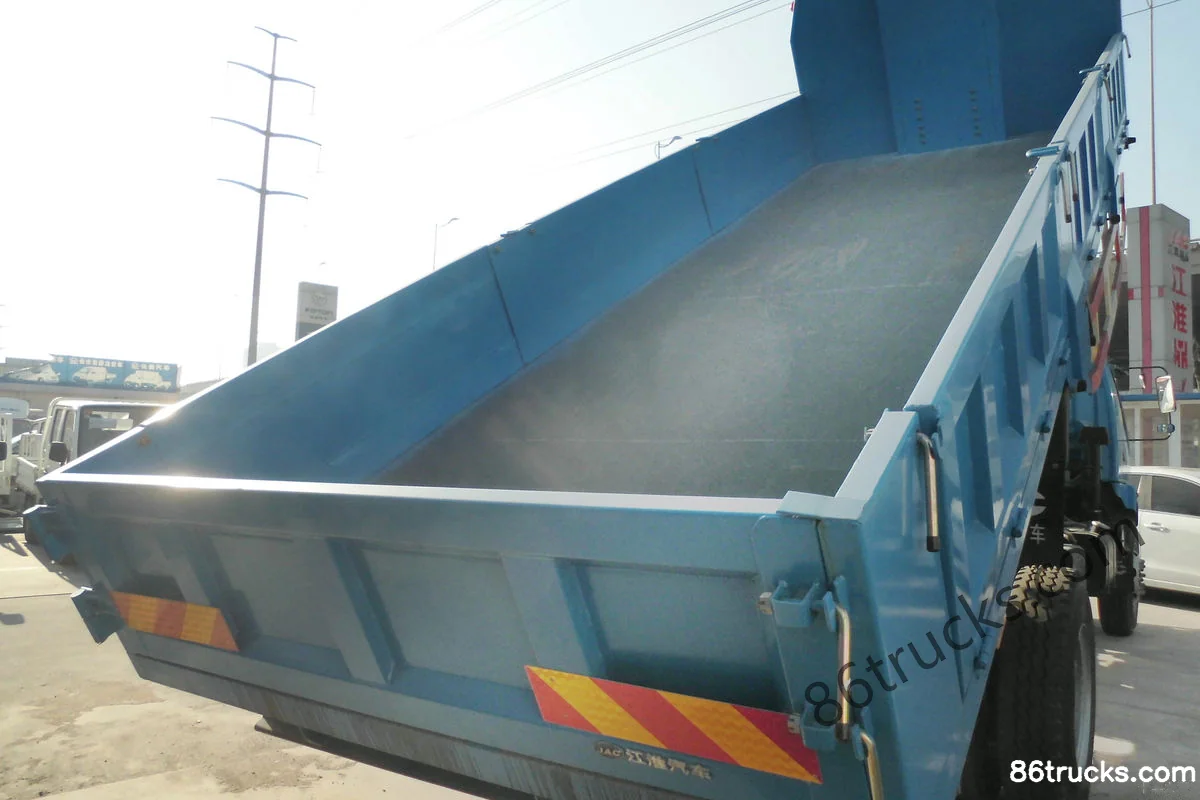

Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 6.5m
Cargo box width: 2.3m
Cargo box height: 0.8m
fuel tank
Fuel tank capacity: 180L
Chassis Specs
Frame Dimensions: 280x75x(8+5)mm
rear axle description: 153C
rear axle allowable load: 10000kg
Axle ratio: 6.83
Leaf spring count: 8/12+10
Tire
Tire Size: 10.00R20
Number of tires: 6pcs

Photos

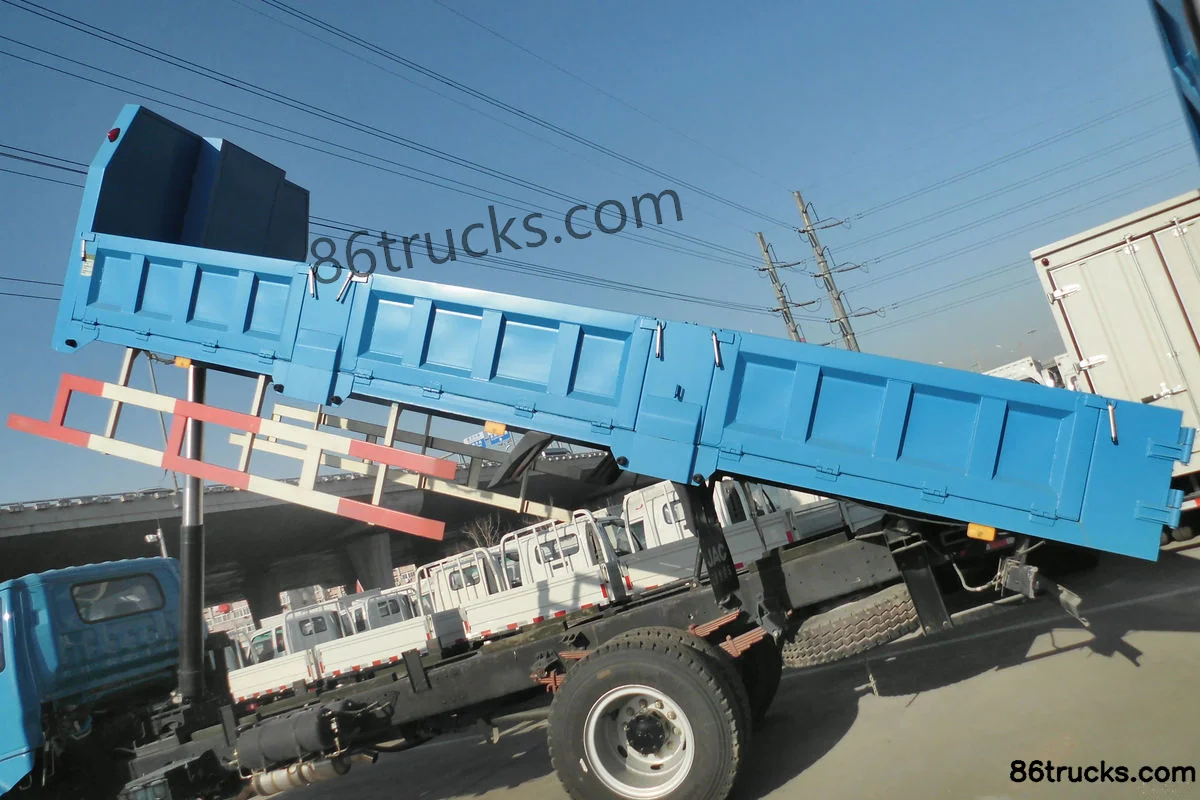

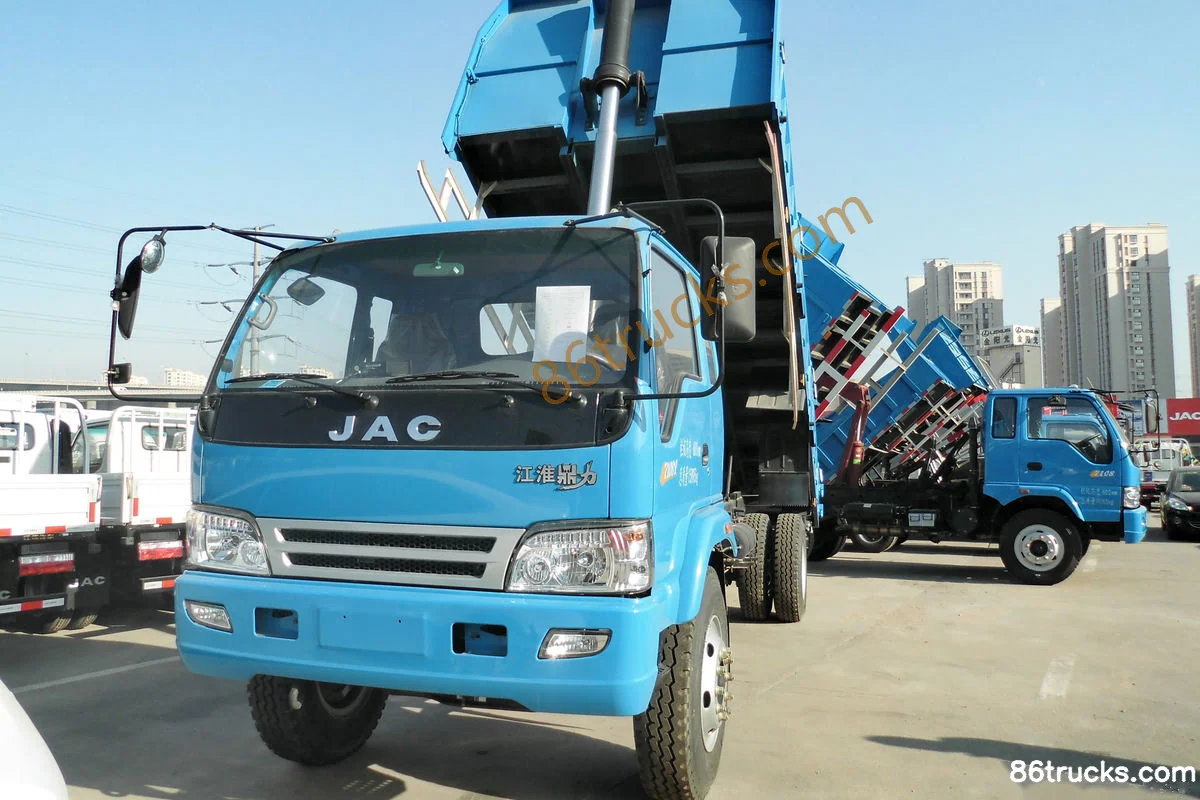

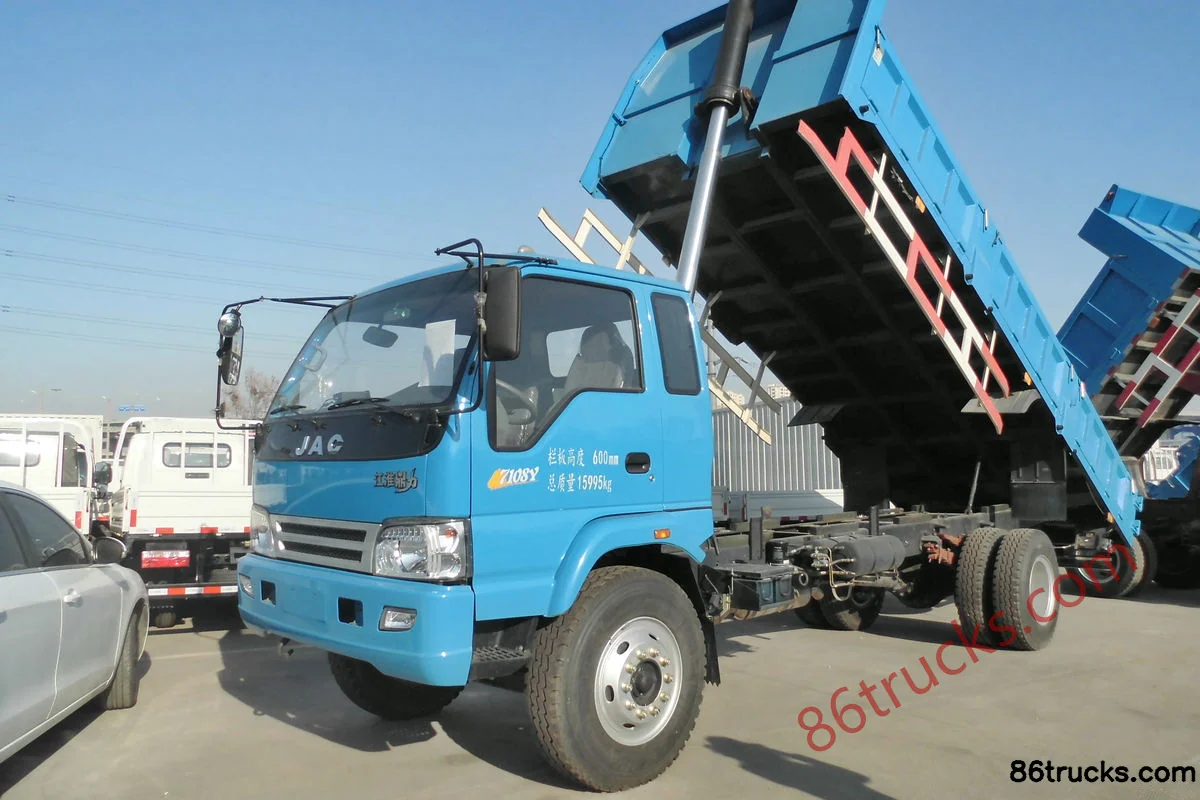

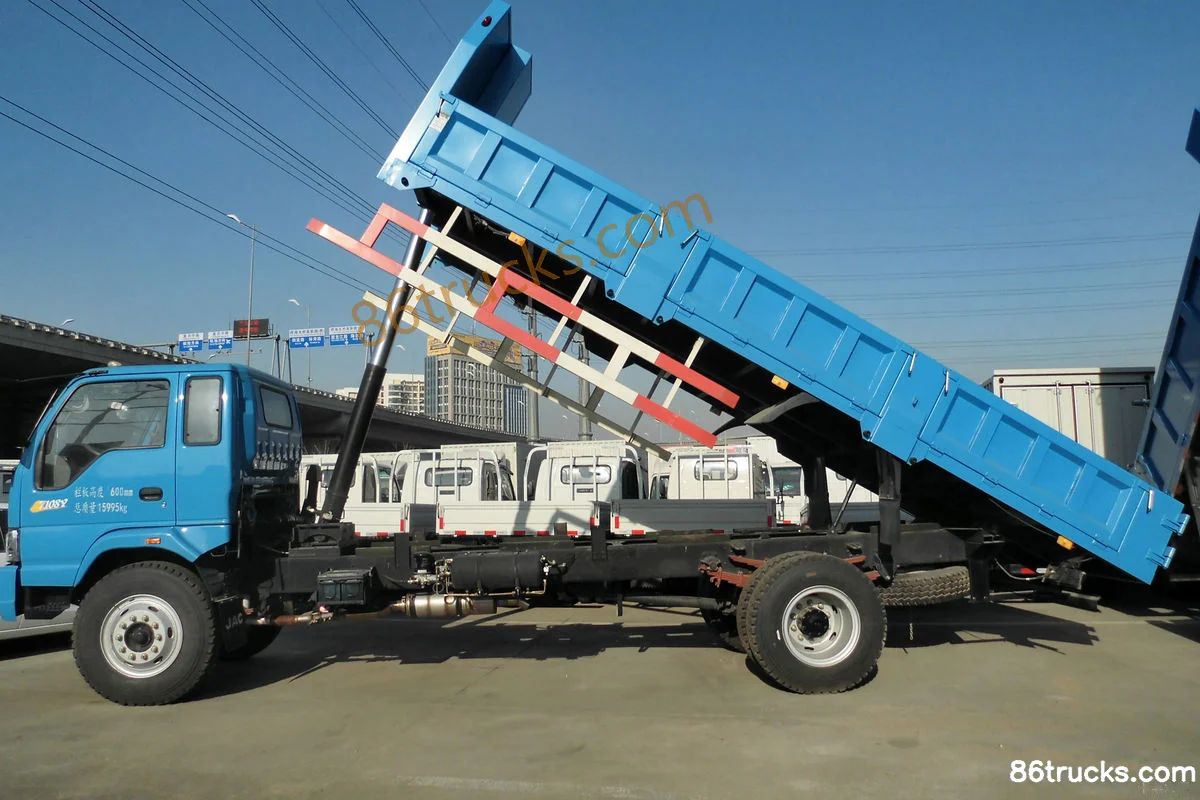

Exterior3

Cab3

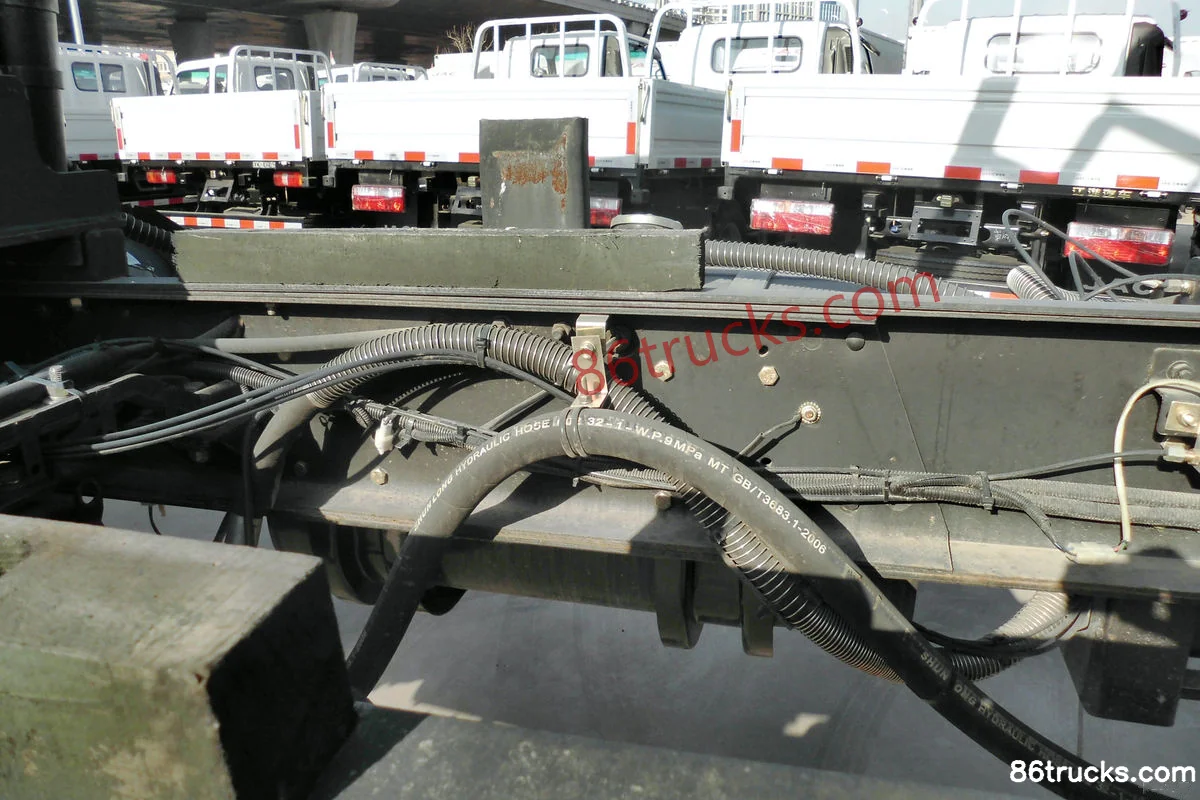

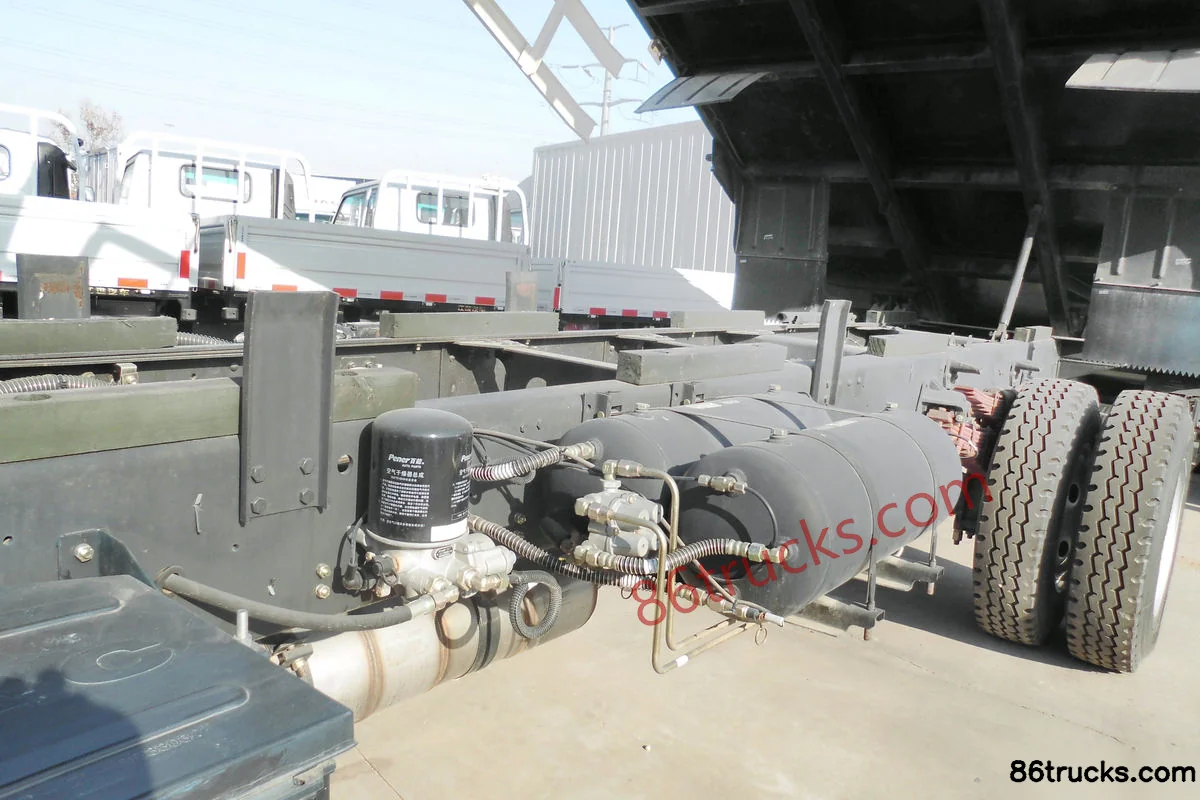

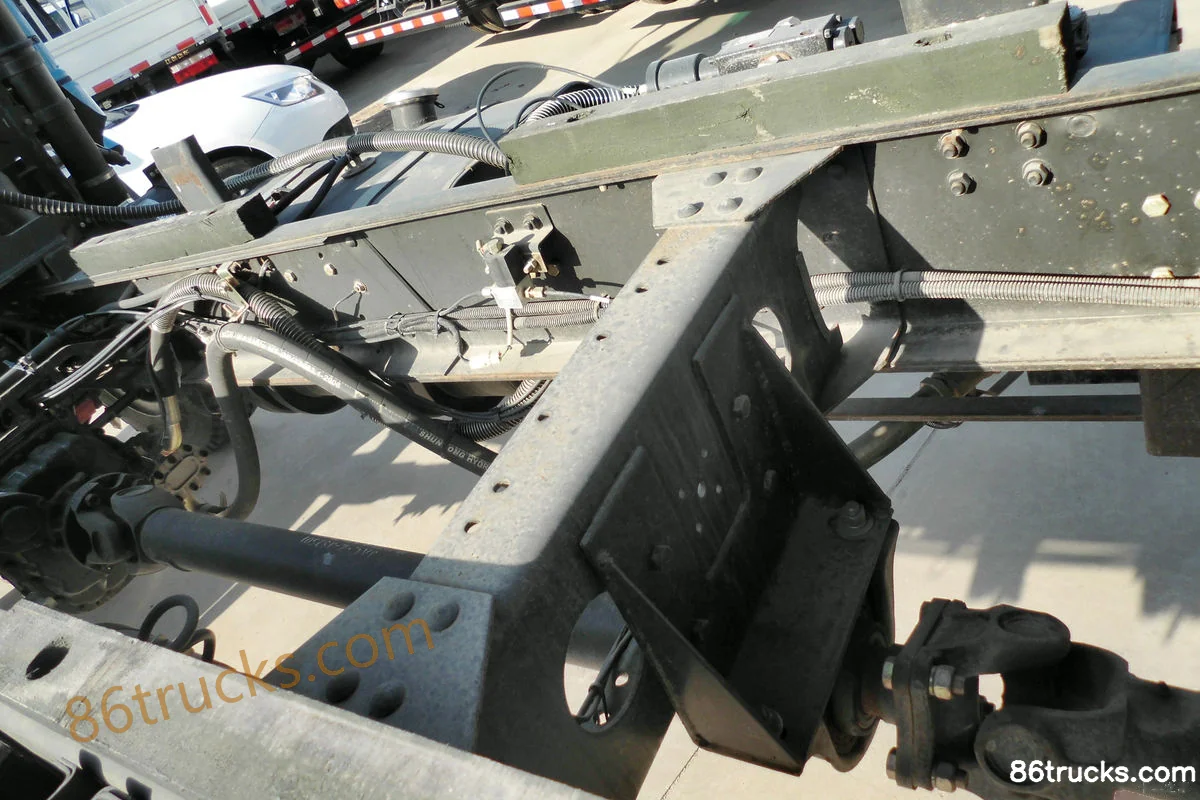

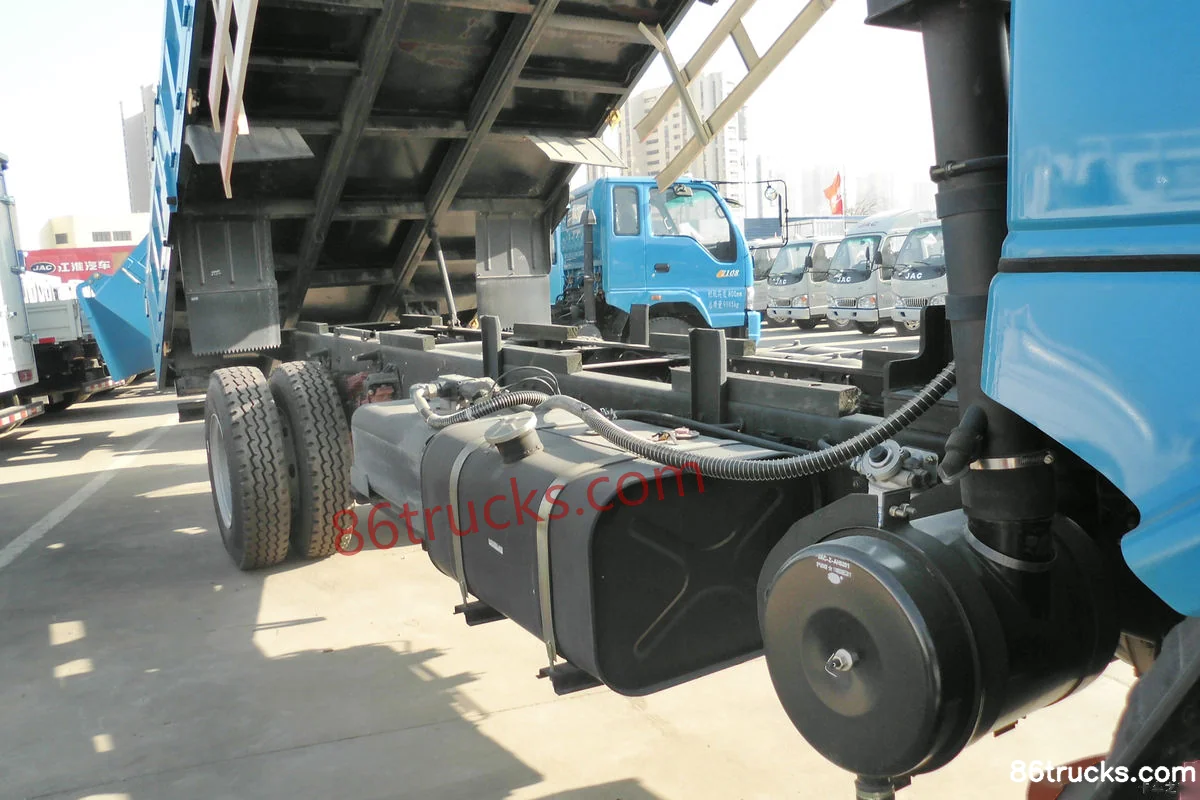

Chassis3

9 photos

FAQ

What emission standard does JAC Kangling Dingli 160 hp 4X2(6 wheels) 6.5m dump truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Kangling Dingli 160 hp 4X2(6 wheels) 6.5m dump truck?

Key specs of JAC Kangling Dingli 160 hp 4X2(6 wheels) 6.5m dump truck: Drive: 4x2; Horsepower: 160 hp; Emission: China IV; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Kangling Dingli 160 hp 4X2(6 wheels) 6.5m dump truck suited for?

JAC Kangling Dingli 160 hp 4X2(6 wheels) 6.5m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does JAC Kangling Dingli 160 hp 4X2(6 wheels) 6.5m dump truck differ from other variants in the same series?

JAC Kangling Dingli 160 hp 4X2(6 wheels) 6.5m dump truck belongs to JAC Dingli light-duty truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Kangling Dingli 160 hp 4X2(6 wheels) 6.5m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Kangling Dingli 160 hp 4X2(6 wheels) 6.5m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
