Sinotruk Hohan J7B 340hp 8X4(12 wheels) 5.6m dump truck
EXW
Export quote
Sinotruk J7B Heavy Truck Dump Trucks
Main model photos
262 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk Hohan J7B 340hp 8X4(12 wheels) 5.6m dump truck | 8x4 / 340hp / China V (Beijing) | ||
| Sinotruk Hohan J7B 380 hp 8X4(12 wheels) 6.5m Dump Truck | 8x4 / 380hp / China V | ||
| Sinotruk Haohan J7B 340hp 6X4(10 wheels) 5.4m Dump Truck | 6x4 / 340hp / China V (Beijing) | From $41,528 | |
| Sinotruk Hohan J7B 340 hp 8X4(12 wheels) 8m dump truck (457 rear axle) | 8x4 / 340hp / China V | ||
| Sinotruk Hohan J7B 340 hp 8X4(12 wheels) 7.8m dump truck (457 rear axle) | 8x4 / 340hp / China V |
Sinotruk Hohan J7B 380 hp 8X4(12 wheels) 6.5m Dump Truck
EXW
Export quote

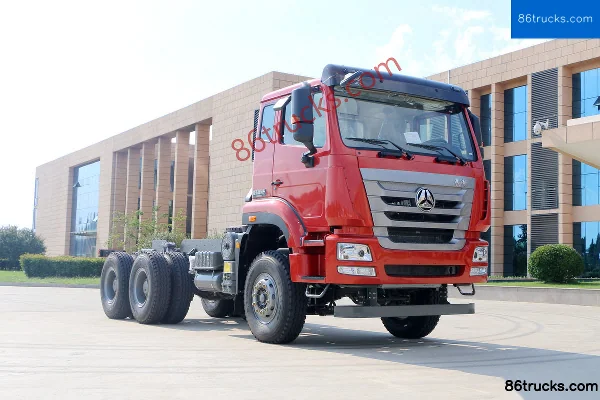

Sinotruk Haohan J7B 340hp 6X4(10 wheels) 5.4m Dump Truck
EXW
From $41,528
Export quote
Sinotruk Hohan J7B 340 hp 8X4(12 wheels) 8m dump truck (457 rear axle)
EXW
Export quote
Sinotruk Hohan J7B 340 hp 8X4(12 wheels) 7.8m dump truck (457 rear axle)
EXW
Export quote
Series Specs
Basic Info
Model code (announced): ZZ3315N2566E1 / ZZ3315N3066E1 / ZZ3255N3646E1 / ZZ3315N4466E1 / ZZ3315N4066E1 / ZZ3315N3866E1 / ZZ3315N3566E1 / ZZ3315N3266E1 / ZZ3315N2866E1 / ZZ3315N4666E1 / ZZ3255N4346E1 / ZZ3255N4046E1 / ZZ3255N3846E1 / ZZ3315N2866D1 / ZZ3255N3846E1L / ZZ3315N3866D1 / ZZ3315N4266D1 / ZZ3315N4666E1L
Drive type: 8X4 / 6X4
Wheelbase: 1800+2500+1350 / 1800+3000+1350 / 3600+1350 / 1800+4400+1350 / 1800+4000+1350 / 1800+3800+1350 / 1800+3500+1350 / 1800+3200+1350 / 1800+2800+1350 / 1800+4600+1350 / 4300+1400 / 4000+1350 / 3800+1350 / 3825+1350 / 1800+4200+1350 / 3575+1400mm
Engine Model: SinotrukD10.34-50 / SinotrukD10.38-50 / SinotrukD10.31-50 / SinotrukD10.34-40 / SinotrukT10.34-50 / SinotrukD10.38-40 / SinotrukT12.38-50
Transmission Model: SinotrukHW19710 / SinotrukHW19712
Rear Axle Ratio: 4.77 / 5.45 / 4.875 / 5.73 / 6.5 / 4.8
Cab length: 8.68 / 9.36 / 8.2 / 10.81 / 10.61 / 10.41 / 9.96 / 9.56 / 8.98 / 10.06 / 9.76 / 10.71 / 11.31 / 11.11 / 11.01 / 8.987 / 8.78 / 8.35 / 8.45 / 8.6 / 8.375m
Cab width: 2.55 / 2.496m
Cab height: 3.55 / 3.5 / 2.8 / 3.49 / 3.45m
Front track width: 2041/2041 / 2022/2022 / 2022mm
rear track: 1830/1830mm
Curb Weight: 14.77 / 14.87 / 12.01 / 15.4 / 15.21 / 15.12 / 15.04 / 14.96 / 14.83 / 15.49 / 12.26 / 12.17 / 12.1 / 15.31ton
Rated payload: 16.1 / 16 / 12.86 / 15.47 / 15.66 / 15.75 / 15.83 / 15.91 / 16.04 / 15.38 / 12.61 / 12.7 / 12.77 / 15.56ton
GVWR: 31 / 25ton
Origin: Jinan, Shandong
tonnage class: Heavy truck
Approach angle: 20°
departure angle: 16 / 20 / 22 / 21 / 18 / 24°
Remarks: Optional ratio 4.77 / Optional ratio 4.77, 6.5 / Optional ratios 4.77, 6.5; Max speed: 75 km/h
Version: Heavy-duty version / composite version / LNG Edition
Energy Type: Diesel / LNG (liquefied natural gas)
Engine parameters
Engine Brand: Sinotruk
Number of cylinders: 6cylinder
Displacement: 9.726 / 11.596L
Emission standard: China V (Beijing) / China V / China IV
Max output power: 249 / 276 / 228 / 248 / 274 / 247 / 250 / 226 / 279kW
Max hp: 340 / 380 / 310Horsepower
Max torque: 1490 / 1560 / 1390 / 1350 / 1650N·m
Max torque speed: 1200-1500rpm
Rated speed: 1900 / 2000 / 2200rpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, high-pressure common rail / Inline, water-cooled, 4-stroke, turbocharged with intercooler, electronically controlled pressure regulation, spark plug ignition / Inline, 4-stroke, turbocharged intercooled, water-cooled, electronically controlled gas system, spark plug ignition, lean burn
Transmission Parameters
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 10 / 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body / Dump type
Cargo box thickness: 10mm
Cargo box type: square box / Rear-dump body / Dump type
Cargo box length: 5.6 / 6.5 / 5.4 / 8 / 7.8 / 7.6 / 7.2 / 5.8 / 7.3 / 7 / 7.9 / 8.5 / 8.3 / 8.2 / 6.2 / 6 / 6.8m
Cargo box width: 2.3 / 2.35m
FAQ
What kind of truck is Sinotruk Sinotruk J7B Heavy Truck Dump Trucks?
Sinotruk Sinotruk J7B Heavy Truck is an export-oriented Dump Trucks lineup with about 142 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Sinotruk J7B Heavy Truck Dump Trucks?
Sinotruk J7B Heavy Truck Dump Trucks export reference is about $36,069 – $54,167. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Sinotruk J7B Heavy Truck Dump Trucks cover?
Sinotruk J7B Heavy Truck Dump Trucks mainly covers: Drive: 6x4 / 8x4; Horsepower: 340 hp / 380 hp; Emission: China V / China V (Beijing); Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Sinotruk J7B Heavy Truck Dump Trucks?
For Sinotruk J7B Heavy Truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Sinotruk J7B Heavy Truck Dump Trucks include?
Sinotruk J7B Heavy Truck Dump Trucks currently lists about 142 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Sinotruk J7B Heavy Truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
