Foton Big Diamond ES5 Pro 4.3L Diesel 200 hp 4X2(6 wheels) Fast Gear 10-speed 4m Cab-over Dump Truck
EXW
From $25,389
Export quote
Foton Dajingang ES5 Pro medium-duty truck Dump
Main model photos
33 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton Big Diamond ES5 Pro 4.3L Diesel 200 hp 4X2(6 wheels) Fast Gear 10-speed 4m Cab-over Dump Truck | 4x2 / 200hp / China VI | From $25,389 | |
| Foton Big Diamond ES5 Pro 4.3L Diesel 200 hp 4X2(6 wheels) Fast Gear 10-speed 3.8m Cab-over Dump Truck | 4x2 / 200hp / China VI | From $25,389 | |
| Foton Dajingang ES5 Pro 4.3L Diesel 180 hp 4X2(6 wheels) Fast Gear 8-speed 4m Dump Truck | 4x2 / 180hp / China VI | From $24,306 | |
| Foton Big Diamond ES5 Pro 200hp 4X2(6 wheels) 4.85m dump truck | 4x2 / 200hp / China VI | From $22,222 | |
| Foton Big King Kong ES5 Pro 200 hp 4X2(6 wheels) 5.2m Dump Truck (153Z rear axle) | 4x2 / 200hp / China VI | From $23,194 |
Foton Big Diamond ES5 Pro 4.3L Diesel 200 hp 4X2(6 wheels) Fast Gear 10-speed 3.8m Cab-over Dump Truck
EXW
From $25,389
Export quote
Foton Dajingang ES5 Pro 4.3L Diesel 180 hp 4X2(6 wheels) Fast Gear 8-speed 4m Dump Truck
EXW
From $24,306
Export quote

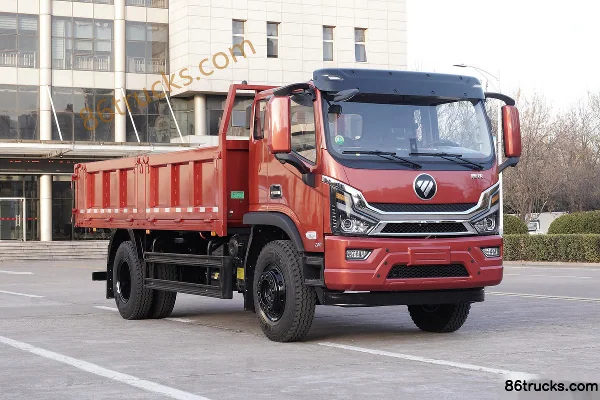

Foton Big Diamond ES5 Pro 200hp 4X2(6 wheels) 4.85m dump truck
EXW
From $22,222
Export quote
Foton Big King Kong ES5 Pro 200 hp 4X2(6 wheels) 5.2m Dump Truck (153Z rear axle)
EXW
From $23,194
Export quote
Series Specs
Basic Info
Model code (announced): BJ3184DKPFA-01 / BJ3184DLPFA-03 / BJ3184DLPFD-01 / BJ3164DKPFD-02 / BJ3164DKPFA-01
Drive type: 4X2
Wheelbase: 3400 / 4100 / 4300 / 3600mm
Engine Model: YuchaiYCS04200-66 / YuchaiYCS04180-66 / YCS04180-66
Transmission Model: Fast Gear10JS90A-B / Fast Gear8JS85E / Fast Gear8JS85F / 10JS90A-B
Rear Axle Ratio: 6.72 / 6.833 / 6.33 / 5.286 / 5.857 / 5.571
Cab length: 6.315 / 7.5 / 7.875 / 6.515 / 6.115m
Cab width: 2.41 / 2.415 / 2.4 / 2.55 / 2060m
Cab height: 2.75 / 2.72 / 2.71 / 2.76 / 2.685m
Front track width: 1755 / 1757 / 1838 / 1781mm
rear track: 1740 / 1725 / 1865mm
Curb Weight: 7.105 / 6.85 / 6.57 / 7.31 / 6.55 / 6.2ton
Rated payload: 10.7 / 10.955 / 11.235 / 8.695 / 9.455 / 9.805ton
GVWR: 18 / 16.2ton
Origin: Shandong Zhucheng
tonnage class: Medium-duty truck
Approach angle: 20 / 23 / 18°
departure angle: 18 / 20 / 15°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Number of cylinders: 4cylinder
Displacement: 4.295L
Emission standard: China VI
Max output power: 147 / 132kW
Max hp: 200 / 180Horsepower
Max torque: 650N·m
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10 / 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
hydraulic cylinder brand & model: Construction top
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4 / 3.8 / 4.85 / 5.2 / 4.2m
Cargo box width: 2.3 / 2.2 / 2.35 / 2.36m
Cargo box height: 0.8 / 0.6m
Body Parameters
Lifting type: Construction top
Cab parameters
Cab: 2026 new cab / Sleeper cab
Cab tilting: Manual
FAQ
What kind of truck is Foton Foton Dajingang ES5 Pro medium-duty truck Dump Trucks?
Foton Foton Dajingang ES5 Pro medium-duty truck is an export-oriented Dump Trucks lineup with about 11 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Foton Dajingang ES5 Pro medium-duty truck Dump?
Foton Dajingang ES5 Pro medium-duty truck Dump export reference is about $21,403 – $25,389. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Foton Dajingang ES5 Pro medium-duty truck Dump cover?
Foton Dajingang ES5 Pro medium-duty truck Dump mainly covers: Drive: 4x2; Horsepower: 180 hp / 200 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Foton Dajingang ES5 Pro medium-duty truck Dump?
For Foton Dajingang ES5 Pro medium-duty truck Dump: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Foton Dajingang ES5 Pro medium-duty truck Dump include?
Foton Dajingang ES5 Pro medium-duty truck Dump currently lists about 11 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Foton Dajingang ES5 Pro medium-duty truck Dump?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
