Foton Dajingang ES5 Pro 4.3L Diesel 180 hp 4X2(6 wheels) Fast Gear 8-speed 4m Dump Truck

Export reference
From $24,306
MSRP ¥17.5M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 6.85ton
Wheelbase:: 3400mm
Tire Size:: 10.00R20 18PR
Rated payload: 10.955ton
Drive 4X2 (6 wheels)
Horsepower 180
Cargo box type: Dump type

Overview

The Foton Dajingang ES5 Pro 4.3L Diesel 180 hp 4X2(6 wheels) Fast Gear 8-speed 4m Dump Truck is a Medium-duty truck featuring 10.955t payload, 18t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYCS04180-66 engine, 180 hp, China VI emissions and Fast Gear transmission.

China VI 180 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ3184DLPFA-03
Drive type: 4X2
Wheelbase: 3400mm
engine: YuchaiYCS04180-66
transmission: Fast Gear8JS85E
Rear Axle Ratio: 6.33
Cab length: 6.315m
Cab width: 2.415m
Cab height: 2.72m
Front track width: 1757mm
rear track: 1725mm
Curb Weight: 6.85ton
Rated payload: 10.955ton
GVWR: 18ton
Origin: Shandong Zhucheng
tonnage class: Medium-duty truck
Approach angle: 20°
departure angle: 20°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YCS04180-66
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.295L
Emission standard: China VI
Max output power: 132kW
Max hp: 180Horsepower
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: Fast Gear8JS85E
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
hydraulic cylinder brand & model: Construction top
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4m
Cargo box width: 2.2m
Cargo box height: 0.8m
Cab parameters
Cab: Sleeper cab
Cab width: 2060mm
seating capacity: 3Personnel
Driver seat type: air suspension seat
fuel tank
Fuel tank capacity: 150L
Chassis Specs
Front axle description: 4.2T
Front axle allowable load: 6500kg
Frame Dimensions: 215×65×6+4mm
rear axle description: 1153Z standard 13t, 153 single reduction drive axle, cast
rear axle allowable load: 11500kg
Axle ratio: 6.33
Leaf spring count: 10/12+9
clutch: Φ395
Tire
Tire Size: 10.00R20 18PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Remote key:
Electronic Central Lock:
Multimedia features
External audio input (AUX/USB/iPod etc.):
Service brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):

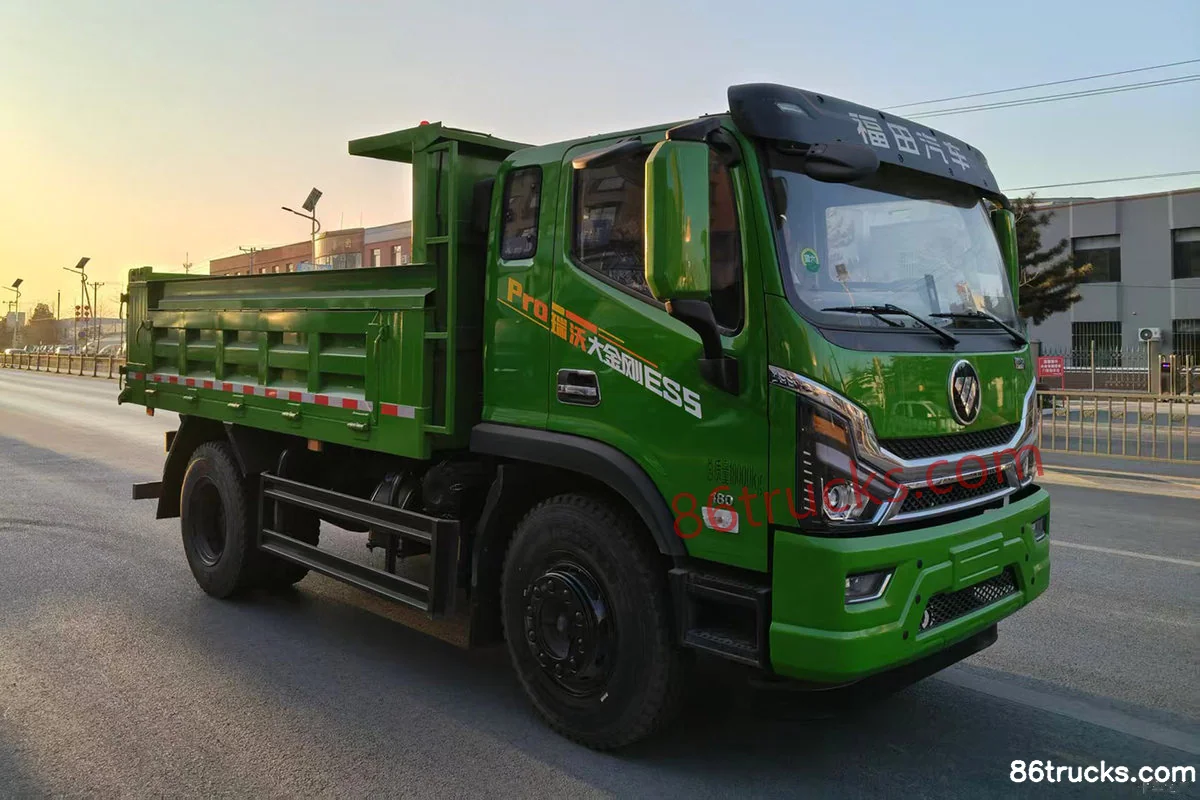

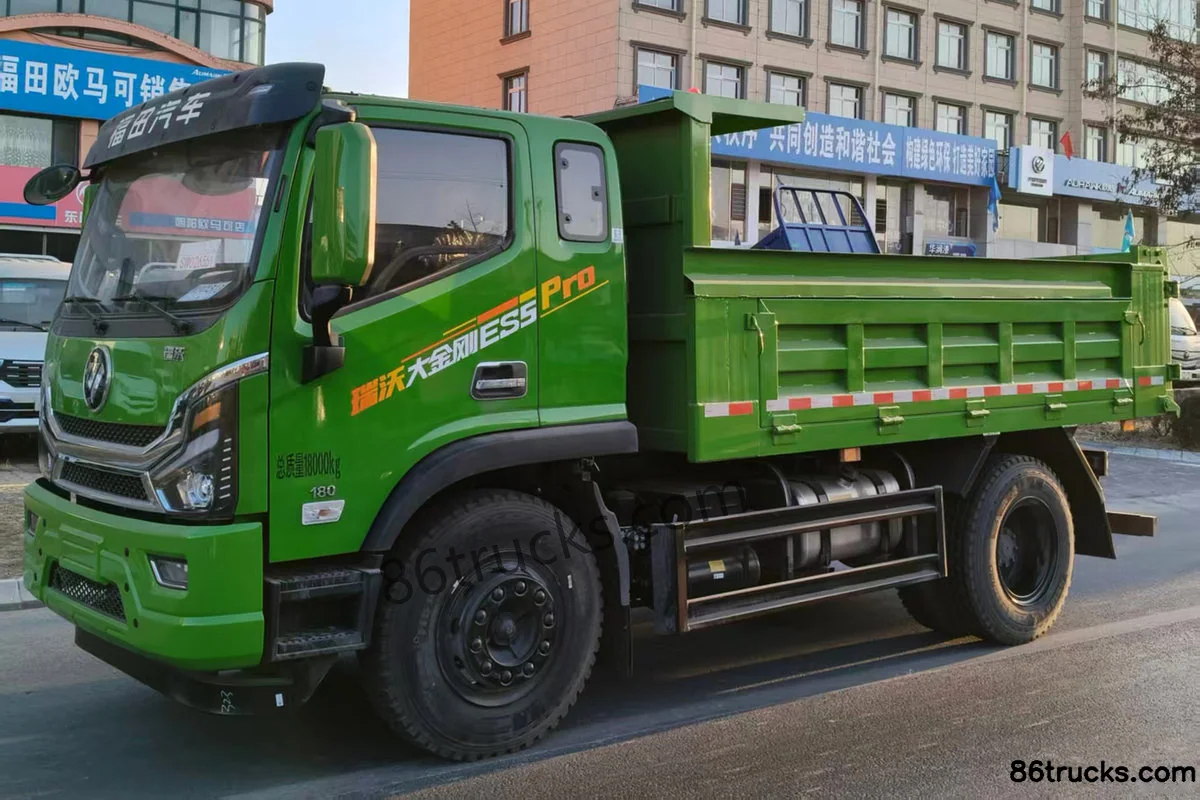

Photos

Exterior2

2 photos

FAQ

What is the export price of Foton Dajingang ES5 Pro 4.3L Diesel 180 hp 4X2(6 wheels) Fast Gear 8-speed 4m Dump Truck, and what does it include?

Foton Dajingang ES5 Pro 4.3L Diesel 180 hp 4X2(6 wheels) Fast Gear 8-speed 4m Dump Truck export reference is about From $24,306; MSRP is ¥17.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Dajingang ES5 Pro 4.3L Diesel 180 hp 4X2(6 wheels) Fast Gear 8-speed 4m Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Dajingang ES5 Pro 4.3L Diesel 180 hp 4X2(6 wheels) Fast Gear 8-speed 4m Dump Truck?

Key specs of Foton Dajingang ES5 Pro 4.3L Diesel 180 hp 4X2(6 wheels) Fast Gear 8-speed 4m Dump Truck: Drive: 4x2; Horsepower: 180 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Dajingang ES5 Pro 4.3L Diesel 180 hp 4X2(6 wheels) Fast Gear 8-speed 4m Dump Truck suited for?

Foton Dajingang ES5 Pro 4.3L Diesel 180 hp 4X2(6 wheels) Fast Gear 8-speed 4m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Foton Dajingang ES5 Pro 4.3L Diesel 180 hp 4X2(6 wheels) Fast Gear 8-speed 4m Dump Truck differ from other variants in the same series?

Foton Dajingang ES5 Pro 4.3L Diesel 180 hp 4X2(6 wheels) Fast Gear 8-speed 4m Dump Truck belongs to Foton Dajingang ES5 Pro medium-duty truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Dajingang ES5 Pro 4.3L Diesel 180 hp 4X2(6 wheels) Fast Gear 8-speed 4m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Dajingang ES5 Pro 4.3L Diesel 180 hp 4X2(6 wheels) Fast Gear 8-speed 4m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
