Sinotruk Yuanwei Heavy Truck 260 hp 8X4(12 wheels) 7.6m Dump Truck
EXW
From $38,889
Export quote
Sinotruk Yuanwei Heavy Truck Dump Trucks
Main model photos
134 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk Yuanwei Heavy Truck 260 hp 8X4(12 wheels) 7.6m Dump Truck | 8x4 / 260hp / China III / Euro III | From $38,889 | |
| Sinotruk Yuanwei Light Truck 160hp 6X2(8 wheels) 5.6m Dump Truck | 6x2 / 160hp / China II/Euro II | From $30,556 | |
| Sinotruk Yuanwei Heavy Truck 280hp 8X4(12 wheels) 7.4m Dump Truck | 8x4 / 280hp / China III / Euro III | From $39,583 | |
| Sinotruk Yuanwei Heavy Truck 260hp 8X4(12 wheels) 6.5m Dump Truck | 8x4 / 260hp / China III / Euro III | From $38,194 | |
| Sinotruk Yuanwei Medium Truck 220hp 6X2(8 wheels) 6.2m Dump Truck | 6x2 / 220hp / China III / Euro III | From $31,944 |
Sinotruk Yuanwei Light Truck 160hp 6X2(8 wheels) 5.6m Dump Truck
EXW
From $30,556
Export quote
Sinotruk Yuanwei Heavy Truck 280hp 8X4(12 wheels) 7.4m Dump Truck
EXW
From $39,583
Export quote

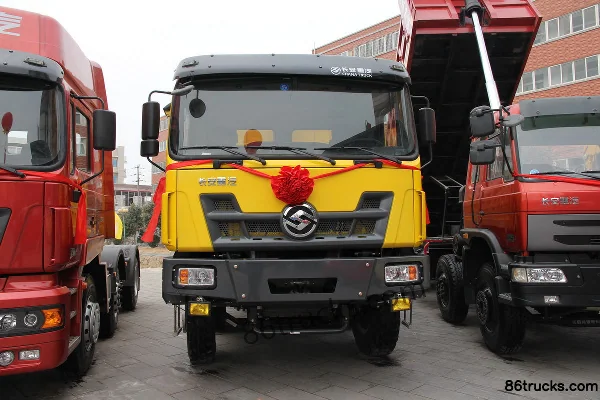

Sinotruk Yuanwei Heavy Truck 260hp 8X4(12 wheels) 6.5m Dump Truck
EXW
From $38,194
Export quote
Sinotruk Yuanwei Medium Truck 220hp 6X2(8 wheels) 6.2m Dump Truck
EXW
From $31,944
Export quote
Series Specs
Basic Info
Model code (announced): SXQ3310G5D2 / SXQ3200G2 / SXQ3310G5N / SXQ3310G5D / SXQ3232G / SXQ3250G / SXQ3150G / SXQ3250M / SXQ3250M6D / SXQ3310M / SXQ3140G / SXQ3100G / SXQ3251G / SXQ3310M7N-4 / SXQ3250M5N-4
Drive type: 8X4 / 6X2 / 6X4 / 4X2
Wheelbase: 1950+3800+1300 / 1850+3200 / 1950+3800+1350 / 1950+2850+1300 / 1950+3500 / 3900+1350 / 4325+1350 / 3800 / 3825+1350 / 4625+1350 / 1900+4100+1350 / 3950 / 3650 / 3800+1350mm
Engine Model: YuchaiYC6A260-33 / YuchaiYC6J160-21 / SDECSC9DK280Q3 / YuchaiYC6A260-30 / YuchaiYC6J220-31 / SDECSC9DK290Q3 / SDECSC8DK215Q3 / WeichaiWP10.300N / WeichaiWP10.290E32 / WeichaiWP10.340E32 / SDECSC9DK290Q3B1 / YuchaiYC4E135-33 / YuchaiYC6J160-31 / WeichaiWP12NG350E40 / SDECSC9DT280Q4 / YuchaiYC6J220-30 / SDECSC9DT280Q3
Transmission Model: Fast Gear9JS119 / Fast Gear8JS85E / Fast Gear8JS118 / Fast GearRT-11509C / Fast Gear12JSD160T / Fast Gear 12-speed
Rear Axle Ratio: 5.833 / 6.5 / 6.72 / 5.921 / 5.73 / 5.83
Cab length: 10.61 / 8.1 / 10.56 / 9.31 / 8.91 / 8.37 / 8.755 / 6.76 / 8.8 / 8.48 / 10.69 / 8.555 / 7.23 / 6.74 / 8.2 / 9.225 / 8.6 / 10.6m
Cab width: 2.498 / 2.48 / 2.98 / 2.598 / 2.43 / 2.5m
Cab height: 3.2 / 3.04 / 3.15 / 3.1 / 3.4 / 3.01 / 2.9m
Front track width: 1980/1980 / 2017 / 1939 / 1940 / 2030 / 2021/2021 / 1800mm
rear track: 1860/1860 / 1860 / 1865/1865 / 1840/1840 / 1800mm
Curb Weight: 14.74 / 9.385 / 14.68 / 14.55 / 11.1 / 12 / 12.1 / 7.4 / 12.37 / 14.87 / 6.65 / 5.8 / 11.92 / 15.07 / 12.45ton
Rated payload: 16.015 / 9.98 / 15.95 / 14.805 / 12.01 / 12.805 / 14.705 / 7.405 / 12.5 / 16 / 12.705 / 6.7 / 4.45 / 12.9 / 12.7 / 15.735 / 12.355 / 12ton
GVWR: 30.95 / 19.56 / 30.825 / 30.55 / 23.305 / 25 / 15 / 31 / 13.55 / 10.45 / 23.3 / 30.8ton
Origin: Shanxi Taiyuan
tonnage class: Heavy truck / Medium-duty truck / Light Truck
Approach angle: 32 / 30 / 25 / 21 / 29 / 17°
departure angle: 14 / 16 / 15 / 19 / 17 / 18 / 20°
Remarks: 1. Dump type: rear dump. 2. With optional bumper, front overhang 1245mm. 3. Cargo box internal length 7600mm corresponds to overall length 10610mm and 10515mm; cargo box internal length 7400mm corresponds to overall length 10560mm and 10465mm. 4. Cargo box internal length, height, and departure angle correspond one-to-one. 5. Wheelbase 1950+3775+1350 corresponds to rear overhang 2195mm, 2145mm. 6. Optional door style, front face, and front bumper per chassis, front overhang 1245mm. / 1. Cab variant optional with chassis; 2. Dump method: rear dump; 3. Overall length, cargo box length, cargo box height, rear overhang, departure angle correspond one-to-one; 4. Mass variation due to cargo box configuration changes within 3% is negligible. / 1. Dump type: rear dump. 2. Overall length, cargo box internal length, rear overhang, departure angle correspond one-to-one. 3. Cargo box internal dimensions: 7400×2300×1140mm, 7200×2300×1170mm, 7000×2300×1200mm. / 1. Dump type: rear dump. 2. With optional bumper, front overhang 1340mm. 3. Cargo box internal dimensions: 6500mm corresponds to overall length 9215mm and 9310mm; 6200mm corresponds to overall length 8915mm and 9010mm. 4. Cargo box internal length, height, and departure angle correspond one-to-one. 5. Wheelbase 1950+2825+1350 corresponds to rear overhang 1845mm, 1545mm. 6. LS71SGNR××××××××× corresponds to chassis wheelbase 1950+2850+1300; LS71SGNS××××××××× corresponds to chassis wheelbase 1950+2825+1350. 7. Optional door style, front face, and front bumper per chassis, front overhang 1245mm. / 1. Dump body unloads by rear tipping. 2. When optional bumper is selected, front overhang is 1340mm. 3. Internal cargo box length: 6200mm corresponds to overall vehicle length: 8815mm and 8910mm; internal cargo box length: 6000mm corresponds to overall vehicle length: 8615mm and 8710mm; internal cargo box length: 5800mm corresponds to overall vehicle length: 8415mm and 8510mm. 4. Wheelbase 1950+3500mm corresponds to cargo box internal length: 6000mm and 5800mm, rear overhang 1920mm and 1720mm, departure angle 17° and 19°; wheelbase 1950+3800mm corresponds to cargo box internal length: 6200mm, rear overhang 1820mm, departure angle 18°. 5. Cargo box internal length and height correspond one-to-one. 6. Wheelbase, curb weight, payload, mass utilization factor, and VIN correspond one-to-one. 7. Optional door style, front fascia, and front bumper per chassis, corresponding to front overhang 1245mm. / When optional bumper is selected, front overhang is 1260mm, cargo box internal dimensions: 5400mm, corresponding overall vehicle length: 8275mm; cargo box internal dimensions: 5600mm, corresponding overall vehicle length: 8375mm. Front/rear overhang (mm) can also be: 1260/1865. / Optional front bumper with corresponding front combination lights and front fog lights / 1. Dump type: rear dump. 2. Cargo box length and rear overhang correspond one-to-one. 3. Cargo box length and height correspond one-to-one. 4. Chassis engine: WP10.300N, VIN LS71MGVM×××××××××; chassis engine: WD615.93E, WP10.270E32, VIN LS71MGNM×××××××××. 5. Optional front bumper and corresponding front combo lights and fog lights per chassis, front overhang 1720mm. 6. Dimension relations: 8480=1600+(3825+1350)+1705, 8580=1600+(3825+1350)+1805, 8680=1600+(3825+1350)+1905, 8600=1720+(3825+1350)+1705, 8700=1720+(3825+1350)+1805, 8800=1720+(3825+1350)+1905. / Optional front bumper as per chassis, corresponding to front overhang 1720 mm, resulting overall vehicle lengths: 8600 mm, 8700 mm, 8800 mm. / Optional front bumper as per chassis, front overhang 1600 mm, corresponding overall vehicle lengths: 10690 mm, 10890 mm, 11090 mm. / Front/rear overhang (mm) also available: 1355/1820. Dump body type: rear dump. Added optional front bumper and corresponding front combination lamps and front fog lamps. / Optional: Weichai 6-cyl 270, 290 hp; Hangfa 6-cyl 290 hp; Yuchai 6-cyl 220, 230, 260, 290 hp; SDEC 6-cyl 280, 290 hp. Fast Gear small 8-speed, 8-speed, 9-speed / Front/rear overhang (mm) also available: 1355/1080. Dump body type: rear dump. Added optional front bumper and corresponding front combination lamps and front fog lamps. / 1. Dump body unloads by rear tipping. 2. When optional bumper is selected, front overhang is 1340mm. 3. Internal cargo box length: 6200mm corresponds to overall vehicle length: 8815mm and 8910mm; internal cargo box length: 6000mm corresponds to overall vehicle length: 8615mm and 8710mm; internal cargo box length: 5800mm corresponds to overall vehicle length: 8415mm and 8510mm. 4. Wheelbase 1950+3500mm corresponds to cargo box internal length: 6000mm and 5800mm, rear overhang 1920mm and 1720mm, departure angle 17° and 19°; wheelbase 1950+3800mm corresponds to cargo box internal length: 6200mm, rear overhang 1820mm, departure angle 18°. 5. Cargo box internal length and height correspond one-to-one. 6. Wheelbase, curb weight, payload, mass utilization factor, and VIN correspond one-to-one. / 1. Dump type: rear dump. 2. Overall length, cargo box internal length, rear overhang, departure angle correspond one-to-one. 3. Cargo box internal dimensions: 7400×2300×1140mm, 7200×2300×1170mm, 7000×2300×1200mm. (Reflective marking company: American Reflective Materials, brand: Reflective, model: V82-5542)
Version: LNG Edition / CNG Version
Energy Type: Diesel / LNG (liquefied natural gas) / Compressed Natural Gas (CNG)
Engine parameters
Engine Brand: Yuchai / SDEC / Weichai
Number of cylinders: 6 / 4cylinder
Displacement: 7.255 / 6.494 / 8.8 / 8.82 / 8.27 / 9.726 / 4.257 / 11.596L
Emission standard: China III / Euro III / China II/Euro II / China IV
Max output power: 191 / 118 / 206 / 162 / 213 / 158 / 221 / 250 / 100 / 257kW
Max hp: 260 / 160 / 280 / 220 / 290 / 215 / 300 / 340 / 135 / 350Horsepower
Max torque: 960 / 520 / 1000 / 800 / 1200 / 1390 / 1160 / 1250 / 392 / 1400 / 1120N·m
Max torque speed: 1400-1600 / 1400-1700 / 1200-1700 / 1400 / 1200-1500 / 1200-1600 / 1700 / 1300-1400rpm
Rated speed: 2300 / 2500 / 2200 / 1900 / 2800rpm
Engine Type: Vertical, inline, water-cooled, four-stroke, direct injection, EGR / Vertical, inline, water-cooled, four-stroke, direct injection / Direct injection, inline, six-cylinder, water-cooled, four-stroke / Vertical, inline, water-cooled, four-stroke, electronically controlled direct injection / direct injection, inline, 6-cylinder, water-cooled, 4-stroke / Water-cooled, four-stroke, with exhaust brake, direct injection, turbocharged intercooled / Water-cooled, 4-stroke, with exhaust brake, direct injection, turbocharged intercooled / Inline, mechanical pump, internal EGR, turbocharged intercooled, wet liner, front gear train / Water-cooled, wet cylinder liner, turbocharged intercooled, electronically controlled premixed, spark plug ignition, lean burn, single-point injection + oxidation catalyst / Inline, electronic, turbocharged intercooled, 4-stroke, water-cooled
Transmission Parameters
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 9 / 8 / 12Gear
Number of Reverse Gears: 1 / 2pcs
Cargo box parameters
Unloading Type: Rear-dump body / Dump type
Cargo box length: 7.6 / 5.6 / 7.4 / 6.5 / 6.2 / 5.8 / 4.35 / 8 / 4.8 / 4.2 / 5.36 / 6m
Cargo box width: 2.3 / 2.25m
Cargo box height: 1.1 / 1.064 / 1.17 / 1.3 / 1.02 / 1.2 / 1.15 / 0.8 / 1.065 / 1.21 / 1.09 / 1.06m
fuel tank
Fuel tank capacity: 300L
FAQ
What kind of truck is Sinotruk Sinotruk Yuanwei Heavy Truck Dump Trucks?
Sinotruk Sinotruk Yuanwei Heavy Truck is an export-oriented Dump Trucks lineup with about 20 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Sinotruk Yuanwei Heavy Truck Dump Trucks?
Sinotruk Yuanwei Heavy Truck Dump Trucks export reference is about $21,111 – $39,583. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Sinotruk Yuanwei Heavy Truck Dump Trucks cover?
Sinotruk Yuanwei Heavy Truck Dump Trucks mainly covers: Drive: 6x2 / 8x4; Horsepower: 160 hp / 220 hp / 260 hp / 280 hp; Emission: China II/Euro II / China III / Euro III; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Sinotruk Yuanwei Heavy Truck Dump Trucks?
For Sinotruk Yuanwei Heavy Truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Sinotruk Yuanwei Heavy Truck Dump Trucks include?
Sinotruk Yuanwei Heavy Truck Dump Trucks currently lists about 20 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Sinotruk Yuanwei Heavy Truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
