Sinotruk Yuanwei Medium Truck 220hp 6X2(8 wheels) 6.2m Dump Truck

Export reference
From $31,944
MSRP ¥23M CNY
Emission: China III / Euro III
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 11.1ton
Wheelbase:: 1950+3500mm
Tire Size:: 10.00-20，10.00R20，11.00-20,11.00R20

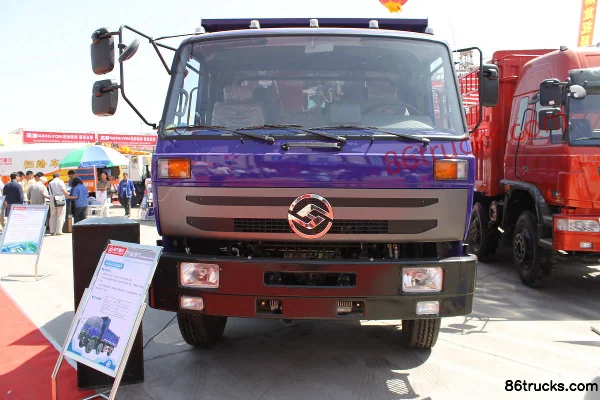

Sinotruk Yuanwei Medium Truck 220hp 6X2(8 wheels) 6.2m Dump Truck exterior
Rated payload: 12.01ton
Drive 6X2 (8 wheels)
Horsepower 220
Cargo box type: Rear-dump body

Overview

The Sinotruk Yuanwei Medium Truck 220hp 6X2(8 wheels) 6.2m Dump Truck is a Medium-duty truck featuring 12.01t payload, 23.305t GVW, Rear-dump body cargo body and 6X2 (8 wheels) drive. On the powertrain side, it comes with a YuchaiYC6J220-31 engine, 220 hp, China III / Euro III emissions and Fast Gear transmission.

China III / Euro III 220 Diesel 6X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): SXQ3232G
Drive type: 6X2
Wheelbase: 1950+3500mm
engine: YuchaiYC6J220-31
transmission: Fast Gear8JS118
Rear Axle Ratio: 5.833
Cab length: 8.91m
Cab width: 2.48m
Cab height: 3.15m
Front track width: 1980/1980mm
rear track: 1860mm
Curb Weight: 11.1ton
Rated payload: 12.01ton
GVWR: 23.305ton
Origin: Shanxi Taiyuan
tonnage class: Medium-duty truck
Approach angle: 32°
departure angle: 17°
Remarks: 1. Dump body unloads by rear tipping. 2. When optional bumper is selected, front overhang is 1340mm. 3. Internal cargo box length: 6200mm corresponds to overall vehicle length: 8815mm and 8910mm; internal cargo box length: 6000mm corresponds to overall vehicle length: 8615mm and 8710mm; internal cargo box length: 5800mm corresponds to overall vehicle length: 8415mm and 8510mm. 4. Wheelbase 1950+3500mm corresponds to cargo box internal length: 6000mm and 5800mm, rear overhang 1920mm and 1720mm, departure angle 17° and 19°; wheelbase 1950+3800mm corresponds to cargo box internal length: 6200mm, rear overhang 1820mm, departure angle 18°. 5. Cargo box internal length and height correspond one-to-one. 6. Wheelbase, curb weight, payload, mass utilization factor, and VIN correspond one-to-one. 7. Optional door style, front fascia, and front bumper per chassis, corresponding to front overhang 1245mm.
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6J220-31
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.494L
Emission standard: China III / Euro III
Max output power: 162kW
Max hp: 220Horsepower
Max torque: 800N·m
Max torque speed: 1200-1700rpm
Rated speed: 2500rpm
Engine Type: Vertical, inline, water-cooled, four-stroke, electronically controlled direct injection
Transmission Parameters
Transmission Model: Fast Gear8JS118
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 6.2m
Cargo box width: 2.3m
Cargo box height: 1.02m
Chassis Specs
Front axle allowable load: 6000/6000kg
rear axle allowable load: 11305kg
Axle ratio: 5.833
Leaf spring count: 9/9/12+8
Tire
Tire Size: 10.00-20，10.00R20，11.00-20,11.00R20
Number of tires: 8pcs

Photos

0 photos

FAQ

What is the export price of Sinotruk Yuanwei Medium Truck 220hp 6X2(8 wheels) 6.2m Dump Truck, and what does it include?

Sinotruk Yuanwei Medium Truck 220hp 6X2(8 wheels) 6.2m Dump Truck export reference is about From $31,944; MSRP is ¥23M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk Yuanwei Medium Truck 220hp 6X2(8 wheels) 6.2m Dump Truck use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Yuanwei Medium Truck 220hp 6X2(8 wheels) 6.2m Dump Truck?

Key specs of Sinotruk Yuanwei Medium Truck 220hp 6X2(8 wheels) 6.2m Dump Truck: Drive: 6x2; Horsepower: 220 hp; Emission: China III / Euro III; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Yuanwei Medium Truck 220hp 6X2(8 wheels) 6.2m Dump Truck suited for?

Sinotruk Yuanwei Medium Truck 220hp 6X2(8 wheels) 6.2m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk Yuanwei Medium Truck 220hp 6X2(8 wheels) 6.2m Dump Truck differ from other variants in the same series?

Sinotruk Yuanwei Medium Truck 220hp 6X2(8 wheels) 6.2m Dump Truck belongs to Sinotruk Yuanwei Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Yuanwei Medium Truck 220hp 6X2(8 wheels) 6.2m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Yuanwei Medium Truck 220hp 6X2(8 wheels) 6.2m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
