SHACMAN Delong H6000 400 hp 8X4(12 wheels) 6.5m hybrid dump truck
EXW
Export quote
SHACMAN Delong H6000 Dump Trucks
Main model photos
78 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| SHACMAN Delong H6000 400 hp 8X4(12 wheels) 6.5m hybrid dump truck | 8x4 / 400hp / China VI | ||
| SHACMAN Delong H6000 400 hp 6X4(10 wheels) Dump Truck (China VI) | 6x4 / 400hp / China VI | ||
| SHACMAN Delong H6000 350 hp 8X4(12 wheels) 5.6m Dump Truck | 8x4 / 350hp / China V | ||
| SHACMAN Delong H6000 375hp 8X4(12 wheels) 6.5m Dump Truck | 8x4 / 375hp / China V |

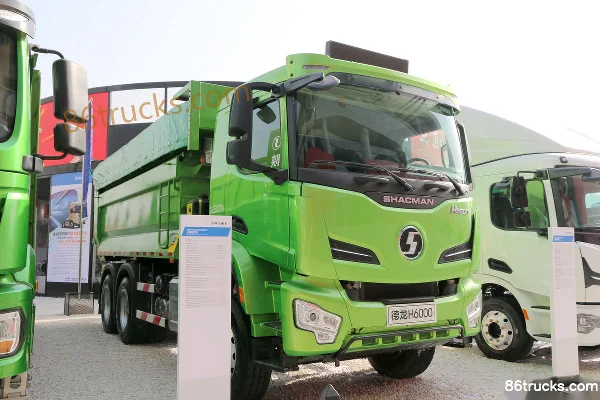

SHACMAN Delong H6000 400 hp 6X4(10 wheels) Dump Truck (China VI)
EXW
Export quote
SHACMAN Delong H6000 350 hp 8X4(12 wheels) 5.6m Dump Truck
EXW
Export quote

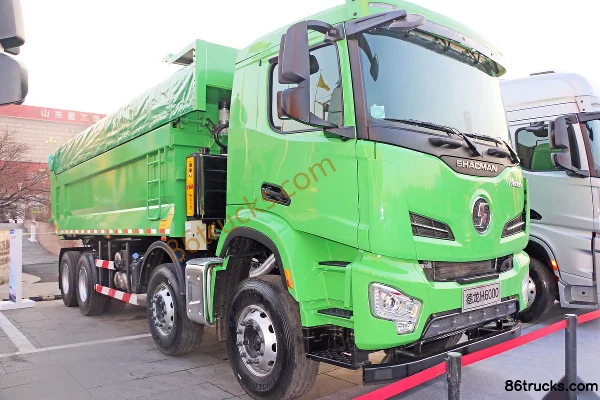

SHACMAN Delong H6000 375hp 8X4(12 wheels) 6.5m Dump Truck
EXW
Export quote
Series Specs
Basic Info
Drive type: 8X4 / 6X4
Wheelbase: 1800+3575+1400 / 3900+1350mm
Engine Model: WeichaiWP10H400E68 / WeichaiWP10H.350E5 / WeichaiWP10H375E50 / WP10H375E50
Transmission Model: 12-speed / Fast Gear10J180T-QH50 / ShifengSF10J180T-QH50 / Fast Gear12JSD180T-QH50
Cab length: 8.46m
Cab width: 2.55m
Cab height: 3.45m
Curb Weight: 14ton
Rated payload: 26ton
Origin: Xi'an, Shaanxi
tonnage class: Heavy truck
Remarks: Standard: Tianxingjian smart terminal, electric tilt cab, 8-inch multimedia display, electronically controlled automatic constant-temperature AC, engine start from under cab, LED lighting system, multi-purpose power outlet, 180Ah maintenance-free battery, full cab armor. / high-strength single-layer frame
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Number of cylinders: 6cylinder
Displacement: 9.5L
Emission standard: China VI / China V
Max output power: 294 / 276kW
Max hp: 400 / 350 / 375Horsepower
Max torque: 1900 / 1800N·m
Max torque speed: 1200-1300 / 1000-1400rpm
Rated speed: 1900rpm
Engine Type: Electronically controlled high-pressure common rail (self-developed ECU) + DOC + DPF + Hi-SCR / Electronic high-pressure common rail + SCR
Technology route: Common Rail SCR
Transmission Parameters
Transmission Brand: Fast Gear / Shifeng
Forward gears: 10 / 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type / Rear-dump body
Cargo box length: 5.6 / 6.5m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
Cab: Narrow 1.5-row flat roof cab / Narrow medium-long flat roof
Cab suspension: Four-point air suspension / 4-point mechanical suspension
Cab tilting: Electric
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 400L
Chassis Specs
Front axle description: 7.3T / 8.2T / SHF-8.2T
Frame Dimensions: high-strength single-layer framemm
rear axle description: 16T / 13T / SHF-13T
Leaf spring count: 3/2 / 3/5
FAQ
What kind of truck is SHACMAN SHACMAN Delong H6000 Dump Trucks?
SHACMAN SHACMAN Delong H6000 is an export-oriented Dump Trucks lineup with about 4 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does SHACMAN Delong H6000 Dump Trucks cover?
SHACMAN Delong H6000 Dump Trucks mainly covers: Drive: 6x4 / 8x4; Horsepower: 350 hp / 375 hp / 400 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in SHACMAN Delong H6000 Dump Trucks?
For SHACMAN Delong H6000 Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does SHACMAN Delong H6000 Dump Trucks include?
SHACMAN Delong H6000 Dump Trucks currently lists about 4 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for SHACMAN Delong H6000 Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
