NanJun Ruiyu K68D 270hp 8X2(10 wheels) 6m Dump Truck
EXW
From $40,958
Export quote
NanJun Ruiyu Medium Truck Dump Trucks
Main model photos
173 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| NanJun Ruiyu K68D 270hp 8X2(10 wheels) 6m Dump Truck | 8x2 / 270hp / China VI | From $40,958 | |
| NanJun Ruiyu R60D 270 hp 8X4(12 wheels) 6m Dump Truck | 8x4 / 270hp / China VI | From $41,667 | |
| NanJun Ruiyu K68D 270 hp 8X2(10 wheels) 6m Dump Truck (Side Dump) | 8x2 / 270hp / China VI | From $40,375 | |
| NanJun Ruiyu K68D 270 hp 8X2(10 wheels) 6m Dump Truck (Red) | 8x2 / 270hp / China VI | From $40,958 | |
| NanJun Ruiyu Luxury Edition 350 hp 8X4(12 wheels) 6m Dump Truck (China VI) | 8x4 / 350hp / China VI | From $48,958 |

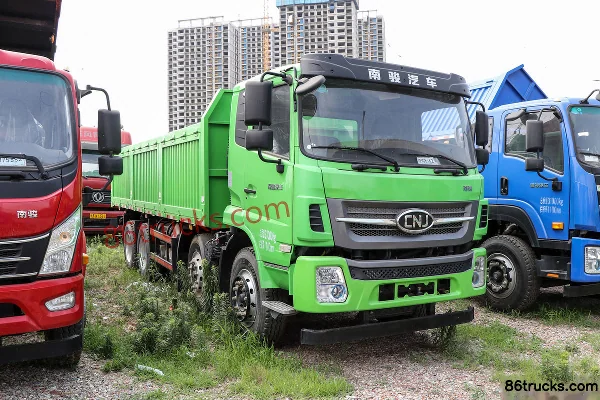

NanJun Ruiyu R60D 270 hp 8X4(12 wheels) 6m Dump Truck
EXW
From $41,667
Export quote

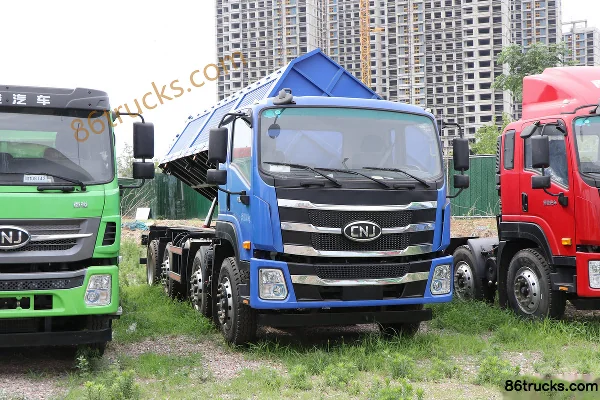

NanJun Ruiyu K68D 270 hp 8X2(10 wheels) 6m Dump Truck (Side Dump)
EXW
From $40,375
Export quote
NanJun Ruiyu K68D 270 hp 8X2(10 wheels) 6m Dump Truck (Red)
EXW
From $40,958
Export quote
NanJun Ruiyu Luxury Edition 350 hp 8X4(12 wheels) 6m Dump Truck (China VI)
EXW
From $48,958
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| NanJun Ruiyu R60D 260 hp 8X2(10 wheels) 6.2m dump truck (rear axle lift) | 8x2 / 260hp / China V | ||
| NanJun Ruiyu R60D 300 hp 8X4(12 wheels) 6.2m dump truck | 8x4 / 300hp / China V | From $51,111 | |
| NanJun Ruiyu R60D 260hp 8X4(12 wheels) 6.8m dump truck | 8x4 / 260hp / China V | From $54,167 | |
| NanJun Ruiyu R60D 260hp 8X4(12 wheels) 6.2m Dump Truck | 8x4 / 260hp / China V | From $46,083 | |
| NanJun Ruiyu R60D 220 hp 6X4(10 wheels) 4.8m Dump Truck | 6x4 / 220hp / China V | From $35,833 |
NanJun Ruiyu R60D 260 hp 8X2(10 wheels) 6.2m dump truck (rear axle lift)
EXW
Export quote
NanJun Ruiyu R60D 300 hp 8X4(12 wheels) 6.2m dump truck
EXW
From $51,111
Export quote
NanJun Ruiyu R60D 260hp 8X4(12 wheels) 6.8m dump truck
EXW
From $54,167
Export quote
NanJun Ruiyu R60D 260hp 8X4(12 wheels) 6.2m Dump Truck
EXW
From $46,083
Export quote
NanJun Ruiyu R60D 220 hp 6X4(10 wheels) 4.8m Dump Truck
EXW
From $35,833
Export quote
Series Specs
Basic Info
Model code (announced): NJA3312DPF56A / NJA3310DPF56A / NJA3311RPE56A / NJA3250RPD46A / NJA3251RPD39A / NJA3250RPD38A / NJA3250RPD47A / NJA3240RPD47A / NJA3310RPD50V / NJA3310RPE56V / NJA3310RPD63V / NJA3310RPD56V / NJA3250RPD46V / NJA3240RPD43V / NJA3240RPD50V / NJA3250RPD47V / NJA3240RPC48V / NJA3180RPC48V / NJA3180PPB38V / NJA3120PPB38V / NJA3100PPB38V / CNJ3180RPC43V / CNJ3060RPC43M
Drive type: 8X2 / 8X4 / 6X4 / 6X2 / 4X2
Wheelbase: 1700+2350+1300 / 1700+2600+1350 / 1800+2550+1300 / 1700+2300+1350 / 1700+2650+1300 / 3300+1350 / 2620+1330 / 2530+1320 / 1700+2250 / 1700+2600 / 1700+2150+1300 / 1700+3000 / 1700+2100+1200 / 1700+2900+1350 / 1700+3300 / 3700 / 3600 / 4300mm
Engine Model: YuchaiYCS06270-60 / YuchaiYCK08350-60A / YuchaiYCS06245-60 / YuchaiYC6JA260-50 / WeichaiWP7.300E51 / YuchaiYC6JA220-50 / YuchaiYC4EG220-50 / YuchaiYC4E160-56 / YuchaiYC4EG185-50 / YuchaiYC6JA200-50 / YuchaiYC6JA180-50 / YuchaiYC6J220-46
Transmission Model: Fast Gear 10-Speed / 10-speed transmission / Fast Gear10-140CY1KQ / Fast Gear10-90CY5KQ / Fast Gear10-90CY6KQ / Fast Gear10-120CY1KQ / Fast Gear10JS90A / Fast Gear8-118
Rear Axle Ratio: 5.286 / 5.143 / 5.92 / 6.73 / 5.833 / 5.73 / 5.571 / 6.167 / 4.875 / 5.83 / 6.333 / 6.833 / 153
Cab length: 8.755 / 8.7 / 8.8 / 8.3 / 7.28 / 7.25 / 6.95 / 7.3 / 7.4 / 8.355 / 7.5 / 7.9 / 8.6 / 8.75 / 9.2 / 8.86 / 7.65 / 8.4 / 7.95 / 7.56 / 6.7 / 6.15 / 6.9 / 7.55 / 7.45m
Cab width: 2.55 / 2.46 / 2.5 / 2.48 / 2.44 / 2.36 / 2.41 / 2.485 / 2.45 / 2.35 / 2.4 / 2.3 / 2.34 / 2025 / 2250 / 2150m
Cab height: 2.635 / 2.82 / 3 / 2.93 / 3.02 / 2.83 / 3.35 / 2.68 / 2.8 / 2.985 / 3.08 / 2.85 / 2.65 / 3.017 / 3.23m
Front track width: 1820/1820 / 1830/1830 / 1960/1960 / 1940 / 1800 / 1870 / 1780/1780 / 1987/1987 / 1900 / 1910/1910 / 1630 / 1670 / 1997mm
rear track: 1860/1750 / 1755/1755 / 1860/1860 / 1750/1750 / 1978/1783 / 1930/1780 / 1750 / 1930/1750 / 1860 / 1635 / 1864mm
Curb Weight: 9.74 / 10.46 / 12.9 / 10 / 10.3 / 8.75 / 9 / 9.1 / 12.5 / 10.4 / 10.95 / 9.81 / 8.4 / 9.895 / 8.85 / 8.05 / 7.81 / 6.805 / 5.99 / 8.07 / 3.375ton
Rated payload: 21.065 / 20.345 / 17.97 / 14.805 / 14.57 / 16.055 / 15.805 / 15.205 / 21.705 / 18.37 / 20.405 / 19.855 / 14.995 / 15.905 / 13.905 / 14.91 / 15.455 / 9.995 / 4.995 / 4.895 / 16.255 / 9.195 / 1.999ton
GVWR: 31 / 25 / 24.5 / 18.24 / 18 / 11.995 / 10.49 / 18.26 / 5.569ton
Origin: Ziyang, Sichuan
tonnage class: Heavy truck / Medium-duty truck / Light Truck
Approach angle: 24 / 18 / 14 / 21 / 15 / 13 / 16 / 20 / 17 / 31°
departure angle: 14 / 18 / 15 / 17°
Remarks: Ratio optional 6.833
Version: Luxury Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai / Weichai
Number of cylinders: 6 / 4cylinder
Displacement: 6.23 / 7.7 / 6.87 / 7.47 / 4.73 / 4.26 / 6.494L
Emission standard: China VI / China V / China IV
Max output power: 199 / 257 / 180 / 191 / 220 / 162 / 160 / 118 / 136 / 147 / 132kW
Max hp: 270 / 350 / 245 / 260 / 300 / 220 / 160 / 185 / 200 / 180Horsepower
Max torque: 1050 / 1350 / 850 / 985 / 1250 / 860 / 800 / 600 / 700 / 760N·m
Max torque speed: 1200-1700 / 1200-1800 / 1300-1700 / 1300-1600 / 1300-1800rpm
Rated speed: 2300 / 2200 / 2500 / 2600rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC / Vertical, inline, water-cooled, four-stroke / Inline 6-cylinder, electronic high-pressure common rail, SCR / Vertical, inline, water-cooled, four-stroke, high-pressure common rail / Vertical, inline, water-cooled, four-stroke, direct injection
Technology route: Common Rail SCR
Transmission Parameters
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10 / 8Gear
Number of Reverse Gears: 2 / 1pcs
Cargo box parameters
hydraulic cylinder brand & model: 4TG-E160×4280B / 5TG-E160×4280B / 5TG-E160×3500B / 3TG-130×3060C / 5TG-160×3500 / 3TG / 3TG/130×3060 / 3TG/130× 2850 / 3TG-140 / 3TG-130
Cargo box thickness: floor 3mm side 2mm rectangular bucket / 5mm base, 3mm sides rectangular bucket / Lightweight Rectangular Bucket / floor 3mm side 2mm five-door / floor 5 side 3 / floor 2 side 2 / floor 2mm side 2mm high-strength plate / floor 4 side 3 / floor 5 side 3mm / floor 4 side 3mm / floor 2 side 2mm / 8mm base, 5mm sides
Unloading Type: Rear-dump body / Side-dump tipper. / Dump type
Cargo box type: U-shaped box / Rear-dump body / Side-dump tipper. / Dump type
FAQ
What kind of truck is NanJun NanJun Ruiyu Medium Truck Dump Trucks?
NanJun NanJun Ruiyu Medium Truck is an export-oriented Dump Trucks lineup with about 44 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for NanJun Ruiyu Medium Truck Dump Trucks?
NanJun Ruiyu Medium Truck Dump Trucks export reference is about $22,194 – $54,167. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does NanJun Ruiyu Medium Truck Dump Trucks cover?
NanJun Ruiyu Medium Truck Dump Trucks mainly covers: Drive: 6x4 / 8x2 / 8x4; Horsepower: 220 hp / 260 hp / 270 hp / 300 hp / 350 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in NanJun Ruiyu Medium Truck Dump Trucks?
For NanJun Ruiyu Medium Truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does NanJun Ruiyu Medium Truck Dump Trucks include?
NanJun Ruiyu Medium Truck Dump Trucks currently lists about 44 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for NanJun Ruiyu Medium Truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
