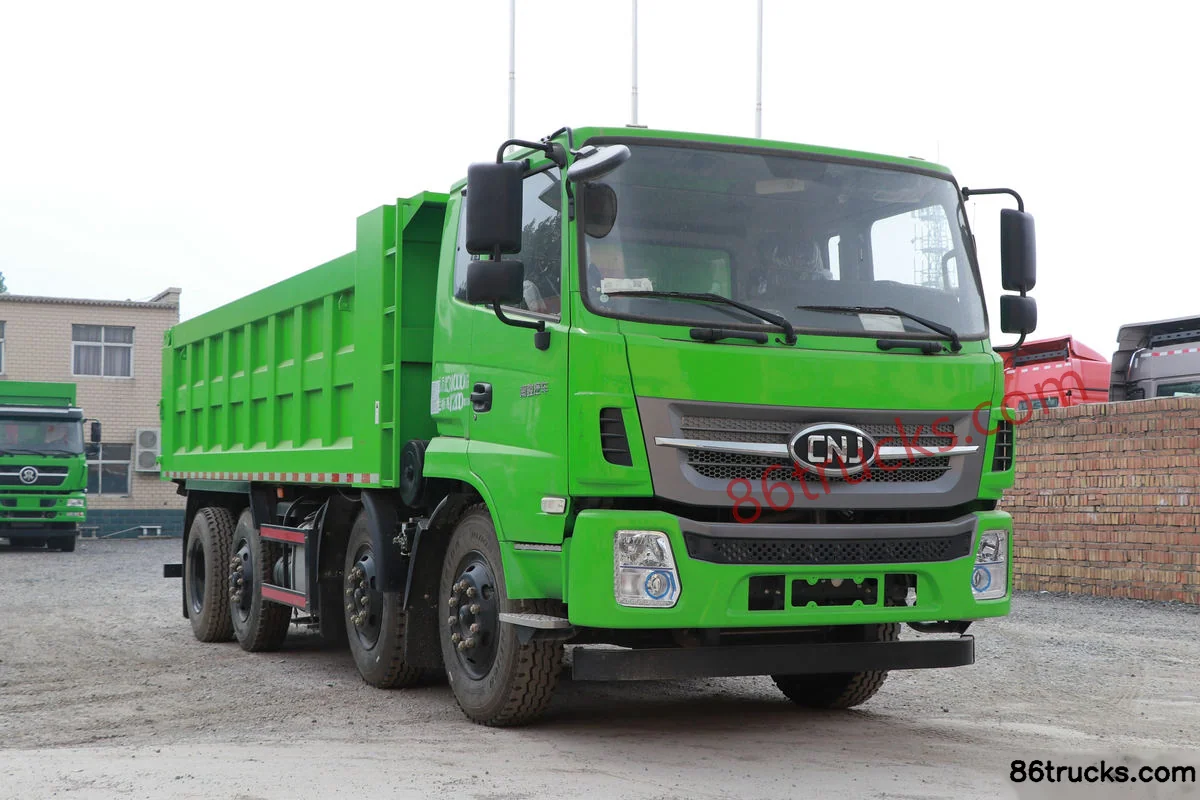

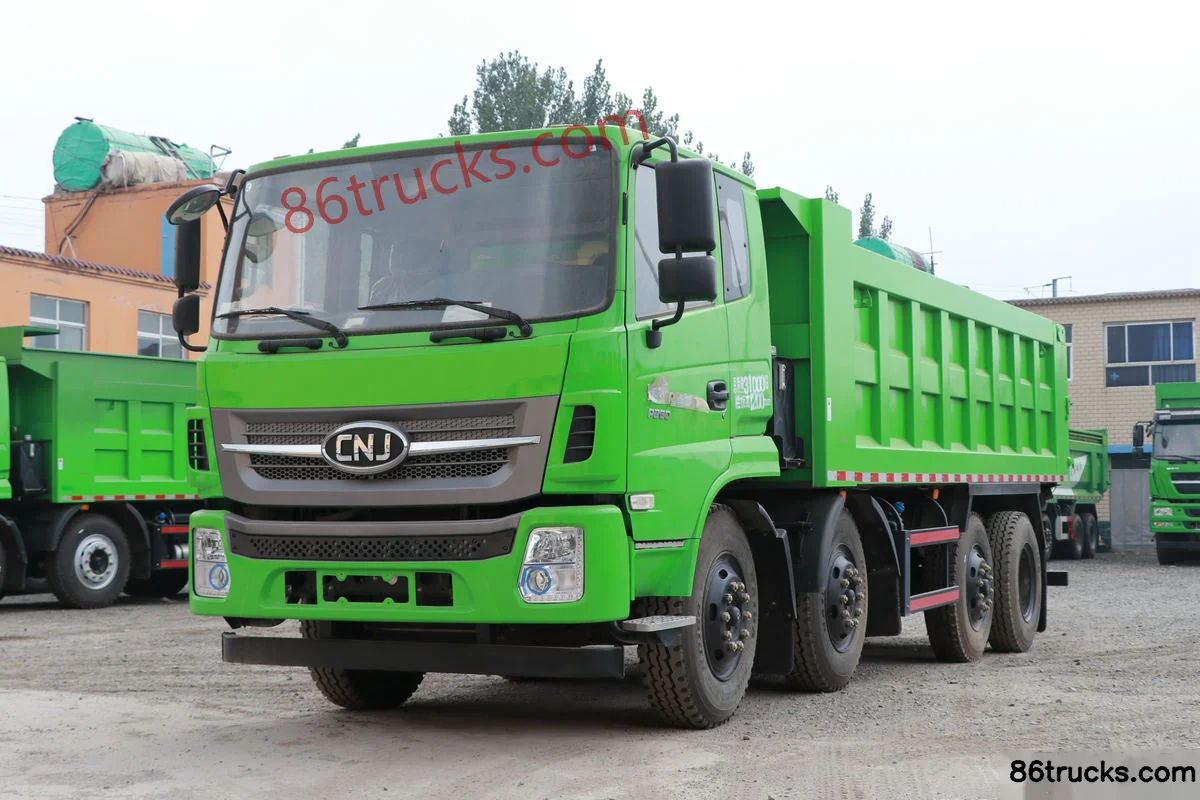

NanJun Ruiyu R60D 260 hp 8X2(10 wheels) 6.2m dump truck (rear axle lift)

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 9.1ton
Wheelbase:: 1700+2100+1200mm
Tire Size:: 10.00R20 18PR
Rated payload: 21.705ton
Drive 8X2 (10 wheels)
Horsepower 260
Cargo box type: Dump type

Overview

The NanJun Ruiyu R60D 260 hp 8X2(10 wheels) 6.2m dump truck (rear axle lift) is a Heavy truck featuring 21.705t payload, 31t GVW, Dump type cargo body and 8X2 (10 wheels) drive. On the powertrain side, it comes with a YuchaiYC6JA260-50 engine, 260 hp, China V emissions and Fast Gear transmission.

China V 260 Diesel 8X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): NJA3310RPD50V
Drive type: 8X2
Wheelbase: 1700+2100+1200mm
engine: YuchaiYC6JA260-50
transmission: Fast Gear 10-Speed
Rear Axle Ratio: 5.286
Cab length: 8.6m
Cab width: 2.41m
Cab height: 3.02m
Front track width: 1820/1820mm
rear track: 1930/1750mm
Curb Weight: 9.1ton
Rated payload: 21.705ton
GVWR: 31ton
Origin: Ziyang, Sichuan
tonnage class: Heavy truck
Approach angle: 24°
departure angle: 14°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6JA260-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.87L
Emission standard: China V
Max output power: 191kW
Max hp: 260Horsepower
Max torque: 985N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: Fast Gear 10-Speed
Transmission Brand: Fast Gear
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 6.2m
Cargo box width: 2.2m
Cargo box height: 1.2m
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle description: 145N
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.286
Leaf spring count: 3/3/6/10+8
Tire
Tire Size: 10.00R20 18PR
Number of tires: 12pcs
Control configuration
ABS:

Photos

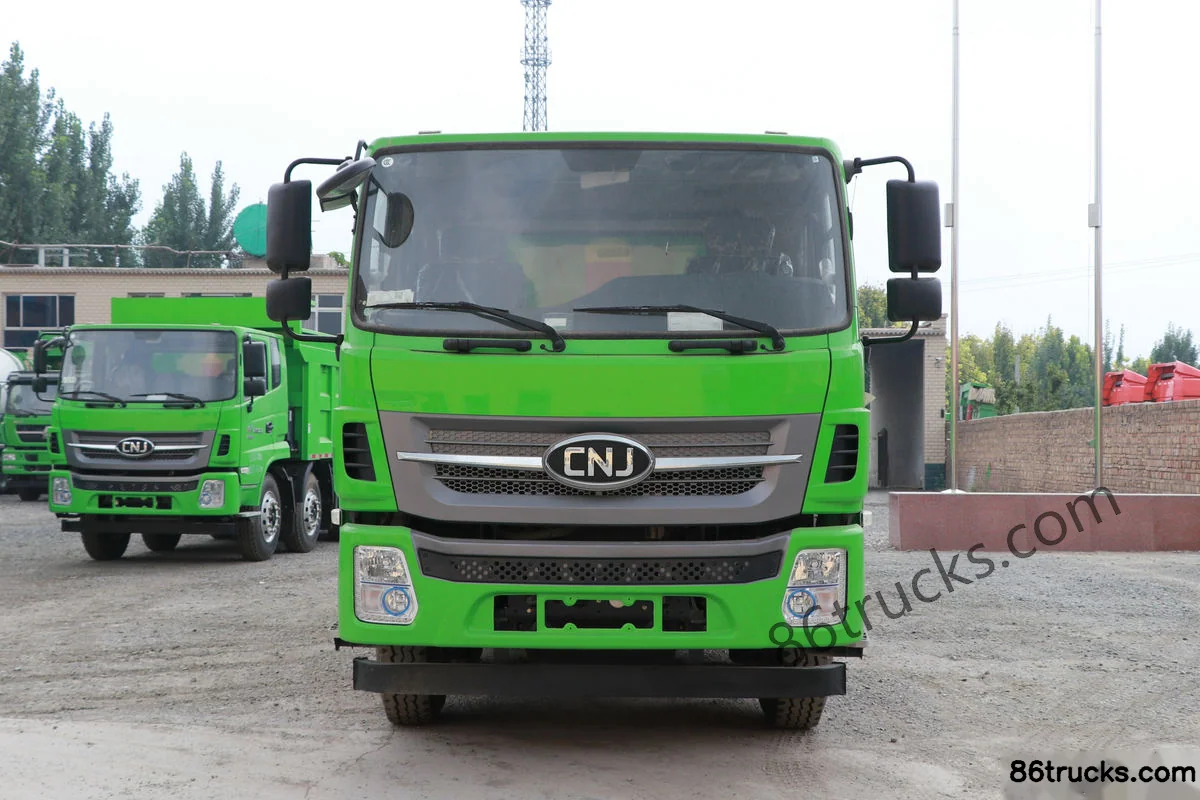

Exterior3

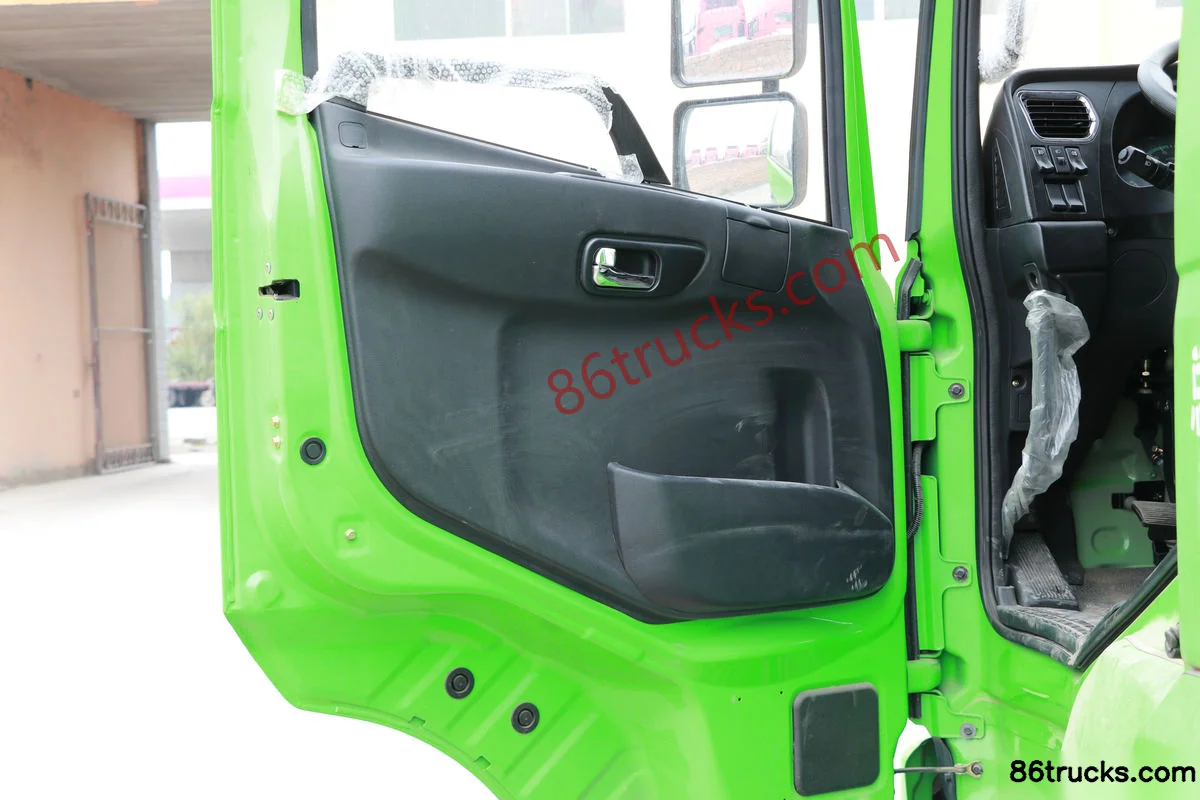

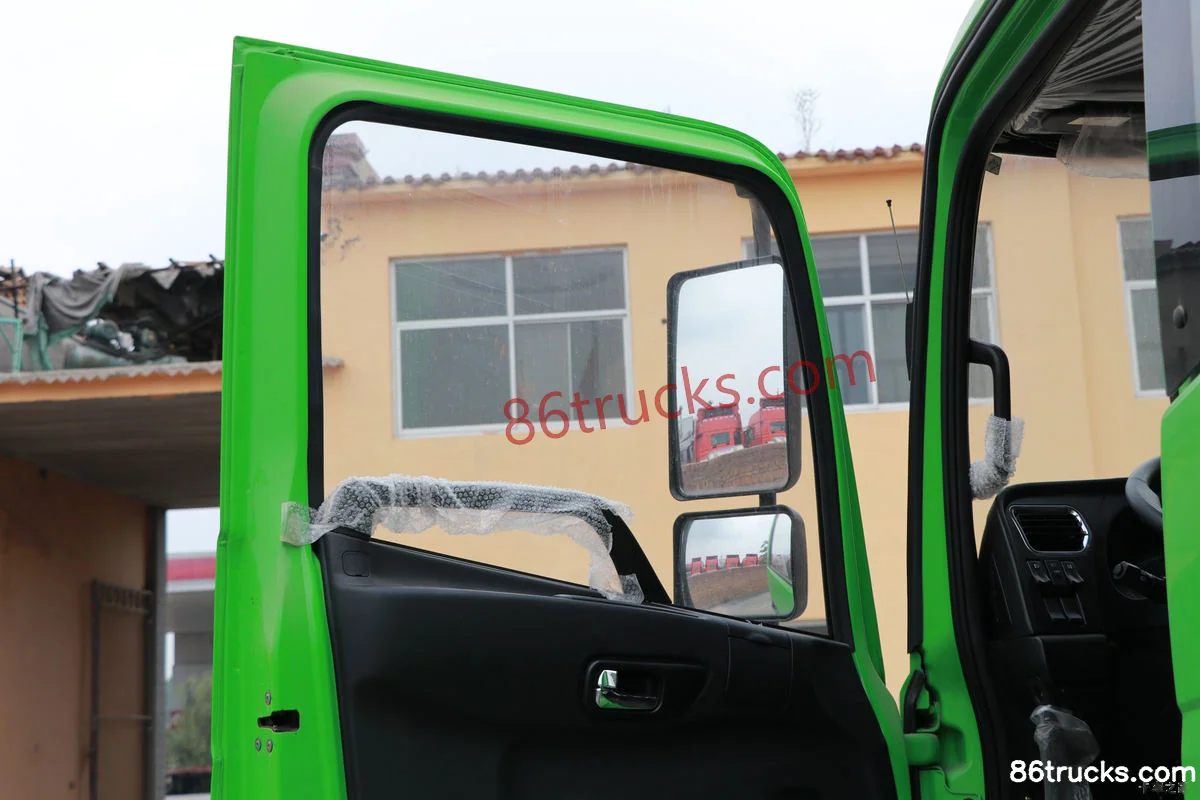

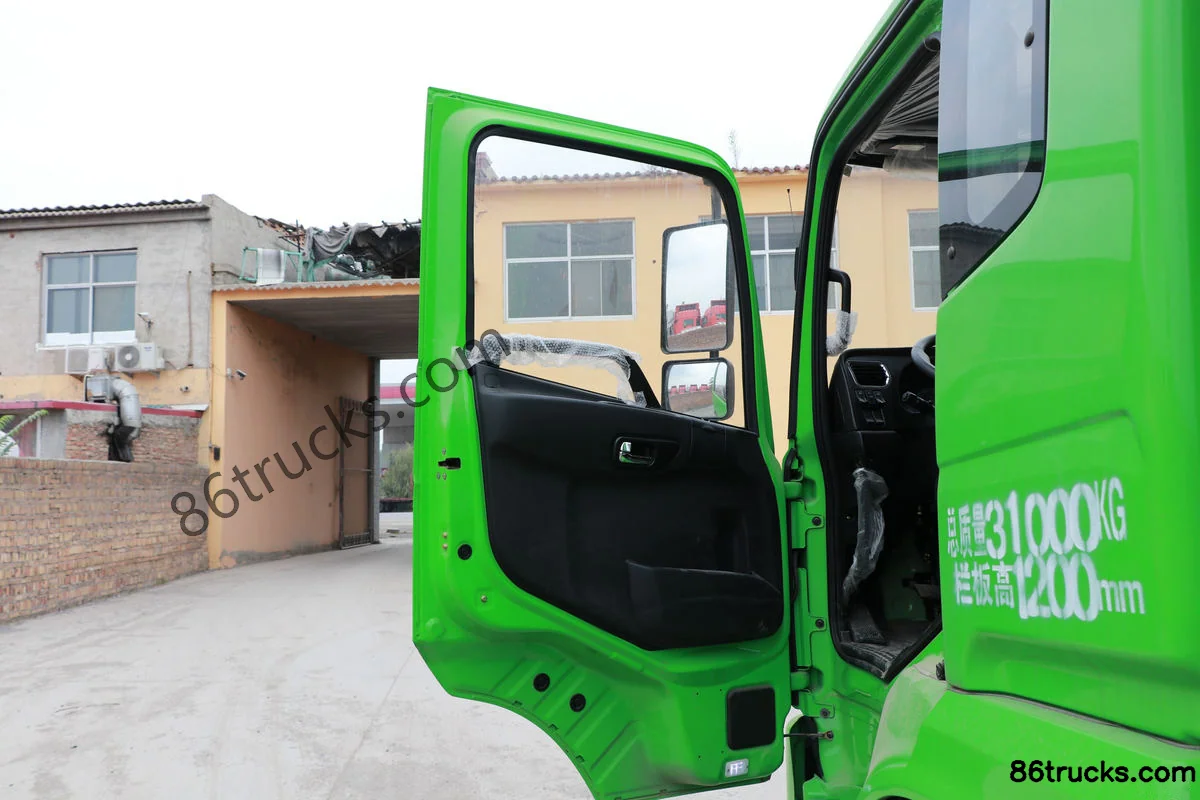

Cab3

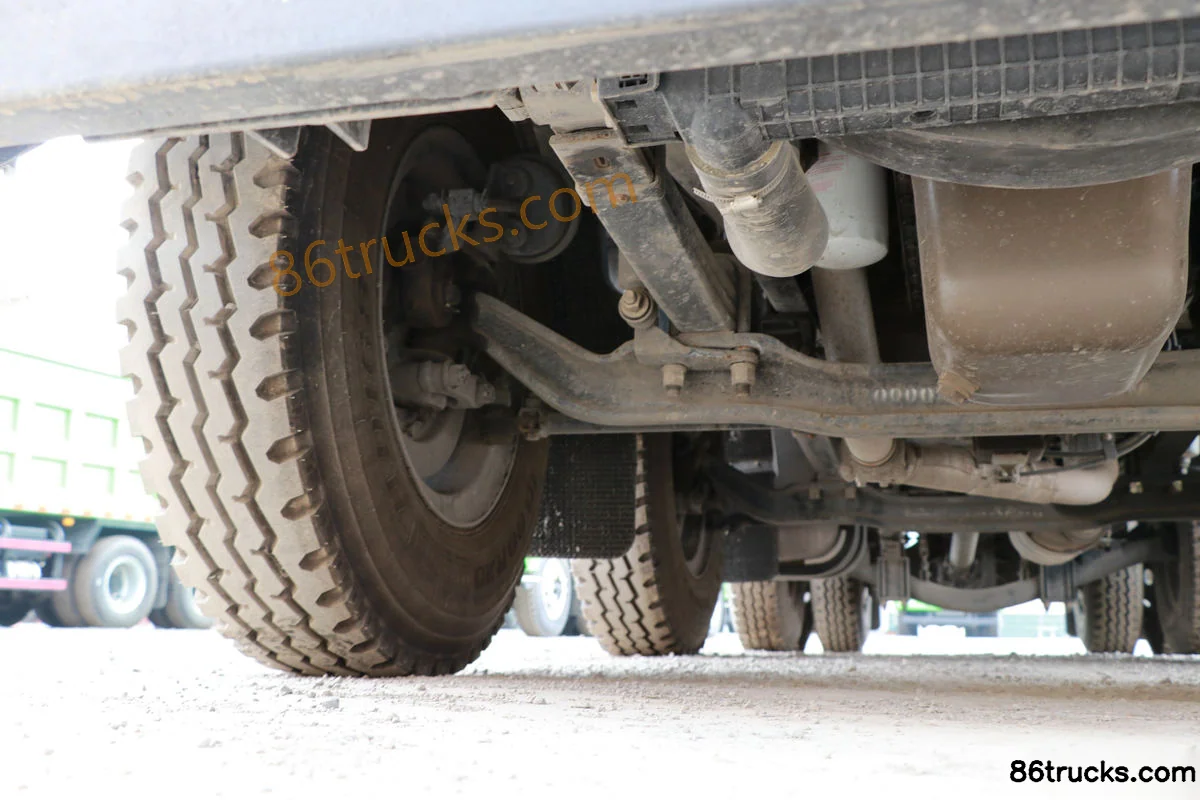

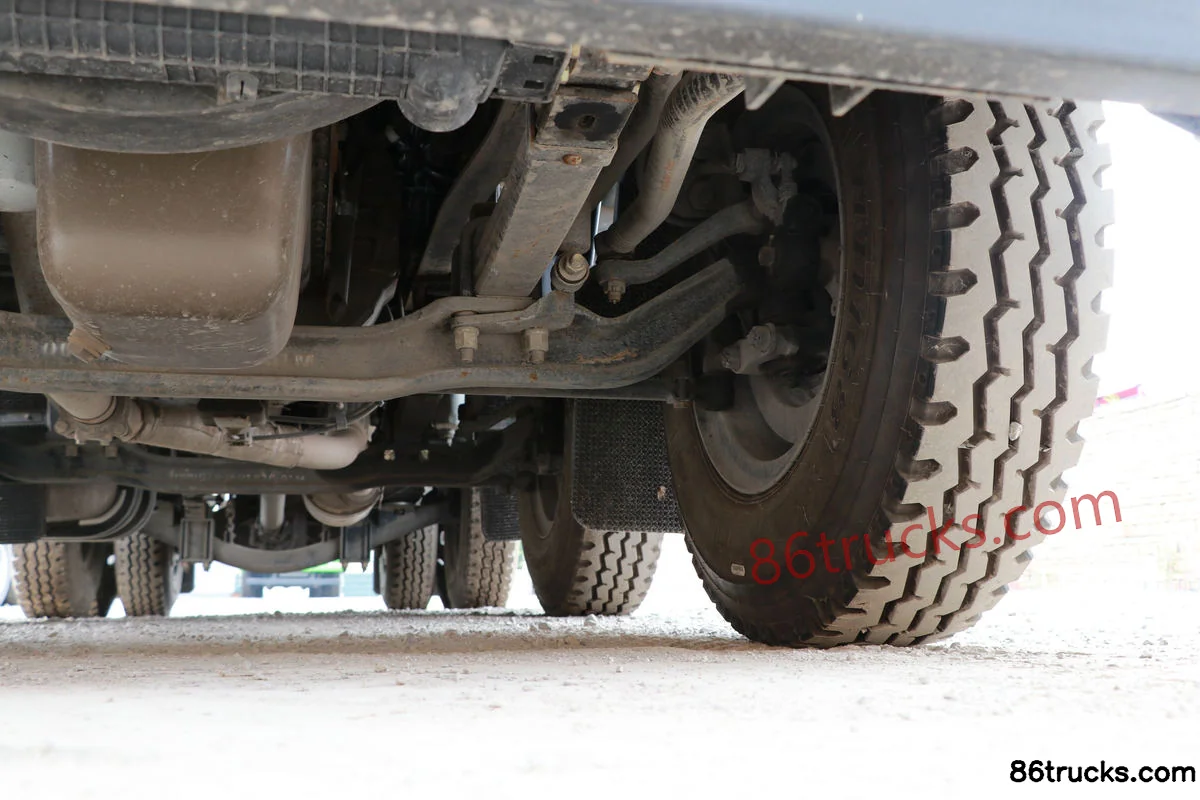

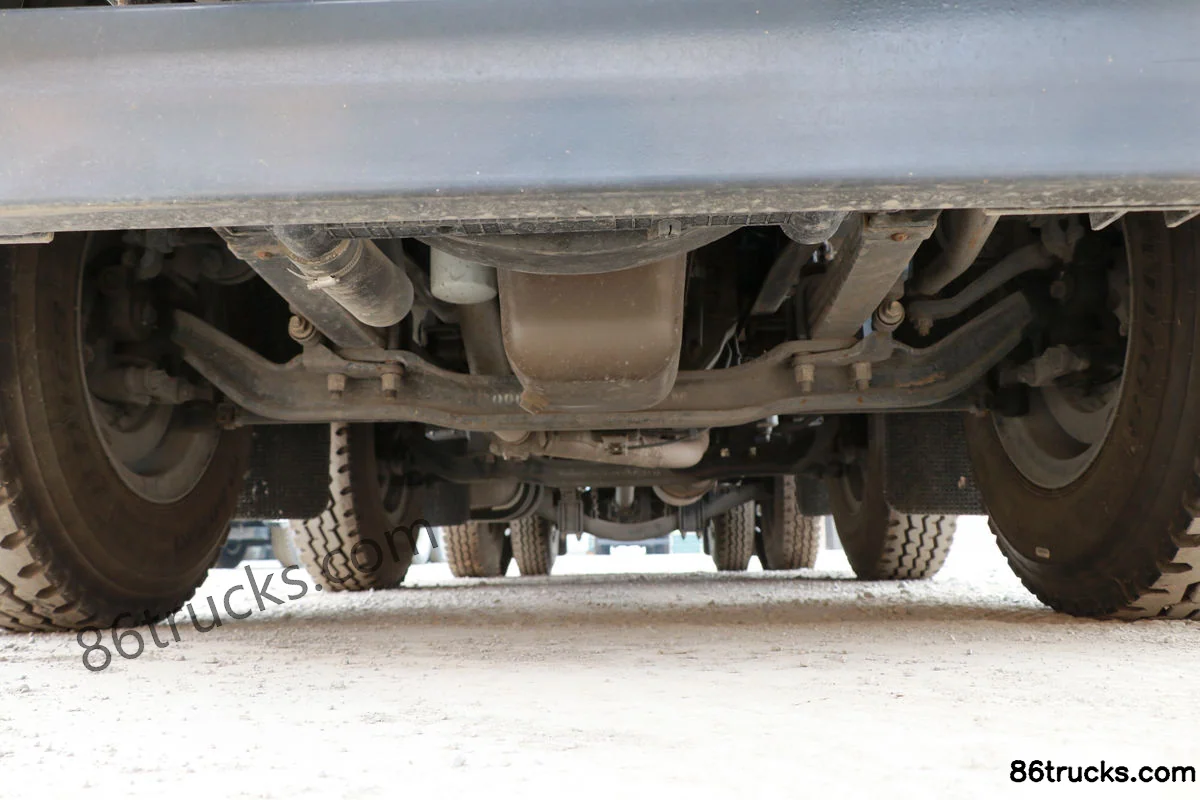

Chassis3

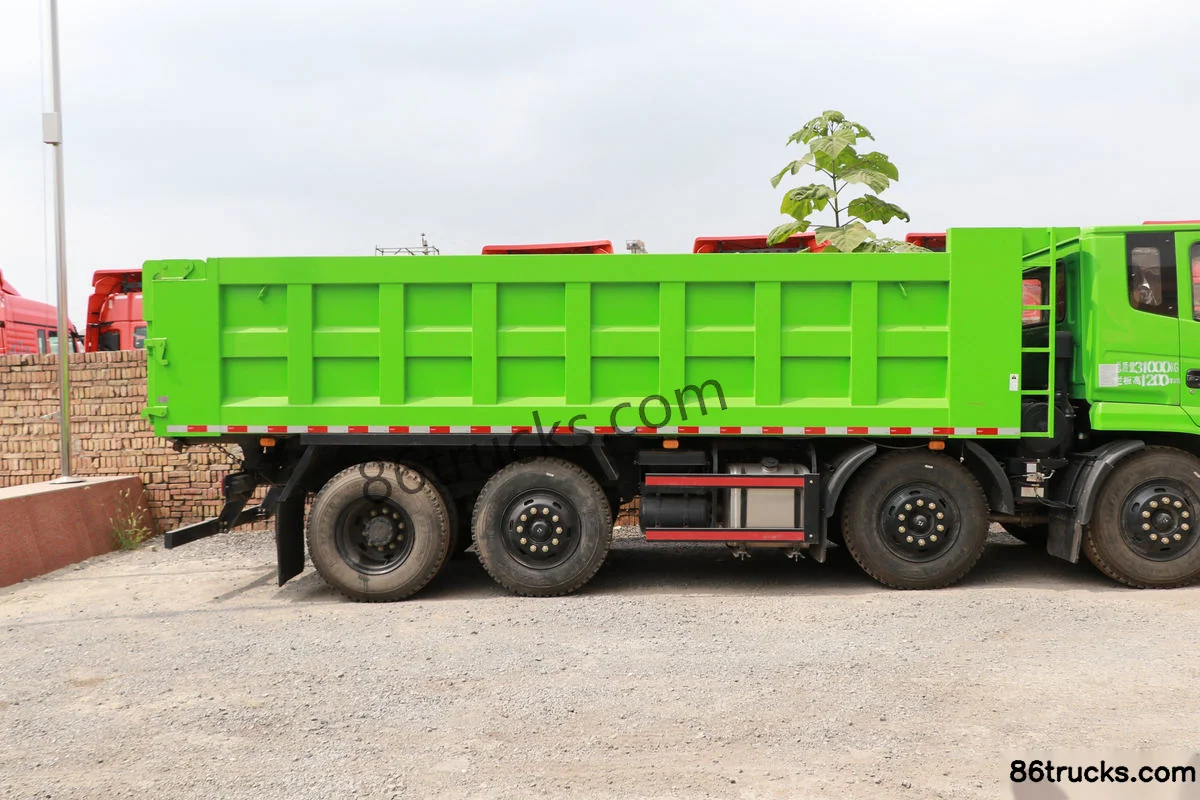

Body3

12 photos

FAQ

What emission standard does NanJun Ruiyu R60D 260 hp 8X2(10 wheels) 6.2m dump truck (rear axle lift) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of NanJun Ruiyu R60D 260 hp 8X2(10 wheels) 6.2m dump truck (rear axle lift)?

Key specs of NanJun Ruiyu R60D 260 hp 8X2(10 wheels) 6.2m dump truck (rear axle lift): Drive: 8x2; Horsepower: 260 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is NanJun Ruiyu R60D 260 hp 8X2(10 wheels) 6.2m dump truck (rear axle lift) suited for?

NanJun Ruiyu R60D 260 hp 8X2(10 wheels) 6.2m dump truck (rear axle lift) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does NanJun Ruiyu R60D 260 hp 8X2(10 wheels) 6.2m dump truck (rear axle lift) differ from other variants in the same series?

NanJun Ruiyu R60D 260 hp 8X2(10 wheels) 6.2m dump truck (rear axle lift) belongs to NanJun Ruiyu Medium Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for NanJun Ruiyu R60D 260 hp 8X2(10 wheels) 6.2m dump truck (rear axle lift)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export NanJun Ruiyu R60D 260 hp 8X2(10 wheels) 6.2m dump truck (rear axle lift)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
