Dongfeng Lituo 4102 Value Edition 129hp 4X2(6 wheels) 3.7m Dump Truck (Integrated Main and Sub Frame)
EXW
Export quote
Dongfeng4102 light truck Dump Trucks
Main model photos
27 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng Lituo 4102 Value Edition 129hp 4X2(6 wheels) 3.7m Dump Truck (Integrated Main and Sub Frame) | 4x2 / 129hp / China IV | ||
| Dongfeng Lituo 4102 Value Edition 129hp 4X2(6 wheels) 3.7m Dump Truck (with Sub-frame) | 4x2 / 129hp / China IV | ||
| Dongfeng Lituo 4102 129 hp 4X2(6 wheels) 3.8m Dump Truck (Φ140 Construction Lift) | 4x2 / 129hp / China IV | ||
| Dongfeng Lituo 4102 129 hp 4X2(6 wheels) 3.8m Dump Truck (Φ110 Double Lift) | 4x2 / 129hp / China IV |

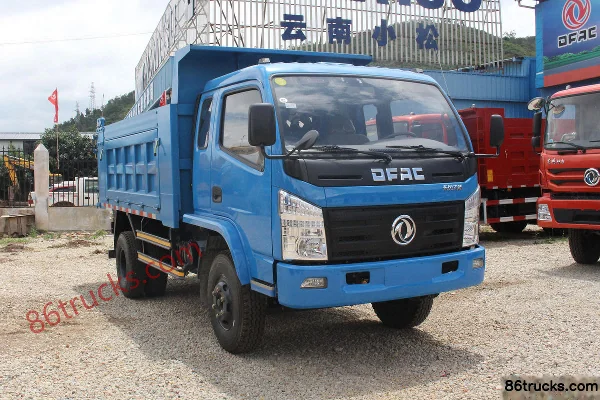

Dongfeng Lituo 4102 Value Edition 129hp 4X2(6 wheels) 3.7m Dump Truck (with Sub-frame)
EXW
Export quote

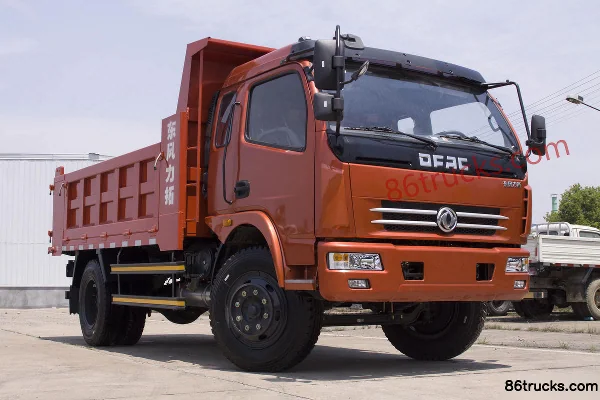

Dongfeng Lituo 4102 129 hp 4X2(6 wheels) 3.8m Dump Truck (Φ140 Construction Lift)
EXW
Export quote
Dongfeng Lituo 4102 129 hp 4X2(6 wheels) 3.8m Dump Truck (Φ110 Double Lift)
EXW
Export quote
Series Specs
Basic Info
Model code (announced): EQ3041GDAC / EQ3042GDAC
Drive type: 4X2
Wheelbase: 3200 / 3400mm
Engine Model: Yunnei PowerYN38CRD1
Transmission Model: WLYWLY145H
Rear Axle Ratio: 5.286 / 6.833
Cab length: 5.65 / 5.98m
Cab width: 2 / 2.25m
Cab height: 2.51 / 2.68m
Front track width: 1510 / 1640mm
rear track: 1540 / 1650mm
Curb Weight: 2.6 / 2.7ton
Rated payload: 1.7 / 1.6ton
GVWR: 4.495ton
Origin: Xiangyang, Hubei
tonnage class: Light Truck
Approach angle: 19 / 31°
departure angle: 16°
Remarks: Φ110 dual lift; main and auxiliary frame integrated, four-pivot tailstock; optional differential; clutch booster; spring brake; brake type: air brake; power steering; no A/C; power supply 24V / Φ110 dual lift cylinders; with subframe; optional customization; clutch booster; spring brake; power steering; 24V electrical system; cargo box height optional 0.8m / Φ140 heavy-duty lift cylinder; with subframe; optional customization; clutch booster; spring brake; braking: air brake; power steering; no A/C; 24V electrical system / Φ110 dual lift cylinders; integrated main and subframe; optional customization; clutch booster; spring brake; braking: air brake; power steering; no A/C; 24V electrical system
Version: Value Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Number of cylinders: 4cylinder
Displacement: 3.76L
Emission standard: China IV
Max output power: 95kW
Max hp: 129Horsepower
Max torque: 315N·m
Max torque speed: 1600-2400rpm
Rated speed: 3000rpm
Engine Type: Electronic control, water-cooled EGR technology, electronic high-pressure common rail fuel injection technology, aftertreatment DOC+POC
Technology route: High-pressure common rail DOC POC
Transmission Parameters
Transmission Brand: WLY
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 3.7 / 3.8m
Cargo box width: 2 / 2.2m
Cargo box height: 0.6 / 0.8m
FAQ
What kind of truck is Dongfeng Dongfeng4102 light truck Dump Trucks?
Dongfeng Dongfeng4102 light truck is an export-oriented Dump Trucks lineup with about 4 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Dongfeng4102 light truck Dump Trucks cover?
Dongfeng4102 light truck Dump Trucks mainly covers: Drive: 4x2; Horsepower: 129 hp; Emission: China IV; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Dongfeng4102 light truck Dump Trucks?
For Dongfeng4102 light truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Dongfeng4102 light truck Dump Trucks include?
Dongfeng4102 light truck Dump Trucks currently lists about 4 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Dongfeng4102 light truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
