Dongfeng Lituo 4102 129 hp 4X2(6 wheels) 3.8m Dump Truck (Φ110 Double Lift)

Export reference
MSRP N/A
Emission: China IV
Fuel: Diesel
Transmission: WLY
Curb Weight:: 2.7ton
Wheelbase:: 3400mm
Tire Size:: 8.25R20
Rated payload: 1.6ton
Drive 4X2 (6 wheels)
Horsepower 129
Cargo box type: Rear-dump body

Overview

The Dongfeng Lituo 4102 129 hp 4X2(6 wheels) 3.8m Dump Truck (Φ110 Double Lift) is a Light Truck featuring 1.6t payload, 4.495t GVW, Rear-dump body cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerYN38CRD1 engine, 129 hp, China IV emissions and WLY transmission.

China IV 129 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): EQ3042GDAC
Drive type: 4X2
Wheelbase: 3400mm
engine: Yunnei PowerYN38CRD1
transmission: WLYWLY145H
Rear Axle Ratio: 6.833
Cab length: 5.98m
Cab width: 2.25m
Cab height: 2.68m
Front track width: 1640mm
rear track: 1650mm
Curb Weight: 2.7ton
Rated payload: 1.6ton
GVWR: 4.495ton
Origin: Xiangyang, Hubei
tonnage class: Light Truck
Approach angle: 31°
departure angle: 16°
Remarks: Φ110 dual lift cylinders; integrated main and subframe; optional customization; clutch booster; spring brake; braking: air brake; power steering; no A/C; 24V electrical system
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYN38CRD1
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3.76L
Emission standard: China IV
Max output power: 95kW
Max hp: 129Horsepower
Max torque: 315N·m
Max torque speed: 1600-2400rpm
Rated speed: 3000rpm
Engine Type: Electronic control, water-cooled EGR technology, electronic high-pressure common rail fuel injection technology, aftertreatment DOC+POC
Technology route: High-pressure common rail DOC POC
Transmission Parameters
Transmission Model: WLYWLY145H
Transmission Brand: WLY
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 3.8m
Cargo box width: 2.2m
Cargo box height: 0.8m
fuel tank
Fuel tank material: Iron
Fuel tank capacity: 100L
Chassis Specs
Frame Dimensions: 250×10×800 (integrated main/sub frame)mm
rear axle description: 1098(9T)
rear axle allowable load: 2695kg
Axle ratio: 6.833
Leaf spring count: 12/12+9
Tire
Tire Size: 8.25R20
Number of tires: 6pcs

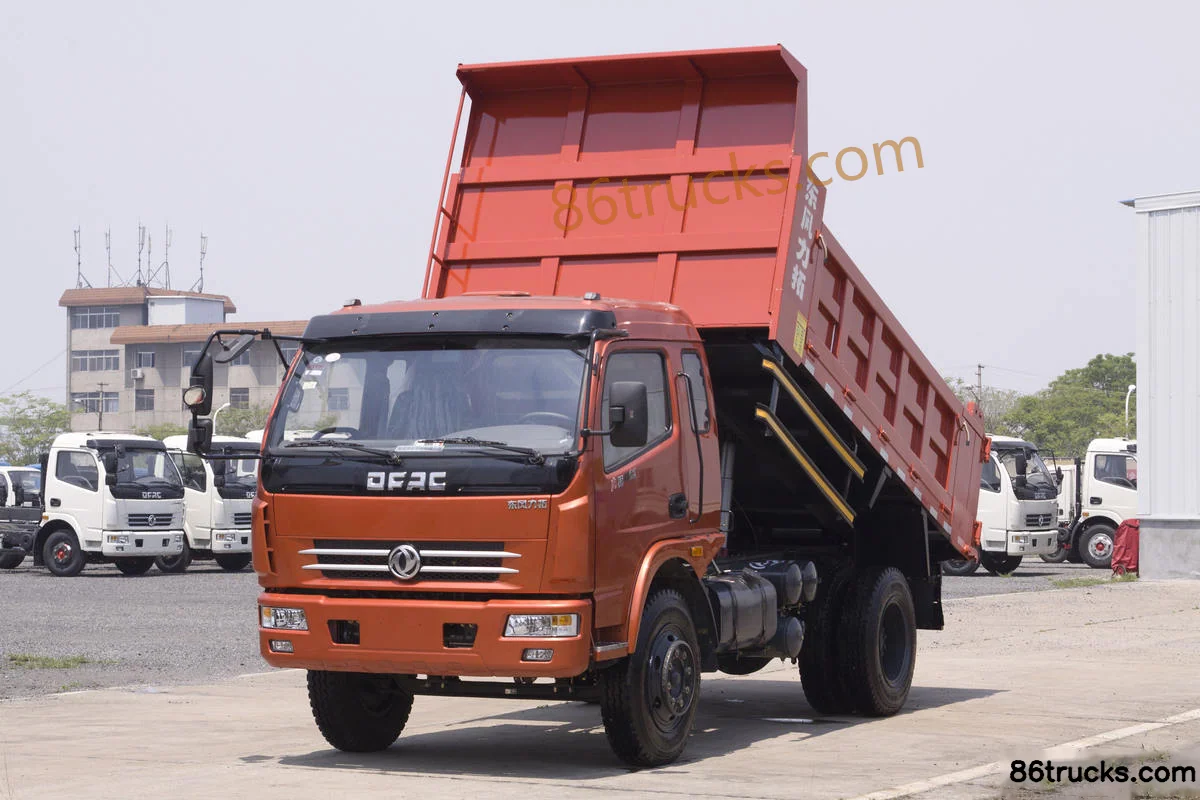

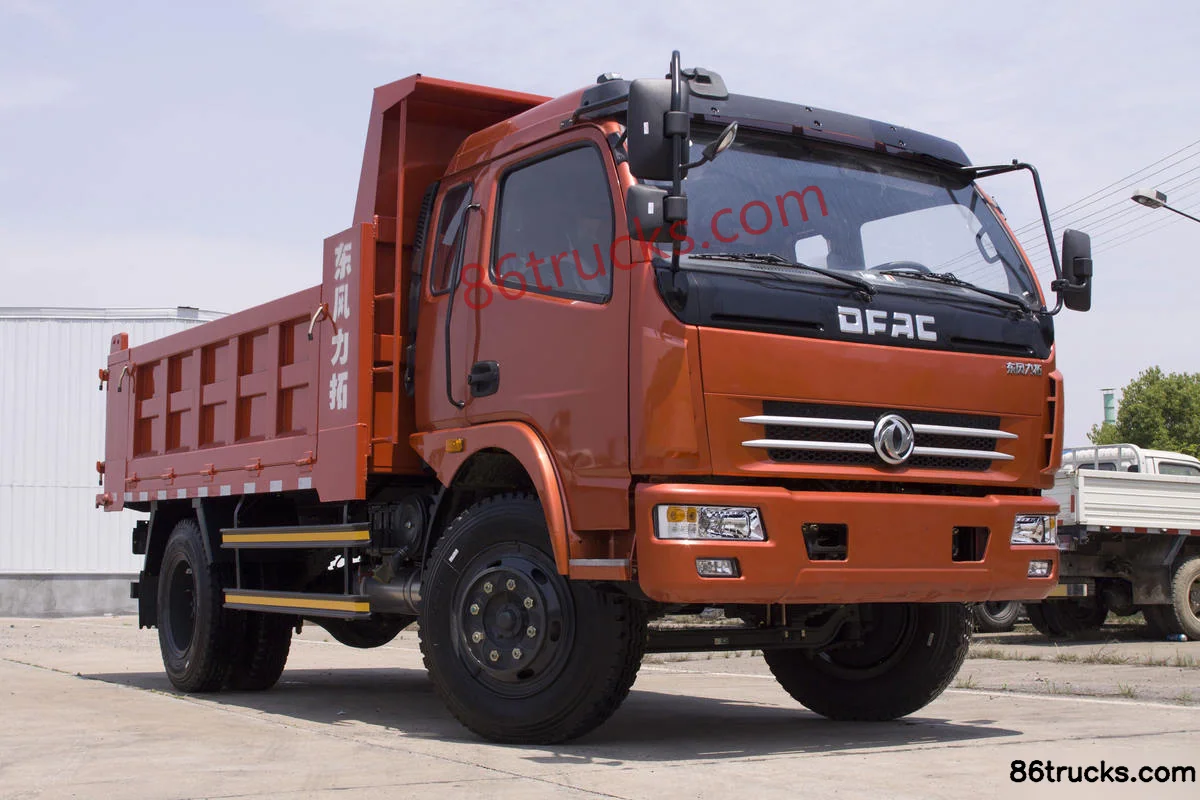

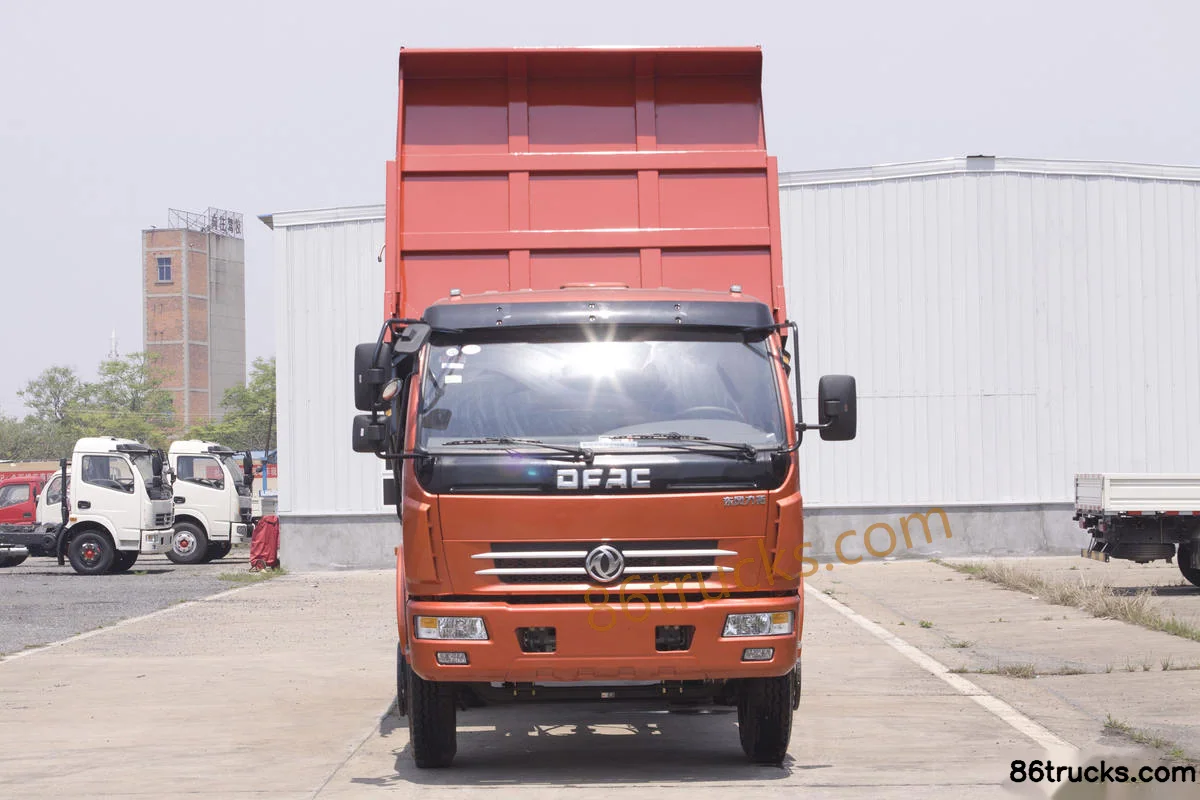

Photos

Exterior3

3 photos

FAQ

What emission standard does Dongfeng Lituo 4102 129 hp 4X2(6 wheels) 3.8m Dump Truck (Φ110 Double Lift) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Lituo 4102 129 hp 4X2(6 wheels) 3.8m Dump Truck (Φ110 Double Lift)?

Key specs of Dongfeng Lituo 4102 129 hp 4X2(6 wheels) 3.8m Dump Truck (Φ110 Double Lift): Drive: 4x2; Horsepower: 129 hp; Emission: China IV; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Lituo 4102 129 hp 4X2(6 wheels) 3.8m Dump Truck (Φ110 Double Lift) suited for?

Dongfeng Lituo 4102 129 hp 4X2(6 wheels) 3.8m Dump Truck (Φ110 Double Lift) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng Lituo 4102 129 hp 4X2(6 wheels) 3.8m Dump Truck (Φ110 Double Lift) differ from other variants in the same series?

Dongfeng Lituo 4102 129 hp 4X2(6 wheels) 3.8m Dump Truck (Φ110 Double Lift) belongs to Dongfeng4102 light truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Lituo 4102 129 hp 4X2(6 wheels) 3.8m Dump Truck (Φ110 Double Lift)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Lituo 4102 129 hp 4X2(6 wheels) 3.8m Dump Truck (Φ110 Double Lift)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
