Kama Kaijie HM6 184hp 4X2(6 wheels) 4.1m Dump Truck
EXW
From $22,917
Export quote
Kama Kaijie HM6 Light Truck Dump Trucks
Main model photos
147 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Kama Kaijie HM6 184hp 4X2(6 wheels) 4.1m Dump Truck | 4x2 / 184hp / China VI | From $22,917 | |
| Kama Kaijie HM6 184 hp 4X2(6 wheels) 4.27m Dump Truck (China VI) | 4x2 / 184hp / China VI | From $22,917 | |
| Kama Kaijie HM6 Deluxe 184hp 4X2(6 wheels) 4.35m Dump Truck (China VI) | 4x2 / 184hp / China VI | From $24,722 | |
| Kama Kaijie HM6 Premium Edition 184 hp 4X2(6 wheels) 5.33m Dump Truck (China VI) | 4x2 / 184hp / China VI | From $22,917 | |
| Kama Kaijie HM6 Zunxiang Edition 184 hp 4X2(6 wheels) 4m Dump Truck (China VI) | 4x2 / 184hp / China VI |

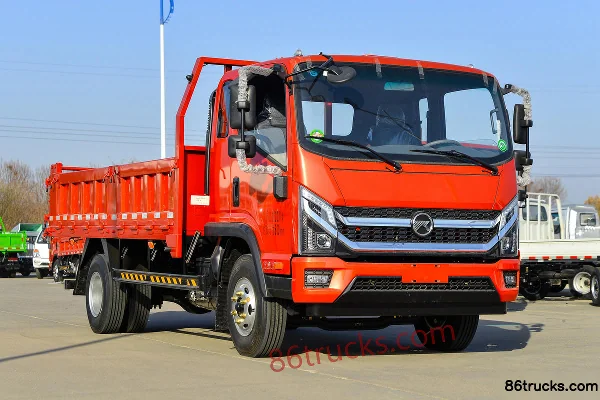

Kama Kaijie HM6 184 hp 4X2(6 wheels) 4.27m Dump Truck (China VI)
EXW
From $22,917
Export quote
Kama Kaijie HM6 Deluxe 184hp 4X2(6 wheels) 4.35m Dump Truck (China VI)
EXW
From $24,722
Export quote

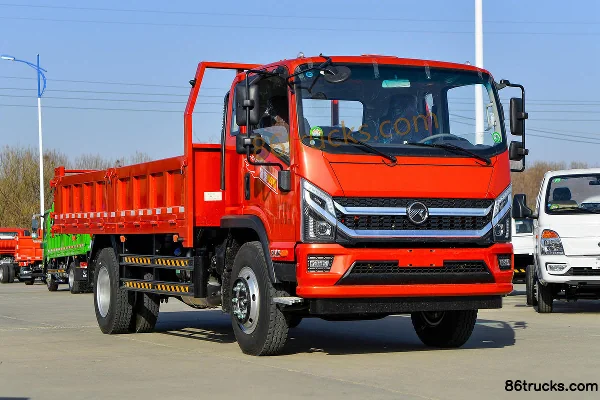

Kama Kaijie HM6 Premium Edition 184 hp 4X2(6 wheels) 5.33m Dump Truck (China VI)
EXW
From $22,917
Export quote
Kama Kaijie HM6 Zunxiang Edition 184 hp 4X2(6 wheels) 4m Dump Truck (China VI)
EXW
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Kama Kaijie HM6 170hp 4X2(6 wheels) 4.85m Dump Truck | 4x2 / 170hp / China V | From $21,944 | |
| Kama Kaijie HM6 125 hp 4X2(6 wheels) 5m Dump Truck | 4x2 / 170hp / China V | ||
| Kama Kaijie HM6 129hp 4X2(6 wheels) 4.16m dump truck | 4x2 / 129hp / China V | From $14,806 | |
| Kama Kaijie HM6 125 hp 4X2(6 wheels) 5.33m Dump Truck | 4x2 / 170hp / China V | From $21,528 | |
| Kama Kaijie HM6 156 hp 4X2(6 wheels) 4.16m dump truck | 4x2 / 156hp / China V | From $21,944 |
Kama Kaijie HM6 170hp 4X2(6 wheels) 4.85m Dump Truck
EXW
From $21,944
Export quote
Kama Kaijie HM6 125 hp 4X2(6 wheels) 5m Dump Truck
EXW
Export quote
Kama Kaijie HM6 129hp 4X2(6 wheels) 4.16m dump truck
EXW
From $14,806
Export quote
Kama Kaijie HM6 125 hp 4X2(6 wheels) 5.33m Dump Truck
EXW
From $21,528
Export quote
Kama Kaijie HM6 156 hp 4X2(6 wheels) 4.16m dump truck
EXW
From $21,944
Export quote
Series Specs
Basic Info
Model code (announced): KMC3119HA330DP6 / KMC3180GC340P6 / KMC3161HA420P6 / KMC3162HA420P5 / KMC3046HA33P5 / KMC3046HA33D5 / KMC3116HB330DP5 / KMC3102HA42P5
Drive type: 4X2
Wheelbase: 3600 / 3700 / 4200 / 3400 / 3300 / 3815mm
Engine Model: Yunnei PowerD40TCIF1 / Yunnei PowerYNF40E1 / Yunnei PowerYN38CRE1 / Yunnei PowerYNF40E2 / Weichai WP3N, Yunnei D30 / Xichai4DX23-140E5
Transmission Model: Fast Gear 10-Speed / Fast Gear10JS90A-B / Fast Gear10JS90A / Fast Gear8JS85E / Changtai 10TS65G / Fast Gear8JS85TE / 5-speed transmission / Changtai 8T45
Rear Axle Ratio: 4.875 / 5.286 / 4.333 / 6.3
Cab length: 5.999 / 6.5 / 6.7 / 7.6 / 6.35 / 7.1 / 7.27 / 5.995 / 7.56 / 7.08m
Cab width: 2.44 / 2.37 / 2.36 / 2.24 / 2.38 / 2.4 / 2.48 / 2030m
Cab height: 2.52 / 2.78 / 2.67 / 2.39 / 2.48 / 2.55 / 2.59m
Front track width: 1750 / 1825 / 1805 / 1680 / 1760 / 1910 / 1770 / 1740mm
rear track: 1700 / 1740 / 1810 / 1780 / 1790 / 1654 / 1650 / 1600mm
Curb Weight: 5.48 / 9.995 / 6.8 / 7.81 / 7.66 / 2.6 / 5.16 / 5.31ton
Rated payload: 5.525 / 7.81 / 9.205 / 9.995 / 8.345 / 1.495 / 5.845 / 4.49ton
GVWR: 11.2 / 18 / 16.2 / 4.29 / 4.495 / 9.995ton
Origin: Shouguang, Shandong / Shouguang, Sichuan / Shandong Weifang
tonnage class: Medium-duty truck / Light Truck
Approach angle: 19 / 18 / 22 / 25 / 26°
departure angle: 17 / 16 / 18 / 14°
Remarks: Power steering, / Rear axle ratio optional: 5.286
Version: Zunxiang Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power / Xichai
Number of cylinders: 4cylinder
Displacement: 4 / 3.92 / 3.76 / 3.857L
Emission standard: China VI / China V
Max output power: 135 / 125 / 95 / 115 / 105kW
Max hp: 184 / 170 / 129 / 156 / 140Horsepower
Max torque: 660 / 600 / 365 / 500 / 450N·m
Max torque speed: 1200-2000 / 1300-1900 / 1600-2400 / 1600-2000rpm
Rated speed: 2300 / 2600 / 3000 / 2800rpm
Engine Type: Electronic control common rail system HEGR + DOC + DPF + SCR + ASC / 4-valve, centrally mounted injector, centrally mounted camshaft, high-pressure common rail fuel injection, rear-mounted gear train / 4-cylinder inline, 8-valve, turbocharged intercooled, high-pressure common rail fuel injection / 4-cylinder inline, direct injection, turbocharged & intercooled, electronic common rail
Transmission Parameters
Transmission Brand: Fast Gear / Changtai
shift method: Manual
Forward gears: 10 / 8 / 5Gear
Number of Reverse Gears: 2 / 1pcs
Cargo box parameters
Unloading Type: Dump type / Rear-dump body
Seal cover type: none
Cargo box type: square box / Dump type / Rear-dump body
Cargo box length: 4.1 / 4.27 / 4.35 / 5.33 / 4 / 4.85 / 5 / 4.16 / 4.2 / 3.83m
Cargo box width: 2.3 / 2.26 / 2.06 / 2.2m
FAQ
What kind of truck is Kama Kama Kaijie HM6 Light Truck Dump Trucks?
Kama Kama Kaijie HM6 Light Truck is an export-oriented Dump Trucks lineup with about 22 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Kama Kaijie HM6 Light Truck Dump Trucks?
Kama Kaijie HM6 Light Truck Dump Trucks export reference is about $14,583 – $24,722. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Kama Kaijie HM6 Light Truck Dump Trucks cover?
Kama Kaijie HM6 Light Truck Dump Trucks mainly covers: Drive: 4x2; Horsepower: 129 hp / 156 hp / 170 hp / 184 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Kama Kaijie HM6 Light Truck Dump Trucks?
For Kama Kaijie HM6 Light Truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Kama Kaijie HM6 Light Truck Dump Trucks include?
Kama Kaijie HM6 Light Truck Dump Trucks currently lists about 22 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Kama Kaijie HM6 Light Truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
