Kama Kaijie HM6 125 hp 4X2(6 wheels) 5m Dump Truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 7.66ton
Wheelbase:: 4200mm
Tire Size:: 9.00R20
Kama Kaijie HM6 125 hp 4X2(6 wheels) 5m Dump Truck exterior
View more photos (12)
Rated payload: 8.345ton
Drive 4X2 (6 wheels)
Horsepower 170
Cargo box type: Dump type

Overview

The Kama Kaijie HM6 125 hp 4X2(6 wheels) 5m Dump Truck is a Medium-duty truck featuring 8.345t payload, 16.2t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerYNF40E1 engine, 170 hp, China V emissions and Fast Gear transmission.

China V 170 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): KMC3162HA420P5
Drive type: 4X2
Wheelbase: 4200mm
engine: Yunnei PowerYNF40E1
transmission: Fast Gear10JS90A
Cab length: 7.27m
Cab width: 2.36m
Cab height: 2.78m
Front track width: 1805mm
rear track: 1780mm
Curb Weight: 7.66ton
Rated payload: 8.345ton
GVWR: 16.2ton
Origin: Shouguang, Shandong
tonnage class: Medium-duty truck
Approach angle: 22°
departure angle: 16°
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYNF40E1
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3.92L
Emission standard: China V
Max output power: 125kW
Max hp: 170Horsepower
Max torque: 600N·m
Max torque speed: 1300-1900rpm
Rated speed: 2600rpm
Engine Type: 4-valve, centrally mounted injector, centrally mounted camshaft, high-pressure common rail fuel injection, rear-mounted gear train
Transmission Parameters
Transmission Model: Fast Gear10JS90A
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 5m
Cargo box width: 2.3m
Cargo box height: 0.6m
fuel tank
Fuel tank material: aluminum alloy
Chassis Specs
Front axle description: 1092BQDSM-4
Front axle allowable load: 5600kg
rear axle description: 1097CQDSM
rear axle allowable load: 10600kg
Leaf spring count: 9/11+8
Tire
Tire Size: 9.00R20
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Service brake
Parking brake: Spring brake

Photos

Exterior3

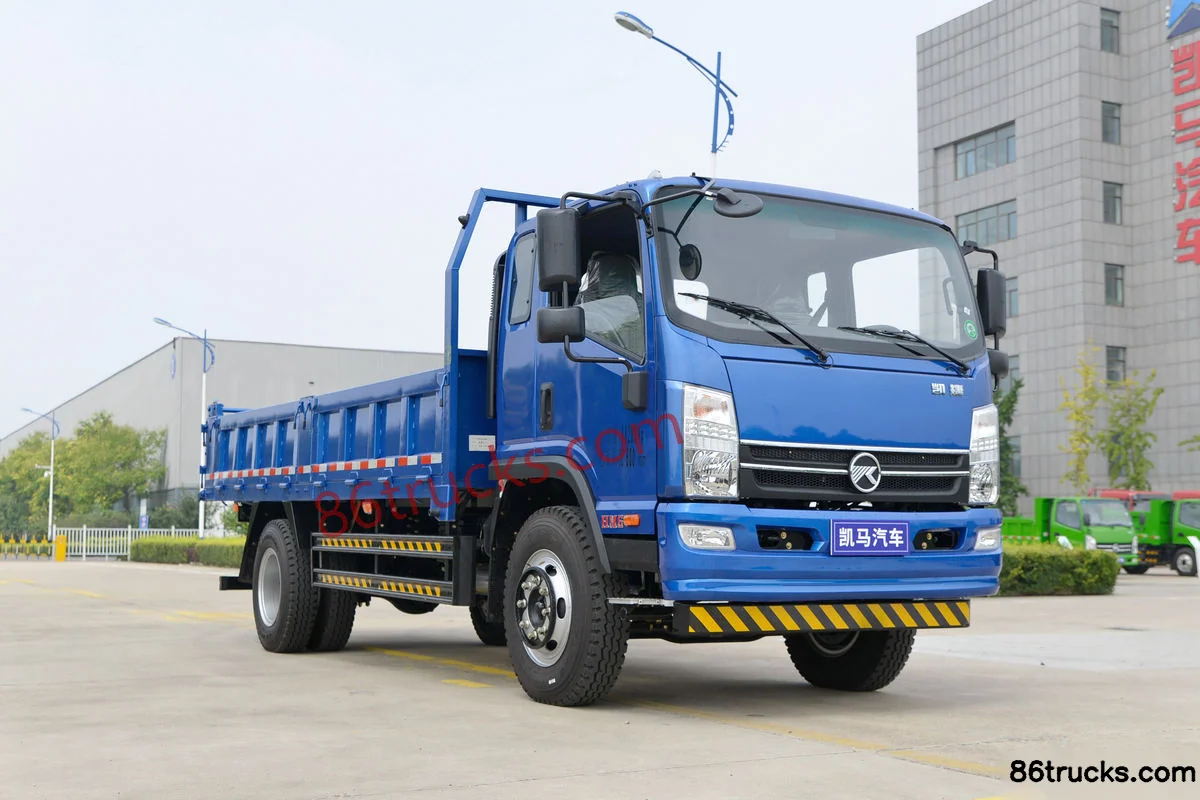

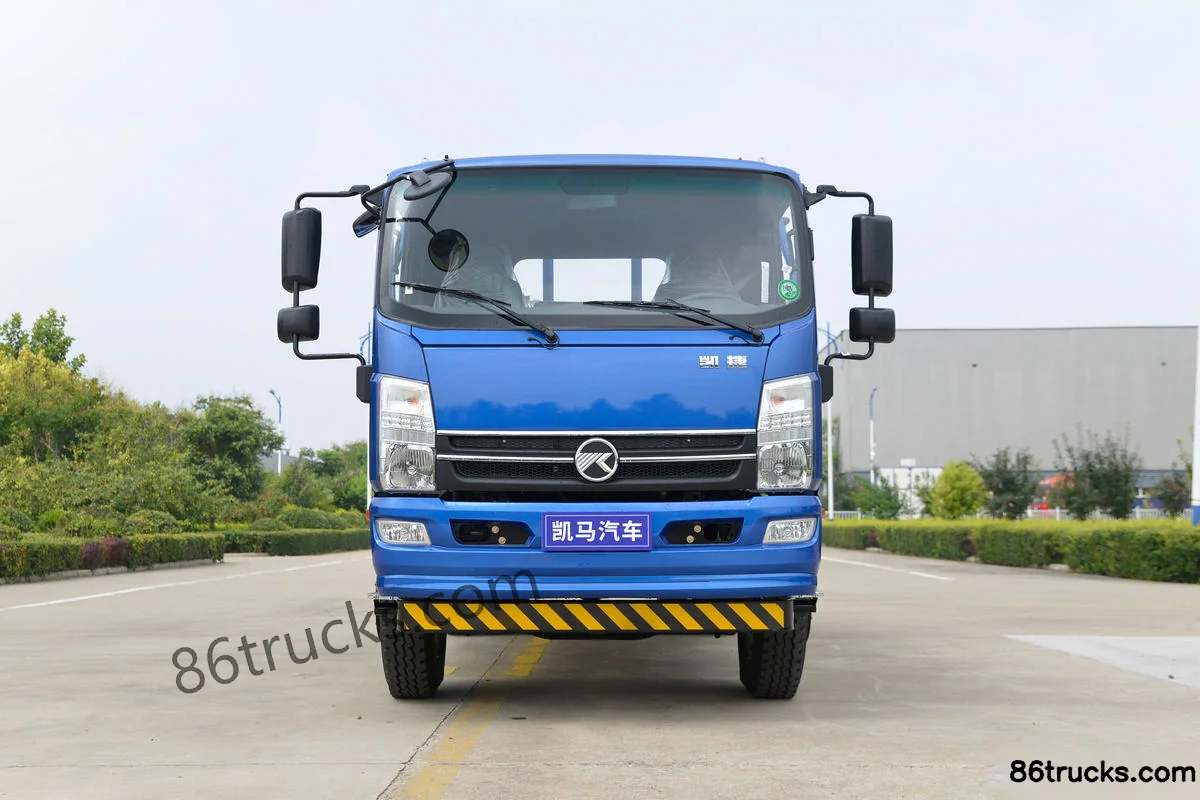

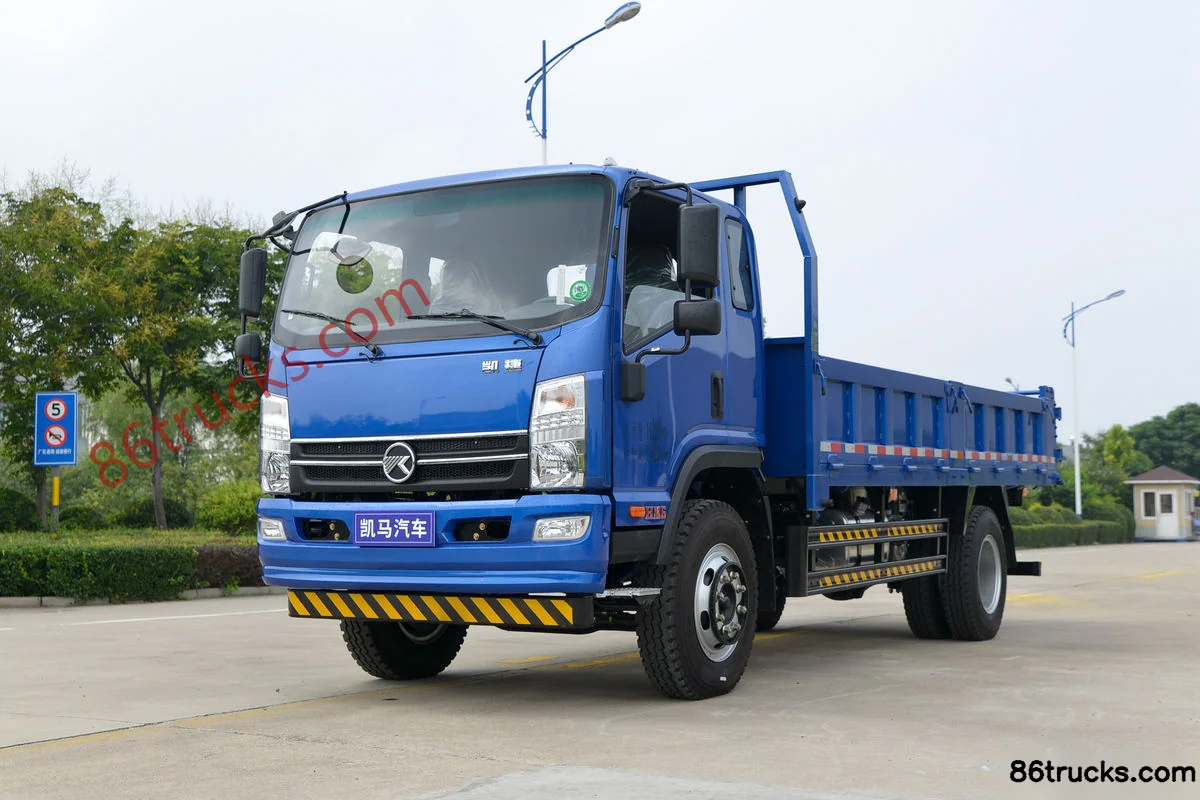

Kama Kaijie HM6 125 hp 4X2(6 wheels) 5m Dump Truck Exterior (1) | 86Trucks Kama Kaijie HM6 125 hp 4X2(6 wheels) 5m Dump Truck Exterior (2) | 86Trucks Kama Kaijie HM6 125 hp 4X2(6 wheels) 5m Dump Truck Exterior (3) | 86Trucks

Cab3

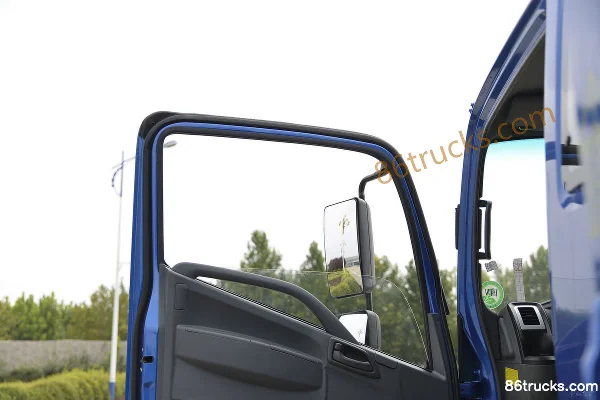

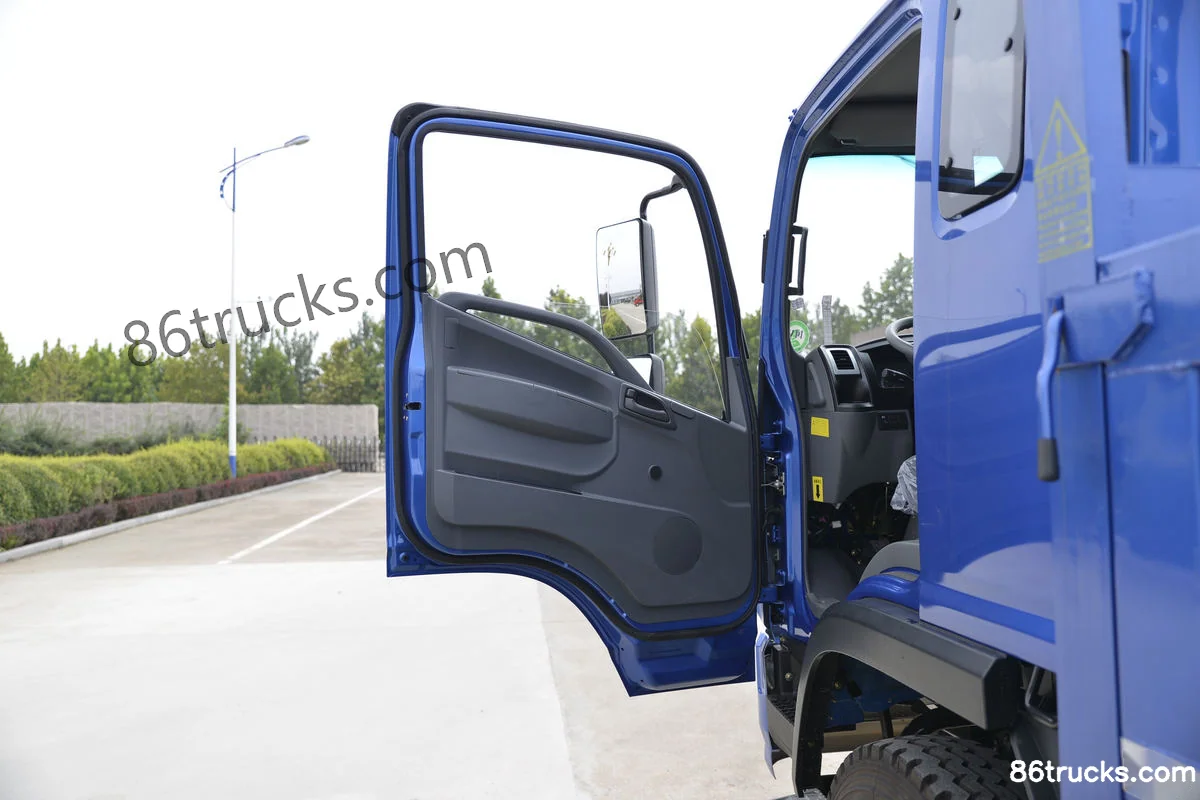

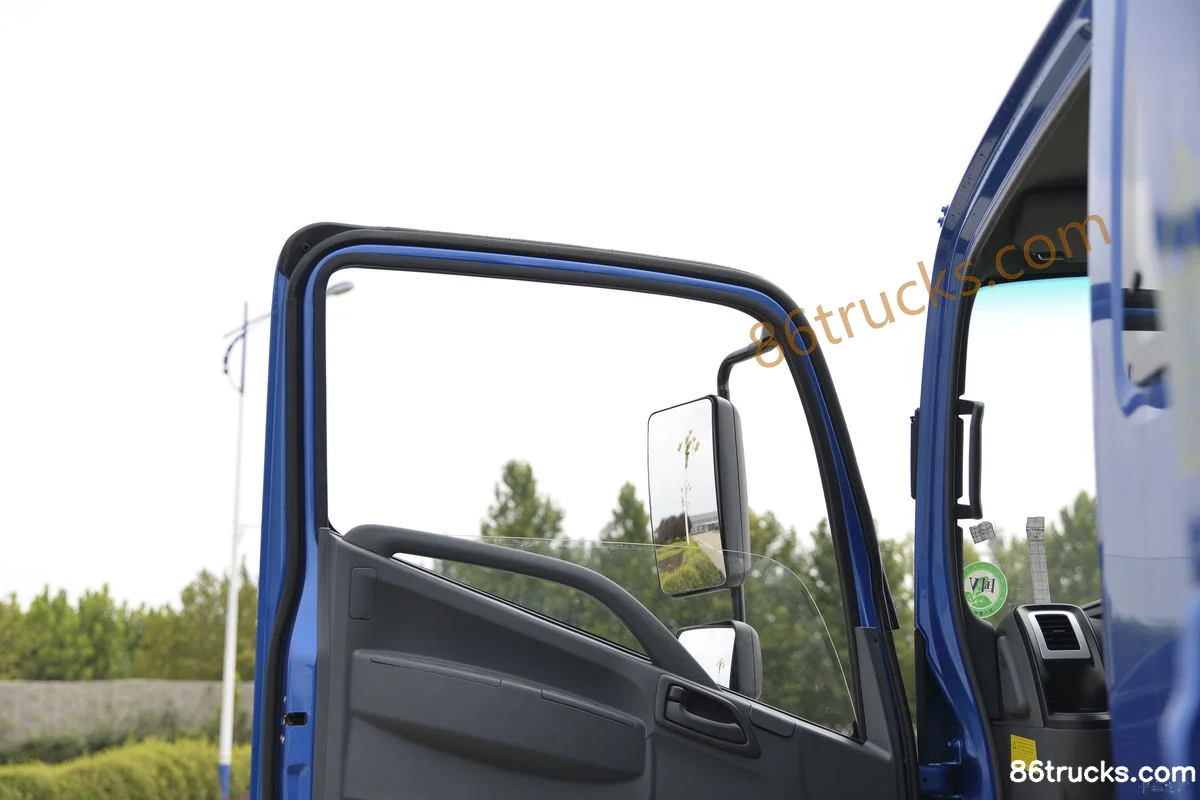

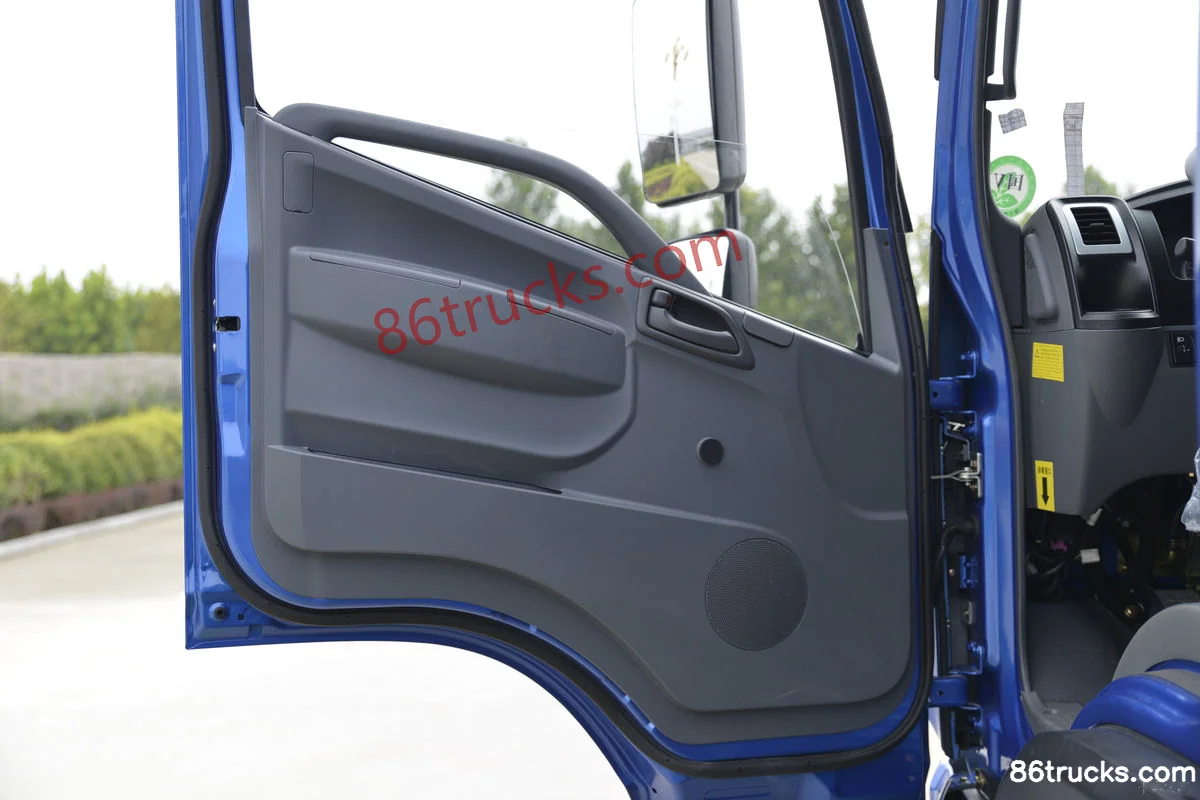

Kama Kaijie HM6 125 hp 4X2(6 wheels) 5m Dump Truck Cab (1) | 86Trucks Kama Kaijie HM6 125 hp 4X2(6 wheels) 5m Dump Truck Cab (2) | 86Trucks Kama Kaijie HM6 125 hp 4X2(6 wheels) 5m Dump Truck Cab (3) | 86Trucks

Chassis3

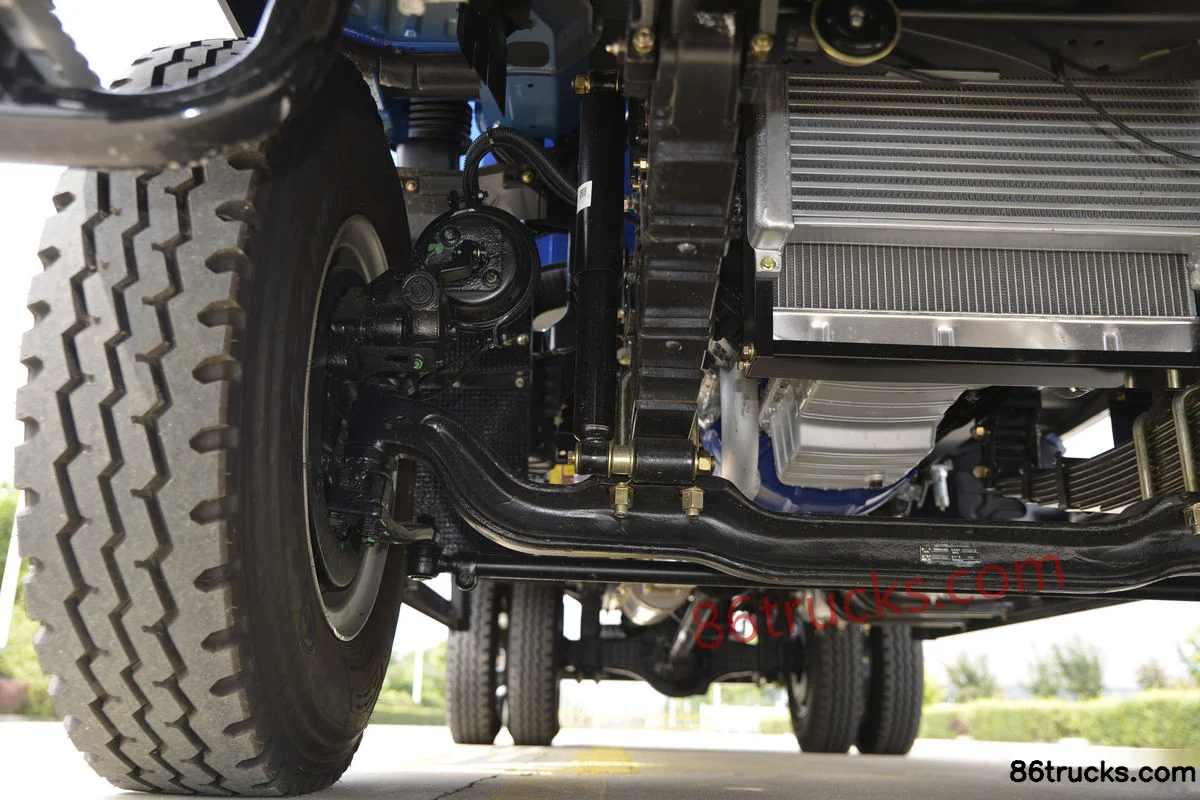

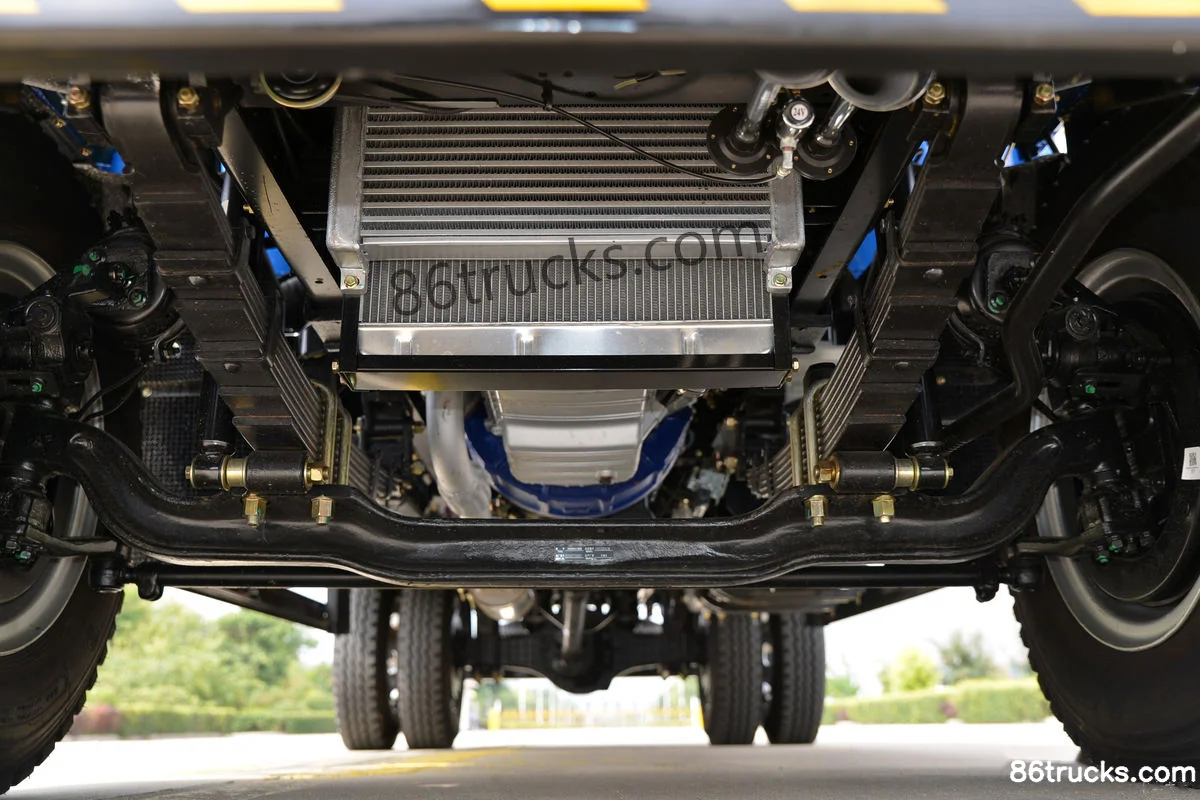

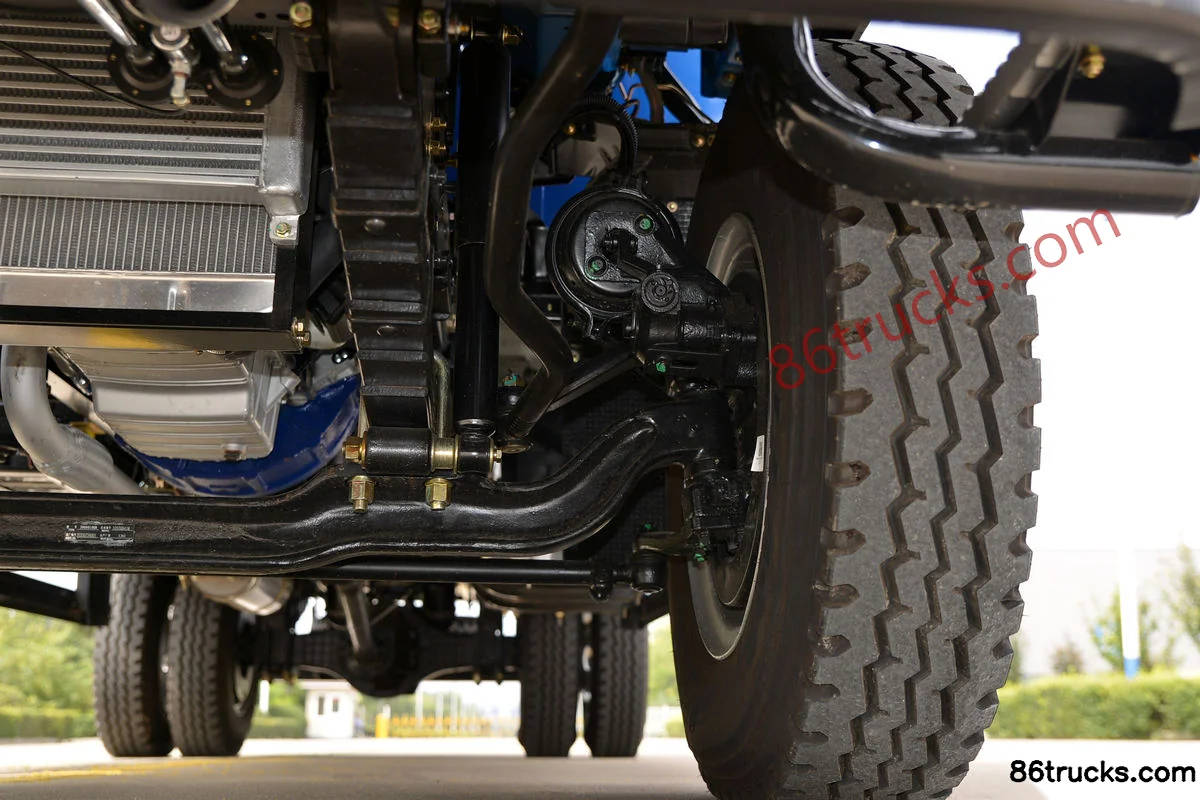

Kama Kaijie HM6 125 hp 4X2(6 wheels) 5m Dump Truck Chassis (1) | 86Trucks Kama Kaijie HM6 125 hp 4X2(6 wheels) 5m Dump Truck Chassis (2) | 86Trucks Kama Kaijie HM6 125 hp 4X2(6 wheels) 5m Dump Truck Chassis (3) | 86Trucks

Body3

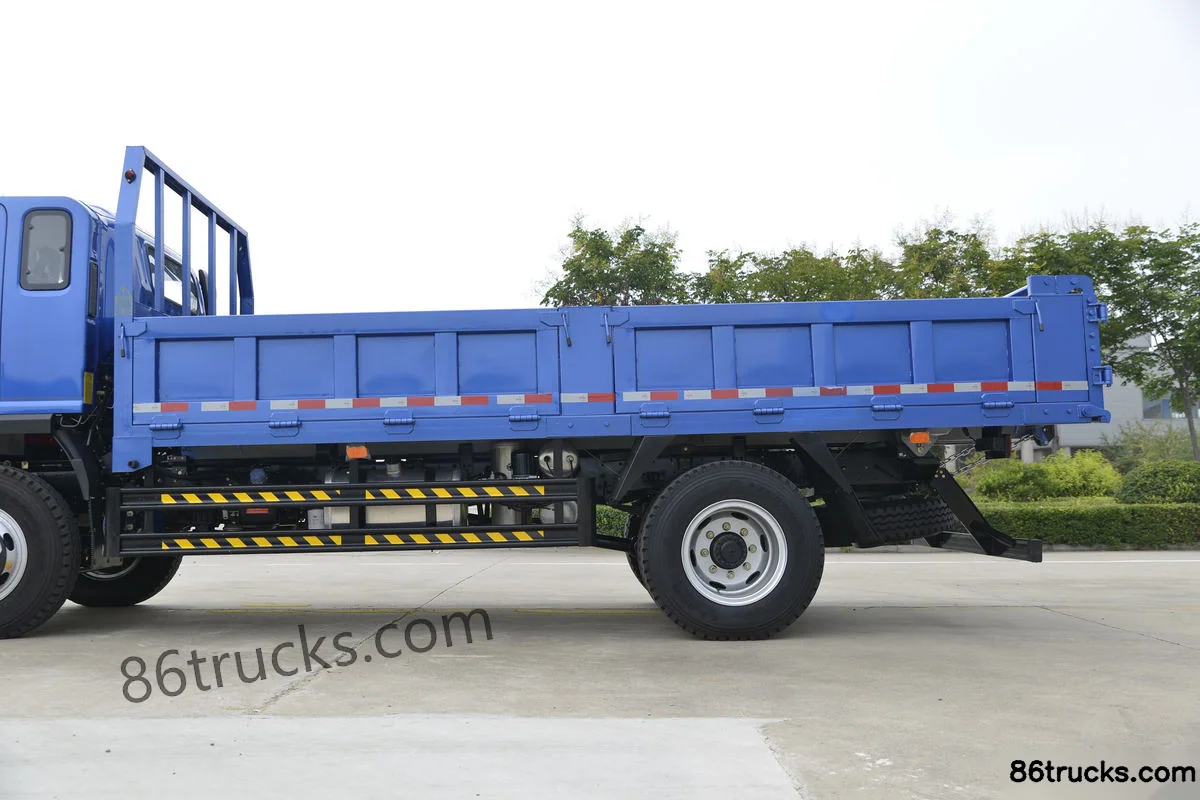

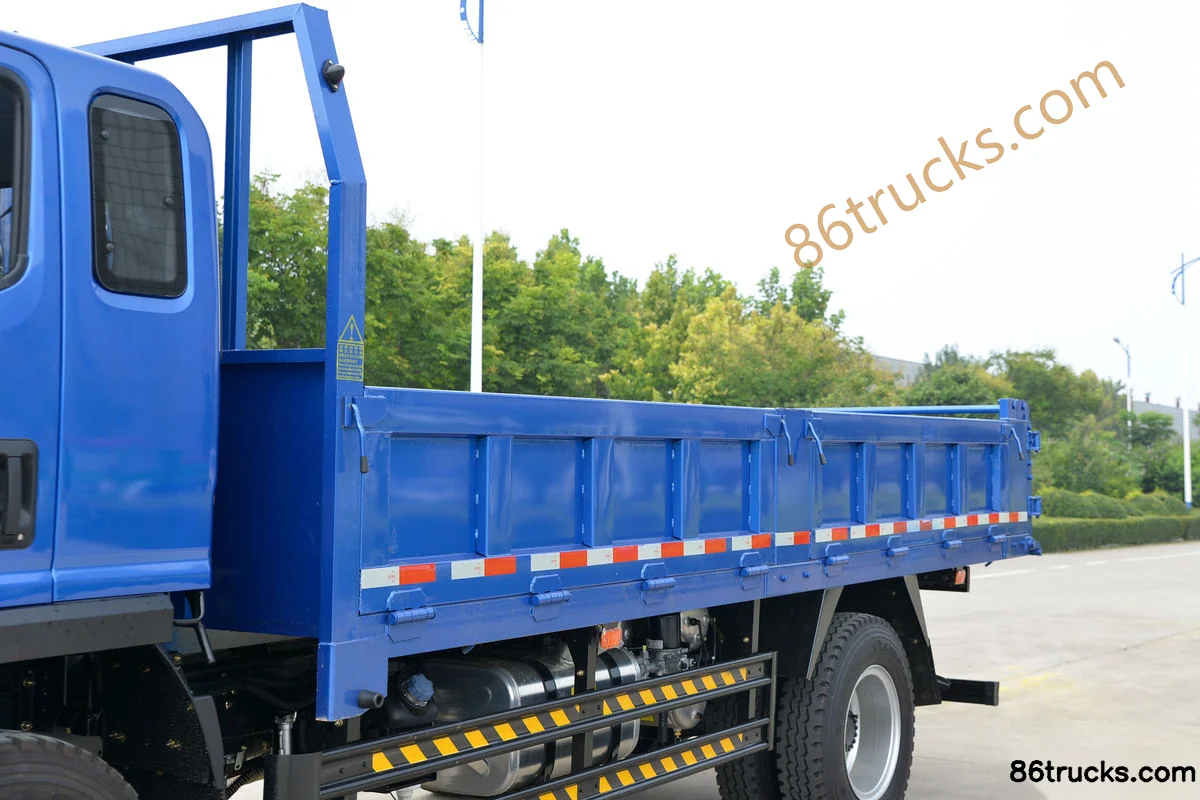

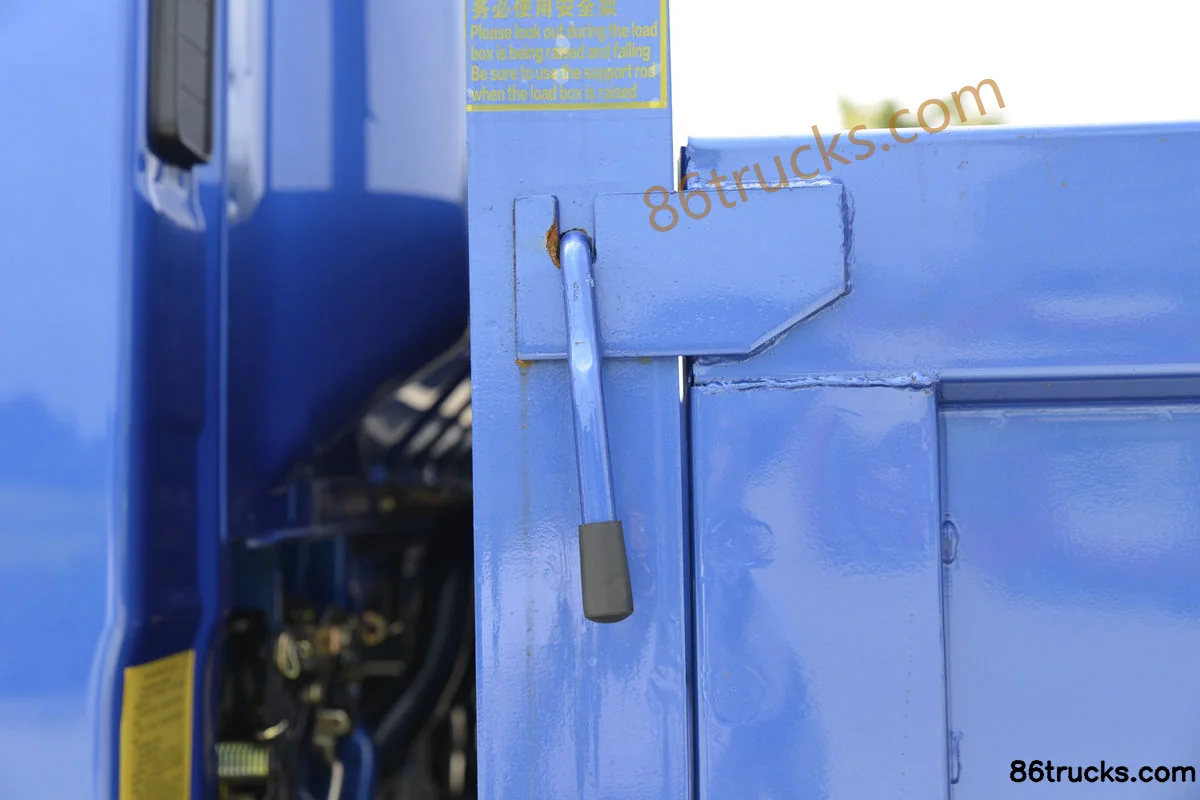

Kama Kaijie HM6 125 hp 4X2(6 wheels) 5m Dump Truck Body (1) | 86Trucks Kama Kaijie HM6 125 hp 4X2(6 wheels) 5m Dump Truck Body (2) | 86Trucks Kama Kaijie HM6 125 hp 4X2(6 wheels) 5m Dump Truck Body (3) | 86Trucks

12 photos

FAQ

What emission standard does Kama Kaijie HM6 125 hp 4X2(6 wheels) 5m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Kama Kaijie HM6 125 hp 4X2(6 wheels) 5m Dump Truck?

Key specs of Kama Kaijie HM6 125 hp 4X2(6 wheels) 5m Dump Truck: Drive: 4x2; Horsepower: 170 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Kama Kaijie HM6 125 hp 4X2(6 wheels) 5m Dump Truck suited for?

Kama Kaijie HM6 125 hp 4X2(6 wheels) 5m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Kama Kaijie HM6 125 hp 4X2(6 wheels) 5m Dump Truck differ from other variants in the same series?

Kama Kaijie HM6 125 hp 4X2(6 wheels) 5m Dump Truck belongs to Kama Kaijie HM6 Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Kama Kaijie HM6 125 hp 4X2(6 wheels) 5m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Kama Kaijie HM6 125 hp 4X2(6 wheels) 5m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
