Dongfeng Liuqi Chenglong M3 160 hp 4X2(6 wheels) 4.5m Dump Truck
EXW
From $27,083
Export quote
Dongfeng M3 heavy truck Dump Trucks
Main model photos
490 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng Liuqi Chenglong M3 160 hp 4X2(6 wheels) 4.5m Dump Truck | 4x2 / 160hp / China IV | From $27,083 | |
| Dongfeng Liuqi Chenglong M3 220 hp 4X2(6 wheels) 5m Dump Truck | 4x2 / 220hp / China IV | ||
| Dongfeng Liuqi Chenglong M3 220 hp 4X2(6 wheels) 5.3m Dump Truck | 4x2 / 220hp / China IV | From $33,056 | |
| Dongfeng Liuqi Chenglong M3 130hp 4X2(6 wheels) 4.2m Dump Truck (WLY) | 4x2 / 130hp / China IV | ||
| Dongfeng Liuqi Chenglong 200hp 4X2(6 wheels) 4.7m Dump Truck (Ratio: 5.45) | 4x2 / 200hp / China IV | From $30,556 |
Dongfeng Liuqi Chenglong M3 220 hp 4X2(6 wheels) 5m Dump Truck
EXW
Export quote

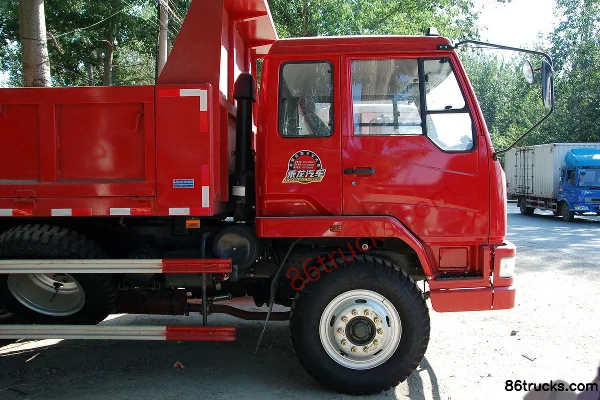

Dongfeng Liuqi Chenglong M3 220 hp 4X2(6 wheels) 5.3m Dump Truck
EXW
From $33,056
Export quote
Dongfeng Liuqi Chenglong M3 130hp 4X2(6 wheels) 4.2m Dump Truck (WLY)
EXW
Export quote
Dongfeng Liuqi Chenglong 200hp 4X2(6 wheels) 4.7m Dump Truck (Ratio: 5.45)
EXW
From $30,556
Export quote
Series Specs
Basic Info
Model code (announced): LZ3120M3AA / LZ3162M3AA / LZ3121M3AA / LZ3120RAHA / LZ5310ZLJM3FA / LZ3310QELA / LZ3312M3FA / LZ3311M3FA / LZ3310M3FA / LZ3250RAKA / LZ3123M3AA / LZ3311REFA / LZ3310REBA / LZ3252M3CA / LZ3160M3CA / LZ3250RCDA / LZ3250M3CA / LZ3120RAKA / LZ3160M3AA / LZ3061M3AA / LZ3310REB / LZ3122LAH / DFL3120B5 / LZ3121LAHT / LZ3310REFAT / LZ3240LCB / LZ3250RCD / LZ3251RCD / LZ3120PAL / LZ3122RAL / LZ3121PAL / LZ3123LAH / LZ3250PDD / LZ3050RAH / LZ3060LAH / LFS3050LQ / LZ3160LAK / LZ3071LAK / LZ3160LAH / LZ3071LAH / LZ3120LAK / LZ3310PEF / LZ3120RAH / LZ3162LCB
Drive type: 4X2 / 8X4 / 6X2 / 6X4
Wheelbase: 3800 / 4200 / 4500 / 3600 / 1800+2800+1300 / 1800+4660+1350 / 1950+3350+1300 / 1950+3050+1300 / 1860+3300 / 1800+3500+1300 / 1860+3500 / 1800+3000+1300 / 1860+3000 / 4700 / 3265+1350mm
Engine Model: YuchaiYC6J160-46 / YuchaiYC6J220-46 / YuchaiYC4D130-45 / YuchaiYC6J200-46 / YuchaiYC6A270-46 / WeichaiWP12.375E40 / YuchaiYC6L280-42 / YuchaiYC4E140-45 / YuchaiYC6A240-46 / YuchaiYC6J220-46(220PS) / YuchaiYC6J180-46 / YuchaiYC6A260-33 / YuchaiYC4D130-33 / YuchaiYC6J180-42 / YuchaiYC6J220-33 / YuchaiYC6J200-33 / YuchaiYC6J180-33 / YuchaiYC6A240-33 / YuchaiYC4E140-33 / WeichaiWP10.290E32 / YuchaiYC6J160-33 / YuchaiYC6J180-31 / YuchaiYC6J200-30 / YC6J160-46
Transmission Model: Fast Gear8JS85F / Fast Gear8JS118 / WLYWLY8S90A / Fast Gear10JSD120B / Fast Gear12JSD180T / Fast Gear8JS75F / Fast Gear 8JS85F gearbox / Fast Gear10JS90A / Fast Gear 8JS75F transmission / Fast Gear12JS160A / WLYWLY653H / Fast Gear9JS119 / Fast Gear7DS100 / Huayi HY6-85 / Fast Gear7DS100B
Rear Axle Ratio: 6.33 / 5.833 / 6.83 / 5.45 / 5.143 / 5.262 / 5.286 / 6.166 / 6.833 / 5.571 / 5.73 / 6.5 / 4.875
Cab length: 7.045 / 7.845 / 6.903 / 7.545 / 9.595 / 11.622 / 9.295 / 9.705 / 8.505 / 7.043 / 10.045 / 9.075 / 8.605 / 8.805 / 7.645 / 7.45 / 6.743 / 9.545 / 7.05 / 6.635 / 9.945 / 8.098 / 7.92 / 7.995 / 6.87 / 6.868 / 7.827 / 6.975 / 6.508 / 7.159 / 6.915 / 6.955 / 6.775 / 7.759 / 10.245 / 7.035m
Cab width: 2.495 / 2.37 / 2.5 / 2.47 / 2.49 / 2.3 / 2.25m
Cab height: 3.02 / 3.15 / 2.9 / 3.3 / 3.1 / 3.52 / 3.6 / 3.45 / 3.07 / 2.85 / 3.11 / 3.05 / 2.96 / 2.91 / 3.43 / 3 / 3.5 / 3.17 / 2.86 / 3.58m
Front track width: 1940 / 1970 / 1830 / 1988 / 2060/2060 / 2045 / 2060 / 2040/2040 / 1830/1830 / 2030 / 2046 / 3800 / 1094 / 2070/2070 / 1955 / 1920 / 1940/1940 / 1840/1840 / 2070 / 1820mm
rear track: 1860 / 1721 / 1874 / 1860/1860 / 1874/1874 / 1674 / 4200 / 1690 / 1688mm
Curb Weight: 6.695 / 7.915 / 6.8 / 14.815 / 14.77 / 14.75 / 14.775 / 12.04 / 14.855 / 14.04 / 7.815 / 3.35 / 6.84 / 6.65 / 9.15 / 11.76 / 11.915 / 6.675 / 11.95 / 3.305 / 3.325 / 7.78 / 4.045 / 7.76 / 3.975 / 7.83 / 14.92 / 7.825ton
Rated payload: 4.99 / 7.85 / 4.995 / 15.99 / 16.1 / 16.03 / 12.755 / 15.95 / 7.99 / 7.9 / 1.99 / 11.995 / 12.89 / 12.9 / 1.49 / 1.97 / 7.995 / 2.99 / 7.945 / 15.85 / 4.955ton
GVWR: 11.88 / 15.96 / 11.99 / 31 / 30.935 / 24.99 / 16.1 / 15.915 / 5.535 / 11.835 / 23.95 / 25 / 11.8 / 11.985 / 24.98 / 5.49 / 5.53 / 15.97 / 7.23 / 15.95 / 7.16 / 16.01ton
Origin: Liuzhou, Guangxi
tonnage class: Medium-duty truck / Heavy truck
Approach angle: 22 / 26 / 30 / 27 / 25 / 28 / 29 / 24°
departure angle: 20 / 19 / 16 / 15 / 21 / 17 / 13 / 18 / 29 / 22°
Remarks: Optional: air suspension seat, electric window lift / Frame: 306(8+8) / Frame: 300(8+5) / Optional new front mask, optional bumper, optional cab sleeper side window / When cargo box internal width is 2100, external width is 2300; when internal width is 2300, external width is 2490; dump type: rear dump. Optional three-way open box and YC4E160-33 engine. / Dump type: rear dump type / 11/11/13 / Optional sleeper side window. Related parameters correspond one-to-one. Dumping method: rear dump
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai / Weichai
Number of cylinders: 6 / 4cylinder
Displacement: 6.494 / 4.214 / 7.255 / 11.596 / 8.424 / 7.225 / 4.26 / 4.257 / 9.726L
Emission standard: China IV / China III / Euro III
Max output power: 118 / 162 / 96 / 147 / 199 / 276 / 206 / 103 / 177 / 132 / 191 / 105 / 213kW
Max hp: 160 / 220 / 130 / 200 / 270 / 375 / 280 / 140 / 240 / 180 / 260 / 290Horsepower
Max torque: 550 / 760 / 420 / 700 / 1000 / 1800 / 1100 / 430 / 900 / 590 / 960 / 650 / 800 / 730 / 500 / 1160 / 520N·m
Max torque speed: 1400-1700 / 1200-1700 / 1400-1800 / 1300-1600 / 1000-1400 / 1400-1600 / 1600 / 1200-1600rpm
Rated speed: 2500 / 2800 / 2300 / 1900 / 2200 / 2600rpm
Engine Type: Vertical, inline, water-cooled, four-stroke, direct injection / Electronic unit pump EGR + POC + DOC / Vertical, inline, water-cooled, four-stroke, electronically controlled direct injection / Water-cooled, four-stroke, with exhaust brake, direct injection, turbocharged intercooled / Vertical, Water-cooled, Four-stroke, Inline six-cylinder, Electronically controlled direct injection / Vertical, inline 4-cylinder, water-cooled, 4-stroke, electronic unit pump / Vertical, inline, 4-stroke, water-cooled / Vertical, inline, water-cooled, four-stroke, direct injection, EGR / Vertical, inline 6-cylinder, water-cooled, 4-stroke, electronic direct injection
Transmission Parameters
Transmission Brand: Fast Gear / WLY / Fast Gear gearbox / Fast Gear transmission / Huayi
shift method: Manual
Forward gears: 8 / 10 / 12 / 6 / 9 / 7Gear
Number of Reverse Gears: 2 / 1pcs
Cargo box parameters
Unloading Type: Rear-dump body / Dump type
Cargo box length: 4.5 / 5 / 5.3 / 4.2 / 4.7 / 6.8 / 8.6 / 7.2 / 5.6 / 6.5 / 6.2 / 6 / 5.2 / 7.6m
Cargo box width: 2.3 / 2.2 / 2.1 / 2.26m
Cargo box height: 0.8 / 1.23 / 1 / 1.175 / 1.235 / 1.2 / 1.17 / 1.045 / 1.09 / 1.02 / 1.21 / 0.6 / 1.29 / 1.12m
Cab parameters
Cab: Flat roof
fuel tank
Fuel tank capacity: 270 / 160 / 350 / 250L
FAQ
What kind of truck is Dongfeng Dongfeng M3 heavy truck Dump Trucks?
Dongfeng Dongfeng M3 heavy truck is an export-oriented Dump Trucks lineup with about 53 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Dongfeng M3 heavy truck Dump Trucks?
Dongfeng M3 heavy truck Dump Trucks export reference is about $15,694 – $56,944. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Dongfeng M3 heavy truck Dump Trucks cover?
Dongfeng M3 heavy truck Dump Trucks mainly covers: Drive: 4x2; Horsepower: 130 hp / 160 hp / 200 hp / 220 hp; Emission: China IV; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Dongfeng M3 heavy truck Dump Trucks?
For Dongfeng M3 heavy truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Dongfeng M3 heavy truck Dump Trucks include?
Dongfeng M3 heavy truck Dump Trucks currently lists about 53 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Dongfeng M3 heavy truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
