Dongfeng Liuqi Chenglong M3 130hp 4X2(6 wheels) 4.2m Dump Truck (WLY)

Export reference
MSRP N/A
Emission: China IV
Fuel: Diesel
Transmission: WLY
Curb Weight:: 6.8ton
Wheelbase:: 3600mm
Tire Size:: 9.00R20
Rated payload: 4.995ton
Drive 4X2 (6 wheels)
Horsepower 130
Cargo box type: Rear-dump body

Overview

The Dongfeng Liuqi Chenglong M3 130hp 4X2(6 wheels) 4.2m Dump Truck (WLY) is a Medium-duty truck featuring 4.995t payload, 11.99t GVW, Rear-dump body cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYC4D130-45 engine, 130 hp, China IV emissions and WLY transmission.

China IV 130 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): LZ3121M3AA
Drive type: 4X2
Wheelbase: 3600mm
engine: YuchaiYC4D130-45
transmission: WLYWLY8S90A
Rear Axle Ratio: 6.83
Cab length: 6.903m
Cab width: 2.495m
Cab height: 2.9m
Front track width: 1830mm
rear track: 1721mm
Curb Weight: 6.8ton
Rated payload: 4.995ton
GVWR: 11.99ton
Origin: Liuzhou, Guangxi
tonnage class: Medium-duty truck
Approach angle: 26°
departure angle: 16°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4D130-45
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.214L
Emission standard: China IV
Max output power: 96kW
Max hp: 130Horsepower
Max torque: 420N·m
Max torque speed: 1400-1800rpm
Rated speed: 2800rpm
Engine Type: Electronic unit pump EGR + POC + DOC
Transmission Parameters
Transmission Model: WLYWLY8S90A
Transmission Brand: WLY
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 4.2m
Cargo box width: 2.2m
Cargo box height: 0.8m
fuel tank
Fuel tank capacity: 160L
Chassis Specs
Front axle allowable load: 4050kg
rear axle description: 153 reinforced axle
Steering gear: Domestic
rear axle allowable load: 7940kg
Axle ratio: 6.83
Leaf spring count: 11/12+9
Tire
Tire Size: 9.00R20
Number of tires: 6pcs
Control configuration
ABS:

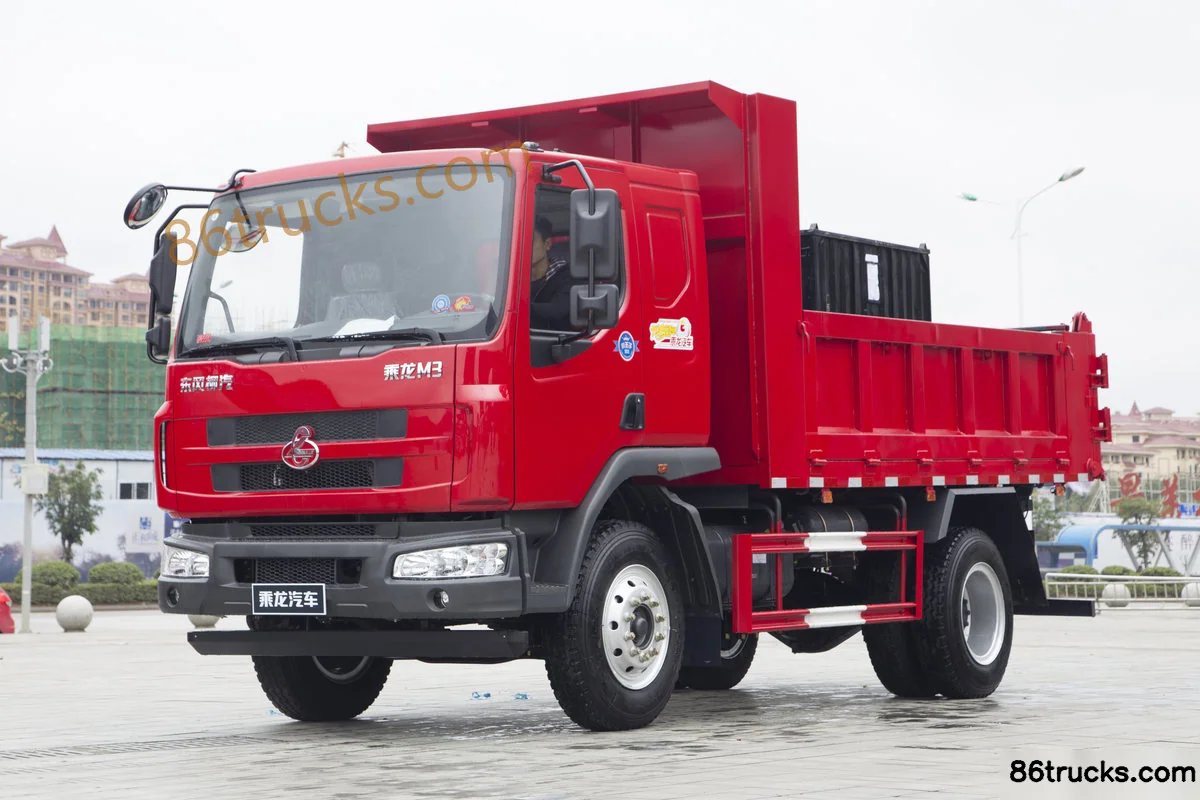

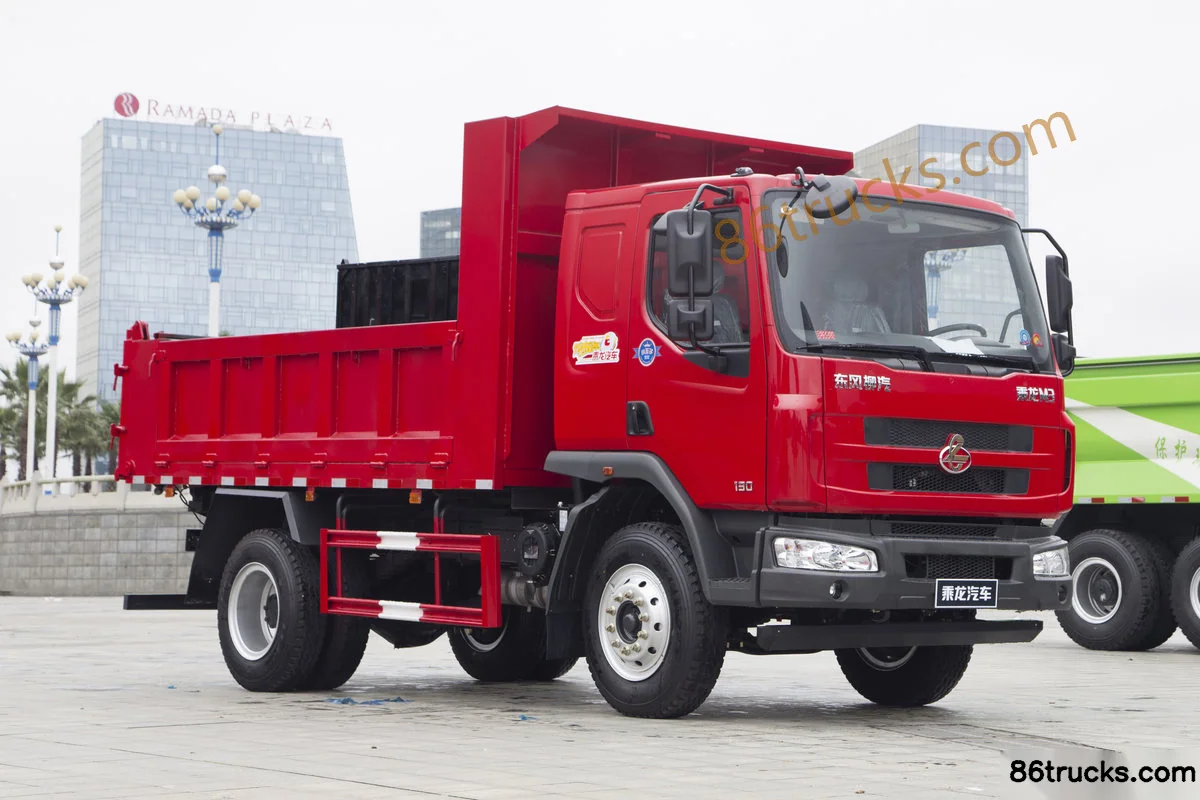

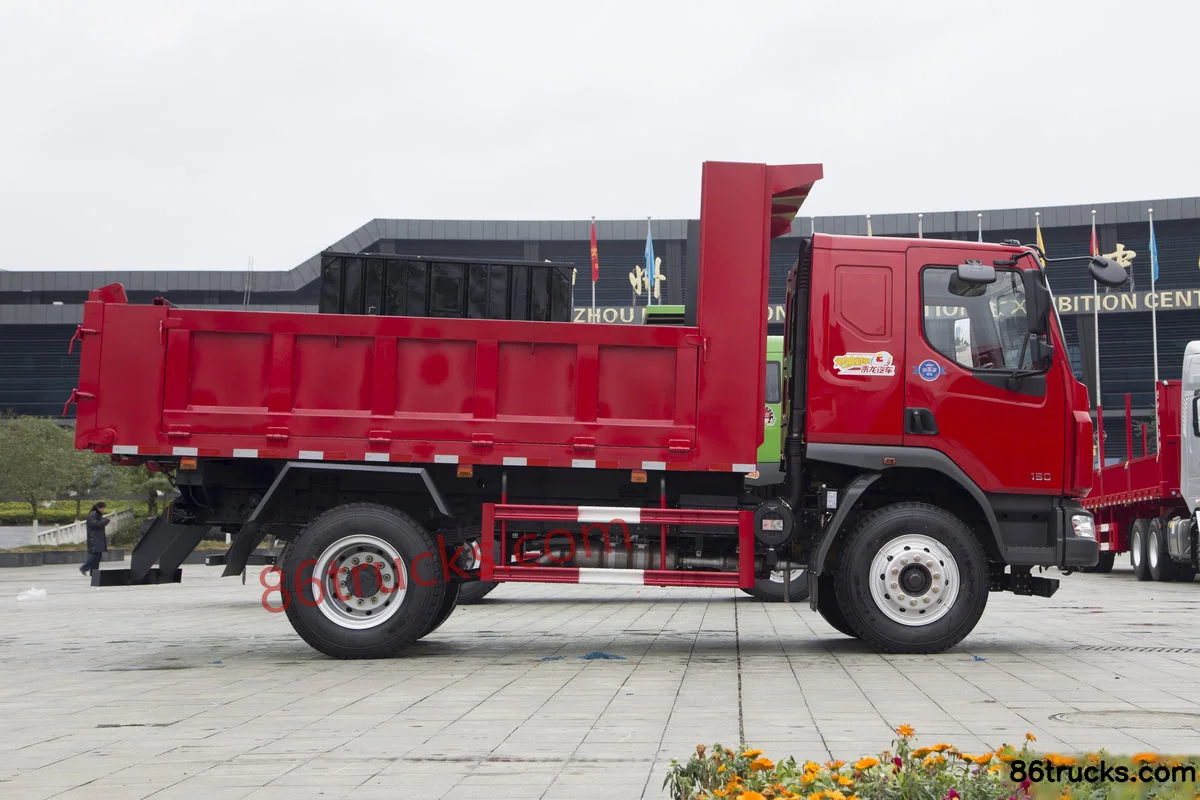

Photos

Exterior3

3 photos

FAQ

What emission standard does Dongfeng Liuqi Chenglong M3 130hp 4X2(6 wheels) 4.2m Dump Truck (WLY) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Liuqi Chenglong M3 130hp 4X2(6 wheels) 4.2m Dump Truck (WLY)?

Key specs of Dongfeng Liuqi Chenglong M3 130hp 4X2(6 wheels) 4.2m Dump Truck (WLY): Drive: 4x2; Horsepower: 130 hp; Emission: China IV; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Liuqi Chenglong M3 130hp 4X2(6 wheels) 4.2m Dump Truck (WLY) suited for?

Dongfeng Liuqi Chenglong M3 130hp 4X2(6 wheels) 4.2m Dump Truck (WLY) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng Liuqi Chenglong M3 130hp 4X2(6 wheels) 4.2m Dump Truck (WLY) differ from other variants in the same series?

Dongfeng Liuqi Chenglong M3 130hp 4X2(6 wheels) 4.2m Dump Truck (WLY) belongs to Dongfeng M3 heavy truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Liuqi Chenglong M3 130hp 4X2(6 wheels) 4.2m Dump Truck (WLY)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Liuqi Chenglong M3 130hp 4X2(6 wheels) 4.2m Dump Truck (WLY)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
