Sinotruk V3-X 4.3L Diesel 240 hp 6X2R Fast Gear 10-Speed 4.7 m Half Cab Dump Truck
EXW
Export quote
Sinotruk V3-X Medium Truck Dump Trucks
Main model photos
34 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk V3-X 4.3L Diesel 240 hp 6X2R Fast Gear 10-Speed 4.7 m Half Cab Dump Truck | 6x2R / 240hp | ||
| Sinotruk V3-X 4.1L diesel 200hp 4X2(6 wheels) Fast Gear 8-speed 3.8m semi-row dump truck | 4x2 / 200hp / China VI |

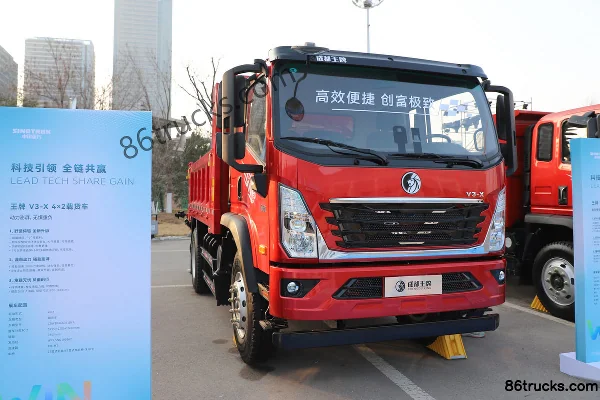

Sinotruk V3-X 4.1L diesel 200hp 4X2(6 wheels) Fast Gear 8-speed 3.8m semi-row dump truck
EXW
Export quote
Series Specs
Basic Info
Model code (announced): CDW3254K263EFA1 / CDW3184K35EFA
Drive type: 6X2R / 4X2
Wheelbase: 2650+1200 / 3350mm
Engine Model: YuchaiYCS04240-66 / WeichaiWP4.1NQ200E62 / YCS04240-66 / WP4.1NQ200E62
Transmission Model: Fast Gear 10-Speed / Fast Gear 8-speed / 8-speed
Rear Axle Ratio: 5.571
Cab length: 7.08 / 5.995m
Cab width: 2.48 / 2.36 / 2080m
Cab height: 3.05 / 2.82m
Front track width: 1955 / 1875mm
rear track: 2045/1865 / 1750mm
Curb Weight: 8.5 / 5.8ton
Rated payload: 16.305 / 12.005ton
GVWR: 25 / 18ton
Origin: Chengdu, Sichuan
tonnage class: Heavy truck
Approach angle: 17°
departure angle: 15°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai / Weichai
Number of cylinders: 4cylinder
Displacement: 4.295 / 4.088L
Emission standard: China VI
Max output power: 173 / 147kW
Max hp: 240 / 200Horsepower
Transmission Parameters
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10 / 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear dump
Cargo box type: Rear dump
Cargo box length: 4.7 / 3.8m
Cargo box width: 2.3 / 2.2m
Cargo box height: 1 / 0.8m
Cab parameters
Cab: V36X
seating capacity: 3Personnel
Chassis Specs
Front axle description: 153 front axle / 3.6T
Front axle allowable load: 6500kg
rear axle description: 457 rear axle with differential lock / 10T
rear axle allowable load: 7000/11500 / 11500kg
FAQ
What kind of truck is Sinotruk Sinotruk V3-X Medium Truck Dump Trucks?
Sinotruk Sinotruk V3-X Medium Truck is an export-oriented Dump Trucks lineup with about 2 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Sinotruk V3-X Medium Truck Dump Trucks cover?
Sinotruk V3-X Medium Truck Dump Trucks mainly covers: Drive: 4x2 / 6x2R; Horsepower: 200 hp / 240 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Sinotruk V3-X Medium Truck Dump Trucks?
For Sinotruk V3-X Medium Truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Sinotruk V3-X Medium Truck Dump Trucks include?
Sinotruk V3-X Medium Truck Dump Trucks currently lists about 2 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Sinotruk V3-X Medium Truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
