Sinotruk V3-X 4.3L Diesel 240 hp 6X2R Fast Gear 10-Speed 4.7 m Half Cab Dump Truck

Export reference
MSRP N/A
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 8.5ton
Wheelbase:: 2650+1200mm
Tire Size:: 11.00R20 18PR
Model code (announced):: CDW3254K263EFA1
Rated payload: 16.305ton
Drive 6X2R (8 wheels)
Horsepower 240
Cargo box type: Rear dump

Overview

The Sinotruk V3-X 4.3L Diesel 240 hp 6X2R Fast Gear 10-Speed 4.7 m Half Cab Dump Truck is a Heavy truck featuring 16.305t payload, 25t GVW, Rear dump cargo body and 6X2R (8 wheels) drive. On the powertrain side, it comes with a YuchaiYCS04240-66 engine, 240 hp, Fast Gear transmission and Diesel fuel.

240 Diesel 6X2R

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CDW3254K263EFA1
Drive type: 6X2R
Wheelbase: 2650+1200mm
engine: YuchaiYCS04240-66
transmission: Fast Gear 10-Speed
Rear Axle Ratio: 5.571
Cab length: 7.08m
Cab width: 2.48m
Cab height: 3.05m
Front track width: 1955mm
rear track: 2045/1865mm
Curb Weight: 8.5ton
Rated payload: 16.305ton
GVWR: 25ton
Origin: Chengdu, Sichuan
tonnage class: Heavy truck
Approach angle: 17°
departure angle: 15°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YCS04240-66
fuel type: Diesel
Displacement: 4.295L
Max output power: 173kW
Max hp: 240Horsepower
Transmission Parameters
Transmission Model: Fast Gear 10-Speed
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear dump
Cargo box type: Rear dump
Cargo box length: 4.7m
Cargo box width: 2.3m
Cargo box height:
Cab parameters
Cab: V36X
seating capacity: 3Personnel
Chassis Specs
Front axle description: 153 front axle
Front axle allowable load: 6500kg
rear axle description: 457 rear axle with differential lock
rear axle allowable load: 7000/11500kg
Axle ratio: 5.571
Leaf spring count: 9/5/10+8
Tire
Tire Size: 11.00R20 18PR
Number of tires: 8pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Electronic Central Lock:
Multimedia features
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Service brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

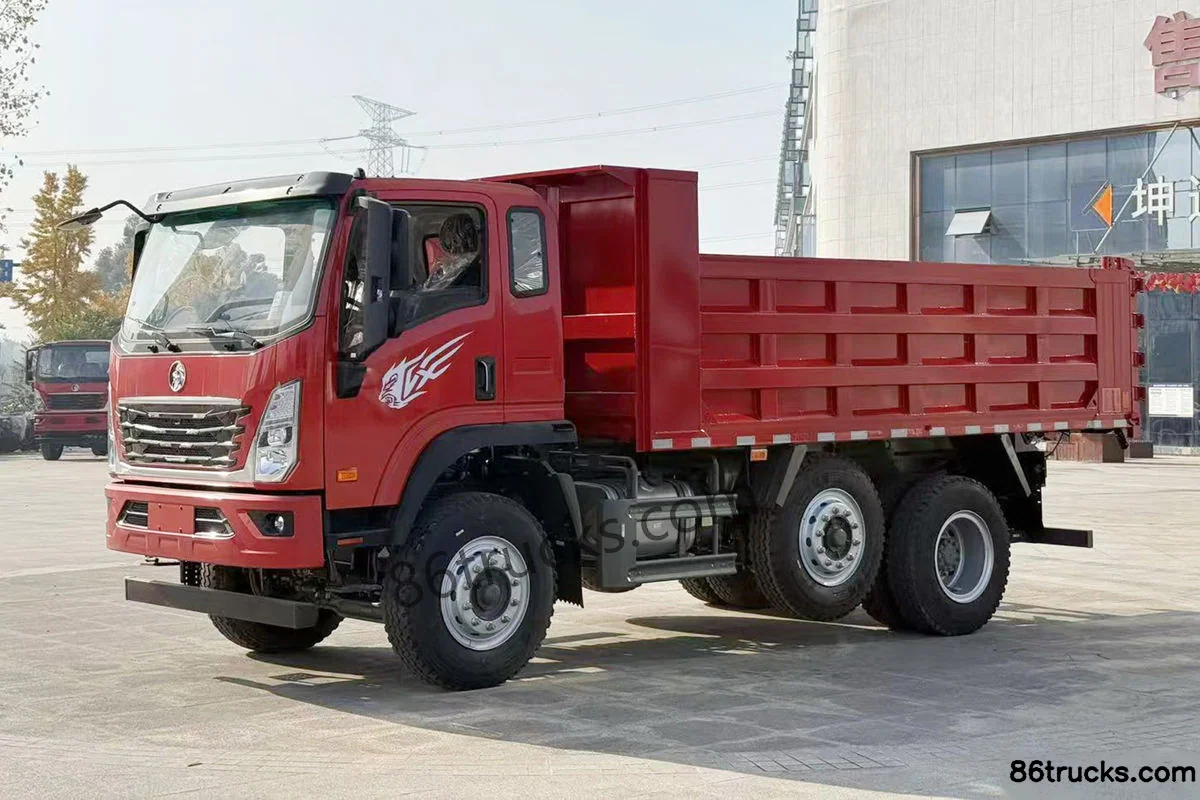

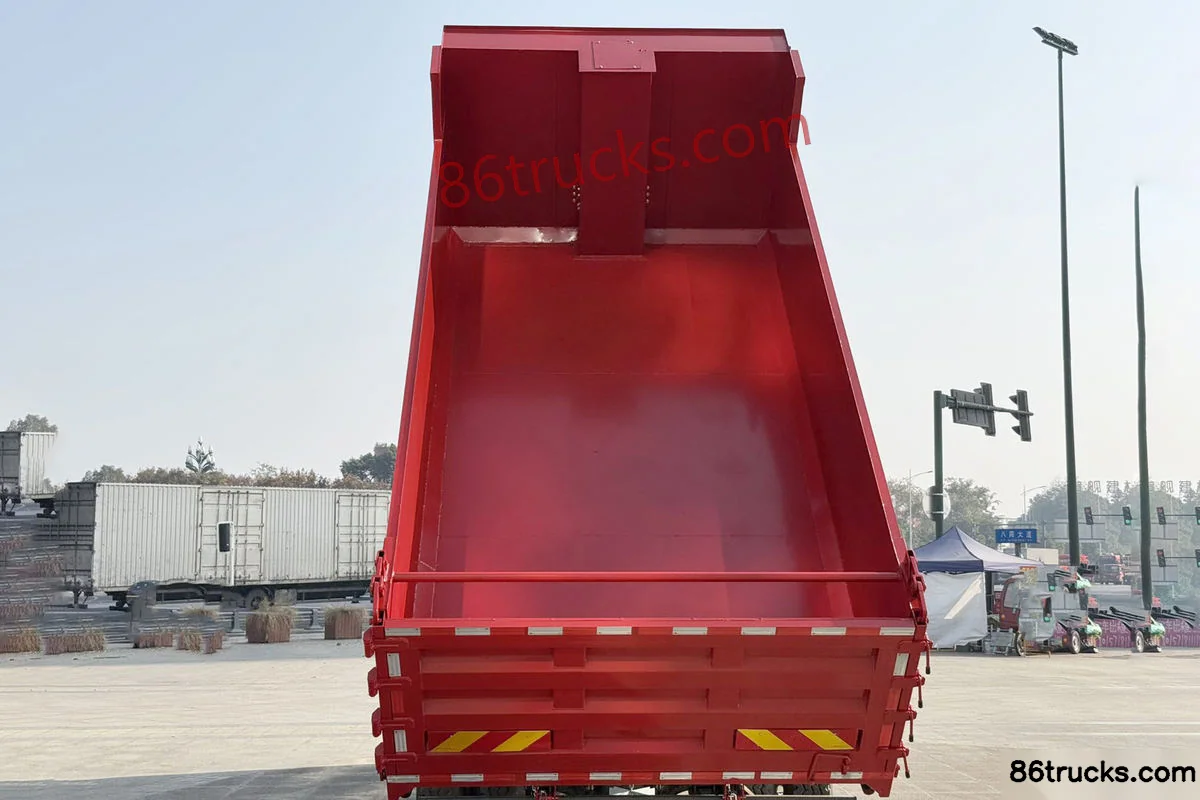

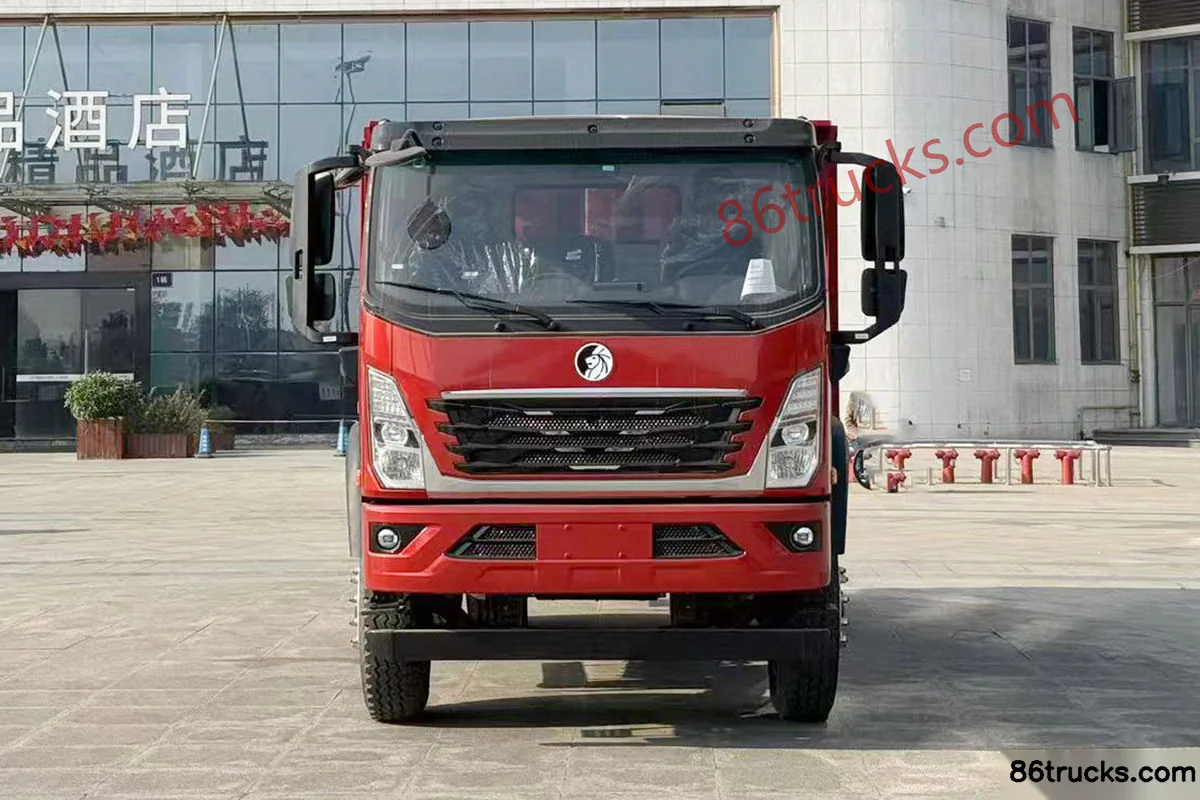

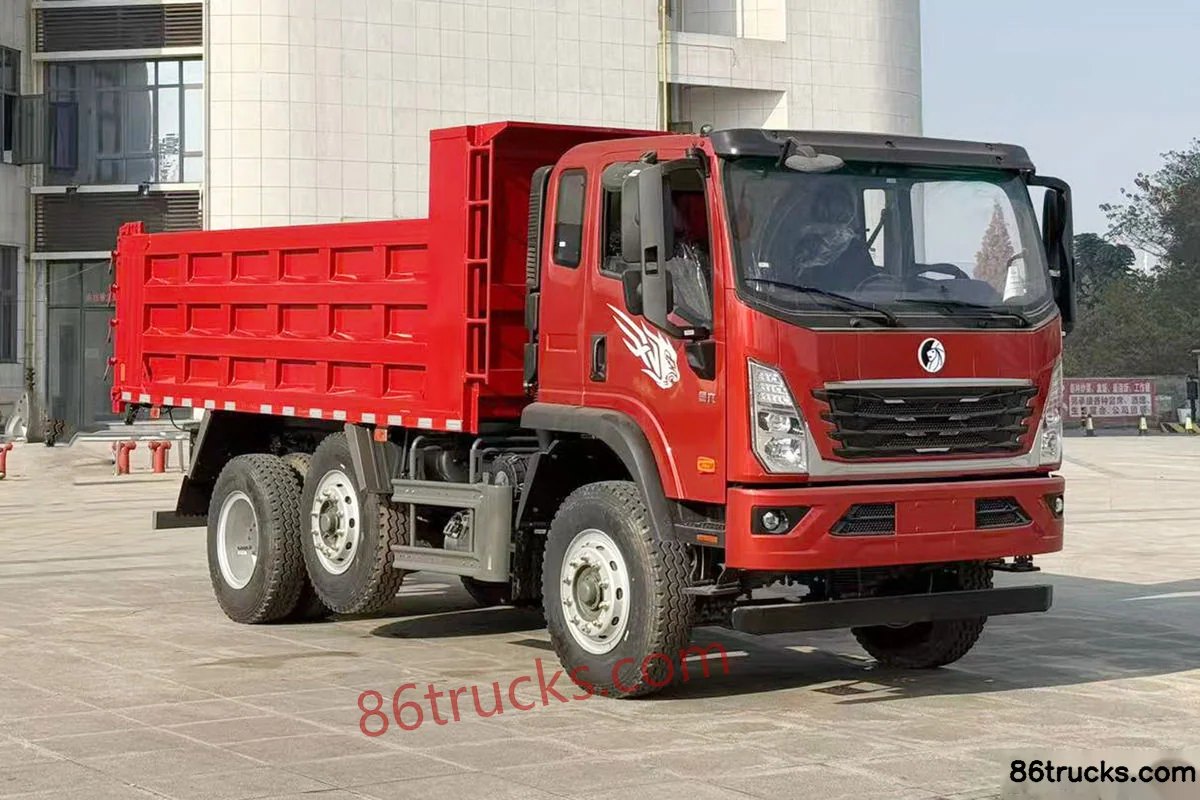

Exterior3

Cab1

4 photos

FAQ

What are the key specs of Sinotruk V3-X 4.3L Diesel 240 hp 6X2R Fast Gear 10-Speed 4.7 m Half Cab Dump Truck?

Key specs of Sinotruk V3-X 4.3L Diesel 240 hp 6X2R Fast Gear 10-Speed 4.7 m Half Cab Dump Truck: Drive: 6x2R; Horsepower: 240 hp; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk V3-X 4.3L Diesel 240 hp 6X2R Fast Gear 10-Speed 4.7 m Half Cab Dump Truck suited for?

Sinotruk V3-X 4.3L Diesel 240 hp 6X2R Fast Gear 10-Speed 4.7 m Half Cab Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk V3-X 4.3L Diesel 240 hp 6X2R Fast Gear 10-Speed 4.7 m Half Cab Dump Truck differ from other variants in the same series?

Sinotruk V3-X 4.3L Diesel 240 hp 6X2R Fast Gear 10-Speed 4.7 m Half Cab Dump Truck belongs to Sinotruk V3-X Medium Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk V3-X 4.3L Diesel 240 hp 6X2R Fast Gear 10-Speed 4.7 m Half Cab Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk V3-X 4.3L Diesel 240 hp 6X2R Fast Gear 10-Speed 4.7 m Half Cab Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
