Kama Kaijie HM6 184hp 4X2(6 wheels) 4.1m Dump Truck

Export reference
From $22,917
MSRP ¥16.5M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 5.48ton
Wheelbase:: 3600mm
Tire Size:: 8.25R16LT 18PR
Rated payload: 5.525ton
Drive 4X2 (6 wheels)
Horsepower 184
Cargo box type: Dump type

Overview

The Kama Kaijie HM6 184hp 4X2(6 wheels) 4.1m Dump Truck is a Medium-duty truck featuring 5.525t payload, 11.2t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerD40TCIF1 engine, 184 hp, China VI emissions and Fast Gear transmission.

China VI 184 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): KMC3119HA330DP6
Drive type: 4X2
Wheelbase: 3600mm
engine: Yunnei PowerD40TCIF1
transmission: Fast Gear 10-Speed
Rear Axle Ratio: 4.875
Cab length: 5.999m
Cab width: 2.44m
Cab height: 2.52m
Front track width: 1750mm
rear track: 1700mm
Curb Weight: 5.48ton
Rated payload: 5.525ton
GVWR: 11.2ton
Origin: Shouguang, Shandong
tonnage class: Medium-duty truck
Approach angle: 19°
departure angle: 17°
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD40TCIF1
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4L
Emission standard: China VI
Max output power: 135kW
Max hp: 184Horsepower
Max torque: 660N·m
Max torque speed: 1200-2000rpm
Rated speed: 2300rpm
Engine Type: Electronic control common rail system HEGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: Fast Gear 10-Speed
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.1m
Cargo box width: 2.3m
Cargo box height: 0.6m
Cab parameters
Cab width: 2030mm
seating capacity: 3Personnel
Chassis Specs
Front axle allowable load: 4000kg
rear axle allowable load: 7200kg
Axle ratio: 4.875
Leaf spring count: 7/9+5
Tire
Tire Size: 8.25R16LT 18PR
Tire Type: Steel-belted tire
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Remote key:
Electronic Central Lock:
Multimedia features
Radio:
lighting configuration
Front fog lamp:
Headlight height adjustment:
Service brake
Parking brake: Spring brake
Exhaust brake:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

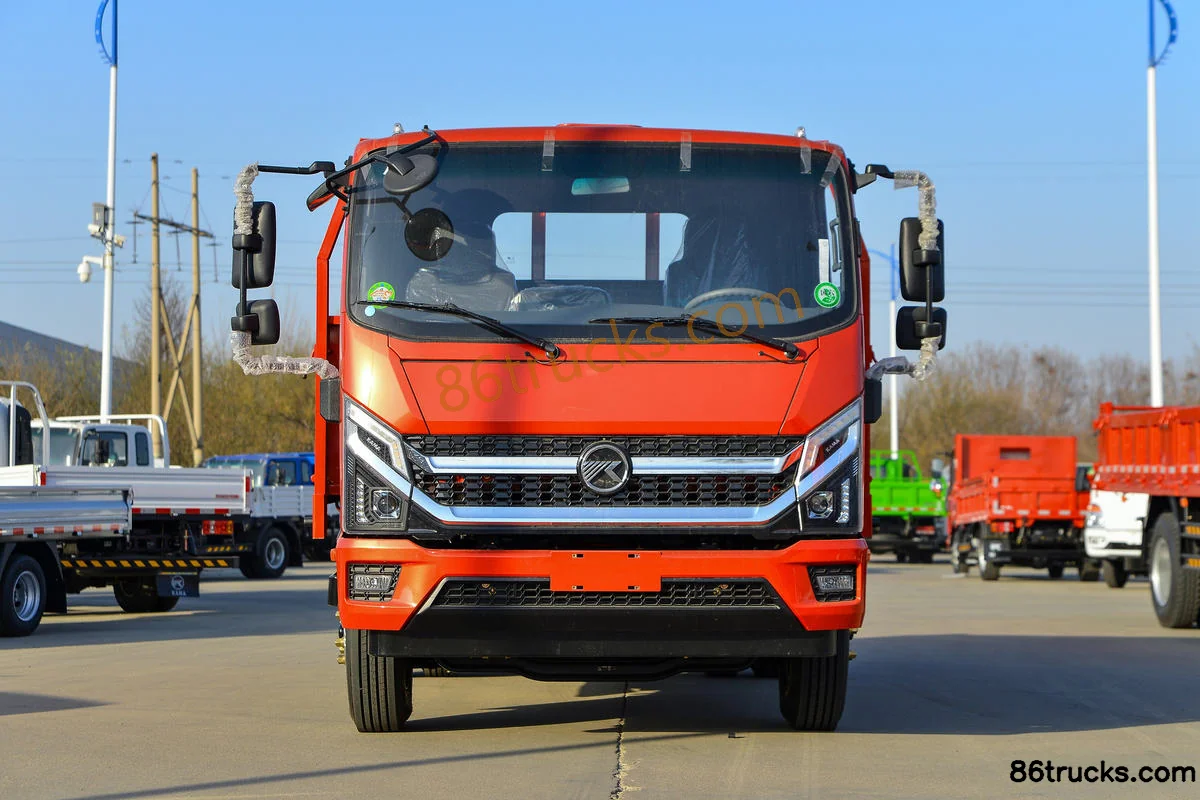

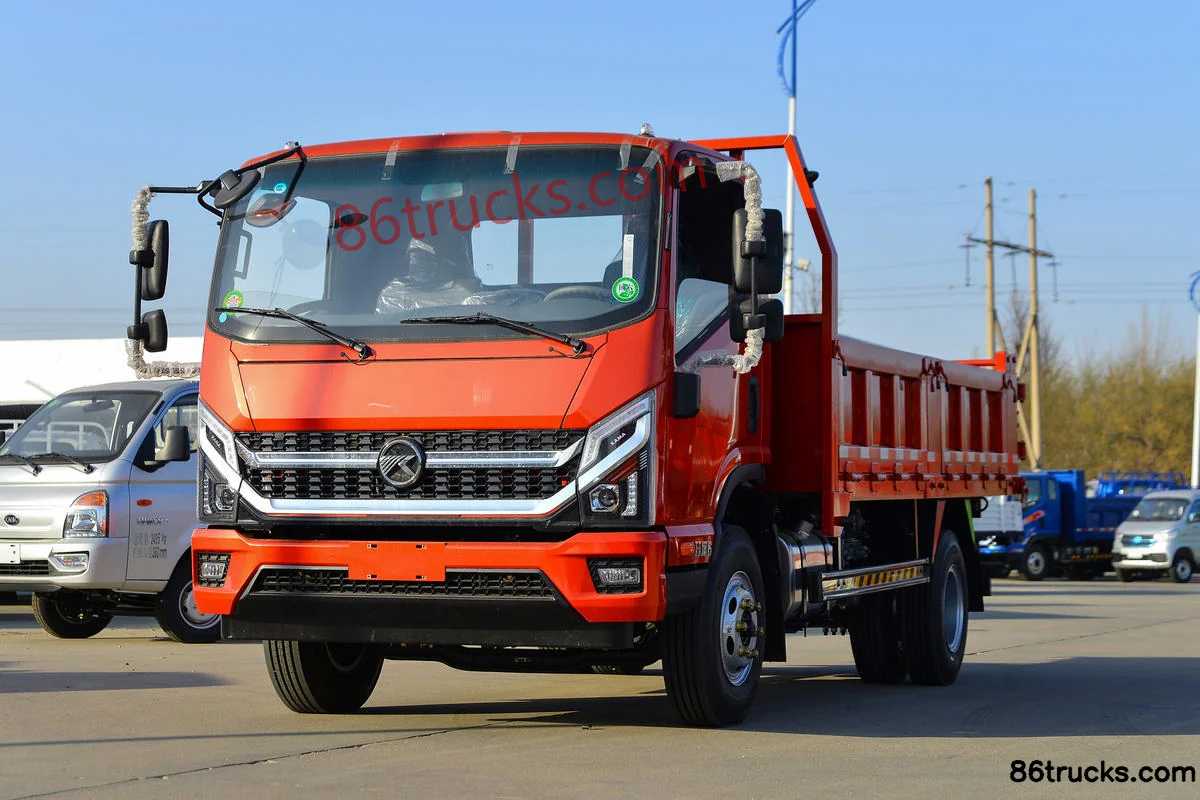

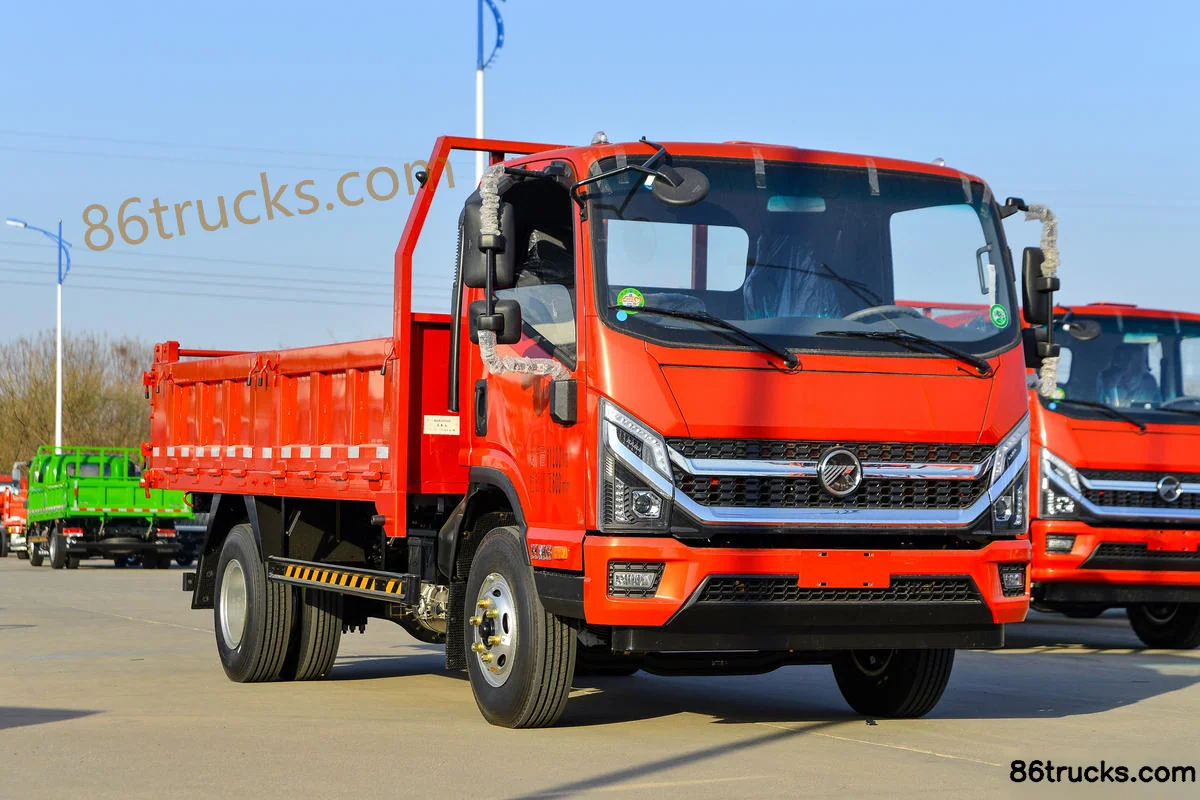

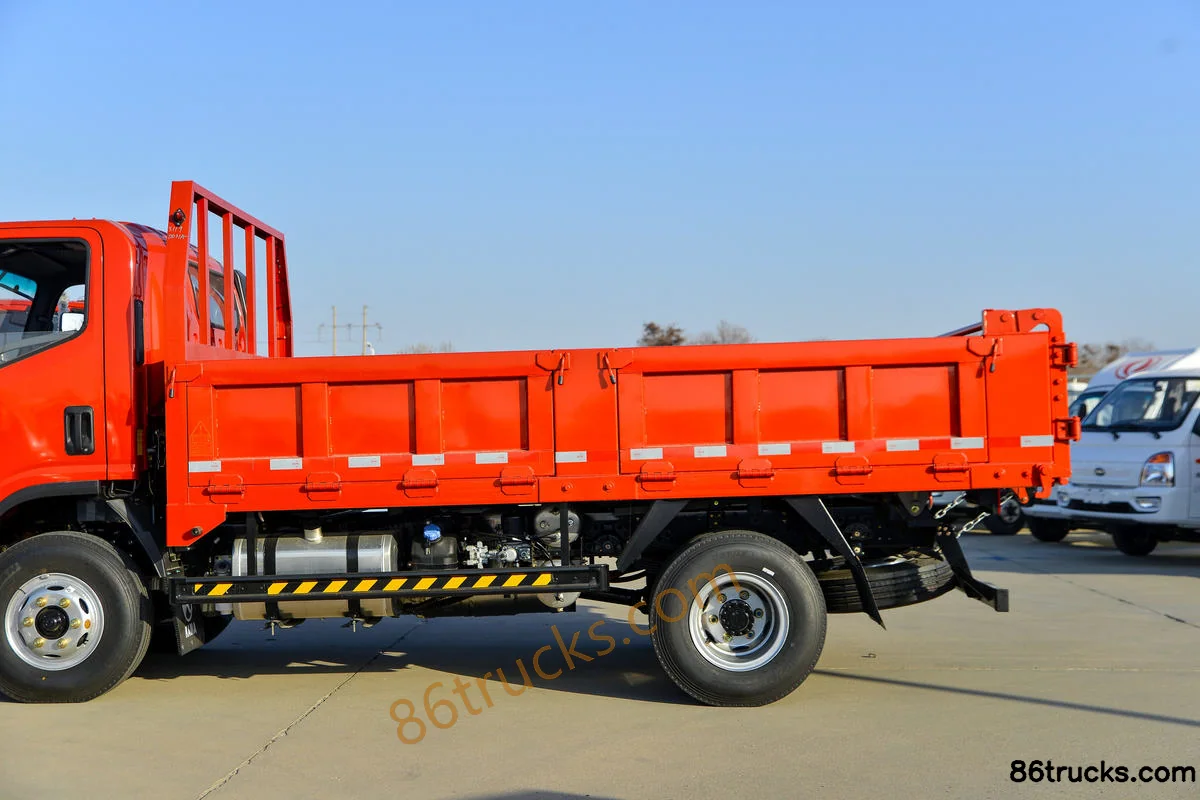

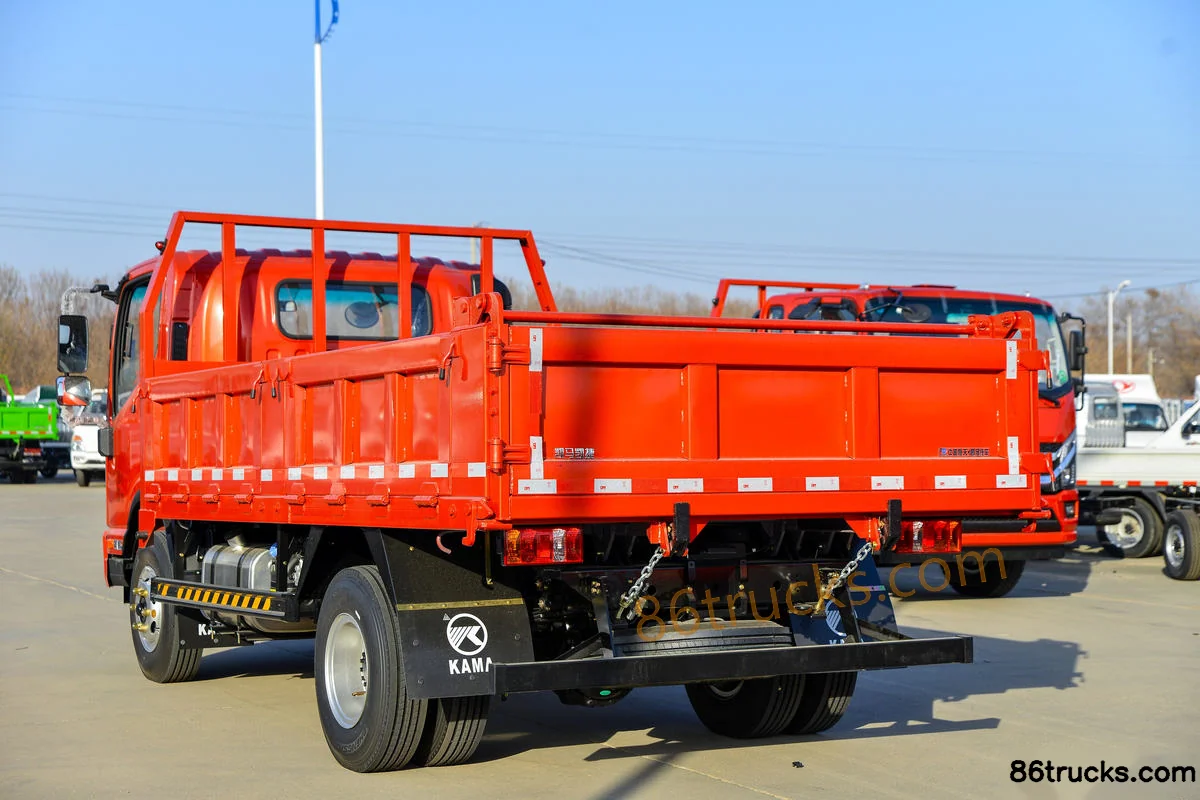

Exterior3

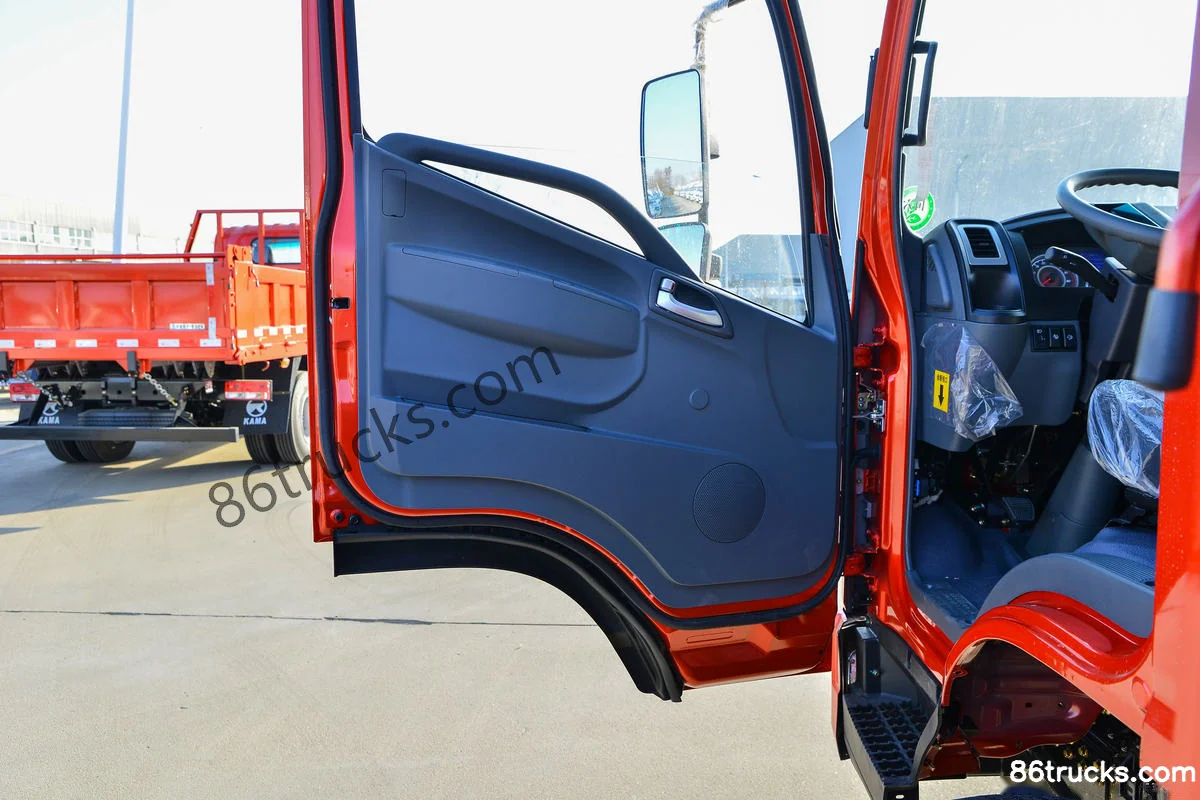

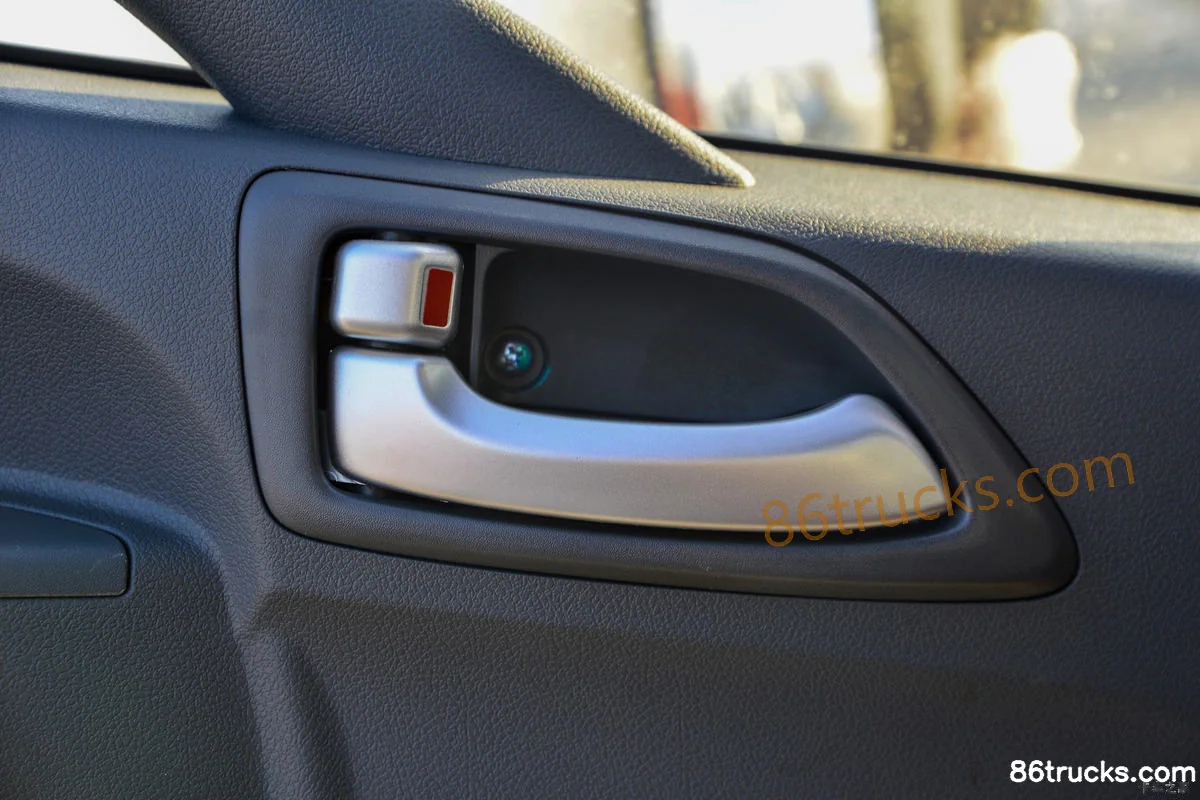

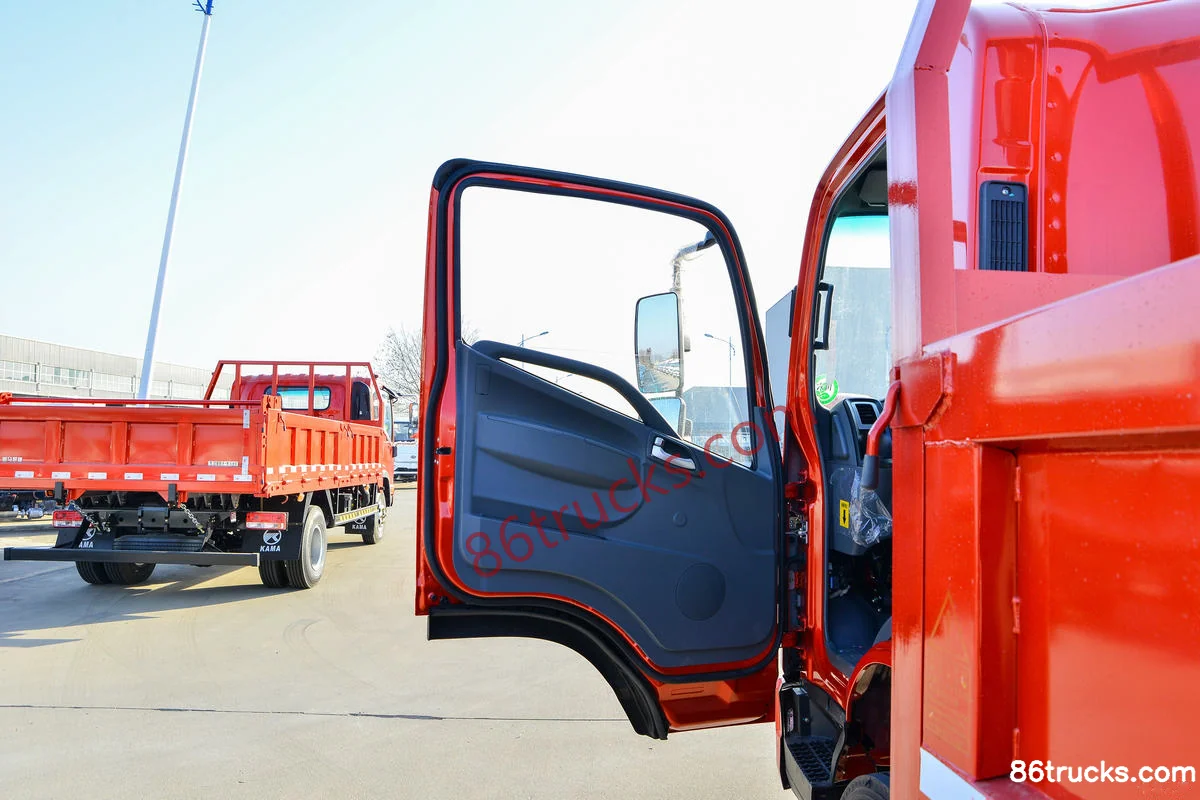

Cab3

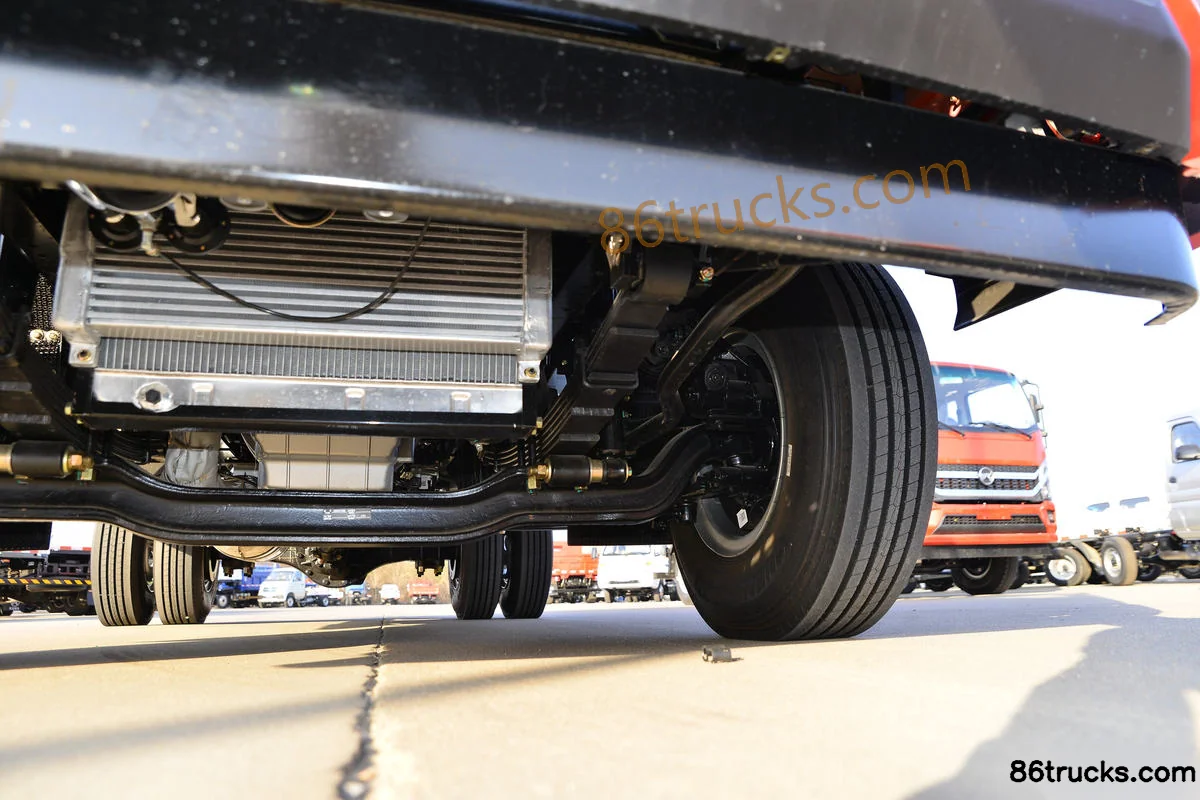

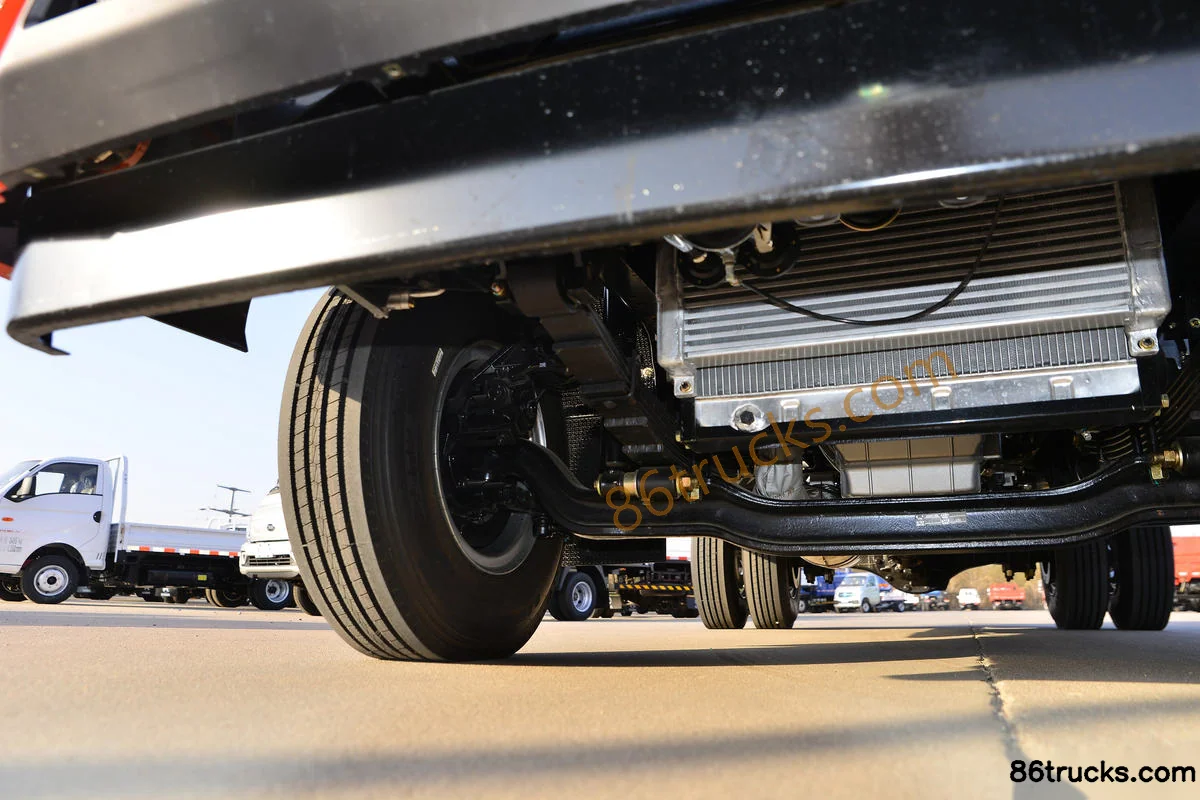

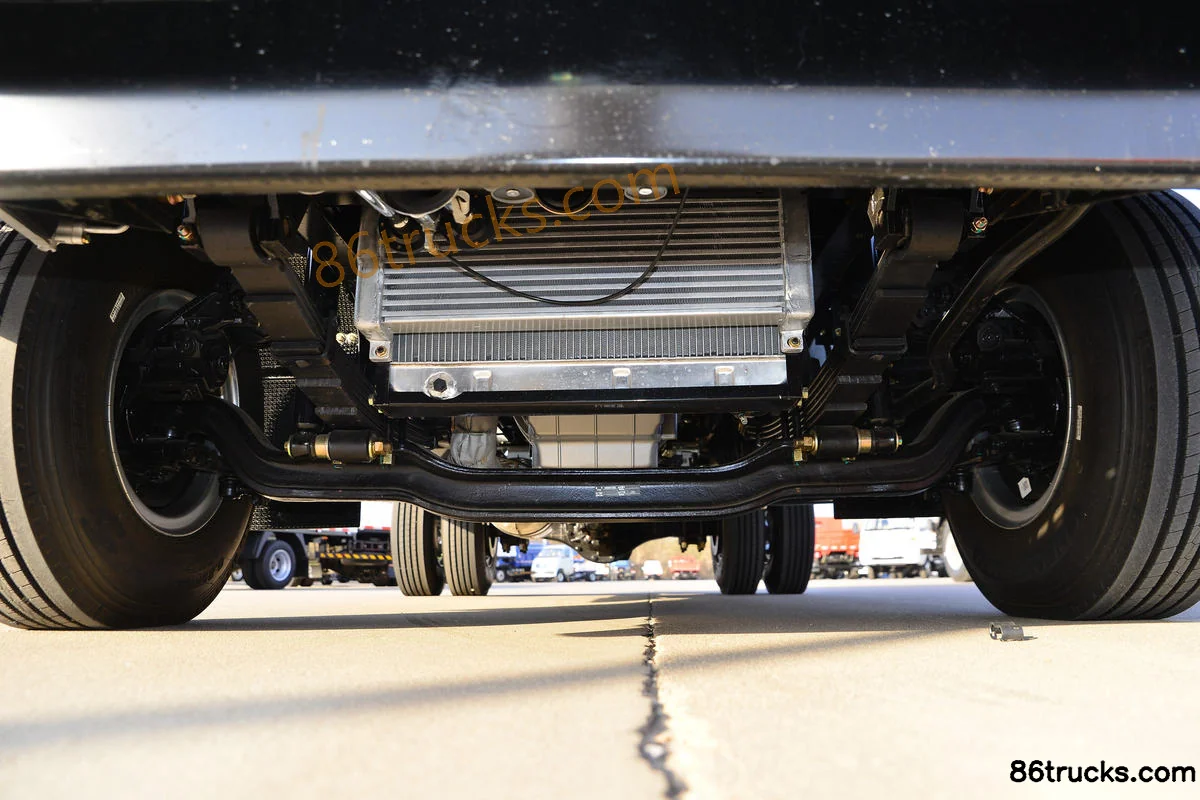

Chassis3

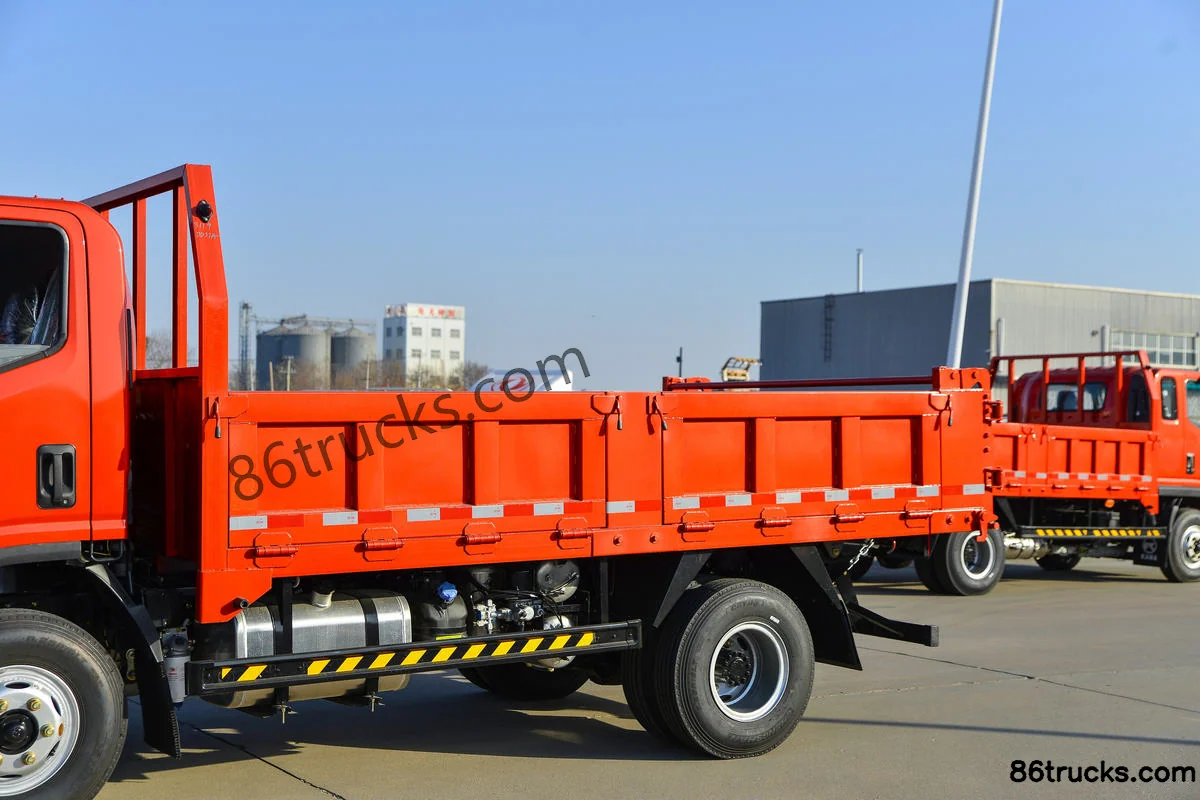

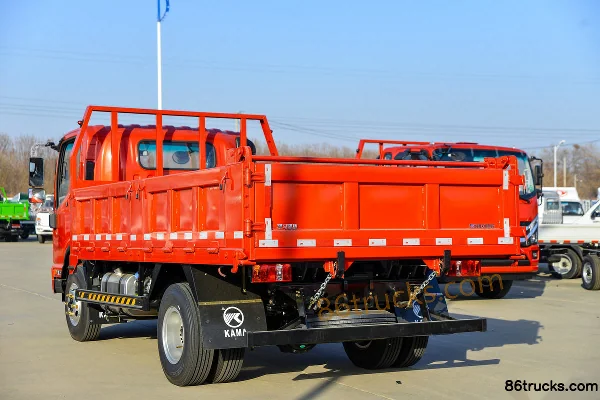

Body3

12 photos

FAQ

What is the export price of Kama Kaijie HM6 184hp 4X2(6 wheels) 4.1m Dump Truck, and what does it include?

Kama Kaijie HM6 184hp 4X2(6 wheels) 4.1m Dump Truck export reference is about From $22,917; MSRP is ¥16.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Kama Kaijie HM6 184hp 4X2(6 wheels) 4.1m Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Kama Kaijie HM6 184hp 4X2(6 wheels) 4.1m Dump Truck?

Key specs of Kama Kaijie HM6 184hp 4X2(6 wheels) 4.1m Dump Truck: Drive: 4x2; Horsepower: 184 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Kama Kaijie HM6 184hp 4X2(6 wheels) 4.1m Dump Truck suited for?

Kama Kaijie HM6 184hp 4X2(6 wheels) 4.1m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Kama Kaijie HM6 184hp 4X2(6 wheels) 4.1m Dump Truck differ from other variants in the same series?

Kama Kaijie HM6 184hp 4X2(6 wheels) 4.1m Dump Truck belongs to Kama Kaijie HM6 Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Kama Kaijie HM6 184hp 4X2(6 wheels) 4.1m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Kama Kaijie HM6 184hp 4X2(6 wheels) 4.1m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
