Dongfeng Special Chassis Series 160 hp 4X2(6 wheels) 4.2m Dump Truck
EXW
From $18,681
Export quote
Dongfeng Special Chassis Dump Trucks
Main model photos
87 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng Special Chassis Series 160 hp 4X2(6 wheels) 4.2m Dump Truck | 4x2 / 160hp / China V | From $18,681 | |
| Dongfeng Special Chassis Series 160 hp 4X2(6 wheels) 4.5m Dump Truck | 4x2 / 160hp / China V | From $22,222 | |
| Dongfeng Special Chassis Series 140hp 4X2(6 wheels) 3.8m LNG gas dump truck | 4x2 / 140hp / China V | From $20,556 | |
| Dongfeng Special Chassis 140 Series 180hp 4X2(6 wheels) 4.8 Meter Dump Truck | 4x2 / 180hp / China V | From $24,861 | |
| Dongfeng Special Chassis Series 270 hp 4X2(6 wheels) 5.4m Dump Truck | 4x2 / 270hp / China V | From $28,611 |
Dongfeng Special Chassis Series 160 hp 4X2(6 wheels) 4.5m Dump Truck
EXW
From $22,222
Export quote

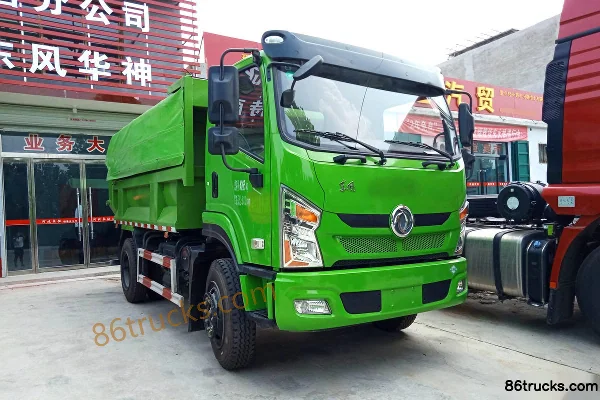

Dongfeng Special Chassis Series 140hp 4X2(6 wheels) 3.8m LNG gas dump truck
EXW
From $20,556
Export quote

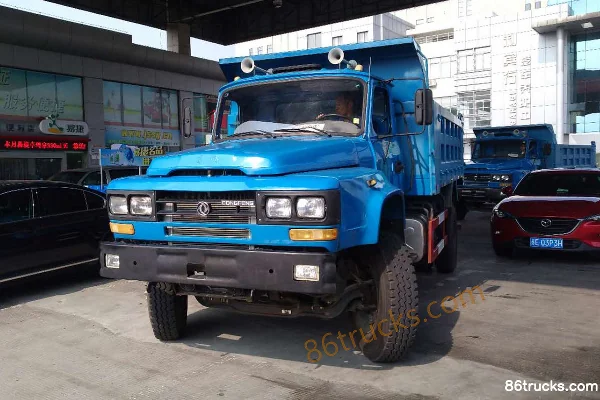

Dongfeng Special Chassis 140 Series 180hp 4X2(6 wheels) 4.8 Meter Dump Truck
EXW
From $24,861
Export quote
Dongfeng Special Chassis Series 270 hp 4X2(6 wheels) 5.4m Dump Truck
EXW
From $28,611
Export quote
Series Specs
Basic Info
Model code (announced): EQ3180GD5D1 / EQ3040GD5N / EQ3180FD5D / EQ3160GD5D / EQ3250GD5DA
Drive type: 4X2 / 6X4
Wheelbase: 3800 / 3950 / 3300 / 4800 / 4500 / 4050+1350 / 3800+1350mm
Engine Model: YuchaiYC4E160-56 / YuchaiYC4D140N-50 / YuchaiYC6JA180-50 / YuchaiYC6A270-50 / YuchaiYC6MK350-50 / YuchaiYC6MK400-50
Transmission Model: Fast Gear8JS85E / 6-speed / Fast Gear 8-speed / Fast Gear 9-speed / Fast Gear 10-Speed / DachiDC12190 / DachiDC12190C
Rear Axle Ratio: 6.33 / 6.17
Cab length: 6.85 / 7.25 / 5.995 / 7.815 / 7.95 / 8.8 / 9m
Cab width: 2.4 / 2.3 / 2.55 / 2.5m
Cab height: 3.15 / 2.85 / 2.95 / 3.68m
Front track width: 1810 / 1910 / 1920 / 2040mm
rear track: 1800 / 1680 / 1860 / 1860/1860mm
Curb Weight: 9 / 2.58 / 8 / 12.5ton
Rated payload: 8.805 / 1.49 / 7.805 / 12.37ton
GVWR: 18 / 4.265 / 16 / 25ton
Origin: Wuhan, Hubei / Shiyan, Hubei
tonnage class: Light Truck / Medium-duty truck / Heavy truck
Approach angle: 23 / 22 / 25 / 28°
departure angle: 17 / 13 / 26 / 21 / 30°
Remarks: Cargo box width optional 2.2m; height optional 0.8m
Version: LNG Edition
Energy Type: Diesel / LNG (liquefied natural gas)
Engine parameters
Engine Brand: Yuchai
Number of cylinders: 4 / 6cylinder
Displacement: 4.26 / 4.214 / 6.87 / 7.52 / 10.338L
Emission standard: China V
Max output power: 118 / 103 / 132 / 199 / 258 / 294kW
Max hp: 160 / 140 / 180 / 270 / 350 / 400Horsepower
Max torque: 600 / 420 / 700 / 1100 / 1600 / 1900N·m
Max torque speed: 1300-1600 / 1400-1800 / 1200-1800 / 1100-1500rpm
Rated speed: 2600 / 2800 / 2300 / 1900rpm
Engine Type: Vertical, inline, water-cooled, four-stroke / Vertical, inline 4-cylinder, water-cooled, 4-stroke / Vertical, inline 6-cylinder, water-cooled, 4-stroke
Transmission Parameters
Transmission Brand: Fast Gear / Dachi
shift method: Manual
Forward gears: 8 / 6 / 9 / 10 / 12Gear
Number of Reverse Gears: 2 / 1pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.2 / 4.5 / 3.8 / 4.8 / 5.4 / 5.8 / 6m
Cargo box width: 2.2 / 2.1 / 2.35 / 2.3m
Cargo box height: 0.8 / 0.6 / 1.5m
FAQ
What kind of truck is Dongfeng Dongfeng Special Chassis Dump Trucks?
Dongfeng Dongfeng Special Chassis is an export-oriented Dump Trucks lineup with about 8 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Dongfeng Special Chassis Dump Trucks?
Dongfeng Special Chassis Dump Trucks export reference is about $18,681 – $47,222. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Dongfeng Special Chassis Dump Trucks cover?
Dongfeng Special Chassis Dump Trucks mainly covers: Drive: 4x2; Horsepower: 140 hp / 160 hp / 180 hp / 270 hp; Emission: China V; Fuel: Diesel / LNG (liquefied natural gas). Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Dongfeng Special Chassis Dump Trucks?
For Dongfeng Special Chassis Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Dongfeng Special Chassis Dump Trucks include?
Dongfeng Special Chassis Dump Trucks currently lists about 8 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Dongfeng Special Chassis Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
