Dongfeng Special Chassis Series 160 hp 4X2(6 wheels) 4.5m Dump Truck

Export reference
From $22,222
MSRP ¥16M CNY
Emission: China V
Fuel: Diesel
Curb Weight:: 9ton
Wheelbase:: 3950mm
Tire Size:: 10.00-20 18PR,10.00R20 18PR,11.00-20 16PR,11.00R20 18PR
Model code (announced):: EQ3180GD5D1
Rated payload: 8.805ton
Drive 4X2 (6 wheels)
Horsepower 160
Cargo box type: Dump type

Overview

The Dongfeng Special Chassis Series 160 hp 4X2(6 wheels) 4.5m Dump Truck is a Light Truck featuring 8.805t payload, 18t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYC4E160-56 engine, 160 hp, China V emissions and 6-speed transmission.

China V 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): EQ3180GD5D1
Drive type: 4X2
Wheelbase: 3950mm
engine: YuchaiYC4E160-56
transmission: 6-speed
Cab length: 7.25m
Cab width: 2.4m
Cab height: 3.15m
Front track width: 1810mm
rear track: 1800mm
Curb Weight: 9ton
Rated payload: 8.805ton
GVWR: 18ton
Origin: Wuhan, Hubei
tonnage class: Light Truck
Approach angle: 23°
departure angle: 17°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4E160-56
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.26L
Emission standard: China V
Max output power: 118kW
Max hp: 160Horsepower
Max torque: 600N·m
Max torque speed: 1300-1600rpm
Rated speed: 2600rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: 6-speed
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.5m
Cargo box width: 2.2m
Cargo box height: 0.8m
Chassis Specs
Front axle allowable load: 6500kg
rear axle allowable load: 11500kg
Leaf spring count: 8/9+7,8/10+7,3/4+3,9/12+10,8/10+8,7/9+6,11/11+10
Tire
Tire Size: 10.00-20 18PR,10.00R20 18PR,11.00-20 16PR,11.00R20 18PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

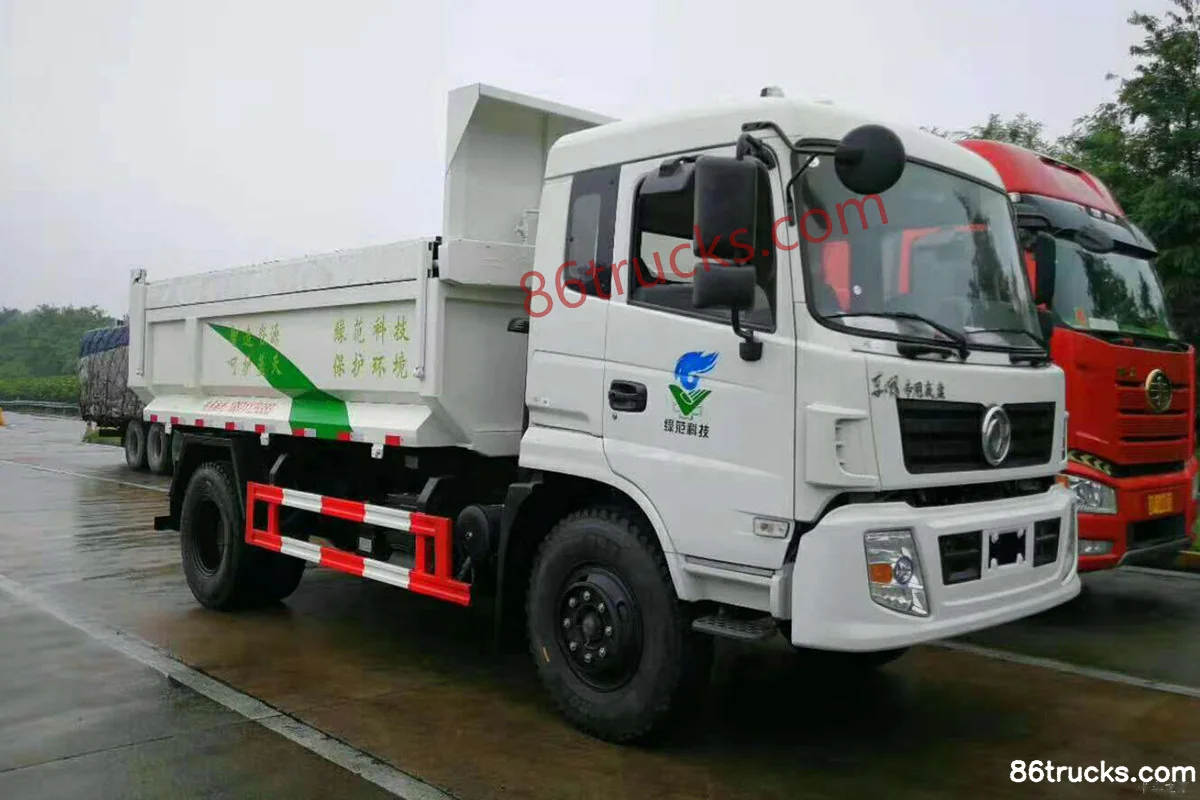

Exterior1

1 photos

FAQ

What is the export price of Dongfeng Special Chassis Series 160 hp 4X2(6 wheels) 4.5m Dump Truck, and what does it include?

Dongfeng Special Chassis Series 160 hp 4X2(6 wheels) 4.5m Dump Truck export reference is about From $22,222; MSRP is ¥16M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng Special Chassis Series 160 hp 4X2(6 wheels) 4.5m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Special Chassis Series 160 hp 4X2(6 wheels) 4.5m Dump Truck?

Key specs of Dongfeng Special Chassis Series 160 hp 4X2(6 wheels) 4.5m Dump Truck: Drive: 4x2; Horsepower: 160 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Special Chassis Series 160 hp 4X2(6 wheels) 4.5m Dump Truck suited for?

Dongfeng Special Chassis Series 160 hp 4X2(6 wheels) 4.5m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng Special Chassis Series 160 hp 4X2(6 wheels) 4.5m Dump Truck differ from other variants in the same series?

Dongfeng Special Chassis Series 160 hp 4X2(6 wheels) 4.5m Dump Truck belongs to Dongfeng Special Chassis (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Special Chassis Series 160 hp 4X2(6 wheels) 4.5m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Special Chassis Series 160 hp 4X2(6 wheels) 4.5m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
