Sinotruk Yellow River 102 hp 4X2(6 wheels) 3.7m dump truck
EXW
Export quote
Sinotruk Yellow River Light Truck Dump Trucks
Main model photos
17 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk Yellow River 102 hp 4X2(6 wheels) 3.7m dump truck | 4x2 / 102hp / China IV | ||
| Sinotruk Huanghe 130 hp 4X2(6 wheels) 4.28 m dump truck | 4x2 / 130hp / China III / Euro III |

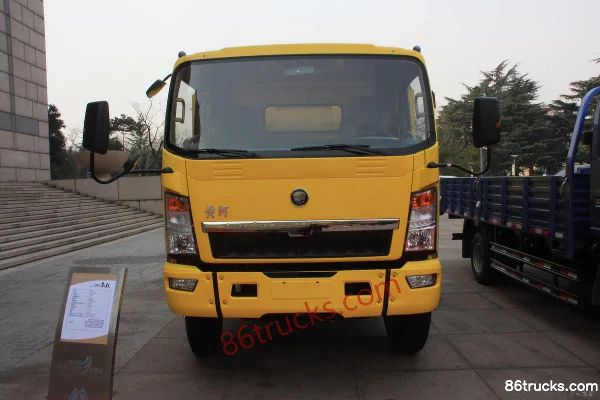

Sinotruk Huanghe 130 hp 4X2(6 wheels) 4.28 m dump truck
EXW
Export quote
Series Specs
Basic Info
Model code (announced): ZZ3047E3514D143 / ZZ3167F3615C1
Drive type: 4X2
Wheelbase: 3350 / 3650mm
Engine Model: Yunnei PowerYN33CRD2 / YuchaiYC4D130-33
Transmission Model: WLYWLY1048HF / SinotrukHW50508C
Cab length: 5.99 / 6.6m
Cab width: 2.25 / 2.495m
Cab height: 2.97 / 3.05m
Front track width: 1610 / 1850mm
rear track: 1620 / 1730mm
Curb Weight: 2.6 / 7.61ton
Rated payload: 1.56 / 7.995ton
GVWR: 15.8ton
Origin: Jinan, Shandong
tonnage class: Light Truck
Approach angle: 27 / 24.5°
departure angle: 17 / 27°
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power / Yuchai
Number of cylinders: 4cylinder
Displacement: 3.298 / 4.214L
Emission standard: China IV / China III / Euro III
Max output power: 75 / 96kW
Max hp: 102 / 130Horsepower
Max torque: 265 / 420N·m
Max torque speed: 1600-2400 / 1400-1800rpm
Rated speed: 3200 / 2800rpm
Engine Type: Electronic high-pressure common rail diesel engine / Vertical, inline, water-cooled, four-stroke, direct injection
Transmission Parameters
Transmission Brand: WLY / Sinotruk
shift method: Manual
Forward gears: 5 / 8Gear
Number of Reverse Gears: 1 / 2pcs
Cargo box parameters
Unloading Type: Rear-dump body / Dump type
Cargo box length: 3.7 / 4.28m
Cargo box width: 1.9 / 2.2m
Cargo box height: 0.6 / 0.8m
fuel tank
Fuel tank capacity: 300L
Chassis Specs
rear axle description: 10T
rear axle allowable load: 2540 / 9800kg
Leaf spring count: 11/12+9
FAQ
What kind of truck is Sinotruk Sinotruk Yellow River Light Truck Dump Trucks?
Sinotruk Sinotruk Yellow River Light Truck is an export-oriented Dump Trucks lineup with about 2 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Sinotruk Yellow River Light Truck Dump Trucks cover?
Sinotruk Yellow River Light Truck Dump Trucks mainly covers: Drive: 4x2; Horsepower: 102 hp / 130 hp; Emission: China III / Euro III / China IV; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Sinotruk Yellow River Light Truck Dump Trucks?
For Sinotruk Yellow River Light Truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Sinotruk Yellow River Light Truck Dump Trucks include?
Sinotruk Yellow River Light Truck Dump Trucks currently lists about 2 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Sinotruk Yellow River Light Truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
