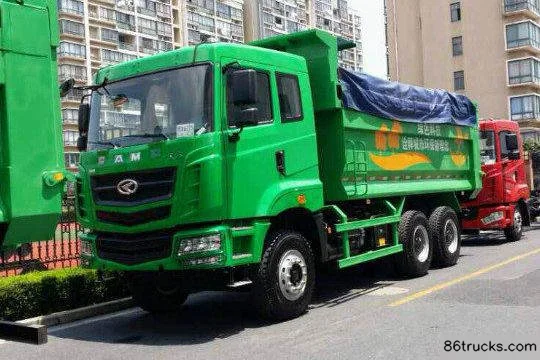

Hualing Hanma H6 Heavy Truck 345 hp 6X4(10 wheels) 5.6m Dump Truck
EXW
Export quote
Hualing Hanma H6 Heavy Truck Dump Trucks
Main model photos
299 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Hualing Hanma H6 Heavy Truck 345 hp 6X4(10 wheels) 5.6m Dump Truck | 6x4 / 345hp / China V | ||
| Hualing Hanma H6 heavy truck 375 hp 8X4(12 wheels) 7.8m dump truck | 8x4 / 375hp / China IV | ||
| Hualing Hanma H6 heavy truck 345 hp 8X4(12 wheels) 7.8m dump truck | 8x4 / 345hp / China IV | ||
| Hualing Hanma Heavy Truck 375hp 8X4(12 wheels) 7.6m dump truck | 8x4 / 375hp / China IV | ||
| Hualing Hanma heavy truck 345 hp 6X4(10 wheels) 5.6m dump truck | 6x4 / 345hp / China IV |

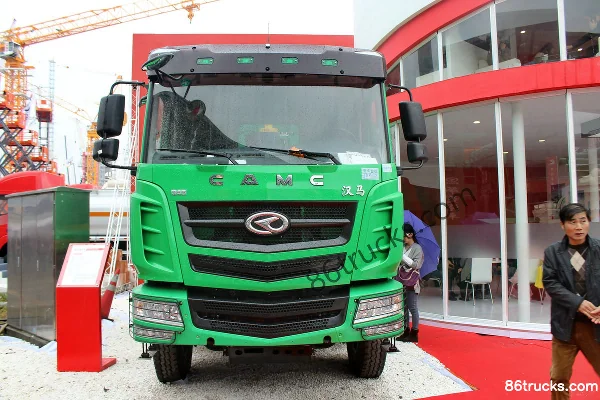

Hualing Hanma H6 heavy truck 375 hp 8X4(12 wheels) 7.8m dump truck
EXW
Export quote
Hualing Hanma H6 heavy truck 345 hp 8X4(12 wheels) 7.8m dump truck
EXW
Export quote
Hualing Hanma Heavy Truck 375hp 8X4(12 wheels) 7.6m dump truck
EXW
Export quote
Hualing Hanma heavy truck 345 hp 6X4(10 wheels) 5.6m dump truck
EXW
Export quote
Series Specs
Basic Info
Model code (announced): HN3250H35C9M5 / HN3312A34DLM4 / HN3312A34CLM4 / HN3252A31C6M4 / HN3251B34C9M4
Drive type: 6X4 / 8X4
Wheelbase: 3900+1350 / 1850+4000+1350 / 1850+3700+1350 / 3600+1350mm
Engine Model: Hanma CM6D18.345 50 / Hanma CM6D18.375 40 / Hanma CM6D18.345 40 / Hanma CM6D18.310 40 / Hanma CM6D28.350 40
Transmission Model: Hanma9SDB1851 / Hanma8SDB1851 / Hanma8DSK1851
Rear Axle Ratio: 5.263
Cab length: 8.6 / 11.28 / 10.68 / 8.48 / 8.68m
Cab width: 2.495m
Cab height: 3.36 / 3.8 / 3.6m
Front track width: 2065 / 2065/2065mm
rear track: 1860/1860 / 1860/18601860/1860mm
Curb Weight: 12.3 / 15.5 / 15.15 / 12.305ton
Rated payload: 12.57 / 15.305 / 15.655 / 12.5 / 12.565ton
GVWR: 25 / 31ton
Origin: Ma'anshan, Anhui
tonnage class: Heavy truck
Approach angle: 19°
departure angle: 18 / 20°
Remarks: Standard: radio with MP3, laminated front windshield, equal-length main and auxiliary frame rails, oil-lubricated axles, GPS lock device. Options: 9JS180T transmission, 12 steel-belted tires, air-suspension seat, Hanma engine compression brake, aluminum fuel tank, oil-bath air filter; rectangular cargo box with optional steel environmental cover; U-shaped cargo box with optional PVC tarp cover. / 5600*2300*1190+310, floor 10 side 6, domestic or HYVA cylinder, rear door, with electric tarp (recessed cargo box)
Version: Urban Construction & Muck
Energy Type: Diesel
Engine parameters
Engine Brand: Hanma engine / Hanma
Number of cylinders: 6cylinder
Displacement: 9.84 / 11.81L
Emission standard: China V / China IV
Max output power: 254 / 276 / 228 / 257kW
Max hp: 345 / 375 / 310 / 350Horsepower
Max torque: 1660 / 1750 / 1550 / 1600N·m
Max torque speed: 1100-1400 / 1100-1500 / 1000-1400rpm
Rated speed: 1900rpm
Engine Type: Inline, high-pressure common rail / Water-cooled, 4-stroke, with exhaust brake, direct injection, turbocharged intercooled / Inline
Transmission Parameters
Transmission Brand: Hanma
shift method: Manual
Forward gears: 9 / 8Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 5.6 / 7.8 / 7.6 / 5.4m
Cargo box width: 2.3m
Cargo box height: 1.15 / 1 / 1.1 / 1.19m
FAQ
What kind of truck is Hualing Hualing Hanma H6 Heavy Truck Dump Trucks?
Hualing Hualing Hanma H6 Heavy Truck is an export-oriented Dump Trucks lineup with about 9 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Hualing Hanma H6 Heavy Truck Dump Trucks cover?
Hualing Hanma H6 Heavy Truck Dump Trucks mainly covers: Drive: 6x4 / 8x4; Horsepower: 345 hp / 375 hp; Emission: China IV / China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Hualing Hanma H6 Heavy Truck Dump Trucks?
For Hualing Hanma H6 Heavy Truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Hualing Hanma H6 Heavy Truck Dump Trucks include?
Hualing Hanma H6 Heavy Truck Dump Trucks currently lists about 9 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Hualing Hanma H6 Heavy Truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
