Dongfeng M3V 4.3L Diesel 200 hp 4X2(6 wheels) Fast Gear 10-speed 4.2m Day Cab Dump Truck
EXW
Export quote
Dongfeng Chenglong M3V Medium Truck Dump Trucks
Main model photos
99 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng M3V 4.3L Diesel 200 hp 4X2(6 wheels) Fast Gear 10-speed 4.2m Day Cab Dump Truck | 4x2 / 200hp / China VI | ||
| Dongfeng M3V 6.9L Diesel 330hp 6X4(10 wheels) Fast Gear 10-Speed 5.2m Dump Truck | 6x4 / 330hp / China VI | From $40,264 | |
| Dongfeng M3V 6.4L Diesel 300hp 4X2(6 wheels) Fast Gear 10-Speed 5m Dump Truck | 4x2 / 300hp / China VI | From $37,778 | |
| Dongfeng M3V 6.4L Diesel 300hp 4X2(6 wheels) Fast Gear 10-speed 4.5m Dump Truck | 4x2 / 300hp / China VI | From $37,361 | |
| Dongfeng M3V 6.4L Diesel 270 hp 4X2(6 wheels) Fast Gear 10-Speed 5m Dump Truck | 4x2 / 270hp / China VI | From $35,139 |

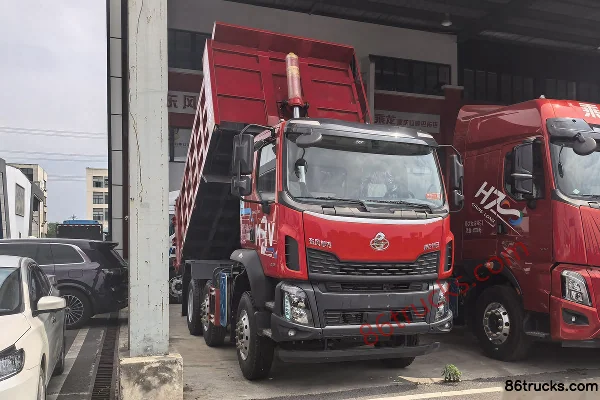

Dongfeng M3V 6.9L Diesel 330hp 6X4(10 wheels) Fast Gear 10-Speed 5.2m Dump Truck
EXW
From $40,264
Export quote
Dongfeng M3V 6.4L Diesel 300hp 4X2(6 wheels) Fast Gear 10-Speed 5m Dump Truck
EXW
From $37,778
Export quote
Dongfeng M3V 6.4L Diesel 300hp 4X2(6 wheels) Fast Gear 10-speed 4.5m Dump Truck
EXW
From $37,361
Export quote
Dongfeng M3V 6.4L Diesel 270 hp 4X2(6 wheels) Fast Gear 10-Speed 5m Dump Truck
EXW
From $35,139
Export quote
Series Specs
Basic Info
Model code (announced): LZ3181L3AC1 / LZ3250M3DC2 / LZ3181H5AC1 / LZ3181L3AC2 / LZ3240M3CC1
Drive type: 4X2 / 6X4 / 6X2
Wheelbase: 3600 / 3600+1350 / 4200 / 3800 / 2550+1350mm
Engine Model: YuchaiYCS04200-66 / YuchaiYCS07330-66 / YuchaiYCS07L300-66 / YuchaiYCS07L270-66 / YuchaiYCS04220-66 / YuchaiYCS04240-66 / YuchaiYCS06245-60 / YCS04200-66 / YCS07330-66 / YCS07L300-66 / YCS07L270-66 / YCS04220-66 / YCS04240-66
Transmission Model: Fast Gear10JS90A-B / Fast Gear10JSD120 / 10JS90A-B / 10JSD120
Rear Axle Ratio: 6.333 / 5.921 / 5.262 / 5.833
Cab length: 6.595 / 7.895 / 7.675 / 7.095 / 6.895 / 7.61m
Cab width: 2.4 / 2.545 / 2.5 / 2.42 / 2100m
Cab height: 3.1 / 3.3 / 2.95 / 3.2m
Front track width: 1920 / 2020mm
rear track: 1800 / 1790/1790 / 1860 / 1925/1790mm
Curb Weight: 7.815 / 11.4 / 9 / 9.2ton
Rated payload: 9.99 / 13.405 / 8.805 / 15.105ton
GVWR: 18 / 25 / 24.5ton
Origin: Liuzhou, Guangxi
tonnage class: Medium-duty truck
Approach angle: 18 / 20°
departure angle: 23 / 28 / 16 / 20 / 18°
Remarks: Desert air filter, on-board terminal, automatic adjuster arm, 110 steering gear, LCD instrument cluster, lift axle
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Number of cylinders: 4 / 6cylinder
Displacement: 4.295 / 6.89 / 6.442 / 6.23L
Emission standard: China VI
Max output power: 147 / 243 / 221 / 199 / 162 / 173 / 180kW
Max hp: 200 / 330 / 300 / 270 / 220 / 240 / 245Horsepower
Max torque: 750 / 1200 / 1100 / 850N·m
Max torque speed: 1200-1700rpm
Rated speed: 2300rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump / Dump type
Cargo box length: 4.2 / 5.2 / 5 / 4.5m
Cargo box width: 2.2 / 2.35 / 2.3m
Cargo box height: 0.8 / 1.5 / 1.3m
Cab parameters
Cab: M30V / M32V / M3V
Cab suspension: Mechanical semi-floating suspension
FAQ
What kind of truck is Dongfeng Dongfeng Chenglong M3V Medium Truck Dump Trucks?
Dongfeng Dongfeng Chenglong M3V Medium Truck is an export-oriented Dump Trucks lineup with about 12 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Dongfeng Chenglong M3V Medium Truck Dump Trucks?
Dongfeng Chenglong M3V Medium Truck Dump Trucks export reference is about $25,417 – $40,264. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Dongfeng Chenglong M3V Medium Truck Dump Trucks cover?
Dongfeng Chenglong M3V Medium Truck Dump Trucks mainly covers: Drive: 4x2 / 6x4; Horsepower: 200 hp / 270 hp / 300 hp / 330 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Dongfeng Chenglong M3V Medium Truck Dump Trucks?
For Dongfeng Chenglong M3V Medium Truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Dongfeng Chenglong M3V Medium Truck Dump Trucks include?
Dongfeng Chenglong M3V Medium Truck Dump Trucks currently lists about 12 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Dongfeng Chenglong M3V Medium Truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
