Dongfeng M3V 4.3L Diesel 200 hp 4X2(6 wheels) Fast Gear 10-speed 4.2m Day Cab Dump Truck

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 7.815ton
Wheelbase:: 3600mm
Tire Size:: 10.00R20 18PR
Rated payload: 9.99ton
Drive 4X2 (6 wheels)
Horsepower 200
Cargo box length: 4.2m

Overview

The Dongfeng M3V 4.3L Diesel 200 hp 4X2(6 wheels) Fast Gear 10-speed 4.2m Day Cab Dump Truck is a Medium-duty truck featuring 9.99t payload, 18t GVW, 4.2m cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYCS04200-66 engine, 200 hp, China VI emissions and Fast Gear transmission.

China VI 200 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): LZ3181L3AC1
Drive type: 4X2
Wheelbase: 3600mm
engine: YuchaiYCS04200-66
transmission: Fast Gear10JS90A-B
Rear Axle Ratio: 6.333
Cab length: 6.595m
Cab width: 2.4m
Cab height: 3.1m
Front track width: 1920mm
rear track: 1800mm
Curb Weight: 7.815ton
Rated payload: 9.99ton
GVWR: 18ton
Origin: Liuzhou, Guangxi
tonnage class: Medium-duty truck
Approach angle: 18°
departure angle: 23°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YCS04200-66
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.295L
Emission standard: China VI
Max output power: 147kW
Max hp: 200Horsepower
Max torque: 750N·m
Transmission Parameters
Transmission Model: 10JS90A-B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box length: 4.2m
Cargo box width: 2.2m
Cargo box height: 0.8m
Cab parameters
Cab: M30V
Cab suspension: Mechanical semi-floating suspension
seating capacity: 3Personnel
Cab tilting: Manual hydraulic
Driver seat type: air suspension seat
fuel tank
Fuel tank capacity: 160L
Chassis Specs
Front axle description: 5T (narrow)
Front axle allowable load: 6500kg
rear axle description: 457 stamped-welded (narrow)
rear axle allowable load: 11500kg
Axle ratio: 6.333
Leaf spring count: 10/10+8
Tire
Tire Size: 10.00R20 18PR
Number of tires: 6pcs
Control configuration
ABS:
Inter-axle Differential Lock:
interior configuration
AC control type: Manual
Power Windows:
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Service brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:

Photos

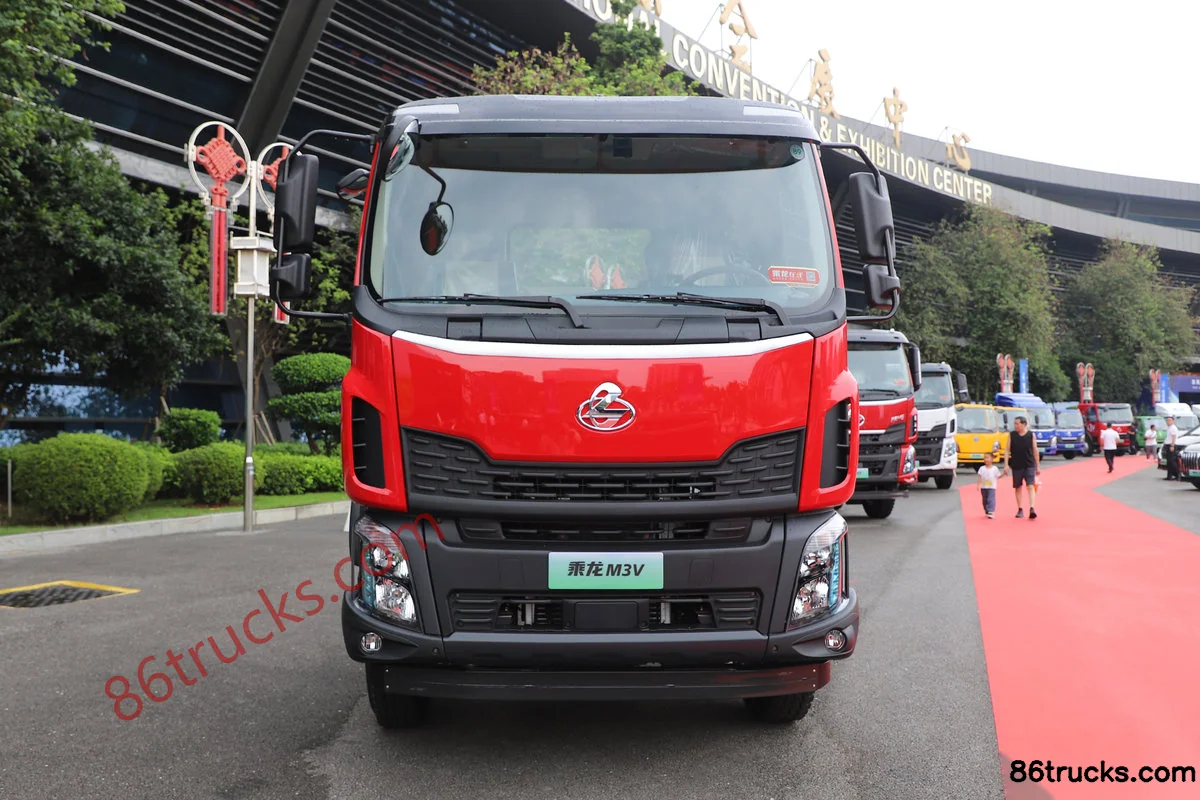

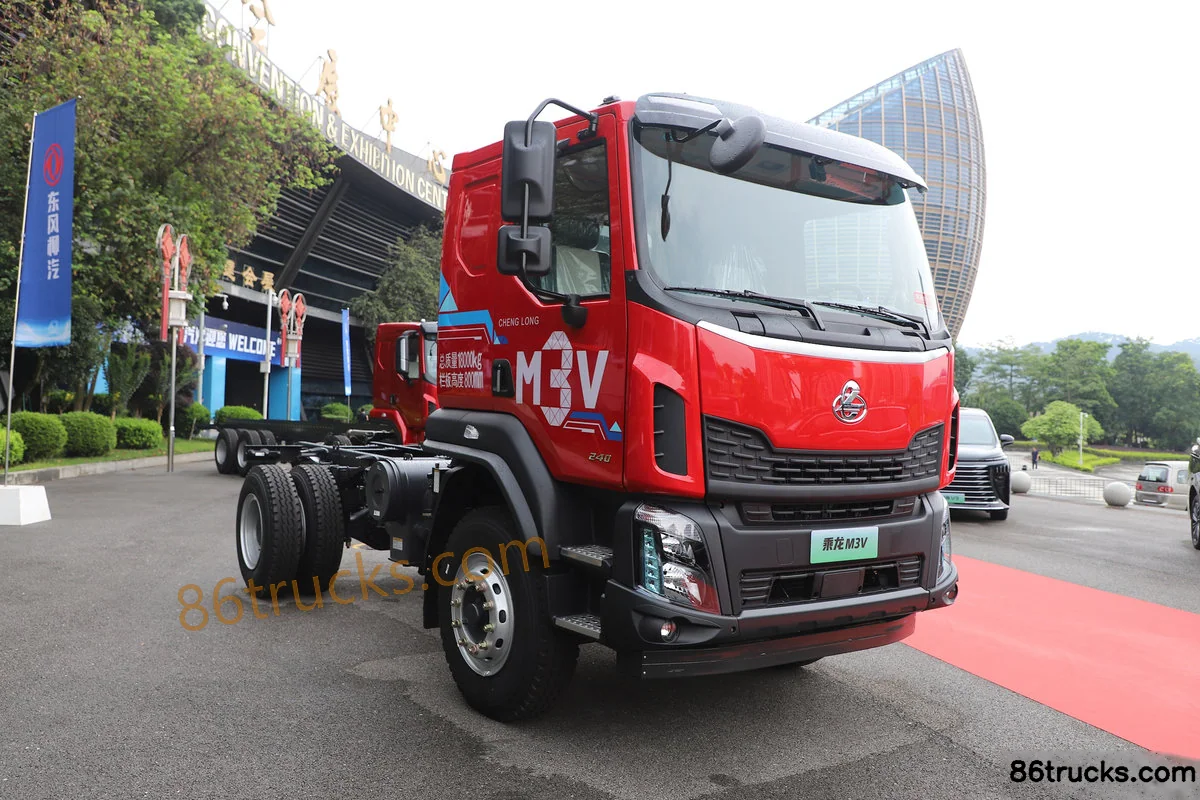

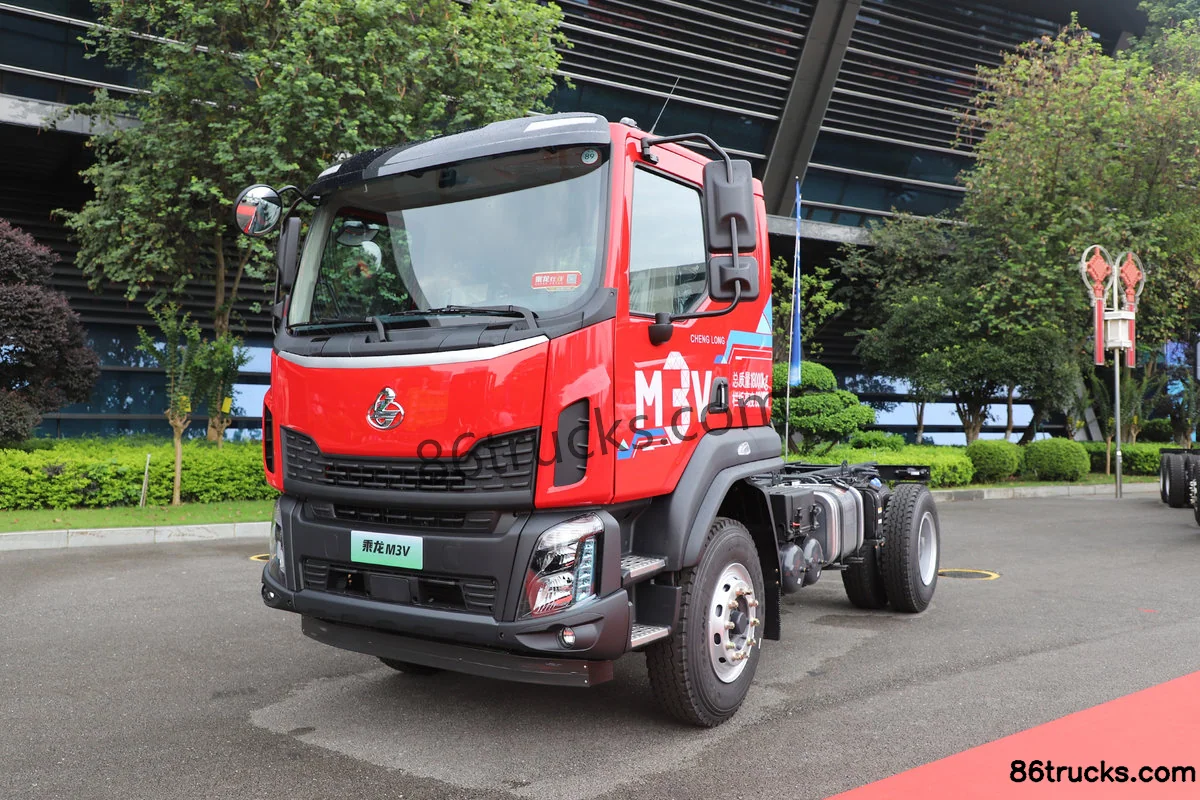

Exterior3

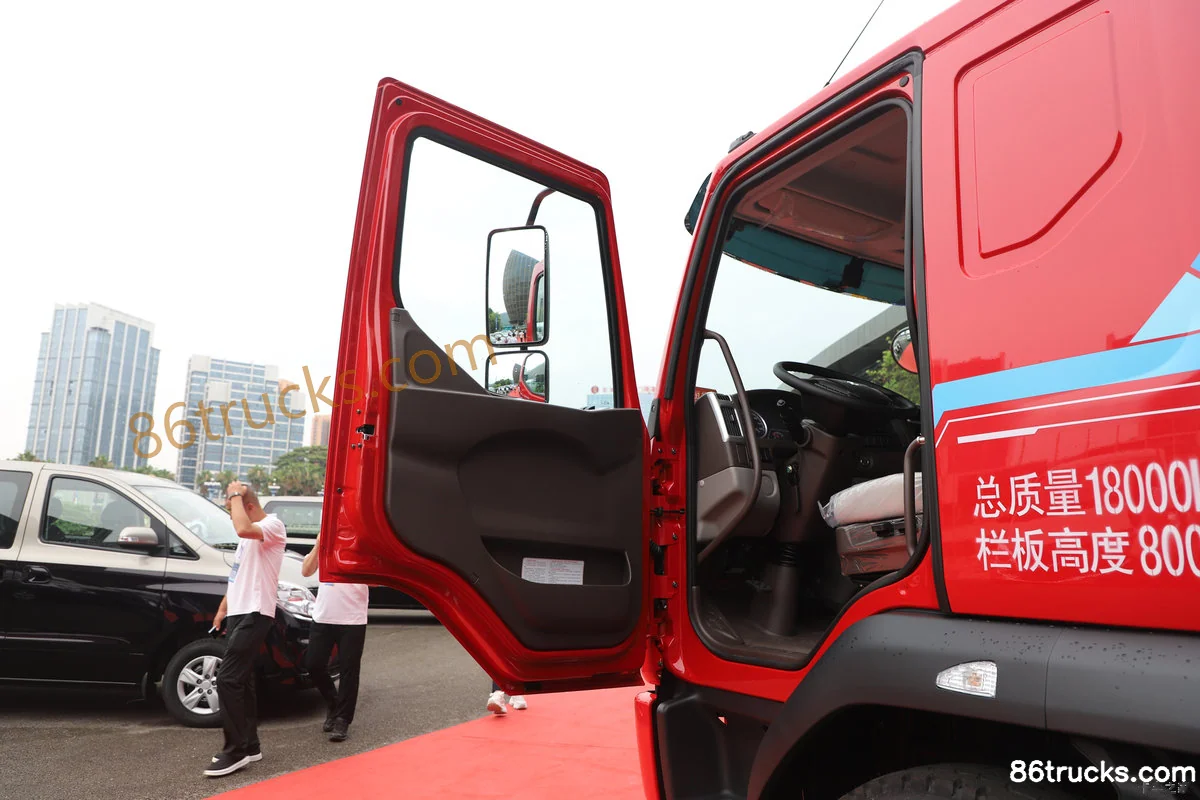

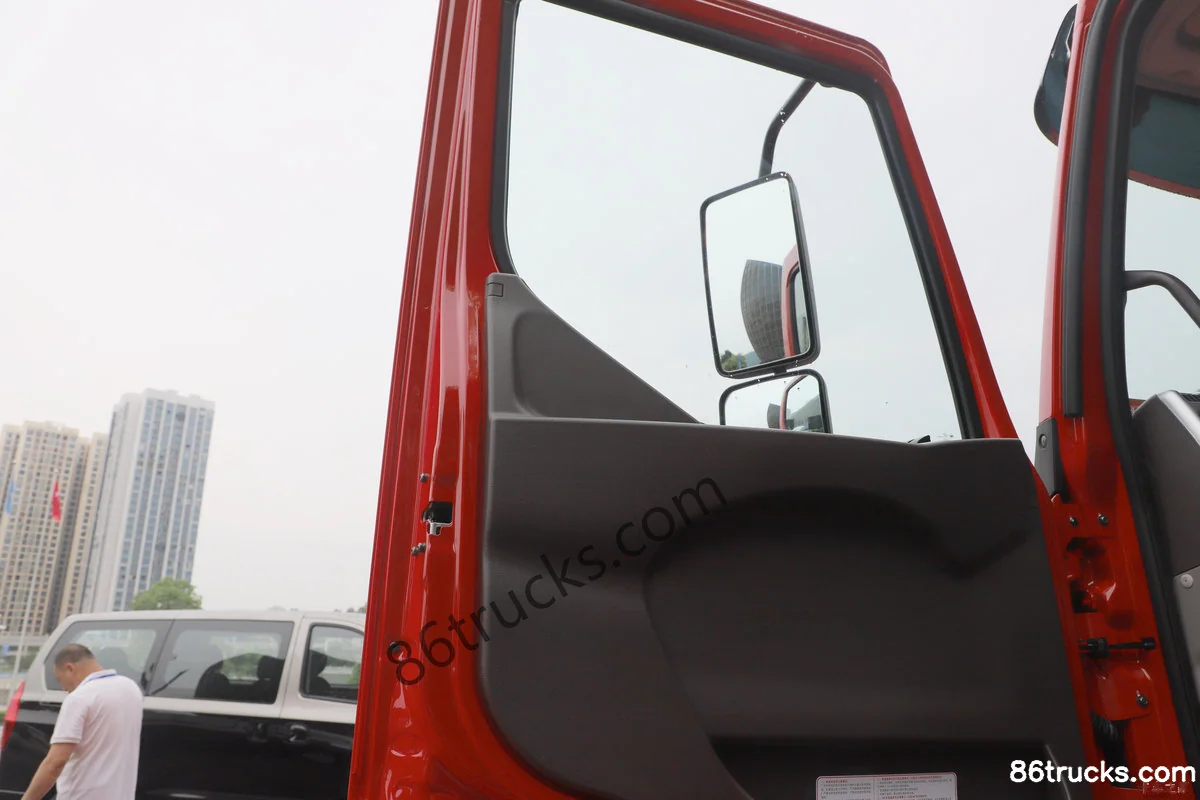

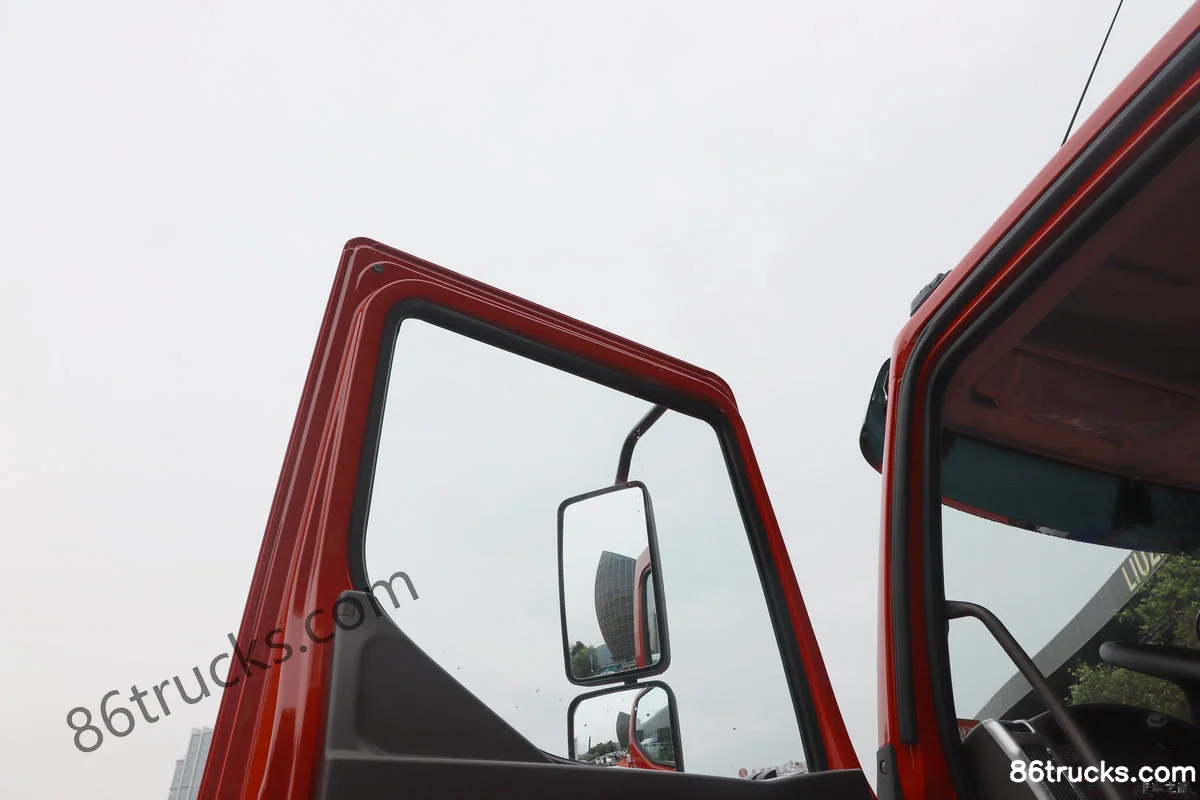

Cab3

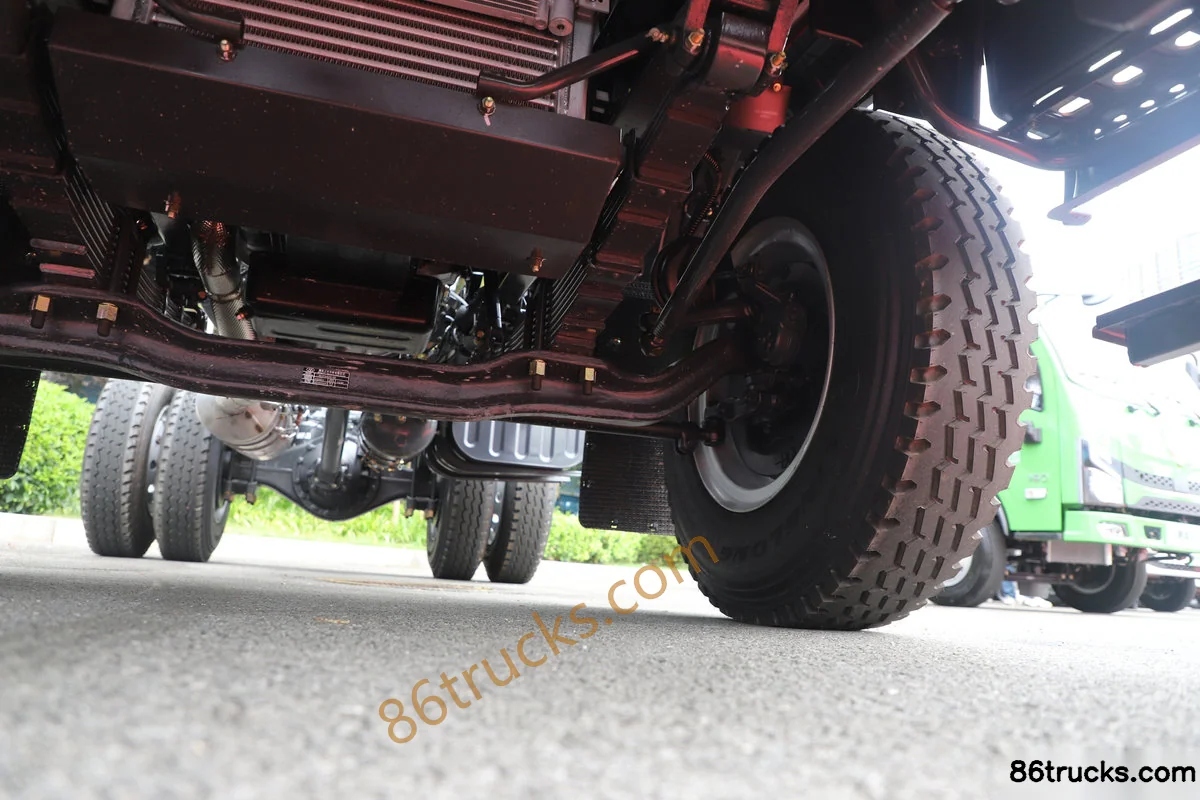

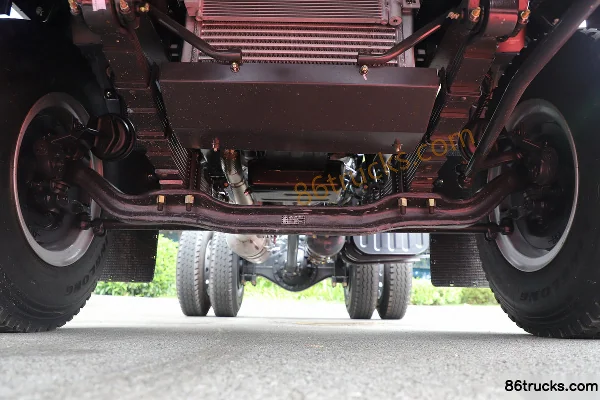

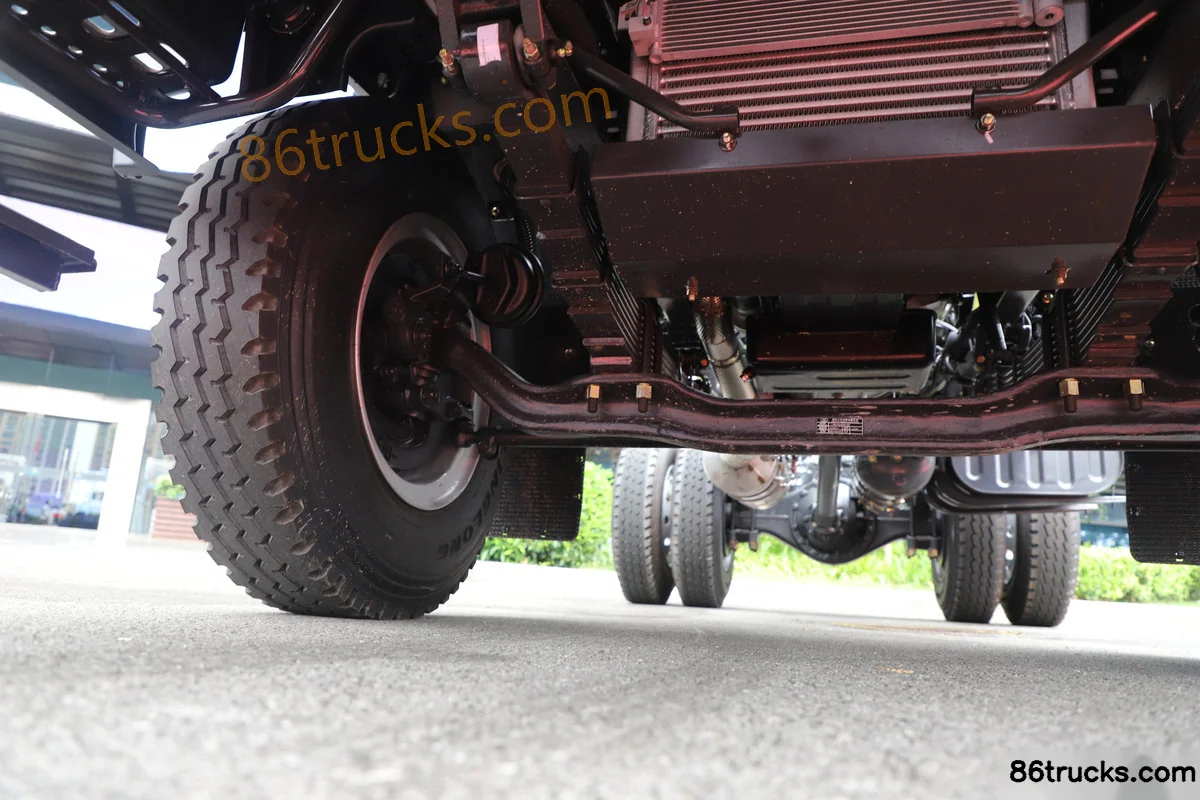

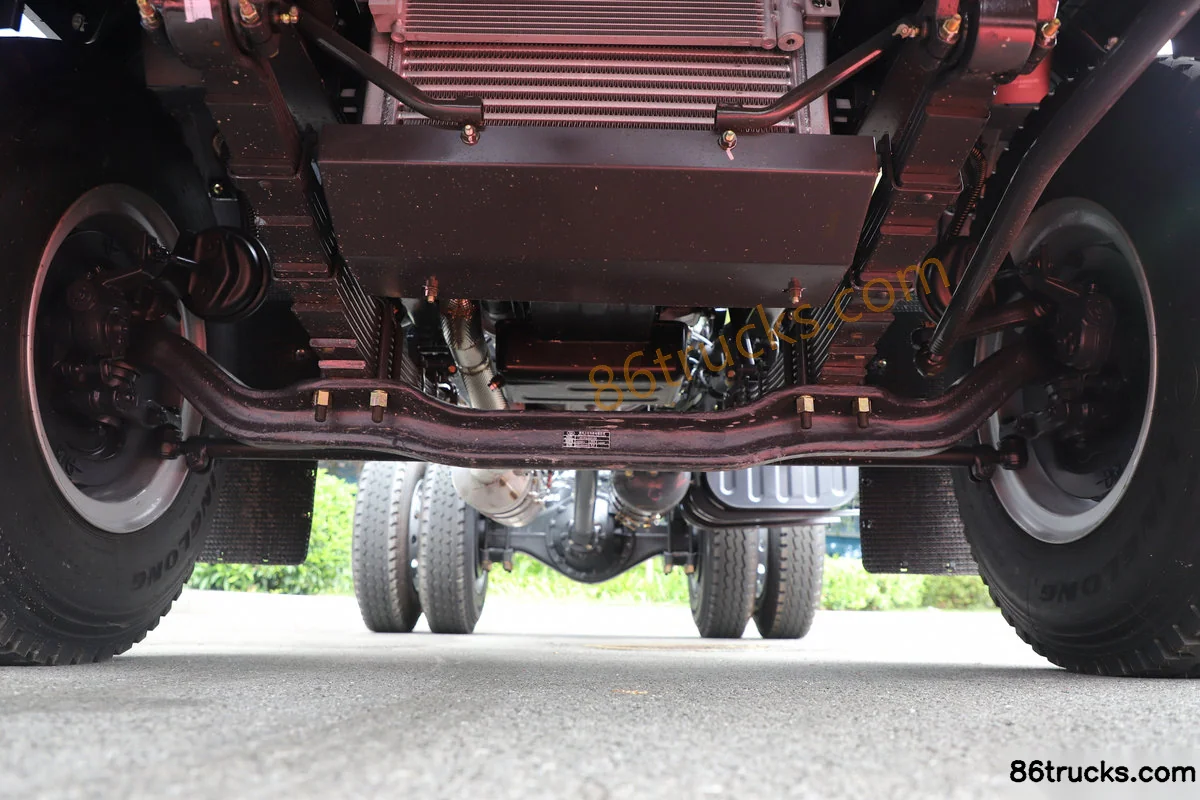

Chassis3

9 photos

FAQ

What emission standard does Dongfeng M3V 4.3L Diesel 200 hp 4X2(6 wheels) Fast Gear 10-speed 4.2m Day Cab Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng M3V 4.3L Diesel 200 hp 4X2(6 wheels) Fast Gear 10-speed 4.2m Day Cab Dump Truck?

Key specs of Dongfeng M3V 4.3L Diesel 200 hp 4X2(6 wheels) Fast Gear 10-speed 4.2m Day Cab Dump Truck: Drive: 4x2; Horsepower: 200 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng M3V 4.3L Diesel 200 hp 4X2(6 wheels) Fast Gear 10-speed 4.2m Day Cab Dump Truck suited for?

Dongfeng M3V 4.3L Diesel 200 hp 4X2(6 wheels) Fast Gear 10-speed 4.2m Day Cab Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng M3V 4.3L Diesel 200 hp 4X2(6 wheels) Fast Gear 10-speed 4.2m Day Cab Dump Truck differ from other variants in the same series?

Dongfeng M3V 4.3L Diesel 200 hp 4X2(6 wheels) Fast Gear 10-speed 4.2m Day Cab Dump Truck belongs to Dongfeng Chenglong M3V Medium Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng M3V 4.3L Diesel 200 hp 4X2(6 wheels) Fast Gear 10-speed 4.2m Day Cab Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng M3V 4.3L Diesel 200 hp 4X2(6 wheels) Fast Gear 10-speed 4.2m Day Cab Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
