Dongfeng M3V 6.9L Diesel 330hp 6X4(10 wheels) Fast Gear 10-Speed 5.2m Dump Truck

Export reference
From $40,264
MSRP ¥28.99M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 11.4ton
Wheelbase:: 3600+1350mm
Tire Size:: 11.00R20 18PR
Rated payload: 13.405ton
Drive 6X4 (10 wheels)
Horsepower 330
Cargo box length: 5.2m

Overview

The Dongfeng M3V 6.9L Diesel 330hp 6X4(10 wheels) Fast Gear 10-Speed 5.2m Dump Truck is a Medium-duty truck featuring 13.405t payload, 25t GVW, 5.2m cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a YuchaiYCS07330-66 engine, 330 hp, China VI emissions and Fast Gear transmission.

China VI 330 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): LZ3250M3DC2
Drive type: 6X4
Wheelbase: 3600+1350mm
engine: YuchaiYCS07330-66
transmission: Fast Gear10JSD120
Rear Axle Ratio: 5.921
Cab length: 7.895m
Cab width: 2.545m
Cab height: 3.1m
Front track width: 2020mm
rear track: 1790/1790mm
Curb Weight: 11.4ton
Rated payload: 13.405ton
GVWR: 25ton
Origin: Liuzhou, Guangxi
tonnage class: Medium-duty truck
Approach angle: 20°
departure angle: 28°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YCS07330-66
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 6.89L
Emission standard: China VI
Max output power: 243kW
Max hp: 330Horsepower
Max torque: 1200N·m
Transmission Parameters
Transmission Model: 10JSD120
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box length: 5.2m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
Cab: M32V
Cab suspension: Mechanical semi-floating suspension
Cab tilting: Manual hydraulic
seating capacity: 3Personnel
Driver seat type: air suspension seat
fuel tank
Fuel tank capacity: 250L
Chassis Specs
Front axle description: 6.5T
Front axle allowable load: 7000kg
rear axle description: 2x20T wheel reduction axle
rear axle allowable load: 8000 (two-axle group)kg
Axle ratio: 5.921
Leaf spring count: 11/13
clutch: Φ430
Tire
Tire Size: 11.00R20 18PR
Number of tires: 10pcs
Control configuration
ABS:
Inter-axle Differential Lock:
interior configuration
AC control type: Manual
Power Windows:
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Service brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:

Photos

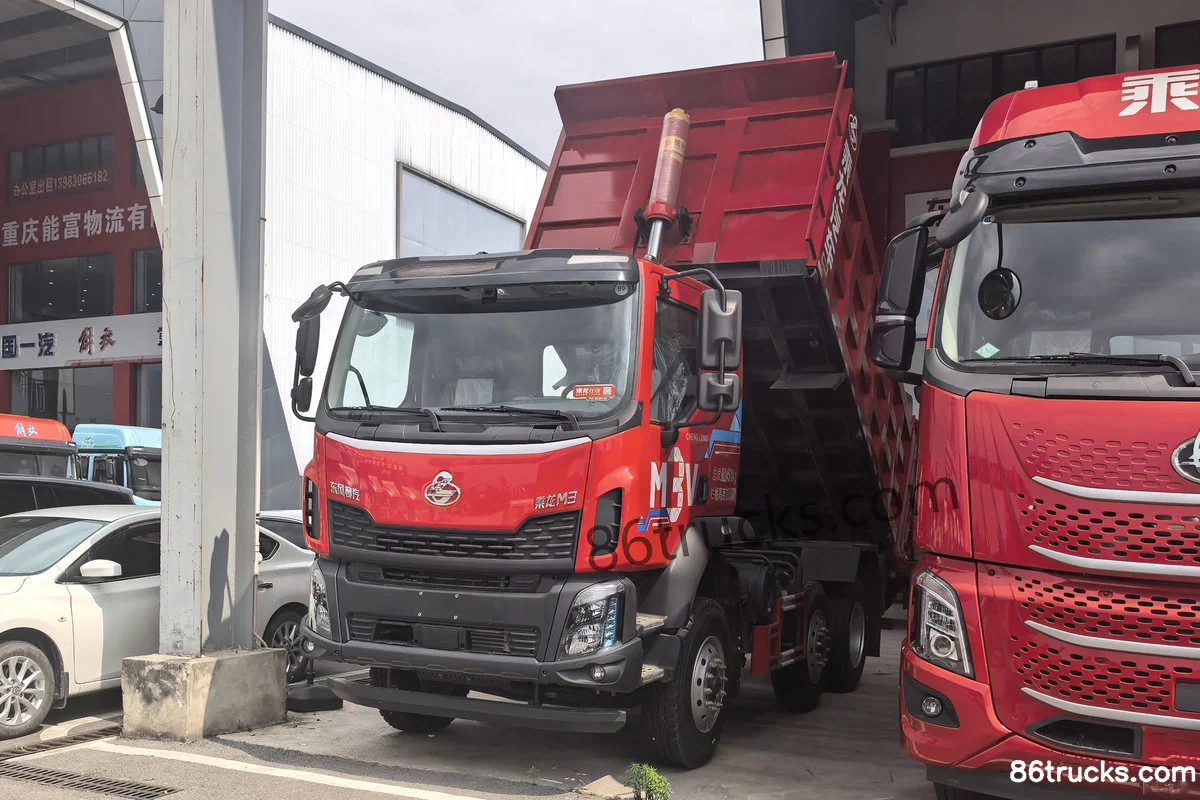

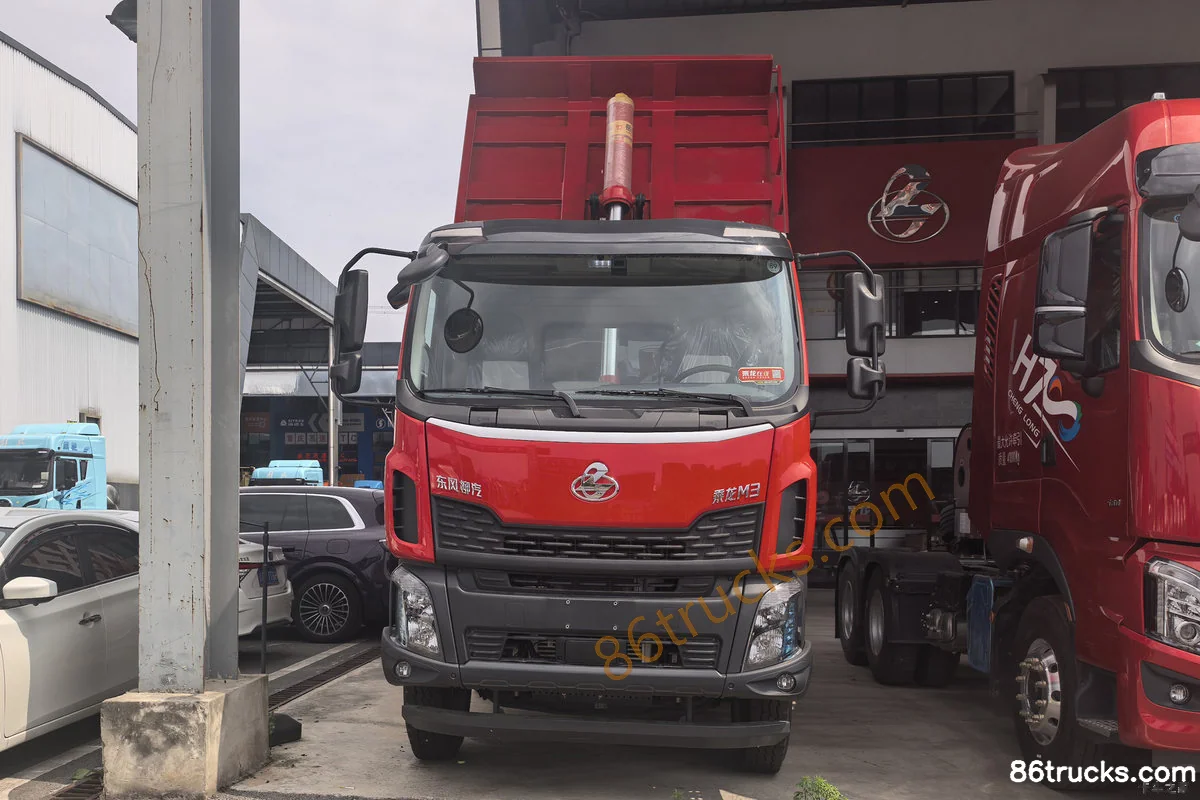

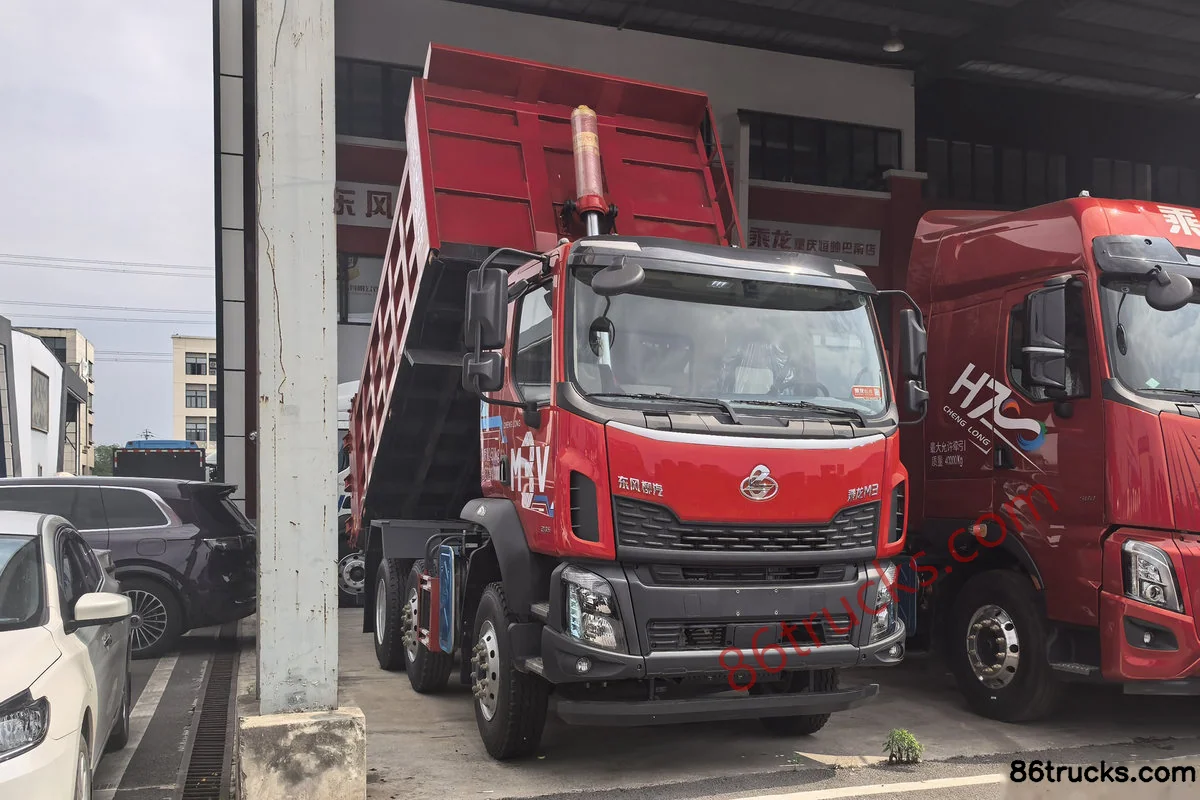

Exterior3

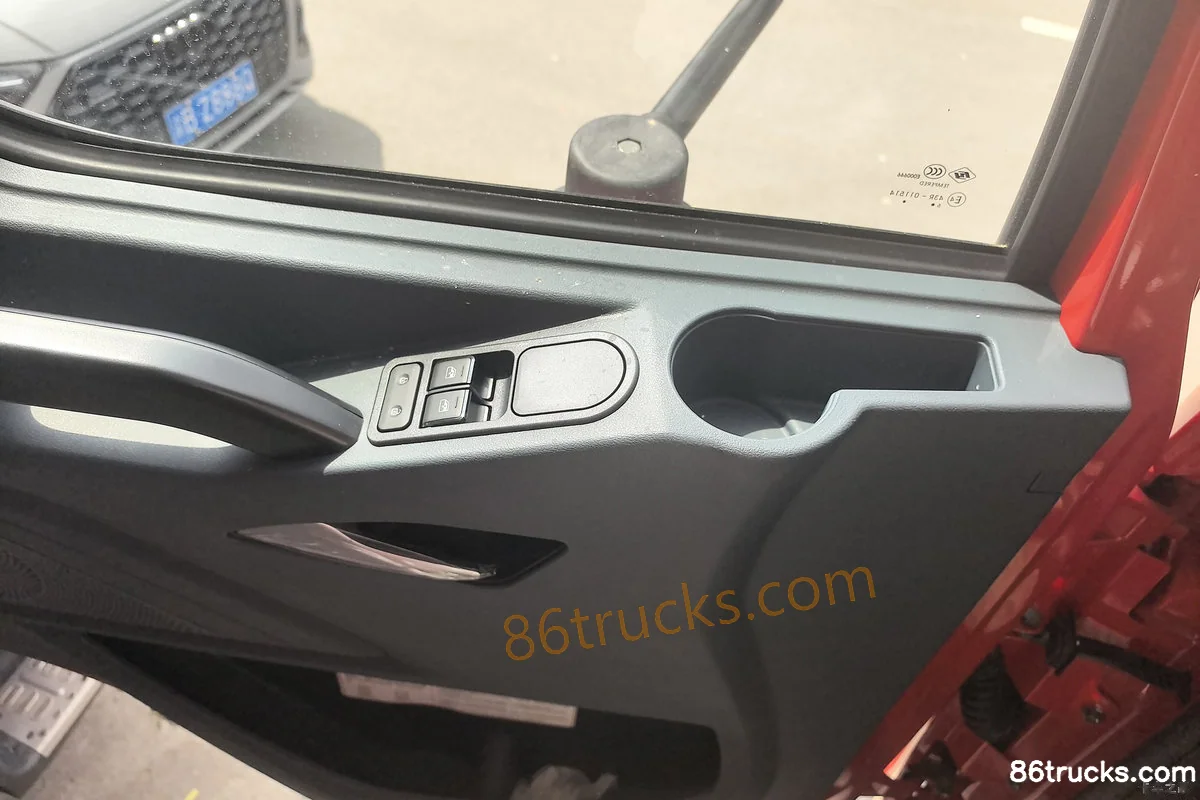

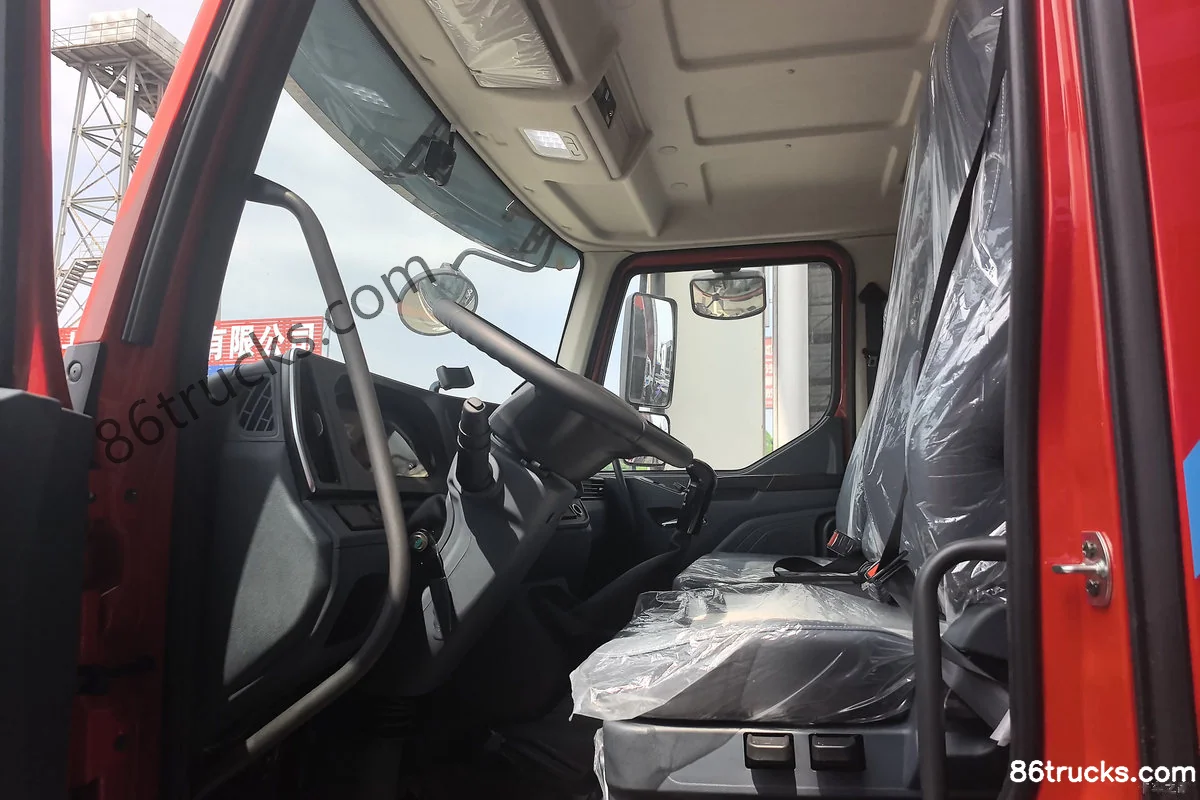

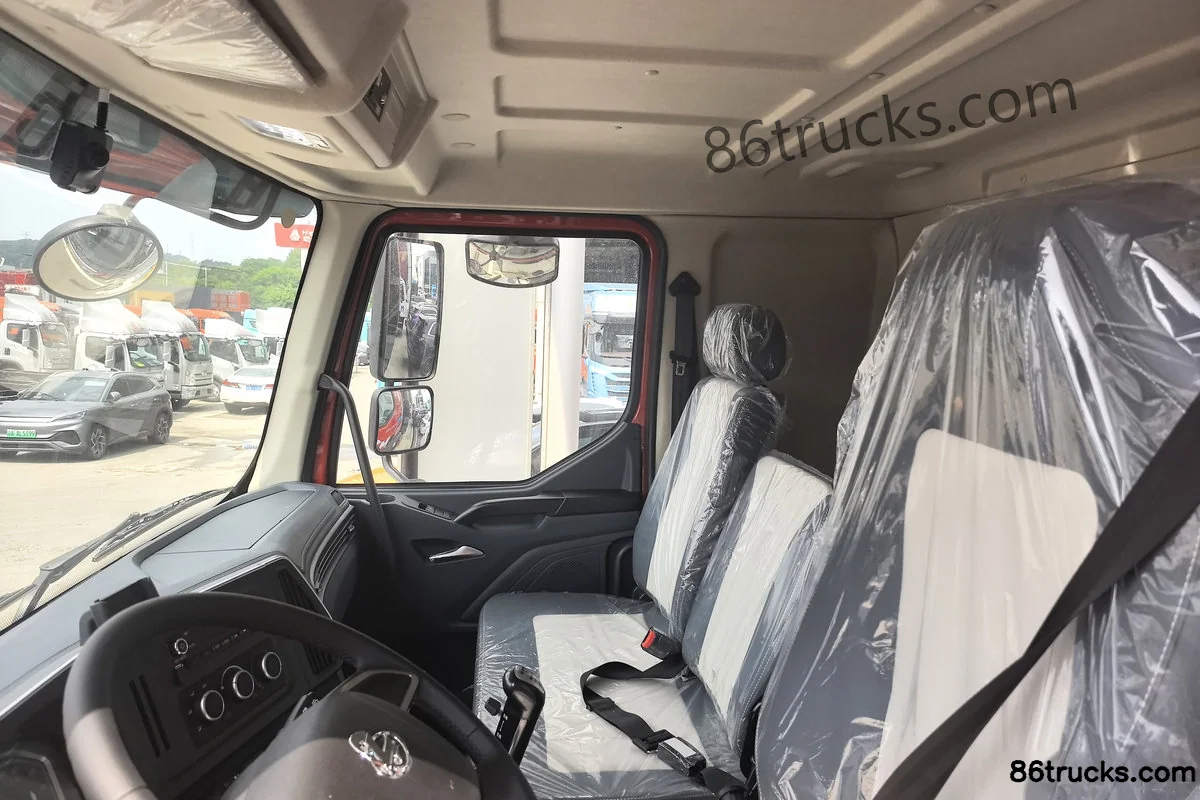

Cab3

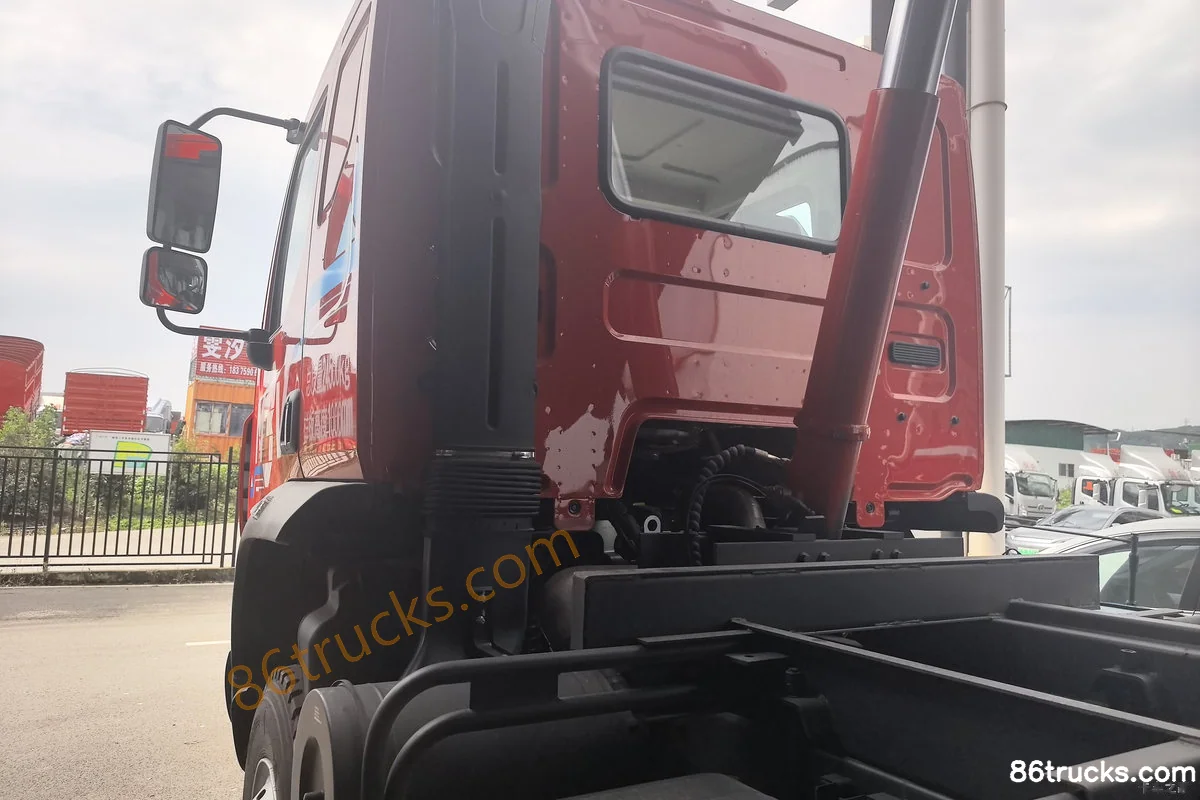

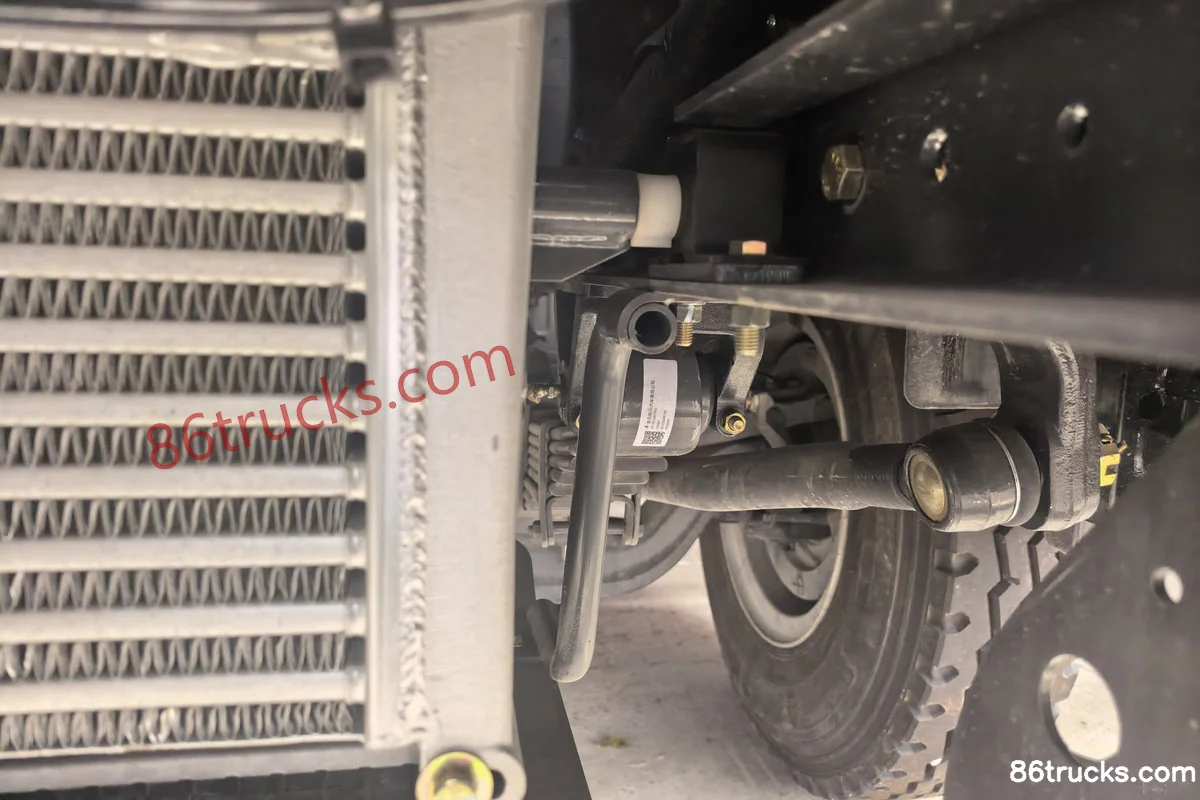

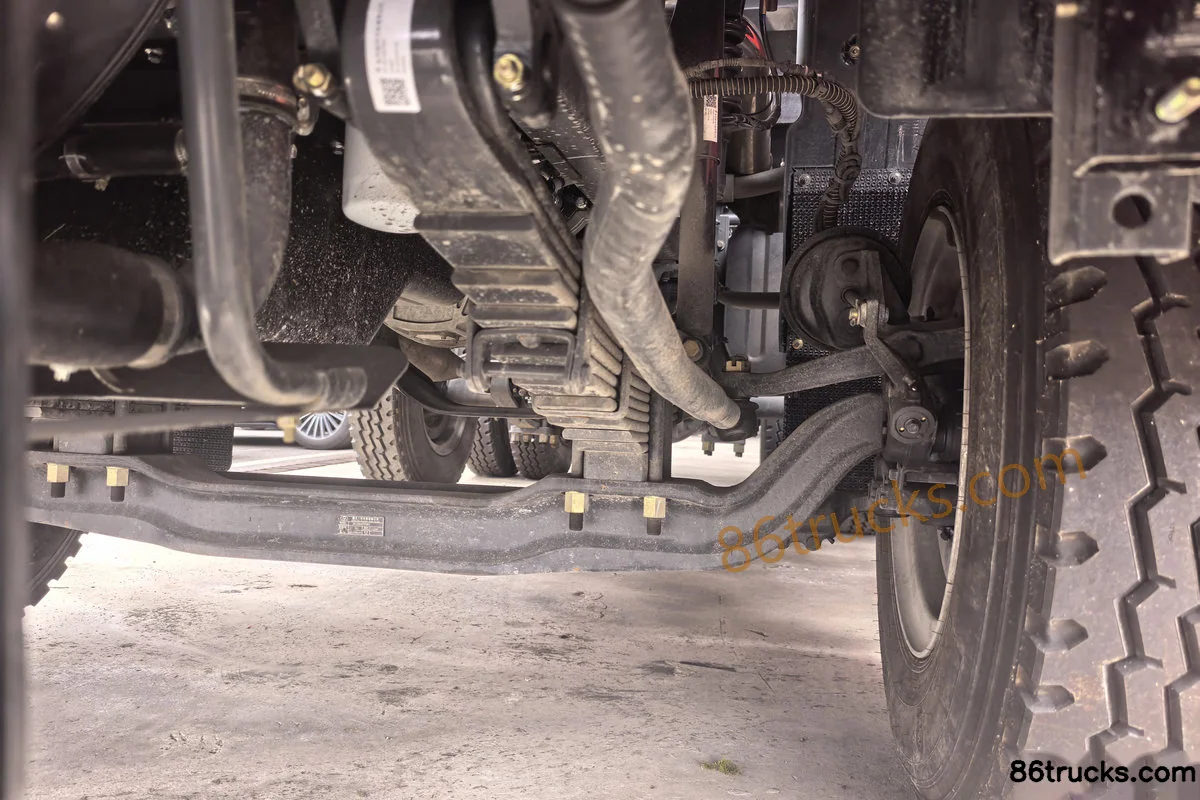

Chassis3

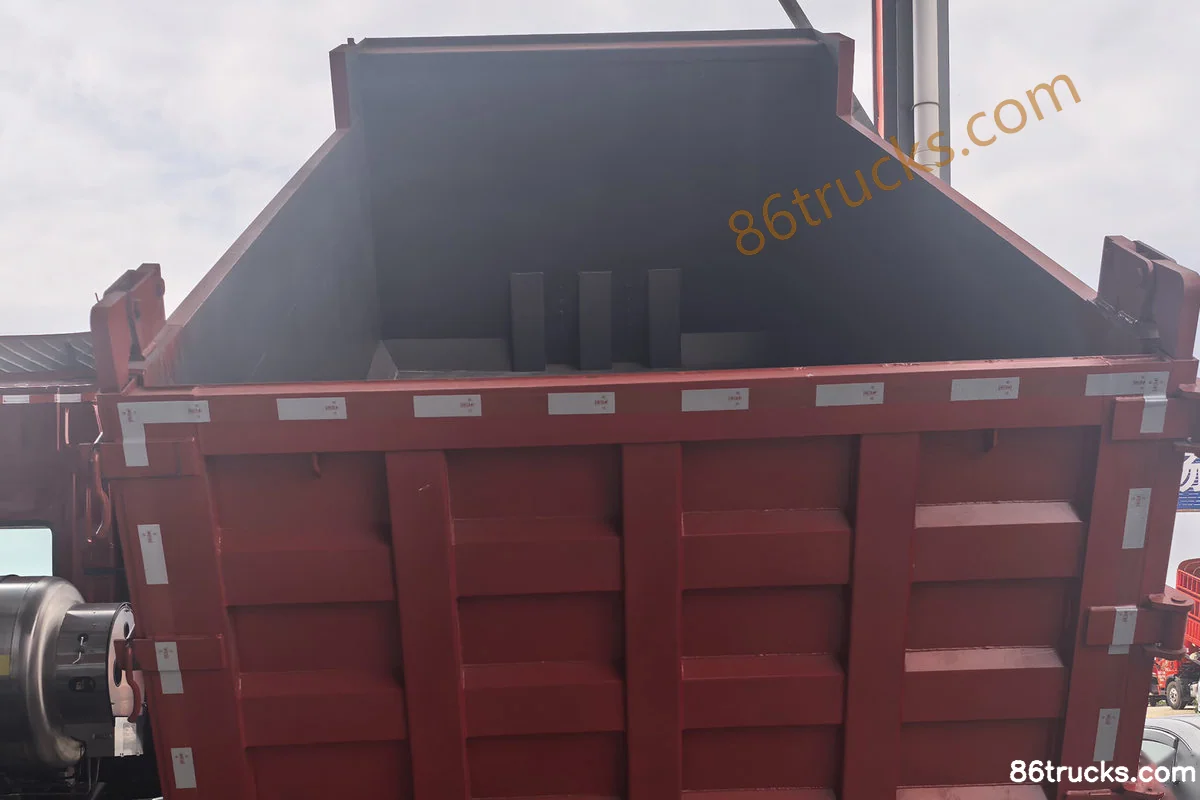

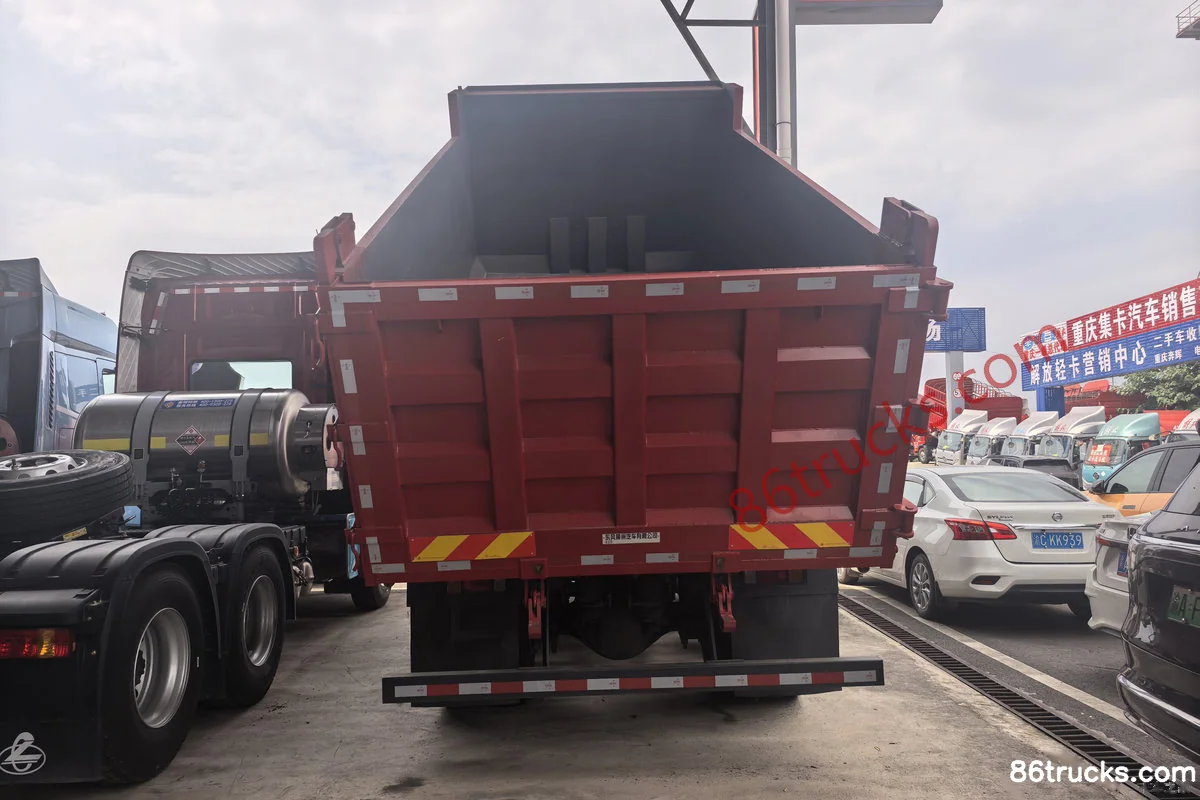

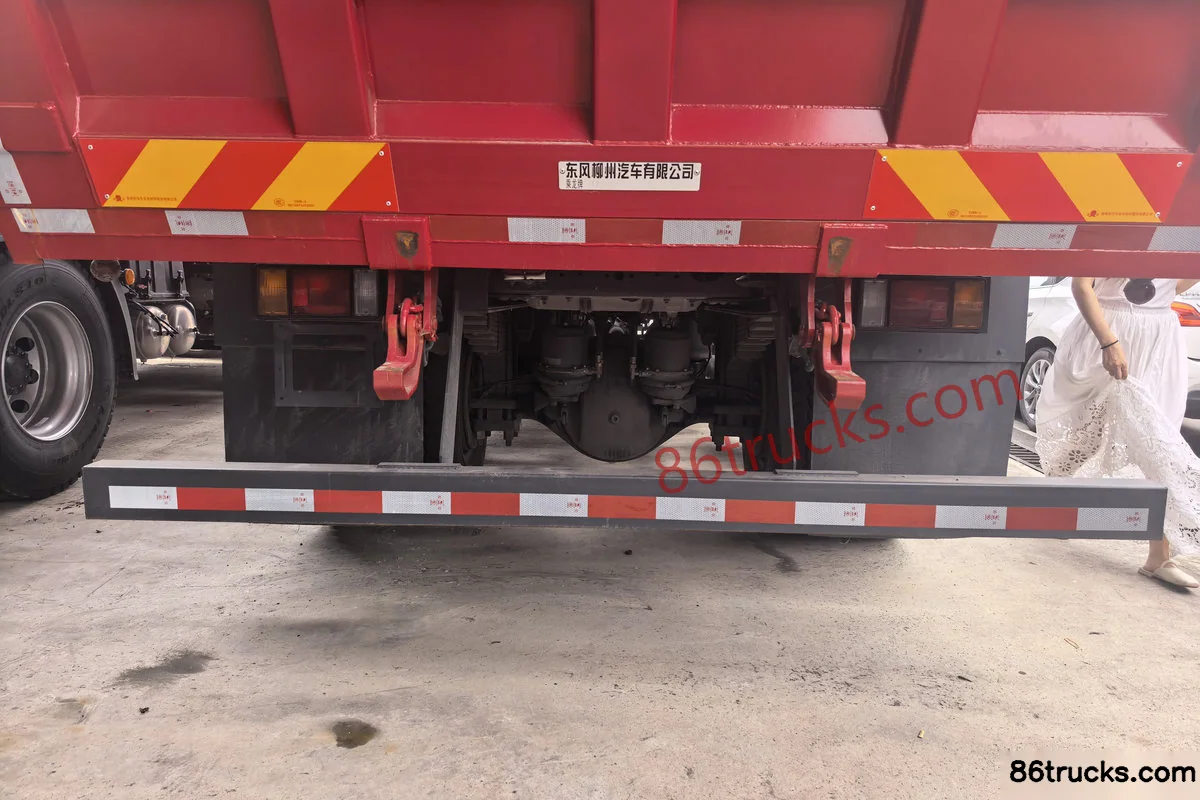

Body3

12 photos

FAQ

What is the export price of Dongfeng M3V 6.9L Diesel 330hp 6X4(10 wheels) Fast Gear 10-Speed 5.2m Dump Truck, and what does it include?

Dongfeng M3V 6.9L Diesel 330hp 6X4(10 wheels) Fast Gear 10-Speed 5.2m Dump Truck export reference is about From $40,264; MSRP is ¥28.99M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng M3V 6.9L Diesel 330hp 6X4(10 wheels) Fast Gear 10-Speed 5.2m Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng M3V 6.9L Diesel 330hp 6X4(10 wheels) Fast Gear 10-Speed 5.2m Dump Truck?

Key specs of Dongfeng M3V 6.9L Diesel 330hp 6X4(10 wheels) Fast Gear 10-Speed 5.2m Dump Truck: Drive: 6x4; Horsepower: 330 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng M3V 6.9L Diesel 330hp 6X4(10 wheels) Fast Gear 10-Speed 5.2m Dump Truck suited for?

Dongfeng M3V 6.9L Diesel 330hp 6X4(10 wheels) Fast Gear 10-Speed 5.2m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng M3V 6.9L Diesel 330hp 6X4(10 wheels) Fast Gear 10-Speed 5.2m Dump Truck differ from other variants in the same series?

Dongfeng M3V 6.9L Diesel 330hp 6X4(10 wheels) Fast Gear 10-Speed 5.2m Dump Truck belongs to Dongfeng Chenglong M3V Medium Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng M3V 6.9L Diesel 330hp 6X4(10 wheels) Fast Gear 10-Speed 5.2m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng M3V 6.9L Diesel 330hp 6X4(10 wheels) Fast Gear 10-Speed 5.2m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
