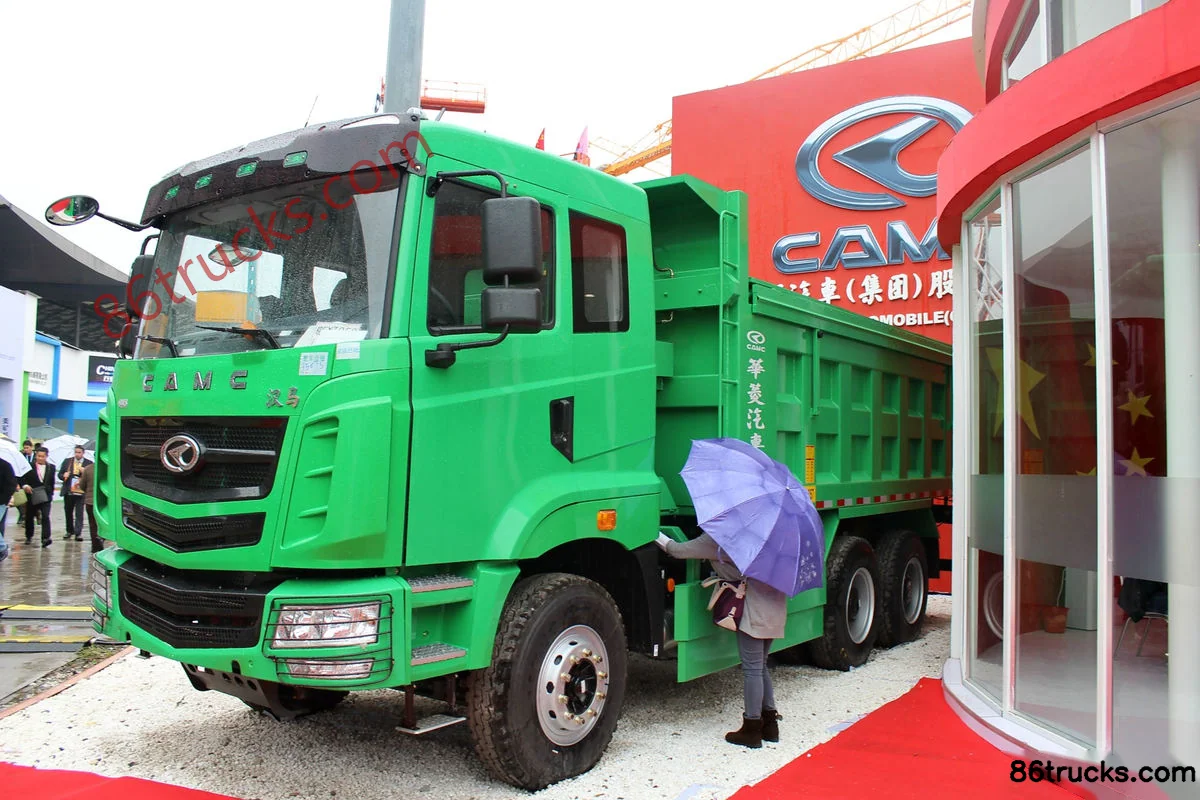

Hualing Hanma H6 heavy truck 345 hp 8X4(12 wheels) 7.8m dump truck

Export reference
MSRP N/A
Emission: China IV
Fuel: Diesel
Transmission: Hanma
Curb Weight:: 15.5ton
Wheelbase:: 1850+4000+1350mm
Tire Size:: 12-ply steel
Rated payload: 15.305ton
Drive 8X4 (12 wheels)
Horsepower 345
Cargo box type: Dump type

Overview

The Hualing Hanma H6 heavy truck 345 hp 8X4(12 wheels) 7.8m dump truck is a Heavy truck featuring 15.305t payload, 31t GVW, Dump type cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a Hanma CM6D18.345 40 engine, 345 hp, China IV emissions and Hanma transmission.

China IV 345 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HN3312A34DLM4
Drive type: 8X4
Wheelbase: 1850+4000+1350mm
engine: Hanma CM6D18.345 40
transmission: Hanma9SDB1851
Rear Axle Ratio: 5.263
Cab length: 11.28m
Cab width: 2.495m
Cab height: 3.8m
Front track width: 2065/2065mm
rear track: 1860/1860mm
Curb Weight: 15.5ton
Rated payload: 15.305ton
GVWR: 31ton
Origin: Ma'anshan, Anhui
tonnage class: Heavy truck
Approach angle: 19°
departure angle: 18°
Energy Type: Diesel
Engine parameters
Engine Brand: Hanma
Engine Model: Hanma CM6D18.345 40
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.84L
Emission standard: China IV
Max output power: 254kW
Max hp: 345Horsepower
Max torque: 1660N·m
Max torque speed: 1100-1400rpm
Rated speed: 1900rpm
Engine Type: Water-cooled, 4-stroke, with exhaust brake, direct injection, turbocharged intercooled
Transmission Parameters
Transmission Model: Hanma9SDB1851
Transmission Brand: Hanma
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 7.8m
Cargo box width: 2.3m
Cargo box height:
Cab parameters
Cab: Flat roof
Driver seat type: Mechanical suspension seat
Chassis Specs
Front axle description: 7.5T
Front axle allowable load: 6500/6500kg
Frame Dimensions: 310(8+5)mm
rear axle description: HL300A
rear axle allowable load: 18000 (twin axle)kg
Axle ratio: 5.263
Leaf spring count: 9/9/12
Tire
Tire Size: 12-ply steel
Number of tires: 12pcs
Control configuration
ABS:
Inter-axle Differential Lock:
Inter-axle Differential Lock:
interior configuration
AC control type: Manual
Power Windows:
Electronic Central Lock:
Multimedia features
GPS/Beidou driving recorder:
Radio:

Photos

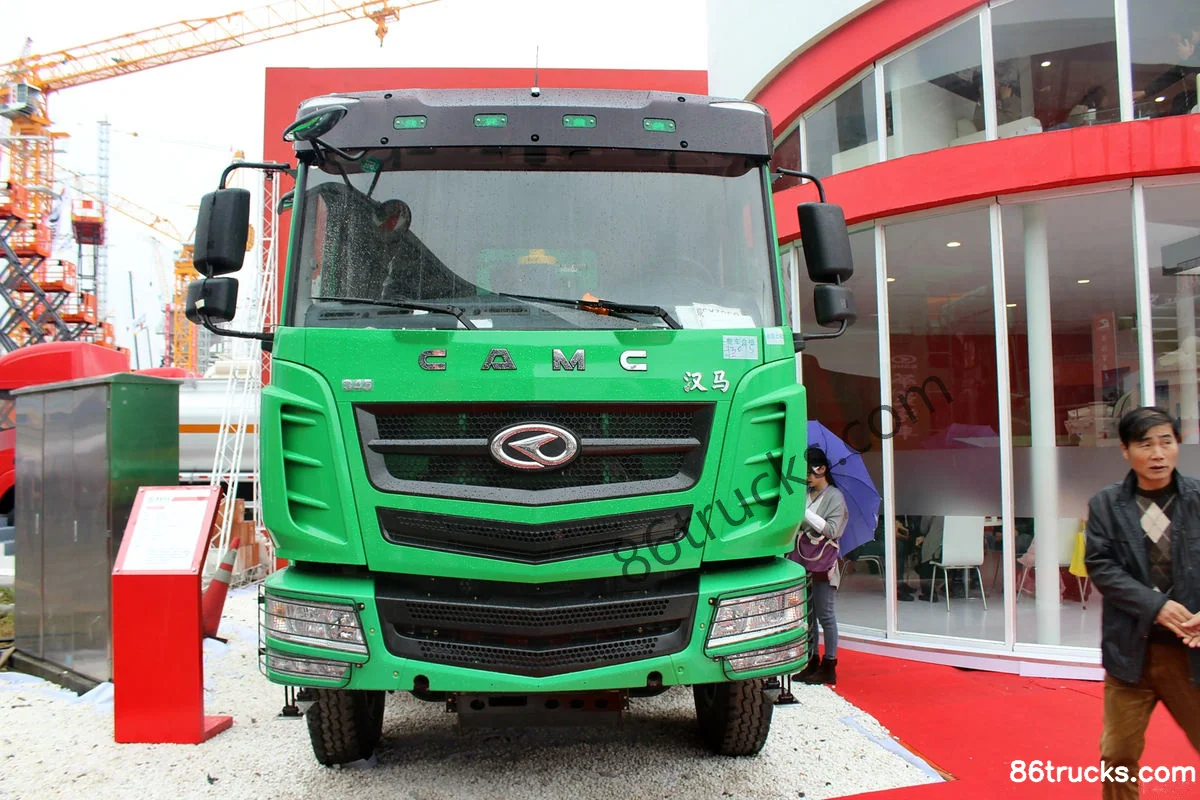

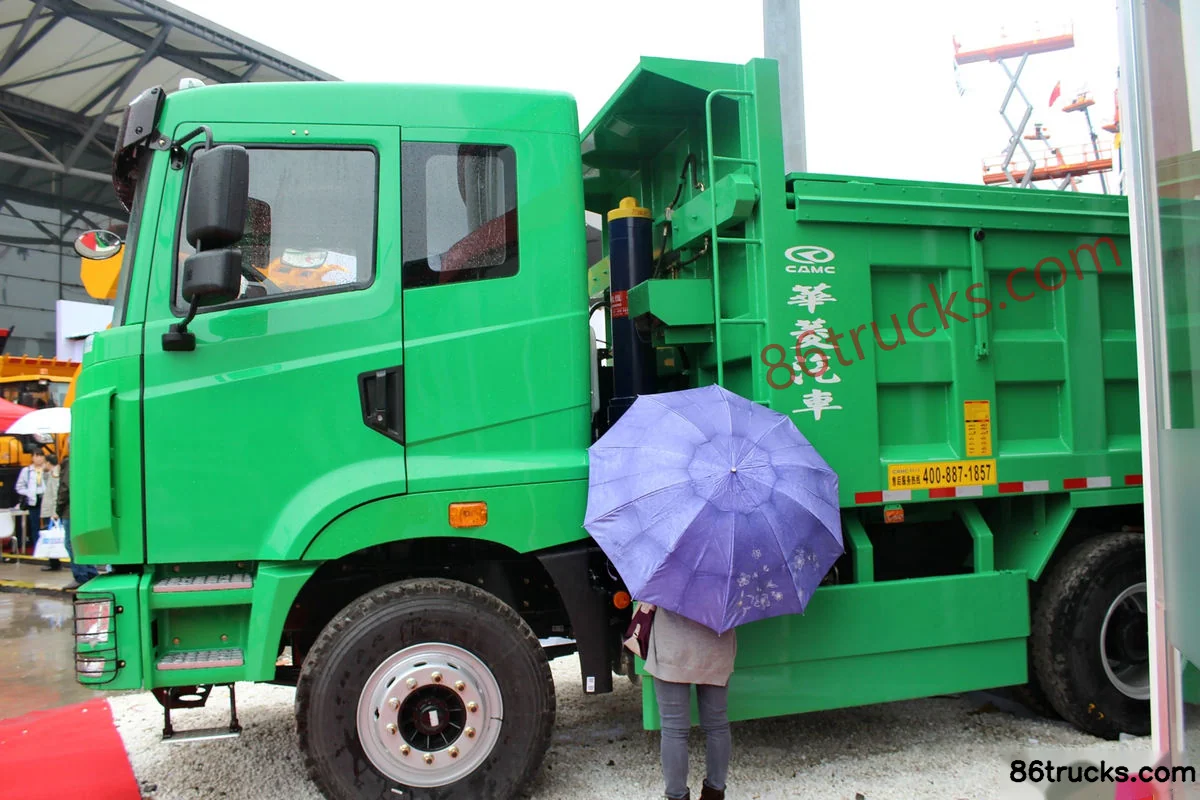

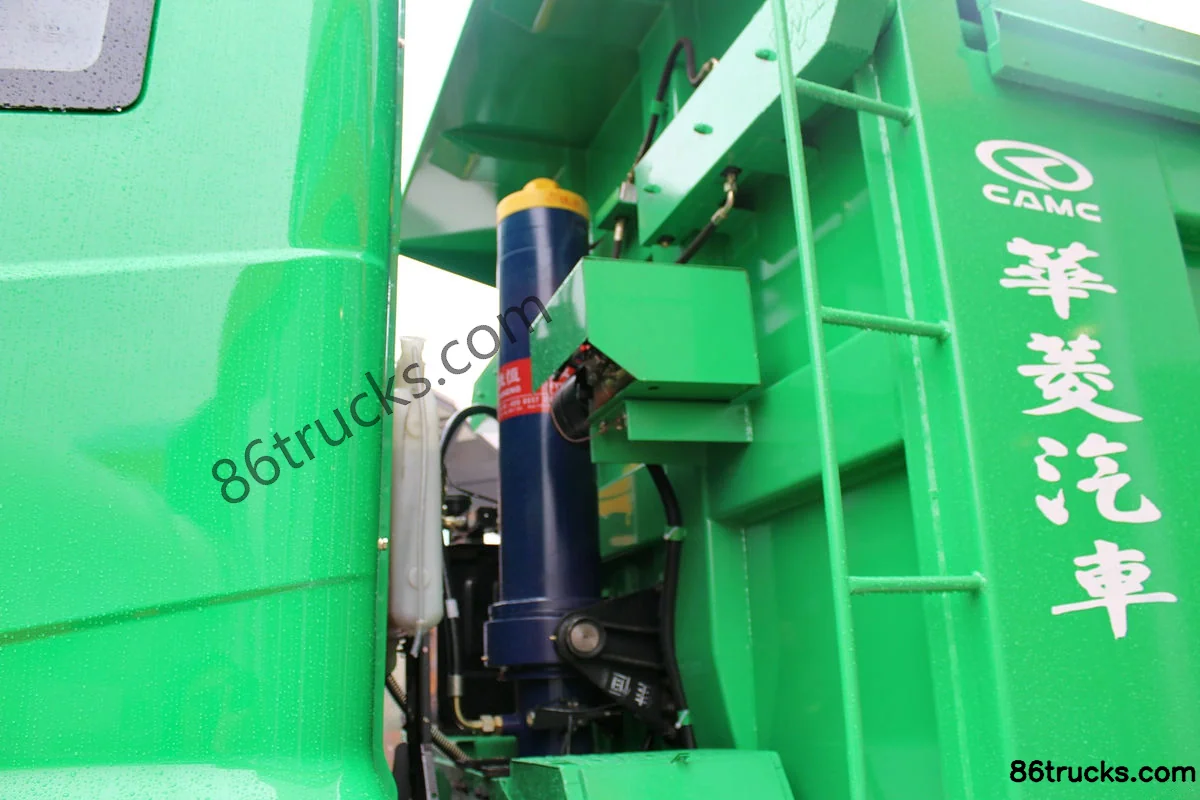

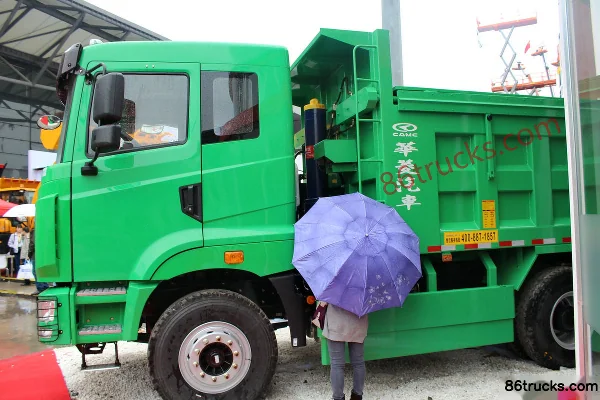

Exterior3

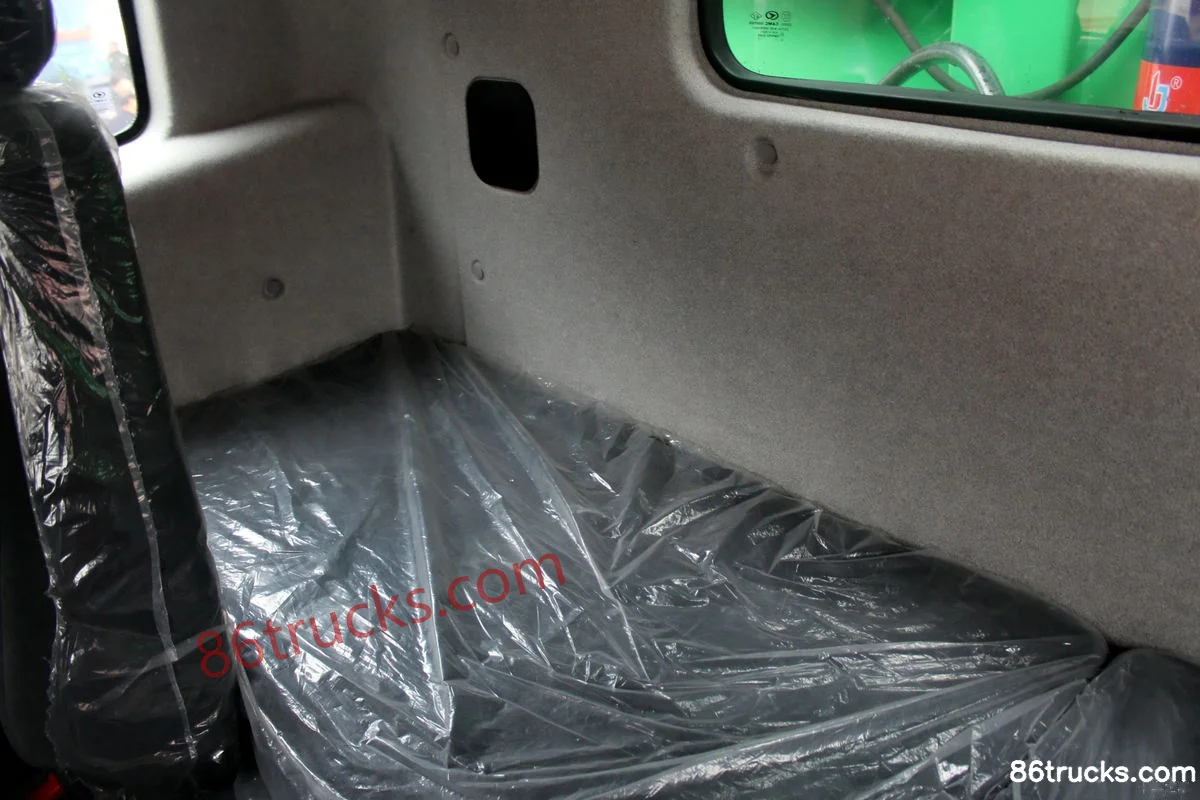

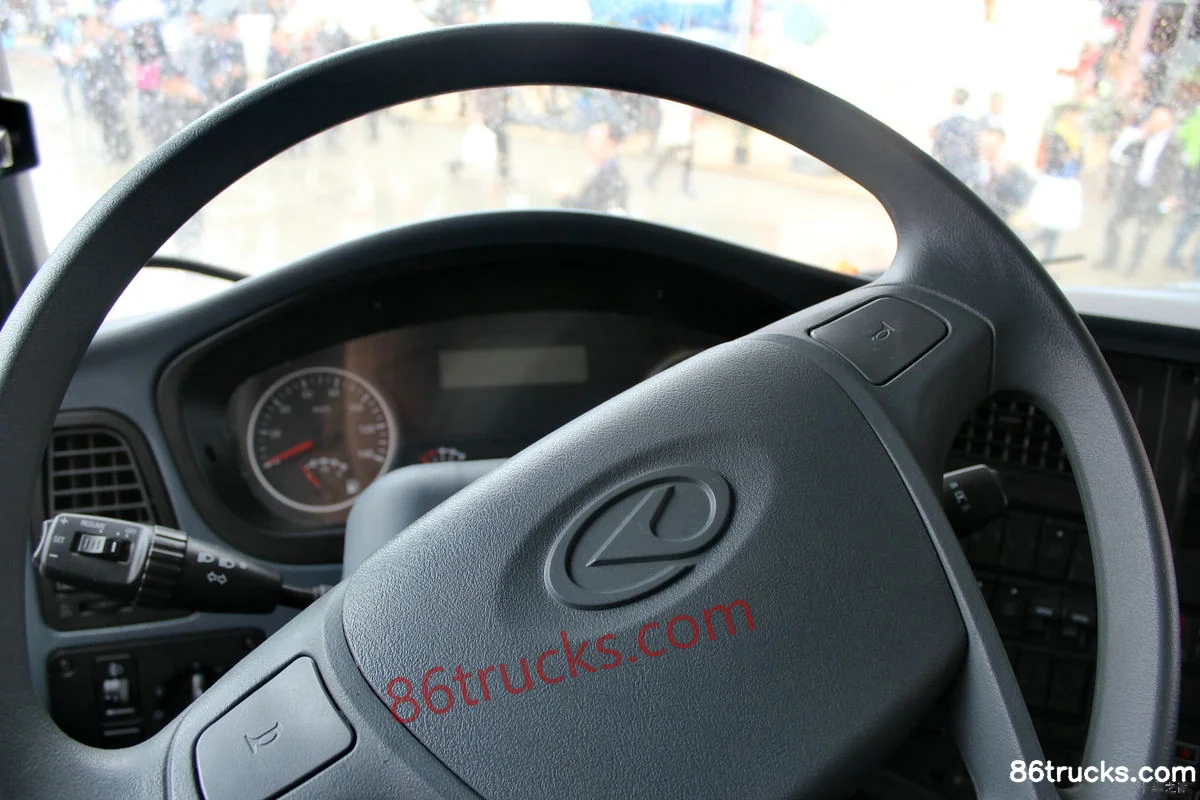

Cab2

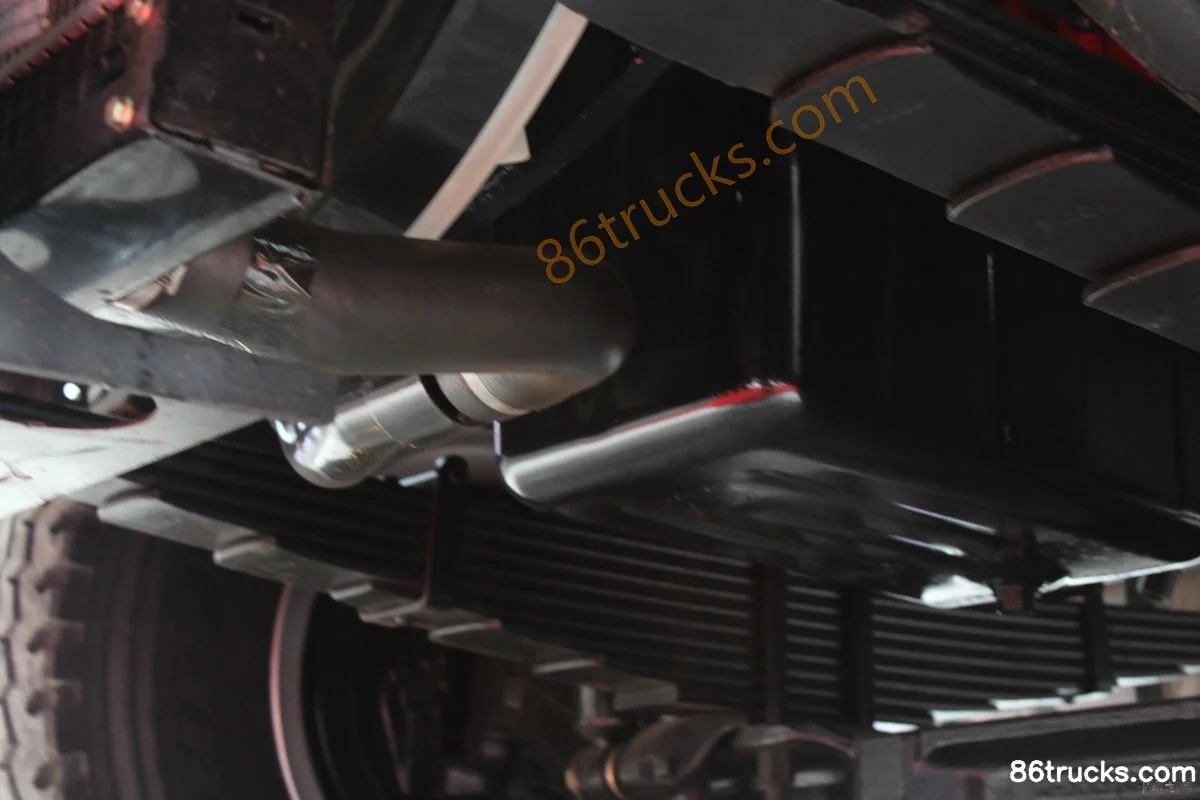

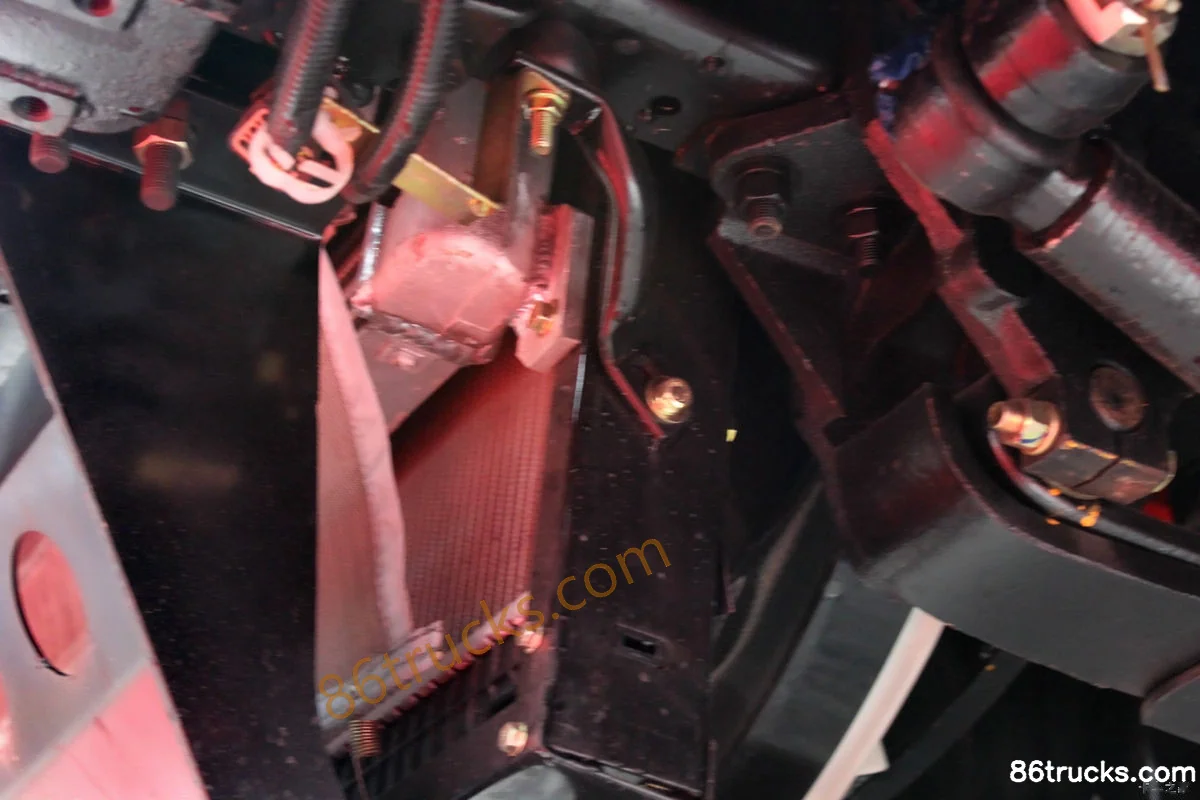

Chassis3

8 photos

FAQ

What emission standard does Hualing Hanma H6 heavy truck 345 hp 8X4(12 wheels) 7.8m dump truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Hualing Hanma H6 heavy truck 345 hp 8X4(12 wheels) 7.8m dump truck?

Key specs of Hualing Hanma H6 heavy truck 345 hp 8X4(12 wheels) 7.8m dump truck: Drive: 8x4; Horsepower: 345 hp; Emission: China IV; Fuel: Diesel; Transmission: Hanma. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Hualing Hanma H6 heavy truck 345 hp 8X4(12 wheels) 7.8m dump truck suited for?

Hualing Hanma H6 heavy truck 345 hp 8X4(12 wheels) 7.8m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Hualing Hanma H6 heavy truck 345 hp 8X4(12 wheels) 7.8m dump truck differ from other variants in the same series?

Hualing Hanma H6 heavy truck 345 hp 8X4(12 wheels) 7.8m dump truck belongs to Hualing Hanma H6 Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Hualing Hanma H6 heavy truck 345 hp 8X4(12 wheels) 7.8m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Hualing Hanma H6 heavy truck 345 hp 8X4(12 wheels) 7.8m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
