Sinotruk Huanghe 130 hp 4X2(6 wheels) 4.28 m dump truck

Export reference
MSRP N/A
Emission: China III / Euro III
Fuel: Diesel
Transmission: Sinotruk
Curb Weight:: 7.61ton
Wheelbase:: 3650mm
Tire Size:: 9.00-20
Rated payload: 7.995ton
Drive 4X2 (6 wheels)
Horsepower 130
Cargo box type: Dump type

Overview

The Sinotruk Huanghe 130 hp 4X2(6 wheels) 4.28 m dump truck is a Light Truck featuring 7.995t payload, 15.8t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYC4D130-33 engine, 130 hp, China III / Euro III emissions and Sinotruk transmission.

China III / Euro III 130 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ3167F3615C1
Drive type: 4X2
Wheelbase: 3650mm
engine: YuchaiYC4D130-33
transmission: SinotrukHW50508C
Cab length: 6.6m
Cab width: 2.495m
Cab height: 3.05m
Front track width: 1850mm
rear track: 1730mm
Curb Weight: 7.61ton
Rated payload: 7.995ton
GVWR: 15.8ton
Origin: Jinan, Shandong
tonnage class: Light Truck
Approach angle: 24.5°
departure angle: 27°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4D130-33
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.214L
Emission standard: China III / Euro III
Max output power: 96kW
Max hp: 130Horsepower
Max torque: 420N·m
Max torque speed: 1400-1800rpm
Rated speed: 2800rpm
Engine Type: Vertical, inline, water-cooled, four-stroke, direct injection
Transmission Parameters
Transmission Model: SinotrukHW50508C
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.28m
Cargo box width: 2.2m
Cargo box height: 0.8m
fuel tank
Fuel tank capacity: 300L
Chassis Specs
rear axle description: 10T
rear axle allowable load: 9800kg
Leaf spring count: 11/12+9
Tire
Tire Size: 9.00-20
Number of tires: 6pcs

Photos

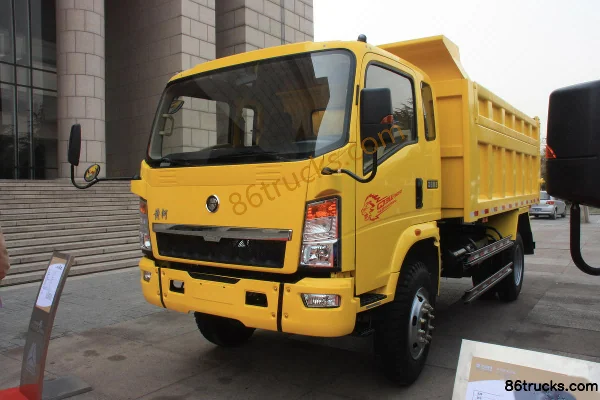

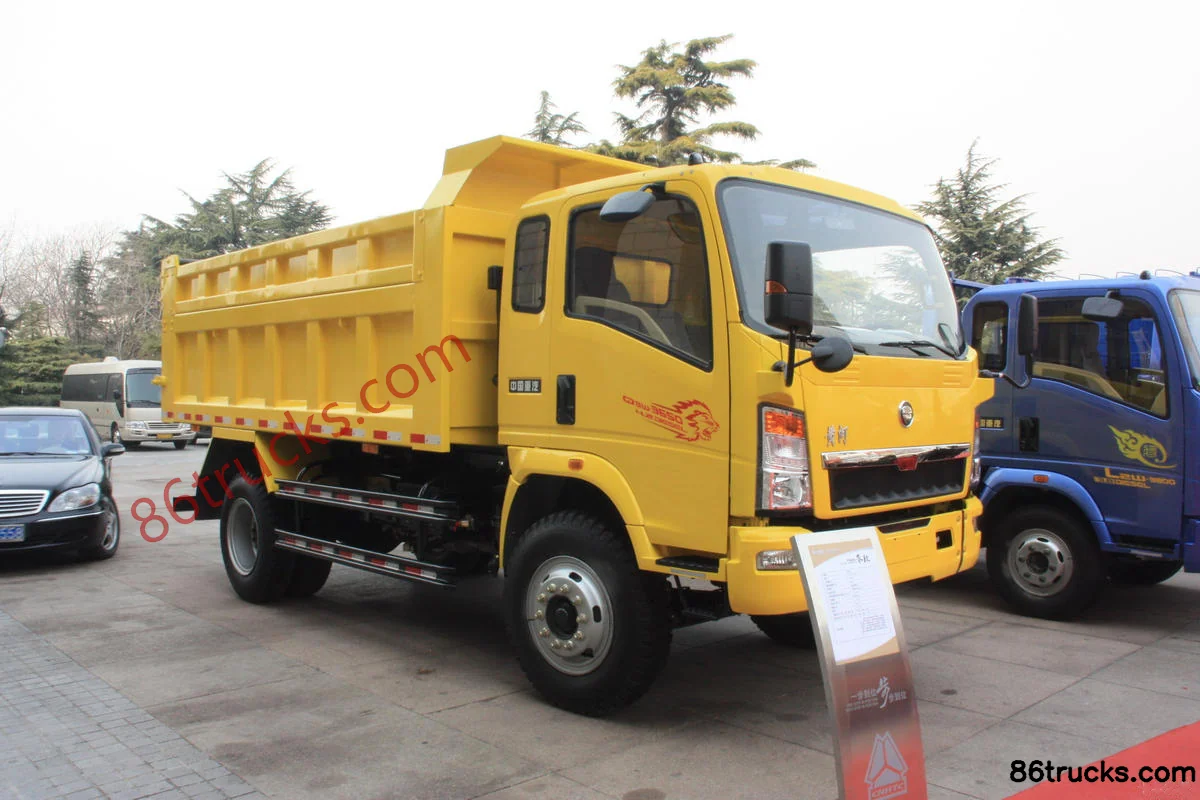

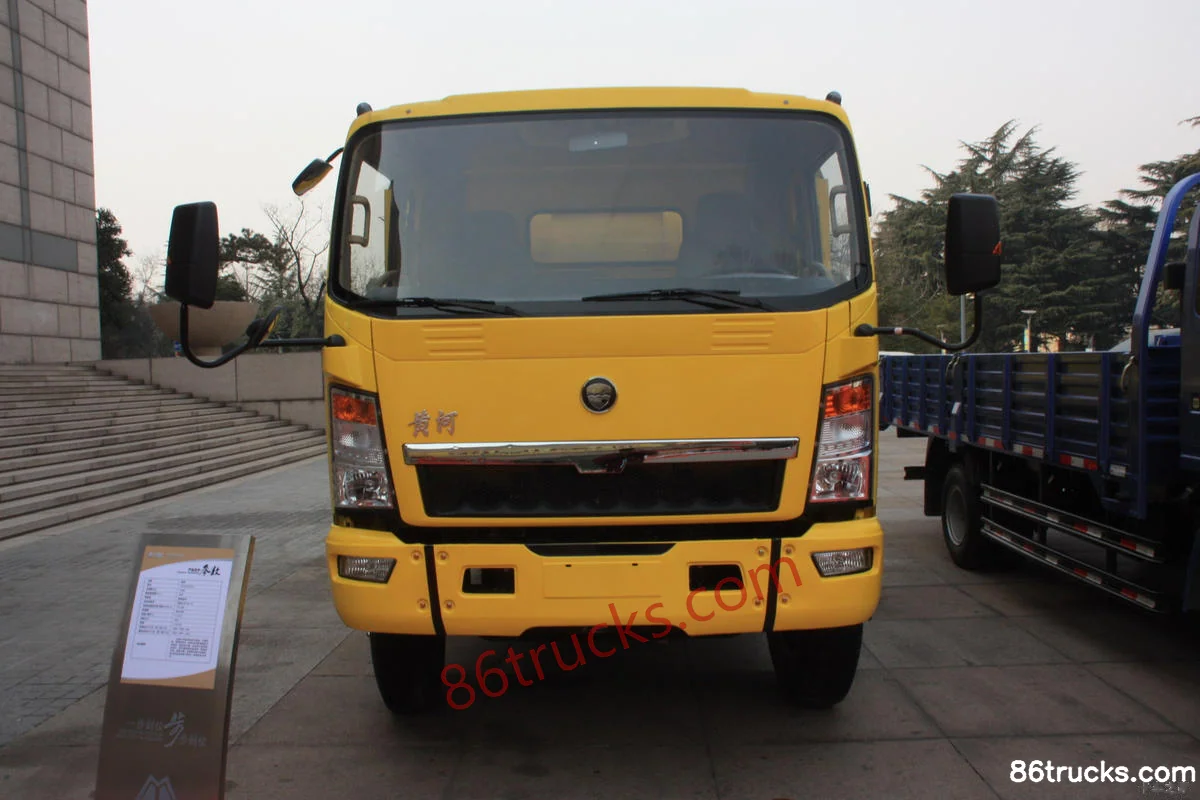

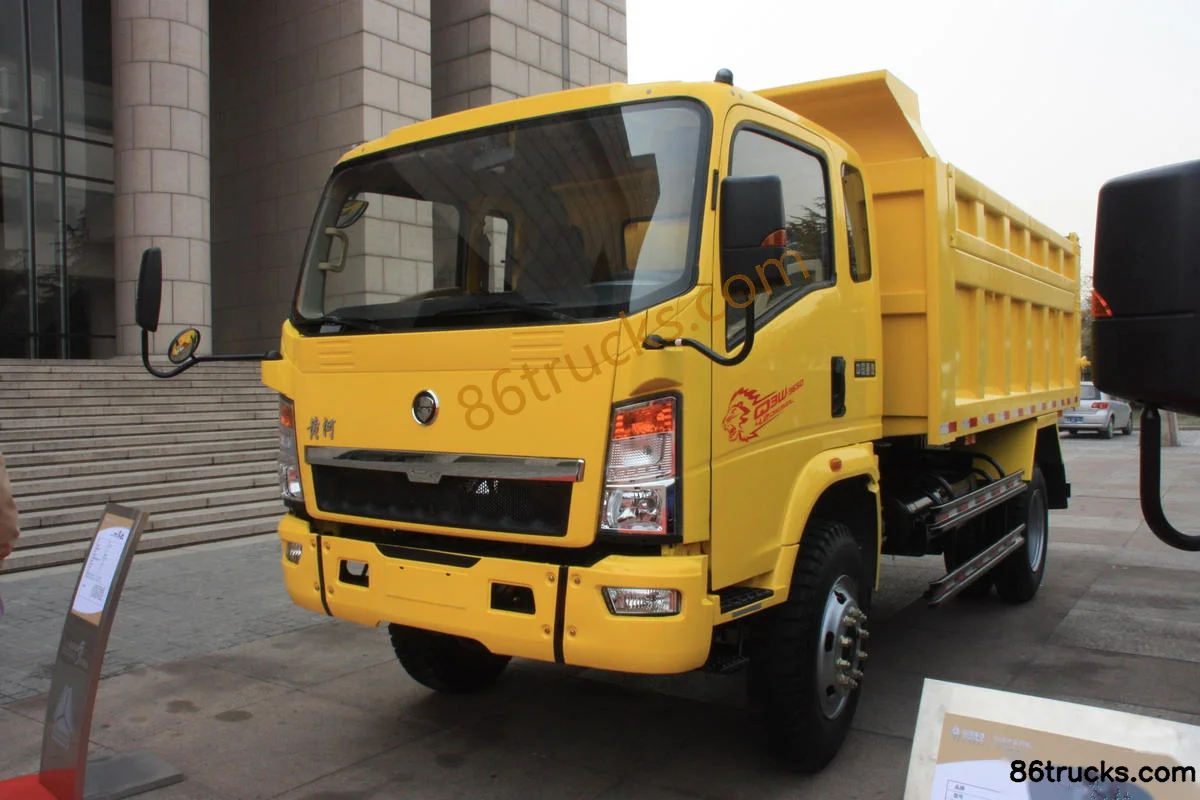

Exterior3

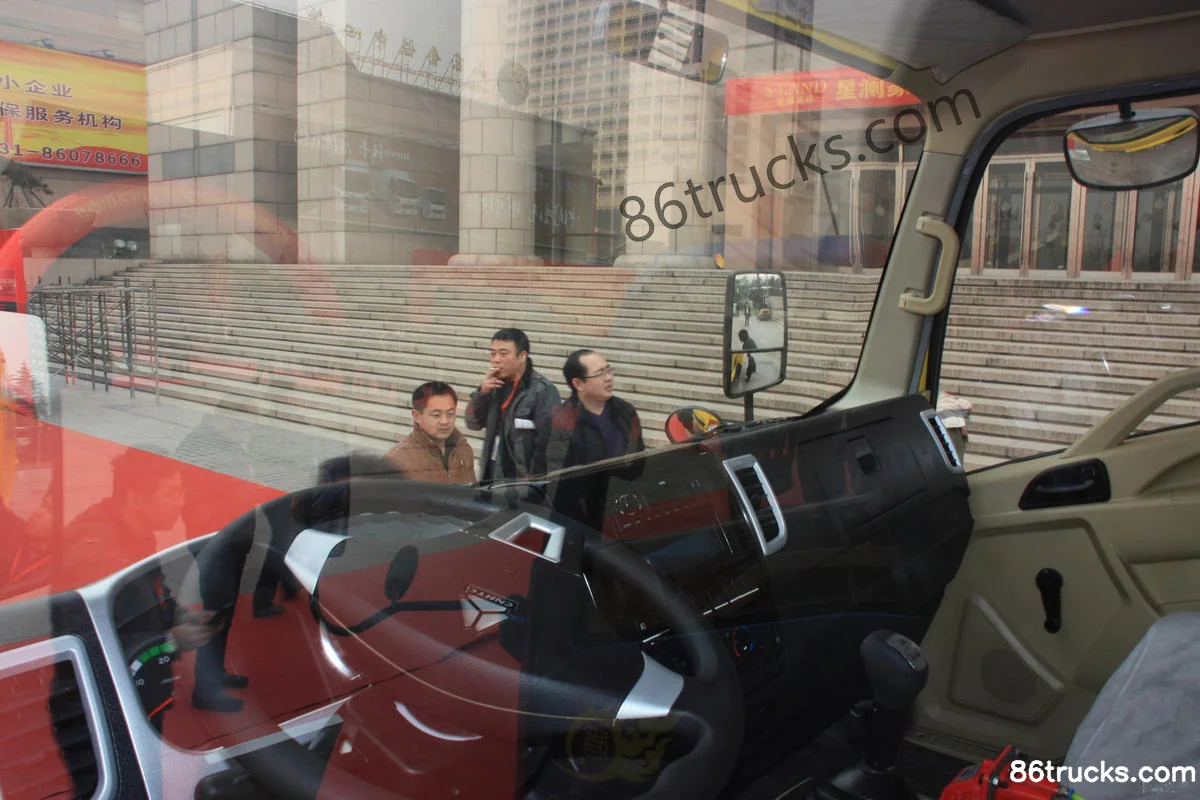

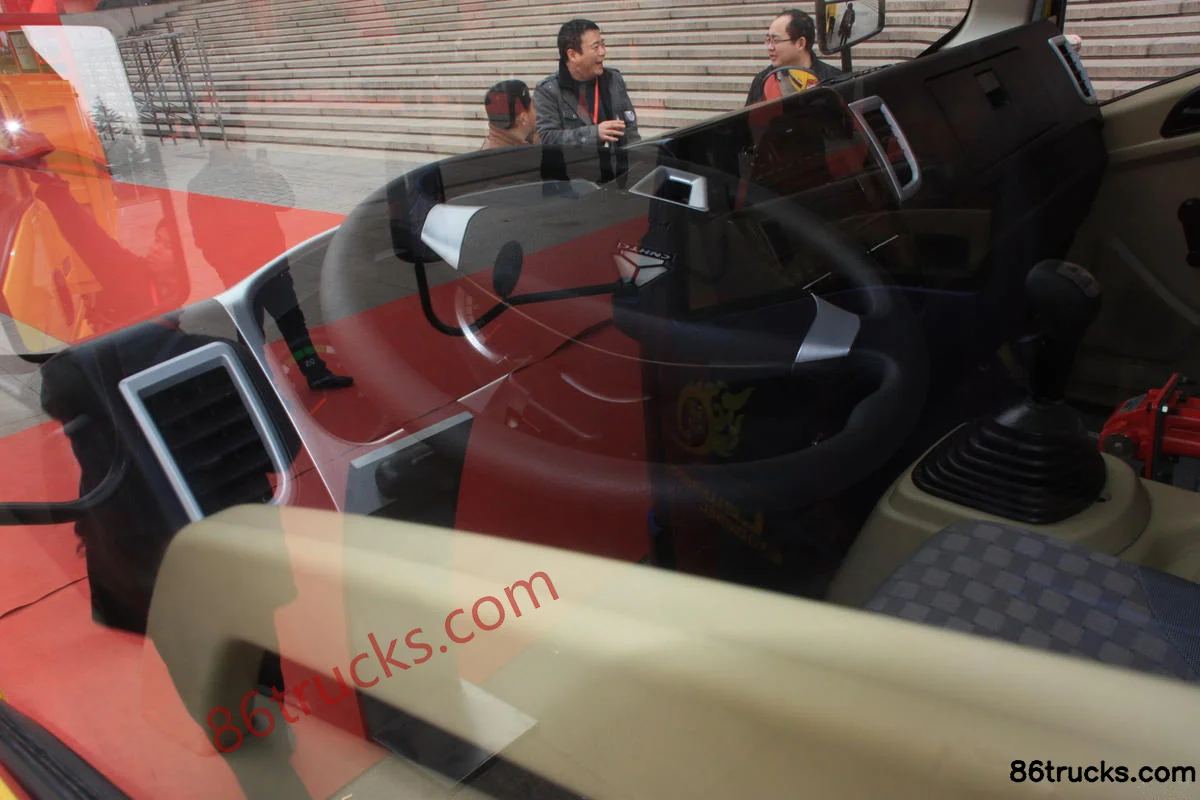

Cab2

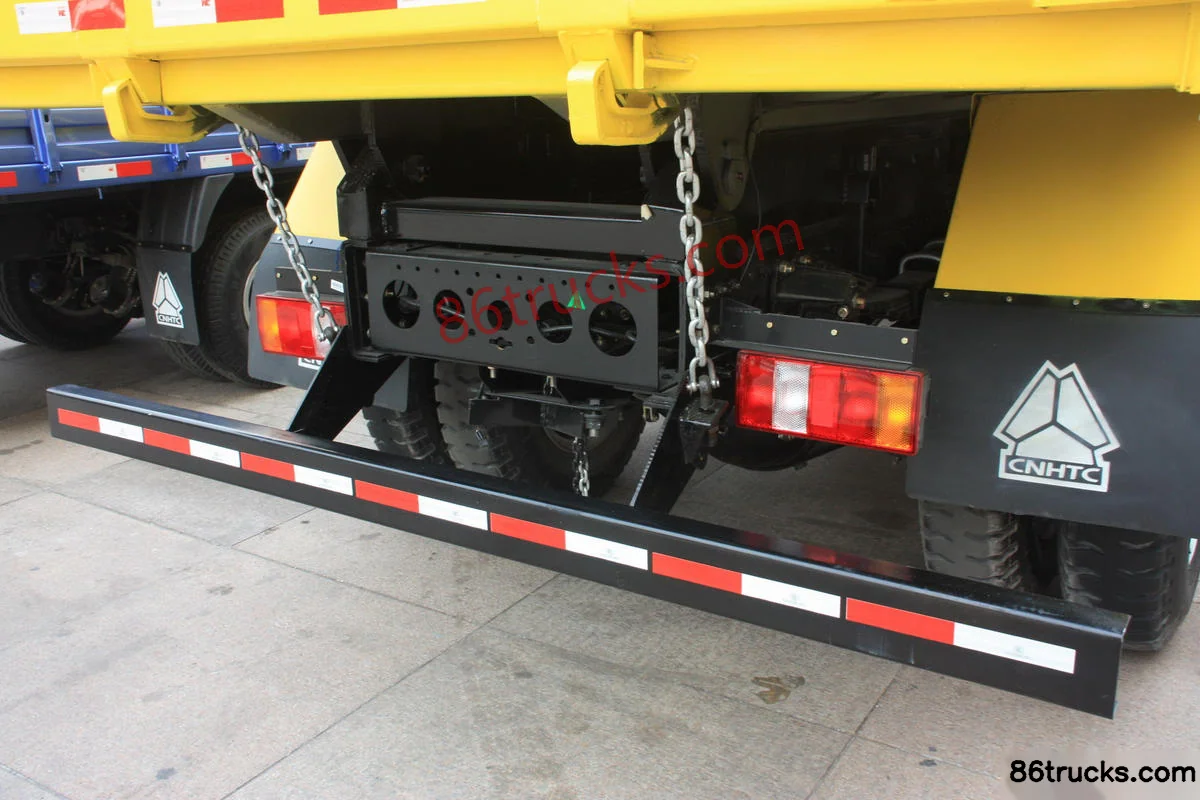

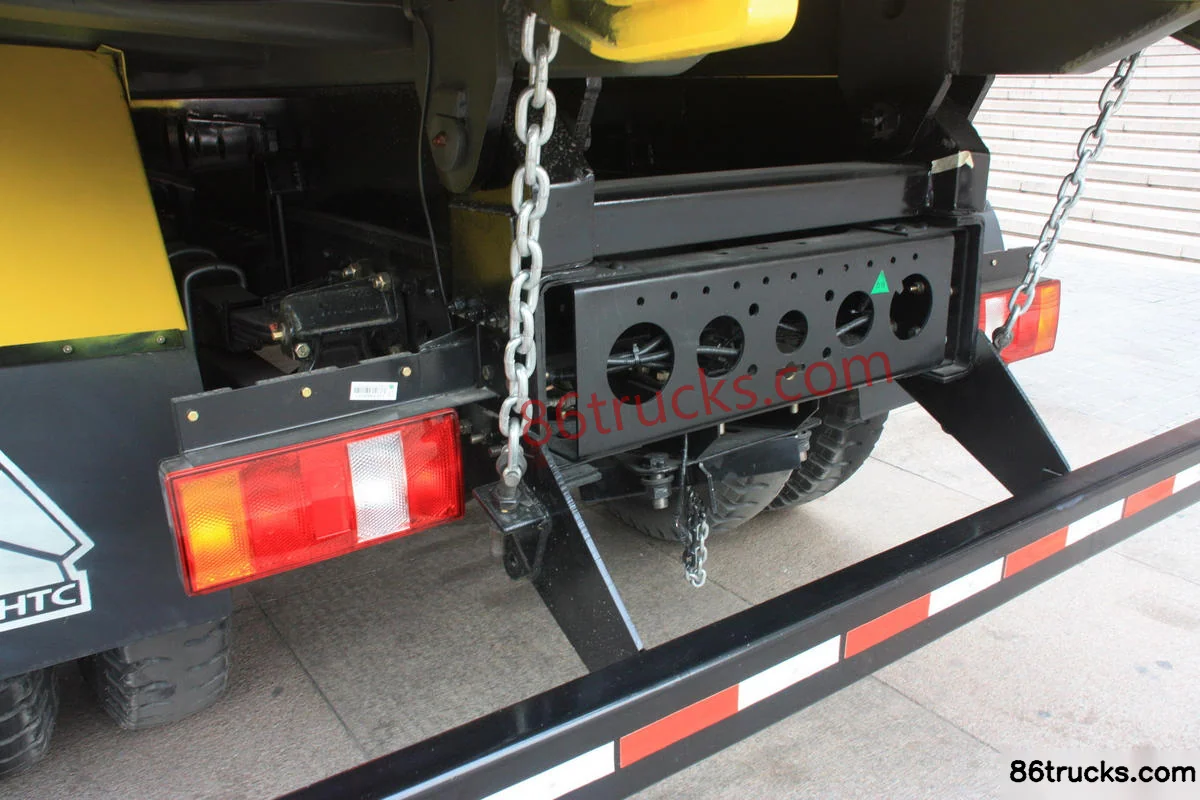

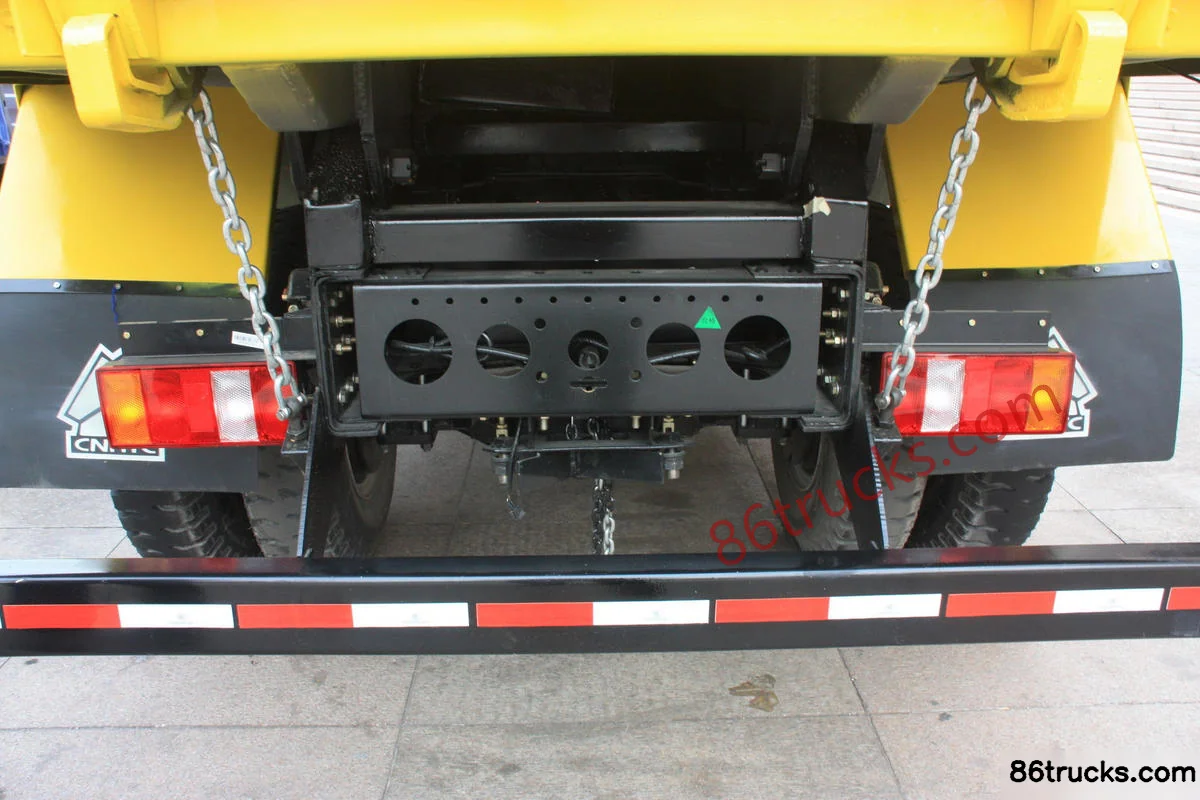

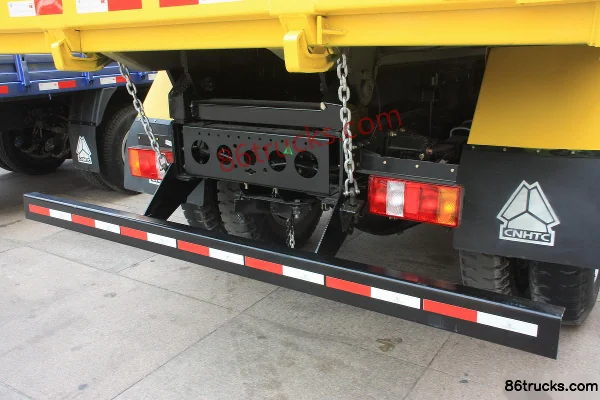

Chassis3

8 photos

FAQ

What emission standard does Sinotruk Huanghe 130 hp 4X2(6 wheels) 4.28 m dump truck use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Huanghe 130 hp 4X2(6 wheels) 4.28 m dump truck?

Key specs of Sinotruk Huanghe 130 hp 4X2(6 wheels) 4.28 m dump truck: Drive: 4x2; Horsepower: 130 hp; Emission: China III / Euro III; Fuel: Diesel; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Huanghe 130 hp 4X2(6 wheels) 4.28 m dump truck suited for?

Sinotruk Huanghe 130 hp 4X2(6 wheels) 4.28 m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk Huanghe 130 hp 4X2(6 wheels) 4.28 m dump truck differ from other variants in the same series?

Sinotruk Huanghe 130 hp 4X2(6 wheels) 4.28 m dump truck belongs to Sinotruk Yellow River Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Huanghe 130 hp 4X2(6 wheels) 4.28 m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Huanghe 130 hp 4X2(6 wheels) 4.28 m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
