Kama Kaijie HM6 156 hp 4X2(6 wheels) 4.16m dump truck

Export reference
From $21,944
MSRP ¥15.8M CNY
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 2.6ton
Wheelbase:: 3300mm
Tire Size:: 8.25R16LT 6PR
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Horsepower 156
Cargo box type: Rear-dump body

Overview

The Kama Kaijie HM6 156 hp 4X2(6 wheels) 4.16m dump truck is a Light Truck featuring 1.495t payload, 4.29t GVW, Rear-dump body cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerYNF40E2 engine, 156 hp, China V emissions and Fast Gear transmission.

China V 156 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): KMC3046HA33P5
Drive type: 4X2
Wheelbase: 3300mm
engine: Yunnei PowerYNF40E2
transmission: Fast Gear 10-Speed
Rear Axle Ratio: 4.333
Cab length: 5.995m
Cab width: 2.38m
Cab height: 2.39m
Front track width: 1760mm
rear track: 1790mm
Curb Weight: 2.6ton
Rated payload: 1.495ton
GVWR: 4.29ton
Origin: Shouguang, Shandong
tonnage class: Light Truck
Approach angle: 25°
departure angle: 18°
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYNF40E2
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3.92L
Emission standard: China V
Max output power: 115kW
Max hp: 156Horsepower
Max torque: 500N·m
Max torque speed: 1200-2000rpm
Rated speed: 2600rpm
Engine Type: 4-valve, centrally mounted injector, centrally mounted camshaft, high-pressure common rail fuel injection, rear-mounted gear train
Transmission Parameters
Transmission Model: Fast Gear 10-Speed
Transmission Brand: Fast Gear
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 4.16m
Cargo box width: 2.2m
Cargo box height: 0.55m
Cab parameters
Cab tilting: Manual
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 150L
Chassis Specs
Front axle allowable load: 1770kg
rear axle allowable load: 2520kg
Axle ratio: 4.333
Leaf spring count: 7/9+5
Tire
Tire Size: 8.25R16LT 6PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Service brake
Parking brake: Spring brake

Photos

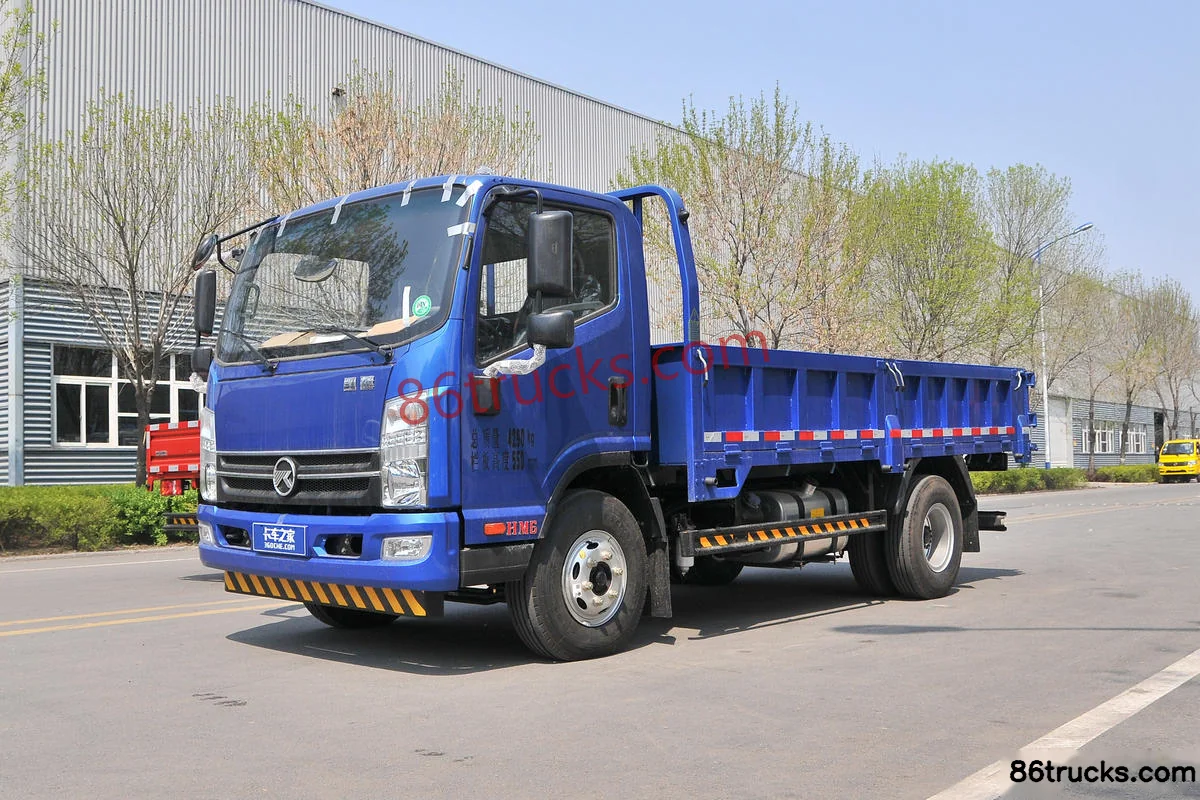

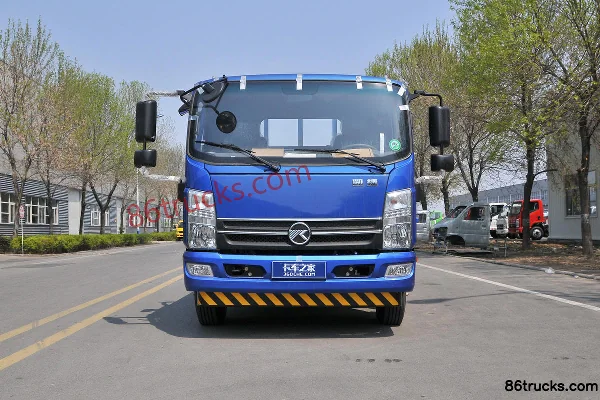

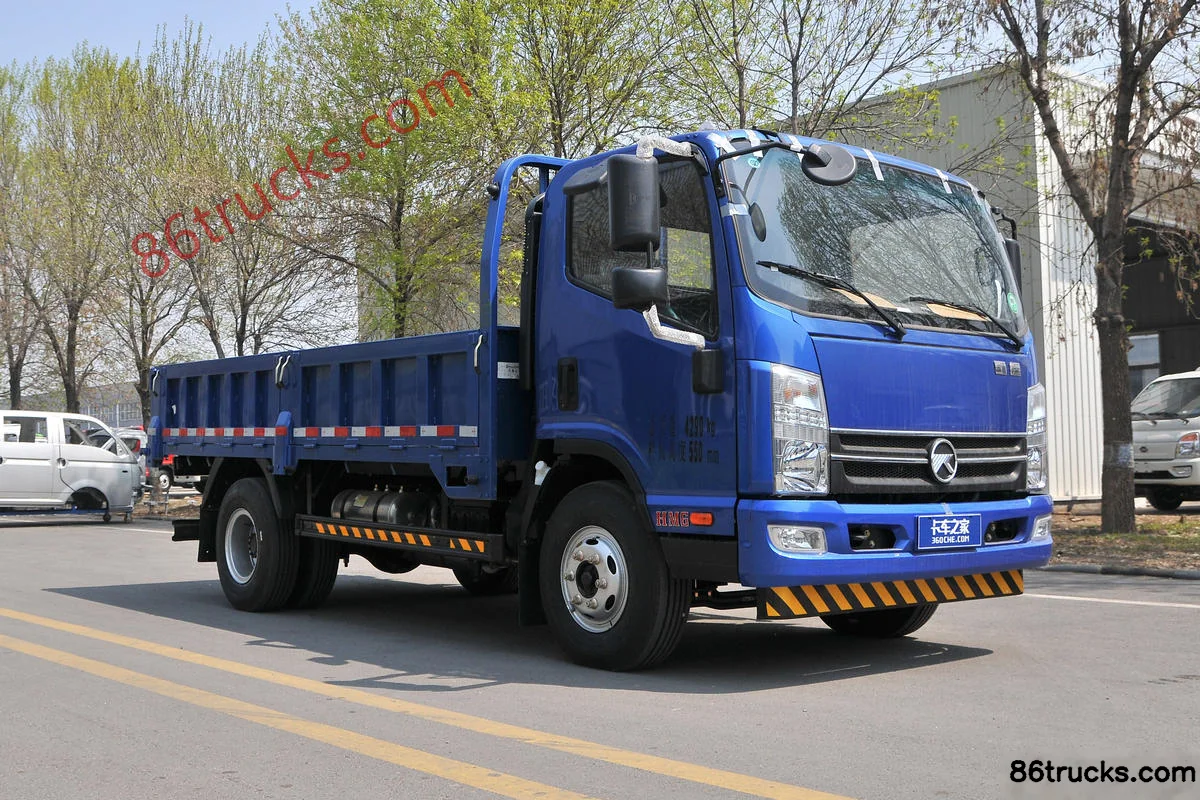

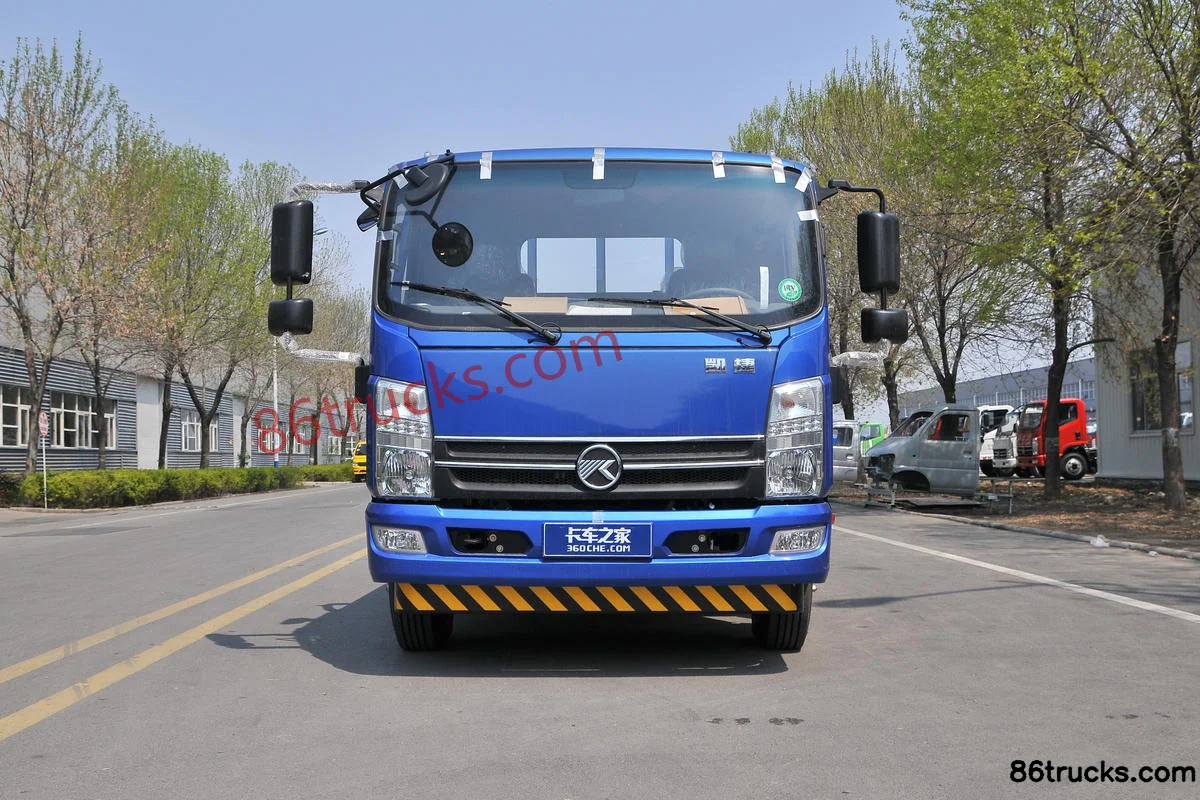

Exterior3

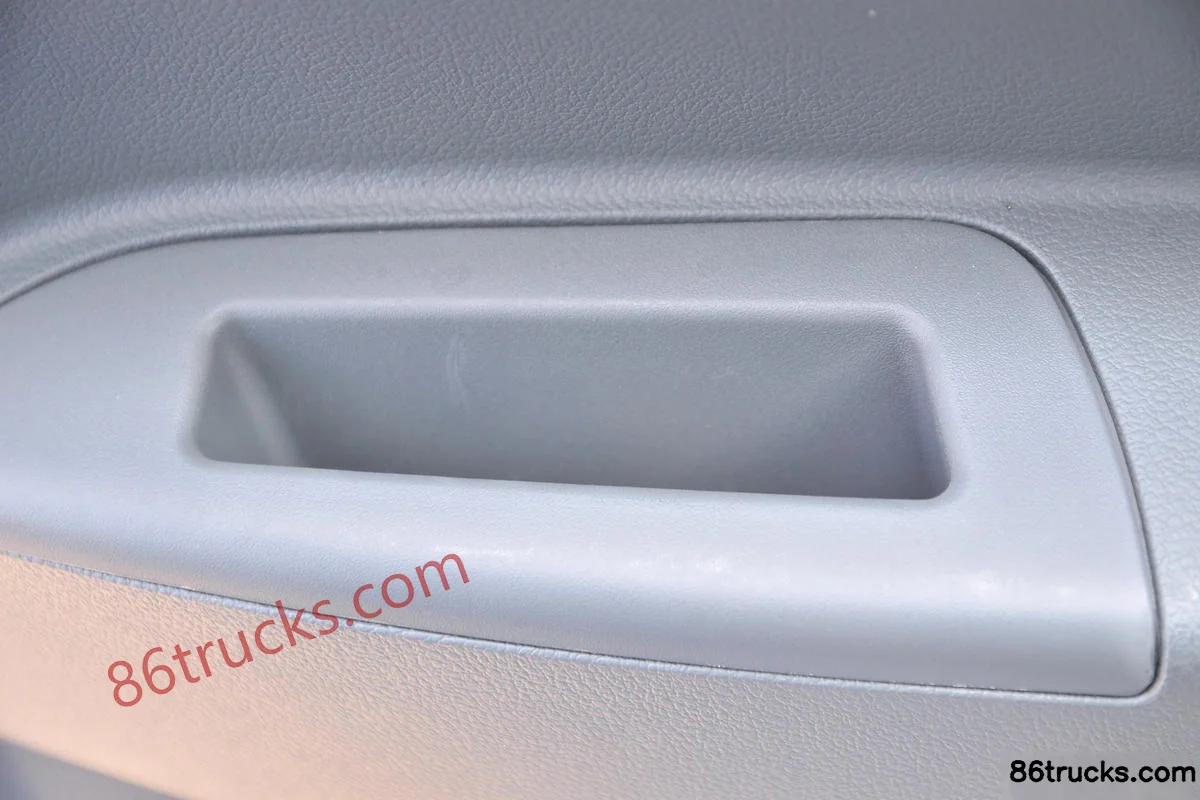

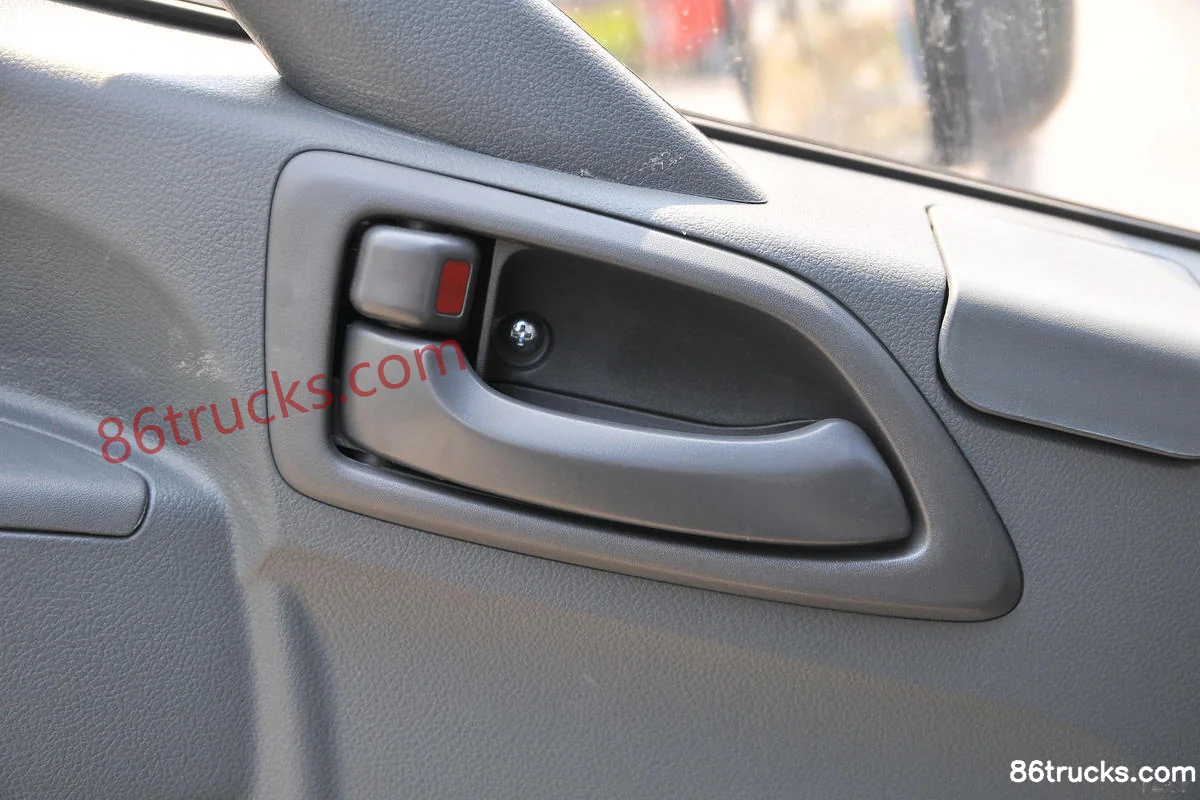

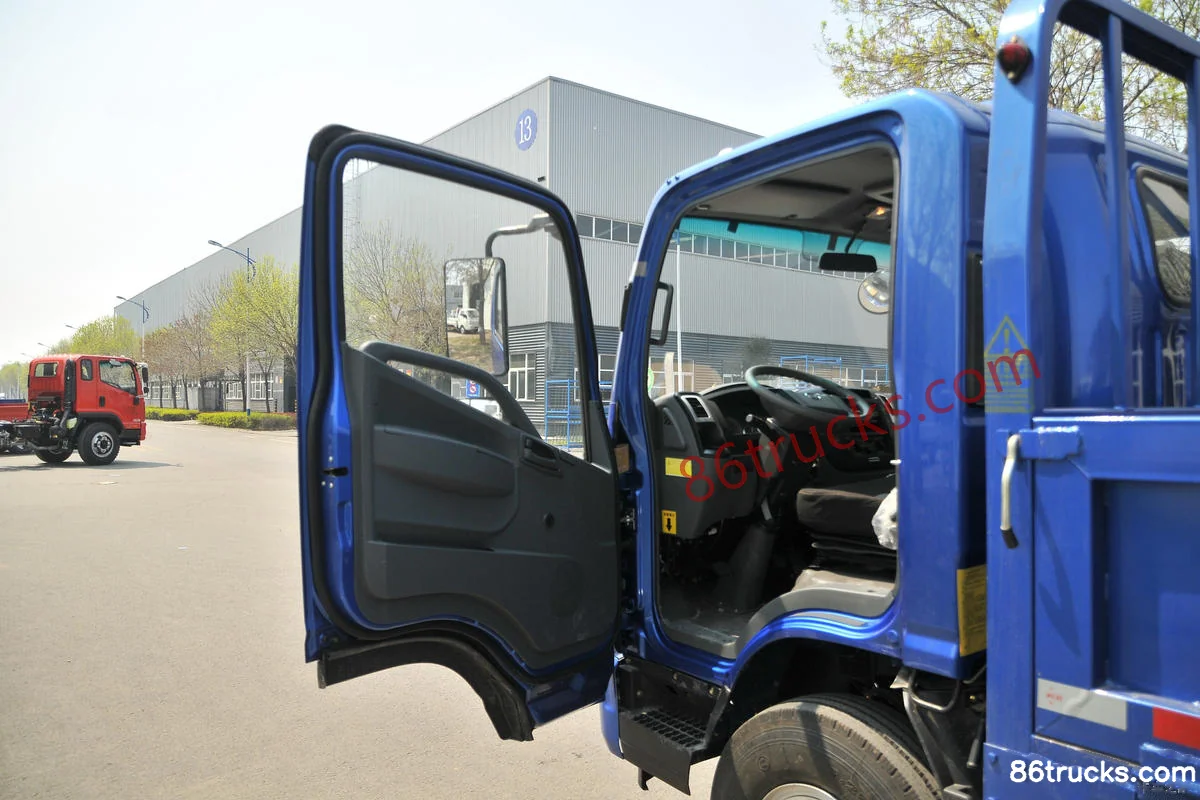

Cab3

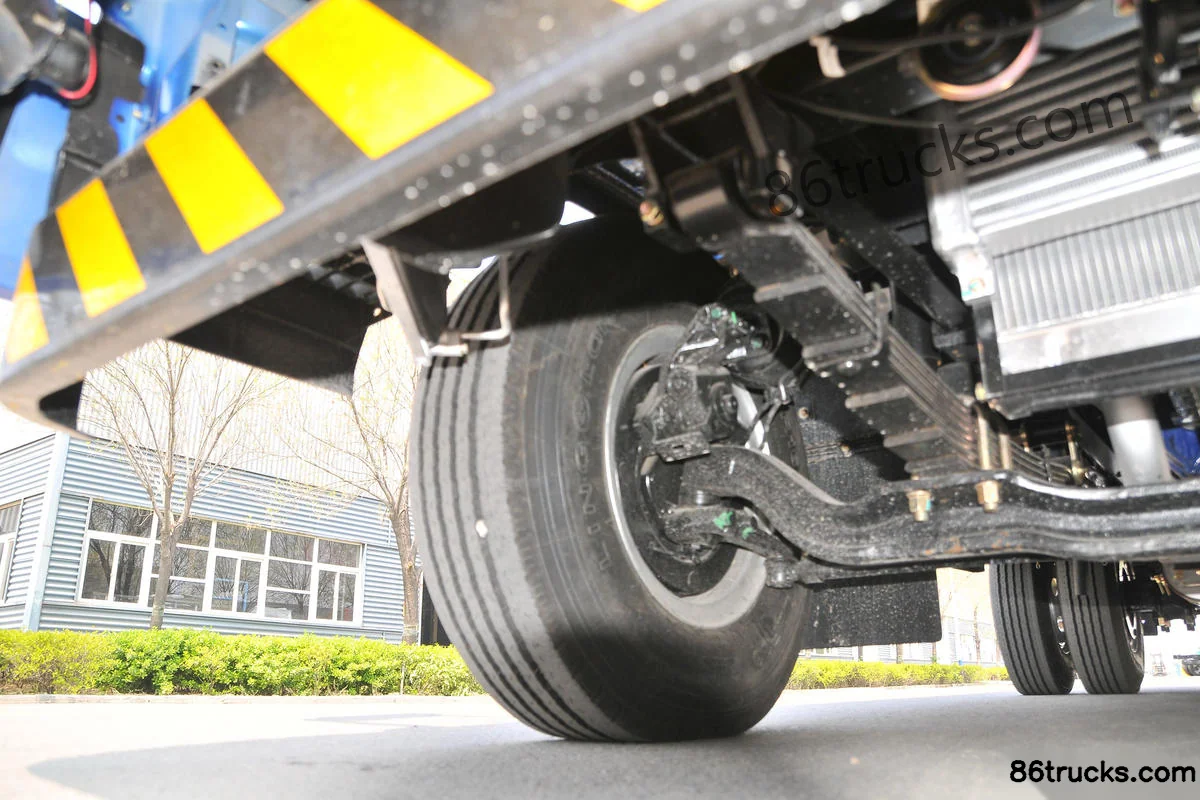

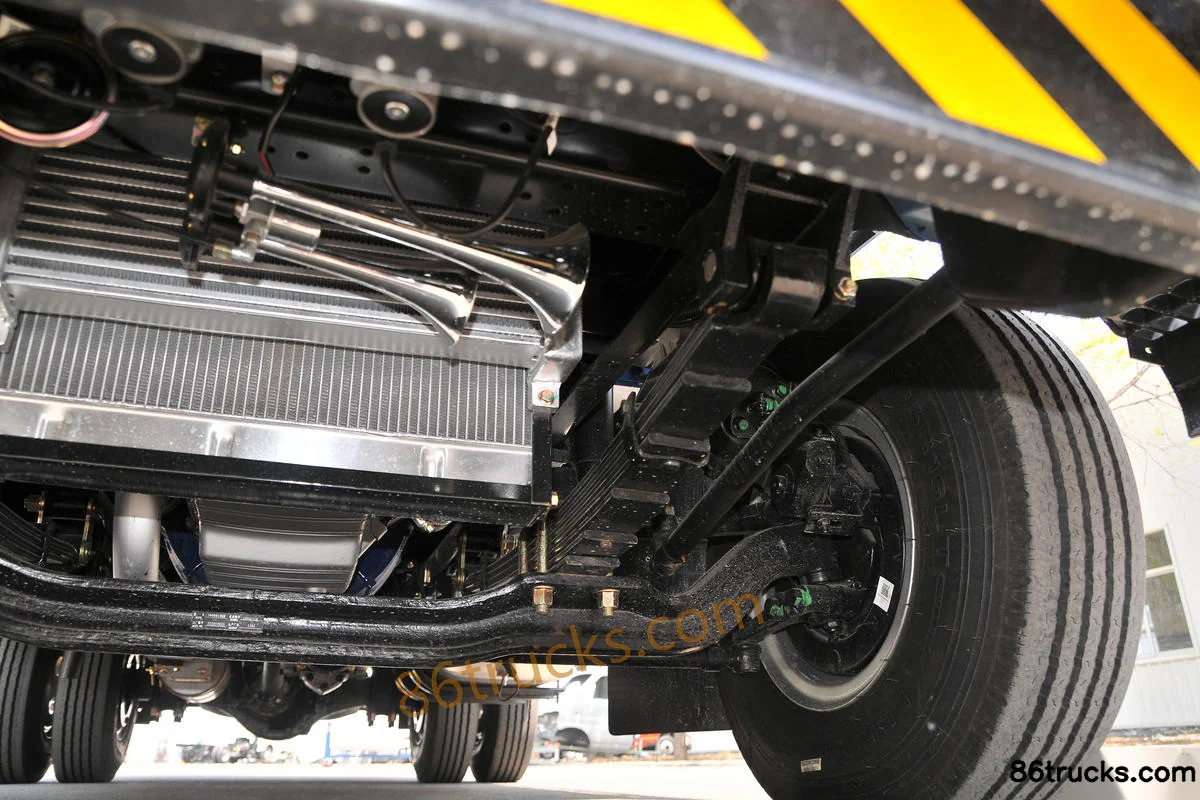

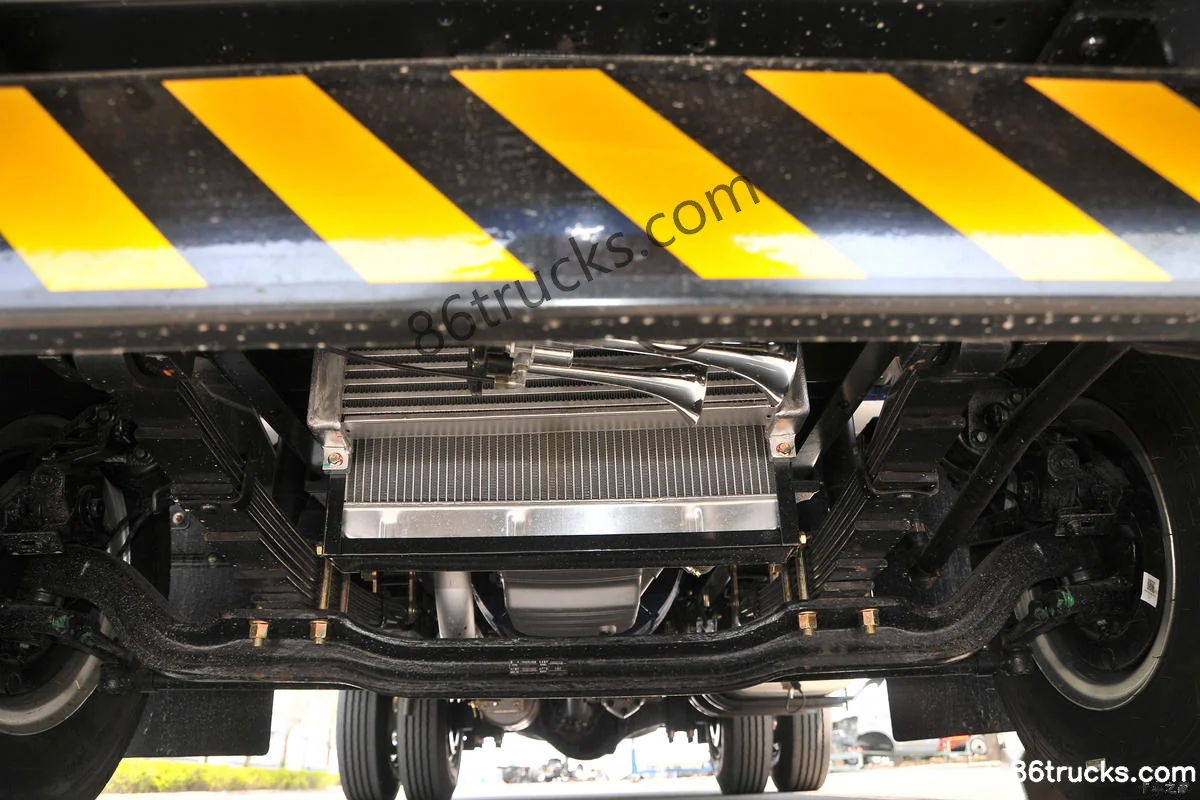

Chassis3

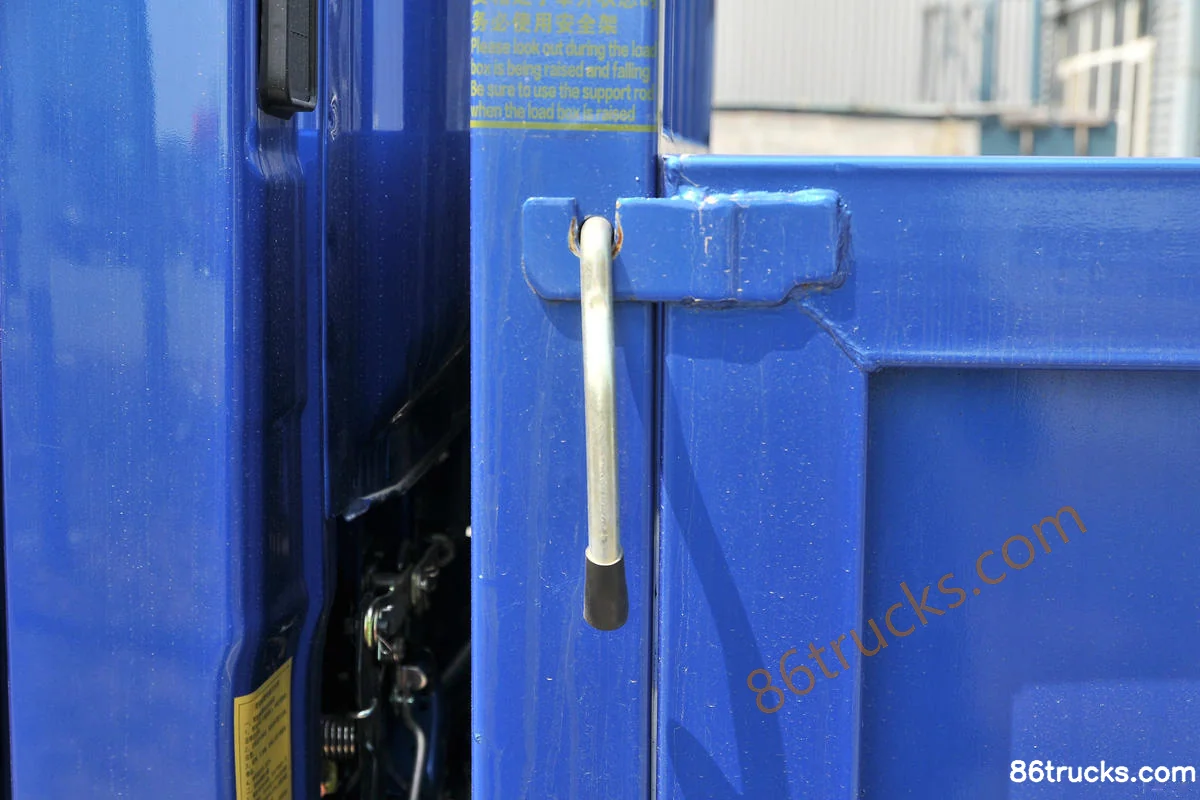

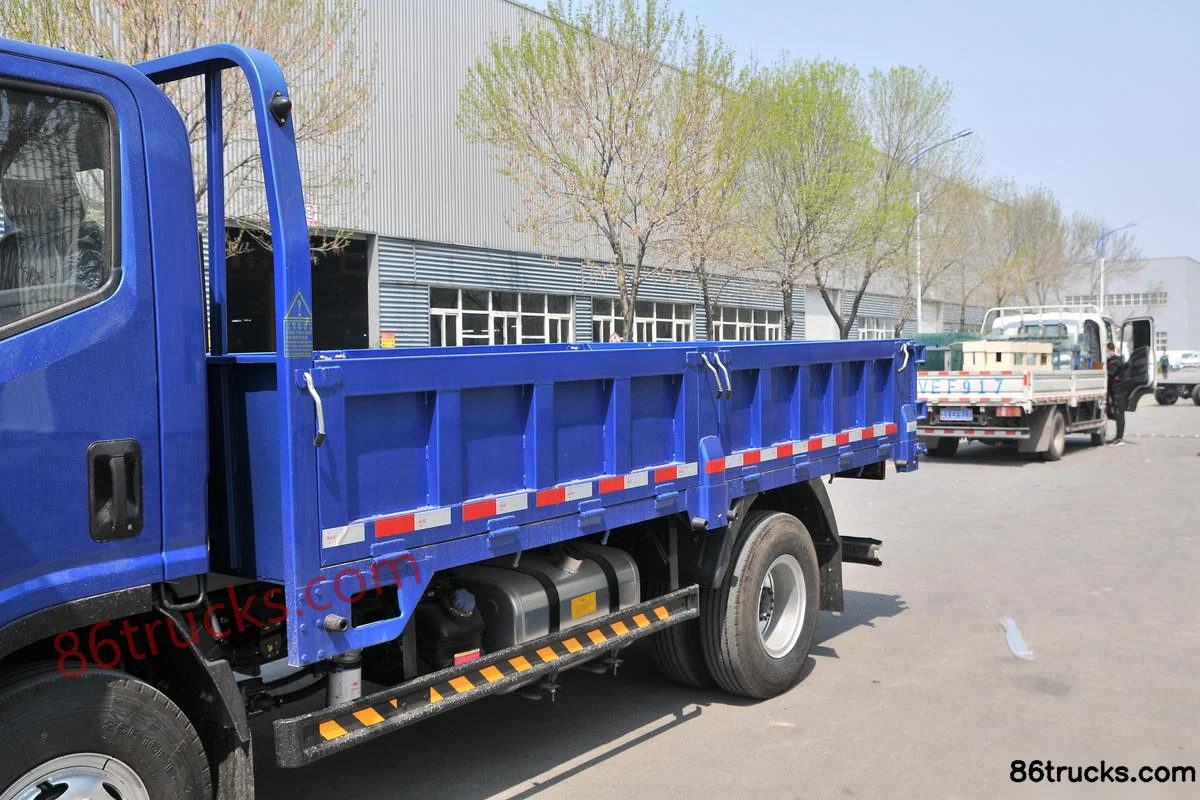

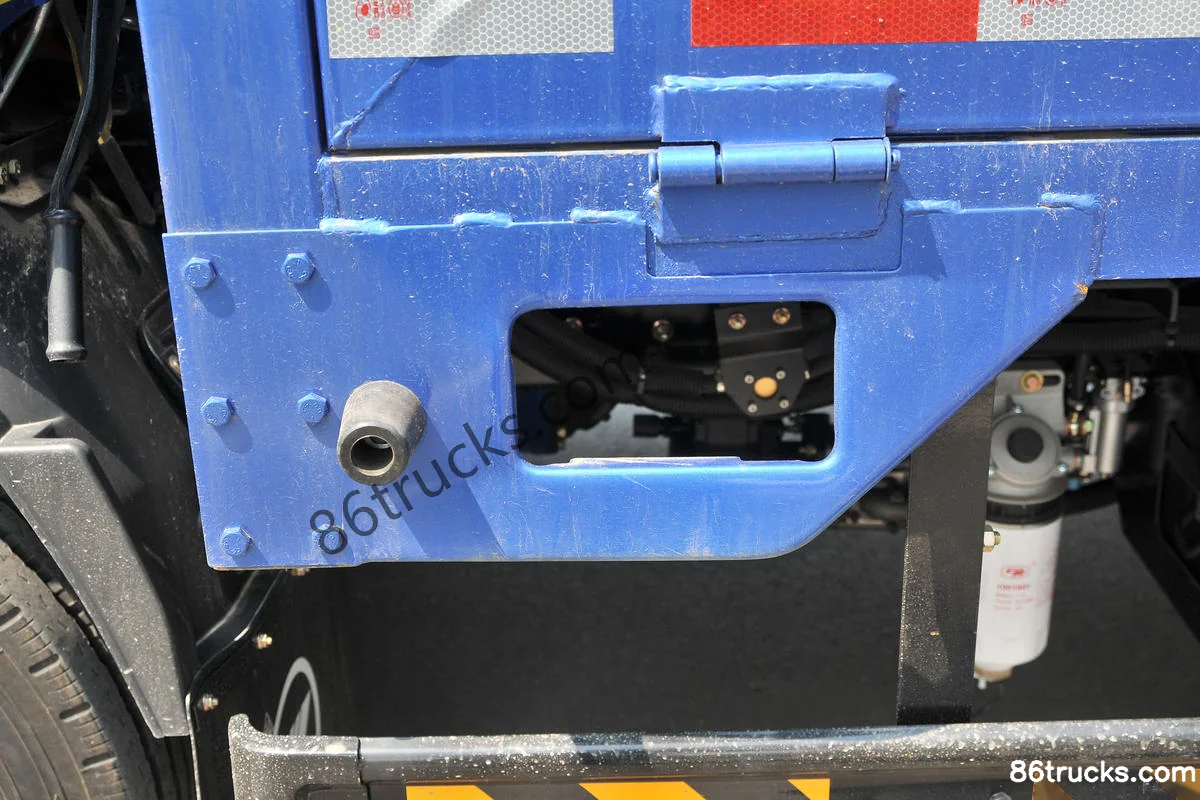

Body3

12 photos

FAQ

What is the export price of Kama Kaijie HM6 156 hp 4X2(6 wheels) 4.16m dump truck, and what does it include?

Kama Kaijie HM6 156 hp 4X2(6 wheels) 4.16m dump truck export reference is about From $21,944; MSRP is ¥15.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Kama Kaijie HM6 156 hp 4X2(6 wheels) 4.16m dump truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Kama Kaijie HM6 156 hp 4X2(6 wheels) 4.16m dump truck?

Key specs of Kama Kaijie HM6 156 hp 4X2(6 wheels) 4.16m dump truck: Drive: 4x2; Horsepower: 156 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Kama Kaijie HM6 156 hp 4X2(6 wheels) 4.16m dump truck suited for?

Kama Kaijie HM6 156 hp 4X2(6 wheels) 4.16m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Kama Kaijie HM6 156 hp 4X2(6 wheels) 4.16m dump truck differ from other variants in the same series?

Kama Kaijie HM6 156 hp 4X2(6 wheels) 4.16m dump truck belongs to Kama Kaijie HM6 Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Kama Kaijie HM6 156 hp 4X2(6 wheels) 4.16m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Kama Kaijie HM6 156 hp 4X2(6 wheels) 4.16m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
