JAC Gallop K3X Lightweight Version 340hp 8X4(12 wheels) 5.6m Dump Truck
EXW
From $45,931
Export quote
JAC Gallop K3 Heavy Truck Dump Trucks
Main model photos
903 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JAC Gallop K3X Lightweight Version 340hp 8X4(12 wheels) 5.6m Dump Truck | 8x4 / 340hp / China V | From $45,931 | |
| JAC Gallop K3W Heavy Truck Heavy-Duty 400 hp 8X4(12 wheels) 8m Dump Truck | 8x4 / 400hp / China V | From $52,472 | |
| JAC Gallop K3W Heavy Truck Heavy-Duty Edition 400hp 8X4(12 wheels) 7.8m dump truck | 8x4 / 400hp / China V | From $52,472 | |
| JAC Gallop K3X Heavy Truck Lightweight Edition 300 hp 8X4(12 wheels) 7.2m Dump Truck | 8x4 / 300hp / China V | From $39,958 | |
| JAC Gallop K3X Heavy Truck Lightweight Edition 300 hp 8X4(12 wheels) 7m Dump Truck | 8x4 / 300hp / China V | From $39,958 |
JAC Gallop K3W Heavy Truck Heavy-Duty 400 hp 8X4(12 wheels) 8m Dump Truck
EXW
From $52,472
Export quote

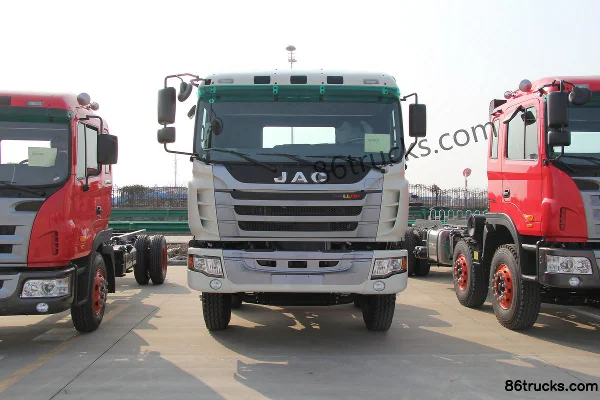

JAC Gallop K3W Heavy Truck Heavy-Duty Edition 400hp 8X4(12 wheels) 7.8m dump truck
EXW
From $52,472
Export quote
JAC Gallop K3X Heavy Truck Lightweight Edition 300 hp 8X4(12 wheels) 7.2m Dump Truck
EXW
From $39,958
Export quote
JAC Gallop K3X Heavy Truck Lightweight Edition 300 hp 8X4(12 wheels) 7m Dump Truck
EXW
From $39,958
Export quote
Series Specs
Basic Info
Model code (announced): HFC3311P2K5H24S3V / HFC3311P1K7H41S3V / HFC3311P2K4H35S3V / HFC3311P2K4H32S3V / HFC3311P1K7H48S3V / HFC3251P1K7E41S3V / HFC3311P1K7H35S3V / HFC3311P1K4H32S4V / HFC5311ZLJP1K7H38S3V / HFC3311P1K4H38S3V / HFC3311P1K7H38S3V / HFC3311P1K5H24S3V / HFC3311P1K4H28V / HFC3311P3K3H25S2V / HFC3311P3K3H35S2V / HFC3311P2K3H32S2V / HFC3251P1K7E43S3V / HFC3251P1K5E39S3V
Drive type: 8X4 / 6X4
Wheelbase: 1800+2400+1350 / 1800+4100+1350 / 1800+3500+1350 / 1800+3200+1350 / 1800+4400+1350 / 4100+1350 / 1800+3800+1350 / 1800+2500+1350 / 4700+1350 / 4350+1350 / 3900+1350mm
Engine Model: WeichaiWP7.340E53 / WeichaiWP12.400E50 / WeichaiWP7.300E51 / WeichaiWP12.430E50 / SinotrukD10.38-50 / WeichaiWP10.350E53 / WeichaiWP10.310E53 / SinotrukD10.34-50 / SinotrukD10.31-50 / YuchaiYC6A290-50 / YuchaiYC6A270-50
Transmission Model: Fast Gear10JSD140B / Fast Gear16JSD200TA / Fast Gear12JSD200T / Fast Gear12JSD220T / Fast Gear12JSD200 / Fast Gear12JSD160T / Fast Gear12JSD180T / Fast Gear10JSD160T / Fast Gear10JSD120B / Fast Gear10JSD140A / Fast Gear12JSD160
Rear Axle Ratio: 5.92 / 4.76 / 5.833 / 5.286 / 4.2 / 5.26 / 4.3 / 4.875 / 4.8
Cab length: 8.795 / 10.895 / 10.795 / 10.145 / 10.045 / 9.745 / 9.645 / 11.645 / 8.695 / 9.845 / 10.545 / 10.345 / 10.445 / 8.995 / 9.66 / 9.81 / 8.845 / 9.595 / 8.945 / 8.595m
Cab width: 2.55 / 2.5 / 2.37m
Cab height: 3.5 / 3.9 / 3.86m
Front track width: 2040/2040 / 2080/2080 / 2080 / 2040mm
rear track: 1860/1860 / 1880/1880 / 1900/1900mm
Curb Weight: 14.7 / 15.45 / 12.45 / 12.5 / 14.9ton
Rated payload: 16.17 / 15.355 / 15.42 / 12.42 / 18.305 / 15.905 / 12.355ton
GVWR: 31 / 25ton
Origin: Hefei, Anhui
tonnage class: Heavy truck
Approach angle: 18 / 17 / 22°
departure angle: 20 / 31 / 15 / 43°
Remarks: Power tilt cab, QH50A PTO / QH70 PTO, integrated rearview mirror, power windows, air suspension seat, electric tilt, central door lock, AC, extended frame side guard, fuel filter / QH50 PTO, power windows, electric tilt, A/C, driver air-suspension seat, rod-type rearview mirror / Without central control, manual tilt, A/C, mechanical seat, rod-type rearview mirror, QH50A PTO / QH70 PTO, engine standard with water-cold protector, front wheel mudguard, electric tilt, rod-type rearview mirror, optional ratio 4.769/5.26 / Electric tilt cab, front wheel mudguard, integrated rearview mirrors, optional rear stabilizer bar, rod-type rearview mirrors, FK controller, ratio 4.2/5.26, PTO QH70 / Electric tilt cab, front wheel mudguard, integrated rearview mirrors, optional rear stabilizer bar, rod-type rearview mirrors, FK controller, ratio 4.3/5.26, PTO QH70 / QH70 PTO, electric tilt, oil filter, full CAN, extended frame guard, cab raised 130mm, optional ratio 5.26 / QH70 PTO, electric tilt, integrated rearview mirror, intelligent fuel-saving switch, optional ratio 5.26 / QH70 PTO, electric tilt, integrated rearview mirror, intelligent fuel-saving switch / QH70 PTO, optional ratio 4.444, standard engine hood, condenser, front underrun protection, integrated rearview mirror, electric tilt, FK controller, rod-type rearview mirror. / QH70 PTO, with front spring rear spring cab support, front fender, integrated rearview mirrors, front stabilizer bar, ratio optional 5.26/4.76 / QH70 PTO, with front spring rear spring cab support, front fender, integrated rearview mirrors, front stabilizer bar, ratio optional 4.26/4.76 / QH50 PTO, front spring + rear spring cab suspension, front fender, integrated rearview mirror, front stabilizer bar, optional ratio 4.26/4.76 / QH70 PTO, electric tilt, front wheel mudguard, integrated rearview mirror, optional rear stabilizer bar, rod-type rearview mirror, FK controller, ratio 4.76 / QH70 PTO, electric tilt, front wheel mudguard, integrated rearview mirror, optional rear stabilizer bar, rod-type rearview mirror, FK controller, ratio 4.875 / QH50 PTO / Optional ratio 5.143, QH50A PTO / QH50A PTO / power window lift, electric tilt, optional ratio 5.143, QH50A PTO / Electric tilt cab, front wheel mudguard, integrated rearview mirror, optional rear stabilizer bar, rod-type rearview mirror, FK controller, ratio 4.76, PTO QH70 / QH50 PTO, electric tilt, integrated rearview mirror, optional FK controller, rear stabilizer bar, rod-type rearview mirror, ratio 5.26 / QH50 PTO, water separator heater, oil filter, front fender, electric tilt, full CAN, onboard power supply, integrated rearview mirror, optional ratio 5.26
Version: Lightweight version / Heavy-duty version / reinforced version / composite version / Ultra-lightweight Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai / Sinotruk / Yuchai
Number of cylinders: 6cylinder
Displacement: 7.47 / 11.596 / 9.726 / 7.52L
Emission standard: China V
Max output power: 250 / 294 / 220 / 316 / 276 / 257 / 228 / 249 / 213 / 199kW
Max hp: 340 / 400 / 300 / 430 / 380 / 350 / 310 / 290 / 270Horsepower
Max torque: 1250 / 1920 / 2060 / 1560 / 1600 / 1500 / 1490 / 1390 / 1150 / 1100N·m
Max torque speed: 1200-1700 / 1000-1400 / 1200-1500 / 1200-1600 / 1200-1800rpm
Rated speed: 2100 / 1900 / 2300 / 2000rpm
Engine Type: Electronic high-pressure common rail + SCR / Inline 6-cylinder, electronically controlled high-pressure common rail + SCR / Inline 6-cylinder, electronic high-pressure common rail, SCR / Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, high-pressure common rail / Vertical, inline, water-cooled, four-stroke
Technology route: Common Rail SCR
Transmission Parameters
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10 / 16 / 12Gear
Number of Reverse Gears: 2pcs
Housing Material: Steel shell / aluminum housing
Cargo box parameters
Unloading Type: Rear-dump body / Dump type
Cargo box length: 5.6 / 8 / 7.8 / 7.2 / 7 / 6.8 / 6.5 / 8.8 / 5.8 / 7.6 / 7.4 / 6m
Cargo box width: 2.35 / 2.3m
FAQ
What kind of truck is JAC Gallop JAC Gallop K3 Heavy Truck Dump Trucks?
JAC Gallop JAC Gallop K3 Heavy Truck is an export-oriented Dump Trucks lineup with about 133 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for JAC Gallop K3 Heavy Truck Dump Trucks?
JAC Gallop K3 Heavy Truck Dump Trucks export reference is about $27,778 – $60,417. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does JAC Gallop K3 Heavy Truck Dump Trucks cover?
JAC Gallop K3 Heavy Truck Dump Trucks mainly covers: Drive: 8x4; Horsepower: 300 hp / 340 hp / 400 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in JAC Gallop K3 Heavy Truck Dump Trucks?
For JAC Gallop K3 Heavy Truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does JAC Gallop K3 Heavy Truck Dump Trucks include?
JAC Gallop K3 Heavy Truck Dump Trucks currently lists about 133 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for JAC Gallop K3 Heavy Truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
