Hyundai Commercial Vehicle Chuanghu XCIENT heavy truck 410hp 6X4(10 wheels) 5.6m dump truck
EXW
From $53,681
Export quote
Hyundai Commercial Vehicle Sichuan Hyundai Chuanghu

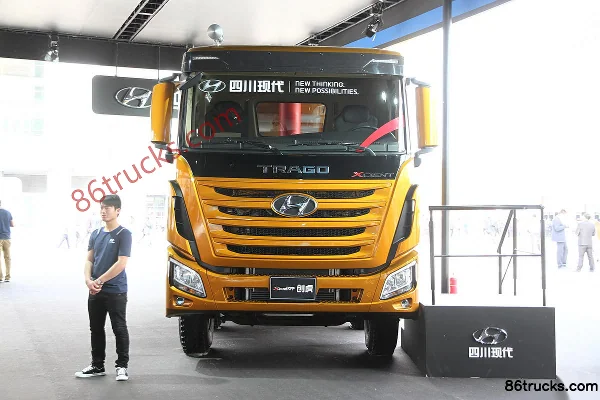

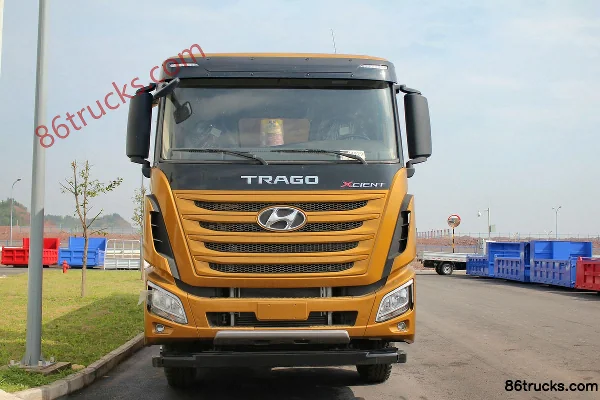

Main model photos
504 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Hyundai Commercial Vehicle Chuanghu XCIENT heavy truck 410hp 6X4(10 wheels) 5.6m dump truck | 6x4 / 410hp / China V | From $53,681 | |
| Hyundai Commercial Vehicle XCIENT Heavy Truck 380 hp 6X4(10 wheels) 5.8m Dump Truck | 6x4 / 380hp / China V | From $56,319 | |
| Hyundai Commercial Vehicle XCIENT Heavy Truck 380 hp 6X4(10 wheels) 5.8m Dump Truck | 6x4 / 380hp / China V | From $53,542 | |
| Hyundai Commercial Vehicle Chuanghu XCIENT heavy truck 410hp 6X4(10 wheels) 5.6m dump truck | 6x4 / 410hp / China V | From $53,681 | |
| Hyundai Commercial Vehicle Chuanghu XCIENT Heavy Truck 410 hp 6X4(10 wheels) 5.8m Dump Truck | 6x4 / 410hp / China V |
Hyundai Commercial Vehicle XCIENT Heavy Truck 380 hp 6X4(10 wheels) 5.8m Dump Truck
EXW
From $56,319
Export quote
Hyundai Commercial Vehicle XCIENT Heavy Truck 380 hp 6X4(10 wheels) 5.8m Dump Truck
EXW
From $53,542
Export quote
Hyundai Commercial Vehicle Chuanghu XCIENT heavy truck 410hp 6X4(10 wheels) 5.6m dump truck
EXW
From $53,681
Export quote
Hyundai Commercial Vehicle Chuanghu XCIENT Heavy Truck 410 hp 6X4(10 wheels) 5.8m Dump Truck
EXW
Export quote
Series Specs
Basic Info
Model code (announced): CHM3250KPQ52V / CHM3250KPQ54V / CHM3253KPQ52M / CHM3251KPQ52M / CHM3310KPQ74M / CHM3312KPQ64M / CHM3311KPQ64M / CHM3252KPQ52M / CHM3250KPQ52M / CHM3310KPQ72M / CHM3310KPQ64M
Drive type: 6X4 / 8X4
Wheelbase: 3850+1350 / 4100+1350 / 1990+4060+1350 / 1990+3110+1350 / 1990+3860+1350mm
Engine Model: Hyundai Commercial VehicleD6CF41E5 / Hyundai Commercial VehicleD6CF38E5 / YuchaiYC6MK340-40 / YuchaiYC6MK300-42 / Hyundai Commercial VehicleD6CF41E4 / Hyundai Commercial VehicleD6CF44E4 / Hyundai Commercial VehicleD6CF36E4
Transmission Model: Demose T230S12 / Demose T180S12 / Fast Gear 9-speed / Demose 16-speed / Dymos 12-speed / Hyundai Commercial VehicleT180S12 / Hyundai Commercial VehicleT230S12
Rear Axle Ratio: 6.77 / 5.73 / 4.8 / 5.27
Cab length: 8.675 / 8.875 / 9.075 / 10.715 / 9.61m
Cab width: 2.5m
Cab height: 3.5 / 3.38 / 3.44m
Front track width: 2045 / 2045/2045mm
rear track: 1828/1828mm
Curb Weight: 12.11 / 12.42 / 12.37 / 14.88 / 15.38 / 15.5 / 15.07ton
Rated payload: 12.76 / 12.45 / 12.5 / 15.99 / 15.49 / 15.37 / 15.8ton
GVWR: 25 / 31ton
Origin: Ziyang, Sichuan
tonnage class: Heavy truck
Approach angle: 16 / 17°
departure angle: 19 / 17 / 21 / 23°
Remarks: ASR traction control, electronic cab tilting / Fire extinguisher, cab electric tilt, radio + MP5, keyless entry. / ASR traction control, radio + MP5, electronic cab tilting
Version: Urban Construction & Muck
Energy Type: Diesel
Engine parameters
Engine Brand: Hyundai Commercial Vehicle / Yuchai
Number of cylinders: 6cylinder
Displacement: 12.742 / 12.7 / 10.338L
Emission standard: China V / China IV
Max output power: 302 / 279 / 250 / 221 / 324 / 265kW
Max hp: 410 / 380 / 340 / 300 / 440 / 360Horsepower
Max torque: 1796 / 1560 / 1500 / 1400 / 2002 / 1600N·m
Max torque speed: 1200 / 1100-1500rpm
Rated speed: 1800 / 1900 / 2100rpm
Engine Type: Vertical, inline 6-cylinder, water-cooled, 4-stroke, electronic direct injection / BOSCH high-pressure common rail SCR
Transmission Parameters
Transmission Brand: Dymos / Fast Gear / Hyundai Commercial Vehicle
shift method: Manual
Forward gears: 12 / 9 / 16Gear
Number of Reverse Gears: 2 / 1 / 4pcs
Cargo box parameters
Unloading Type: Dump type / Rear-dump body
Cargo box length: 5.6 / 5.8 / 6 / 7.6 / 6.5m
Cargo box width: 2.3m
Cargo box height: 1.1 / 1.09 / 1.2m
Cab parameters
Driver seat type: air suspension seat
FAQ
What kind of truck is Hyundai Commercial Vehicle Sichuan Hyundai Chuanghu XCIENT Heavy Truck Dump Trucks?
Hyundai Commercial Vehicle Sichuan Hyundai Chuanghu XCIENT Heavy Truck is an export-oriented Dump Trucks lineup with about 26 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Hyundai Commercial Vehicle Sichuan Hyundai Chuanghu?
Hyundai Commercial Vehicle Sichuan Hyundai Chuanghu export reference is about $53,542 – $56,319. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Hyundai Commercial Vehicle Sichuan Hyundai Chuanghu cover?
Hyundai Commercial Vehicle Sichuan Hyundai Chuanghu mainly covers: Drive: 6x4; Horsepower: 380 hp / 410 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Hyundai Commercial Vehicle Sichuan Hyundai Chuanghu?
For Hyundai Commercial Vehicle Sichuan Hyundai Chuanghu: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Hyundai Commercial Vehicle Sichuan Hyundai Chuanghu include?
Hyundai Commercial Vehicle Sichuan Hyundai Chuanghu currently lists about 26 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Hyundai Commercial Vehicle Sichuan Hyundai Chuanghu?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
