Sichuan Hyundai Chuanghu XCIENT Heavy Truck 300 hp 8X4(12 wheels) 7.6m Dump Truck

Export reference
MSRP N/A
Emission: China IV
Fuel: Diesel
Transmission: Dymos
Curb Weight:: 14.88ton
Wheelbase:: 1990+4060+1350mm
Tire Size:: 12.00R20 18PR
Rated payload: 15.99ton
Drive 8X4 (12 wheels)
Horsepower 300
Cargo box type: Rear-dump body

Overview

The Hyundai Commercial Vehicle Sichuan Hyundai Chuanghu XCIENT Heavy Truck 300 hp 8X4(12 wheels) 7.6m Dump Truck is a Heavy truck featuring 15.99t payload, 31t GVW, Rear-dump body cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a YuchaiYC6MK300-42 engine, 300 hp, China IV emissions and Dymos transmission.

China IV 300 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CHM3310KPQ74M
Drive type: 8X4
Wheelbase: 1990+4060+1350mm
engine: YuchaiYC6MK300-42
transmission: Dymos 12-speed
Cab length: 10.715m
Cab width: 2.5m
Cab height: 3.38m
Front track width: 2045/2045mm
rear track: 1828/1828mm
Curb Weight: 14.88ton
Rated payload: 15.99ton
GVWR: 31ton
Origin: Ziyang, Sichuan
tonnage class: Heavy truck
Approach angle: 16°
departure angle: 21°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6MK300-42
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 10.338L
Emission standard: China IV
Max output power: 221kW
Max hp: 300Horsepower
Max torque: 1400N·m
Max torque speed: 1100-1500rpm
Rated speed: 2100rpm
Engine Type: BOSCH high-pressure common rail SCR
Transmission Parameters
Transmission Model: Dymos 12-speed
Transmission Brand: Dymos
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 7.6m
Cargo box width: 2.3m
Cargo box height: 1.09m
Chassis Specs
rear axle allowable load: 18000 (twin axle)kg
Leaf spring count: 12/12/12
Tire
Tire Size: 12.00R20 18PR
Number of tires: 12pcs

Photos

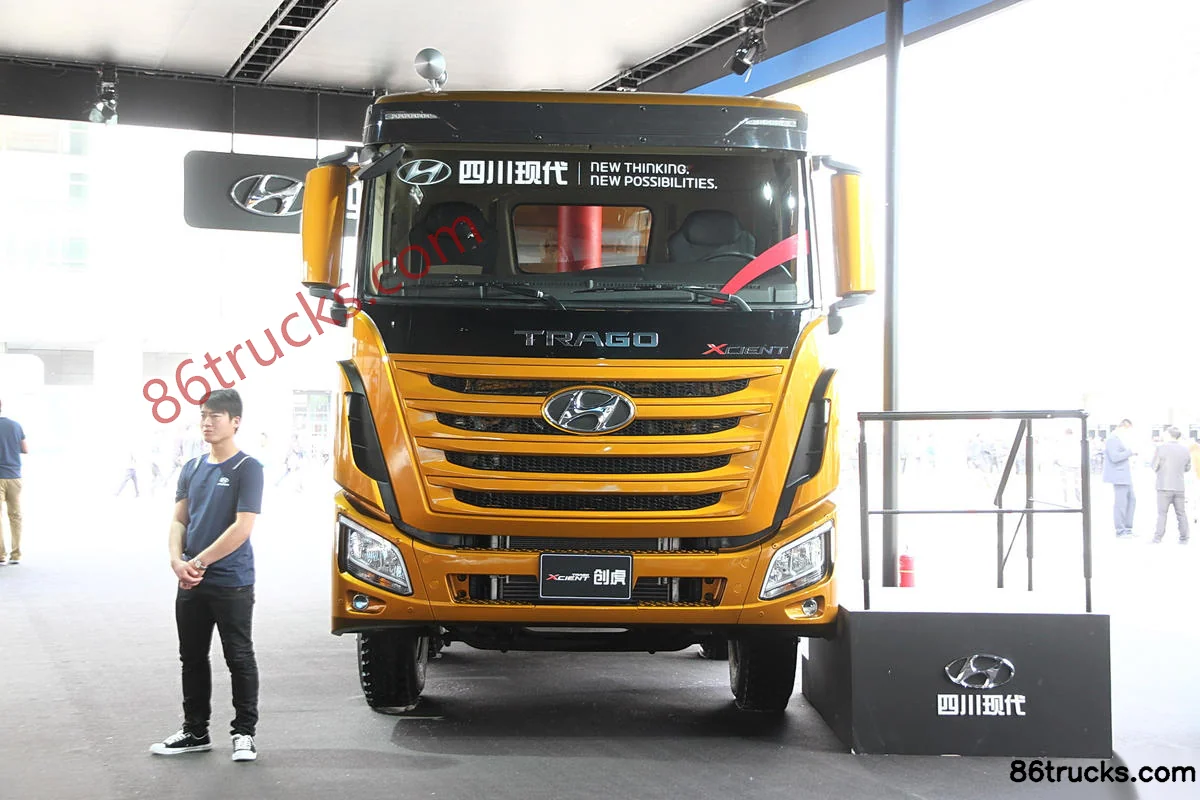

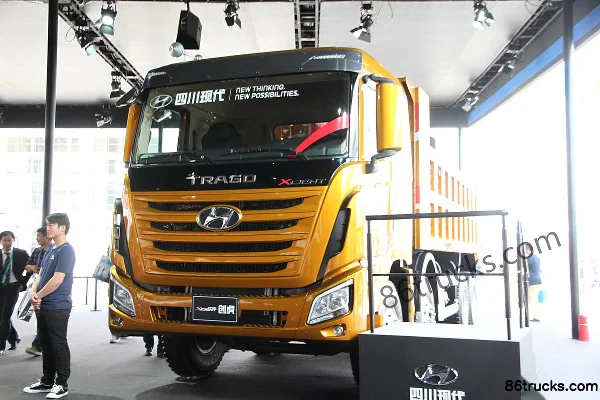

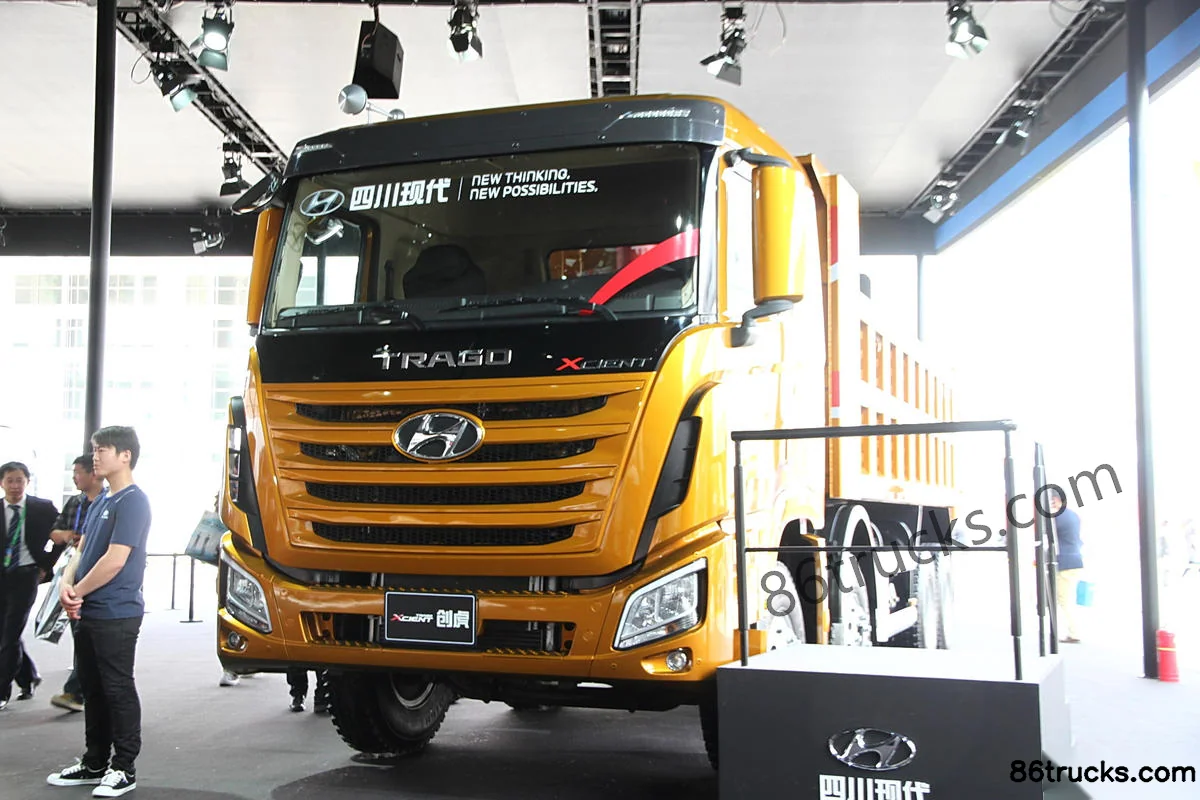

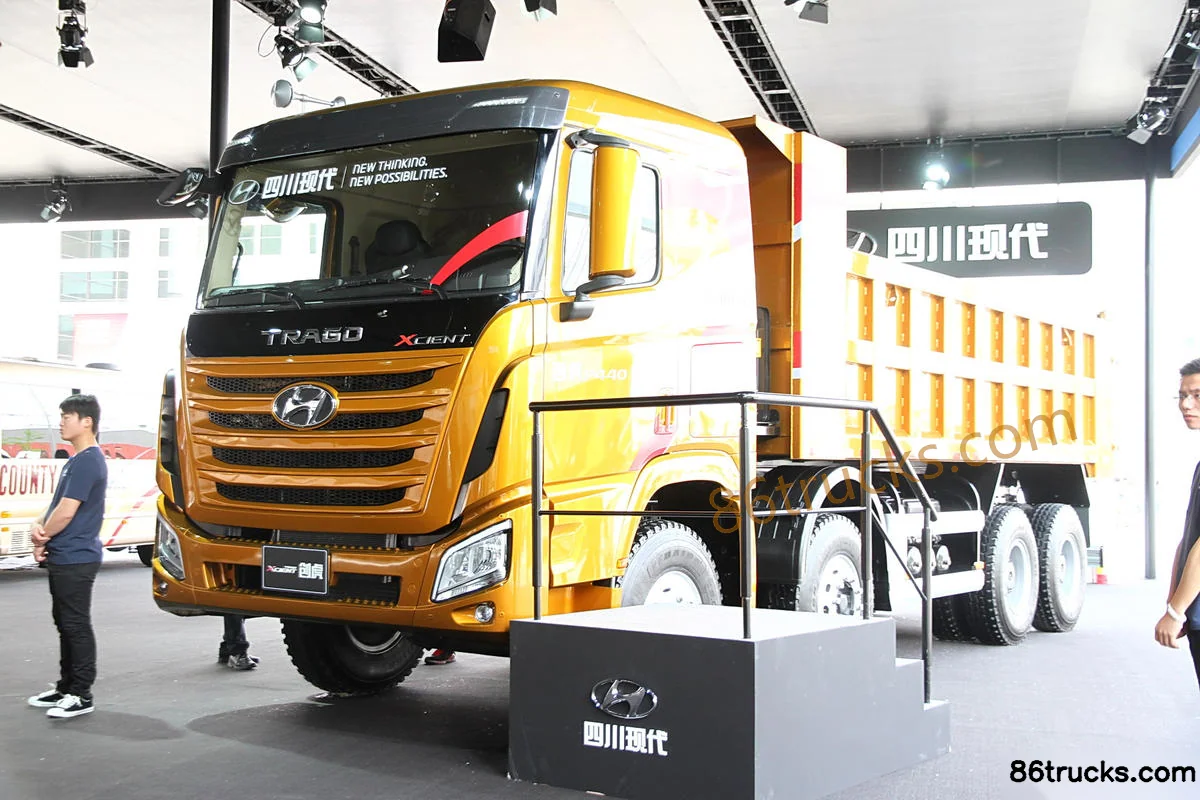

Exterior3

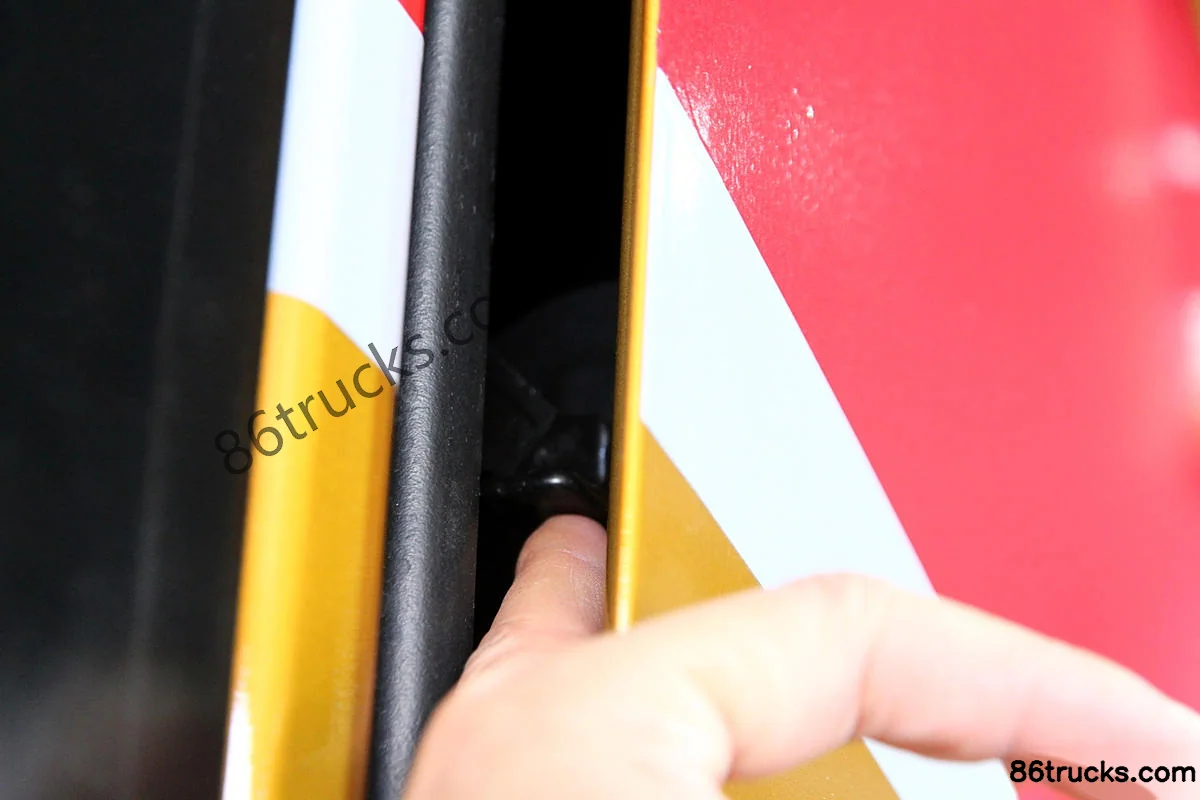

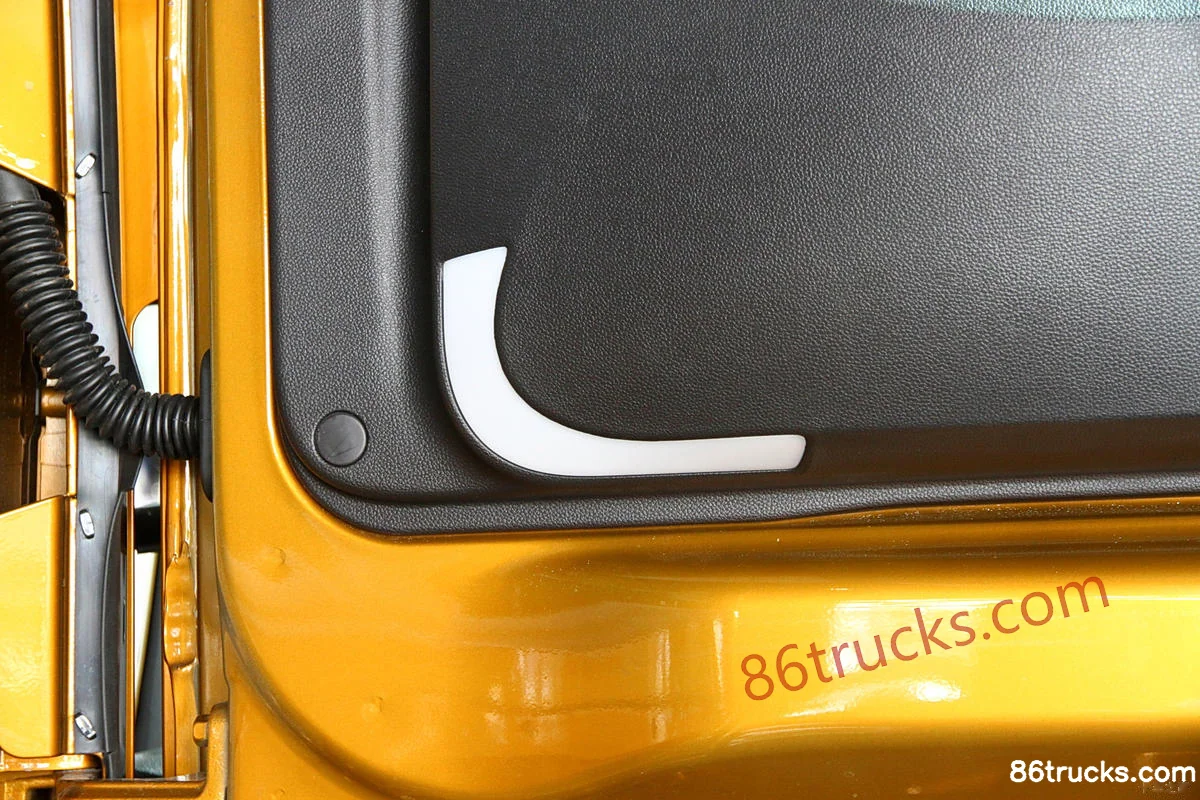

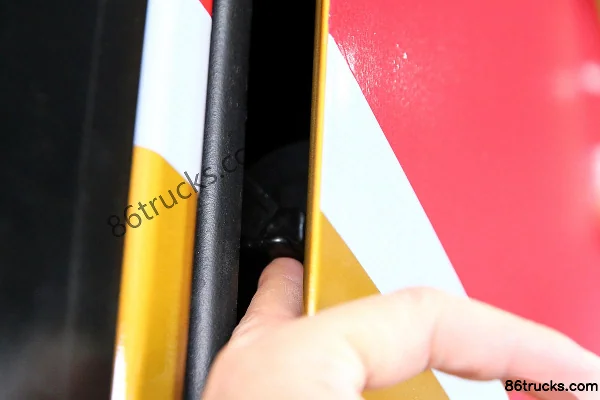

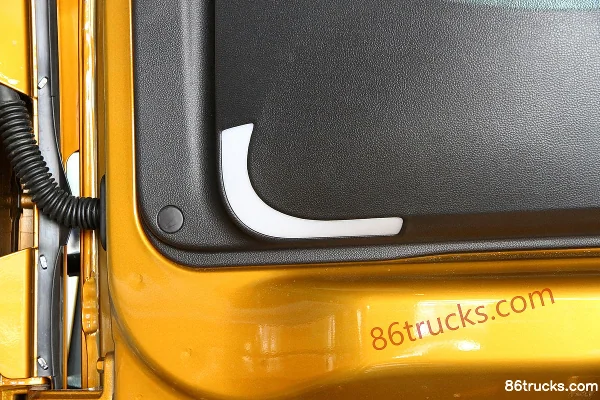

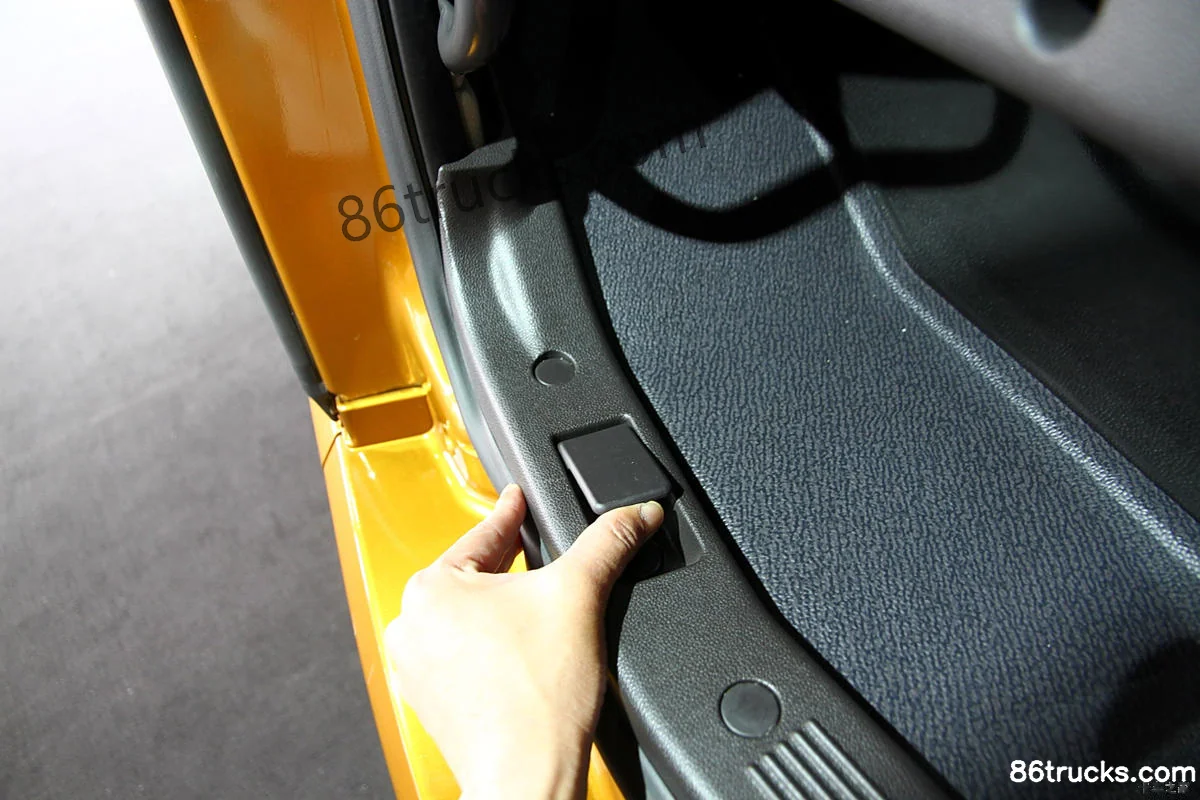

Cab3

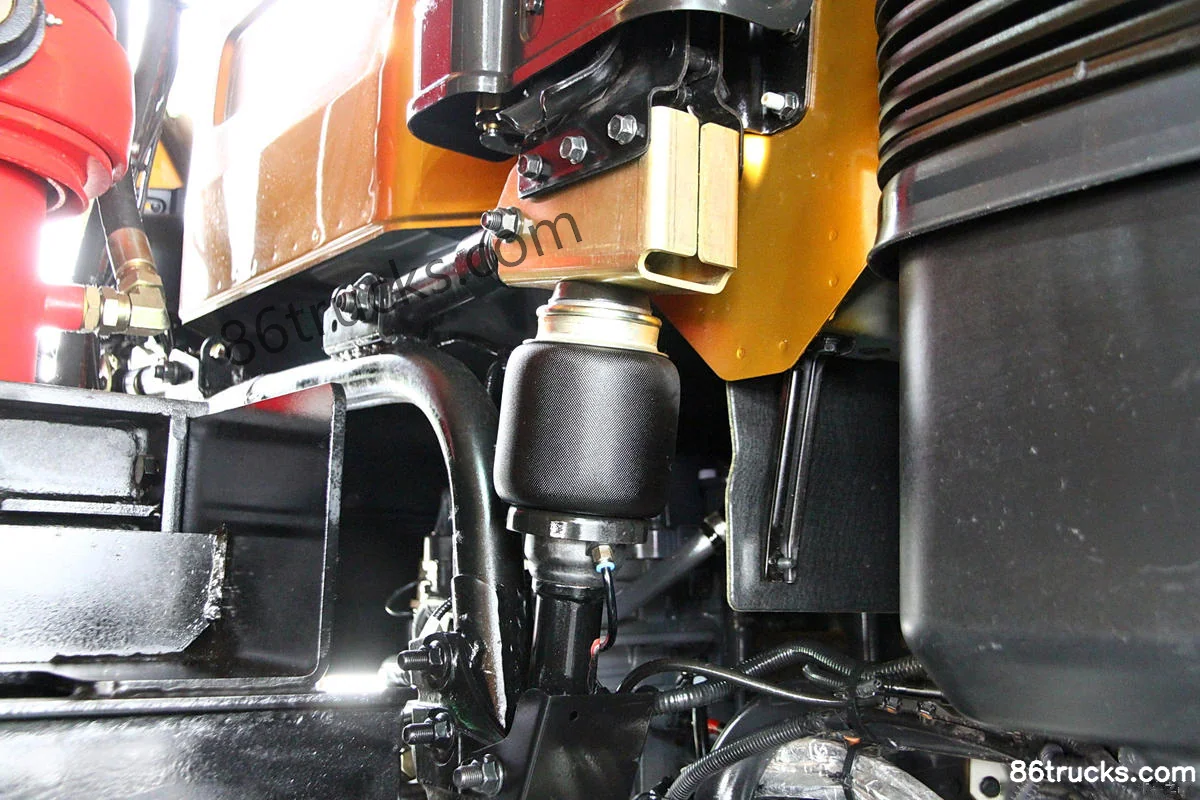

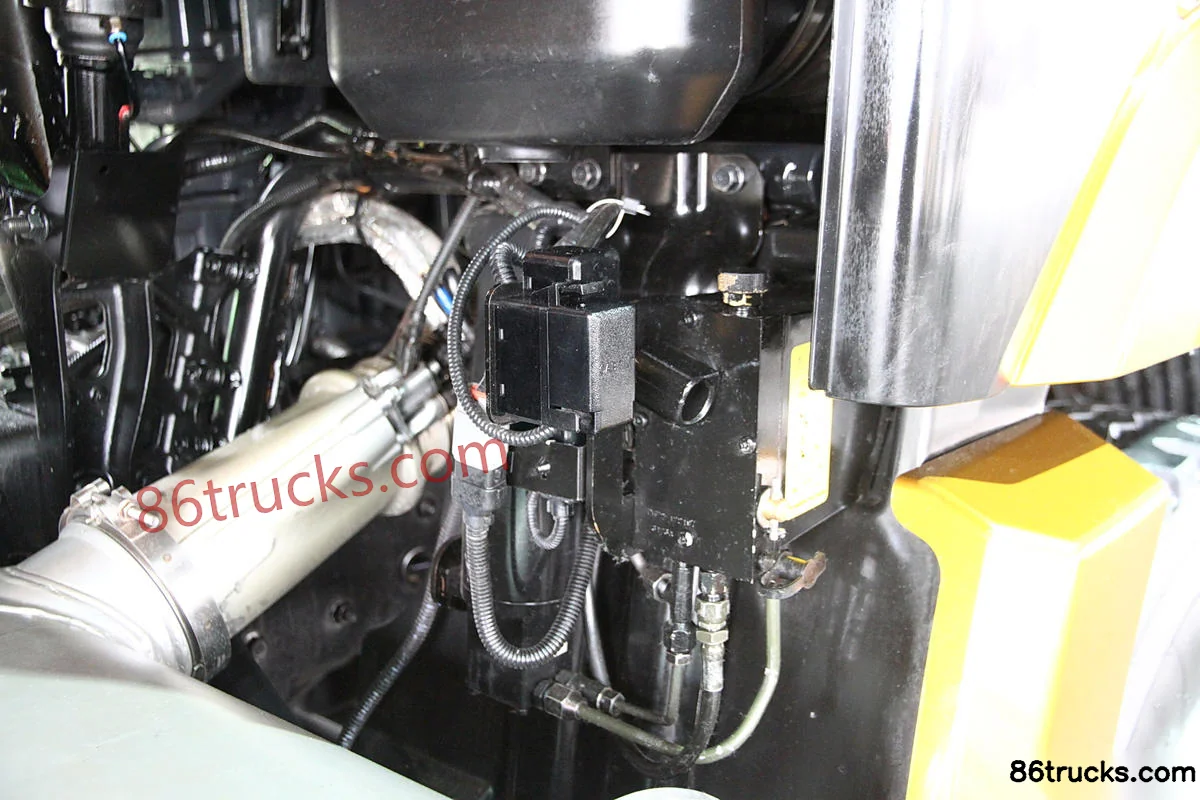

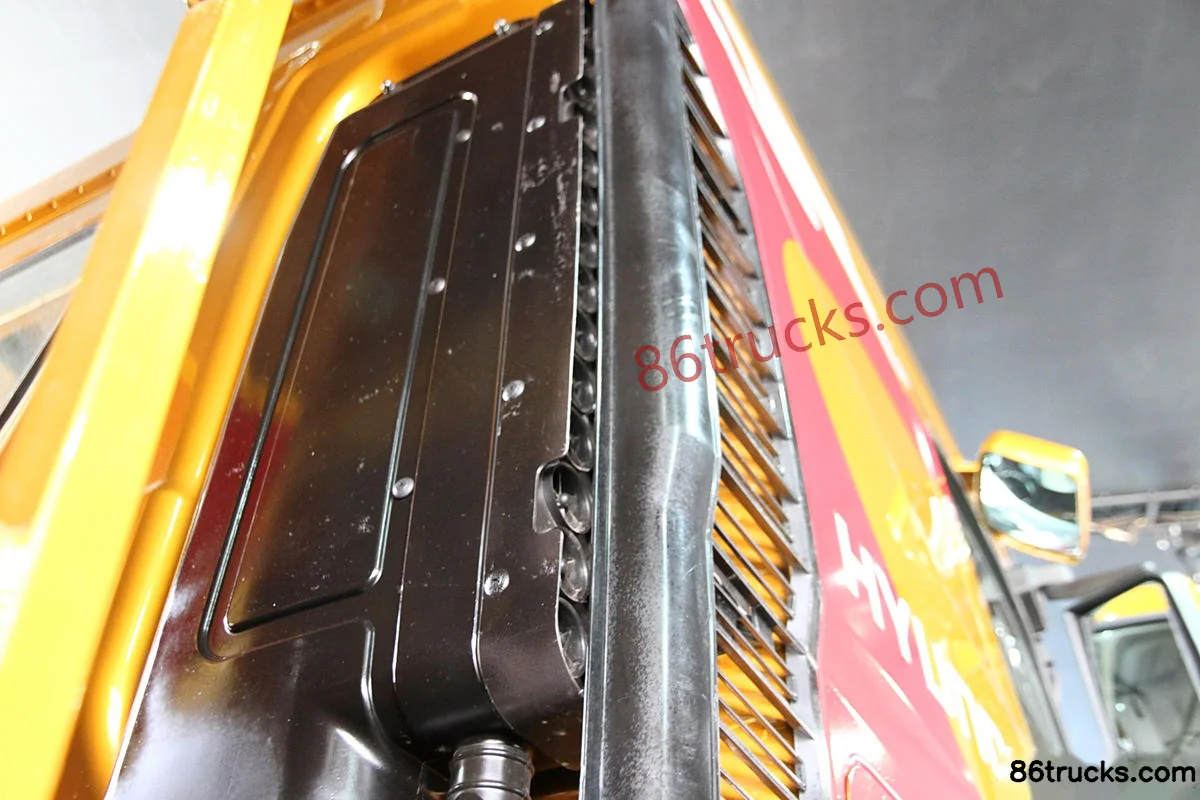

Chassis3

9 photos

FAQ

What emission standard does Sichuan Hyundai Chuanghu XCIENT Heavy Truck 300 hp 8X4(12 wheels) 7.6m Dump Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sichuan Hyundai Chuanghu XCIENT Heavy Truck 300 hp 8X4(12 wheels) 7.6m Dump Truck?

Key specs of Sichuan Hyundai Chuanghu XCIENT Heavy Truck 300 hp 8X4(12 wheels) 7.6m Dump Truck: Drive: 8x4; Horsepower: 300 hp; Emission: China IV; Fuel: Diesel; Transmission: Dymos. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sichuan Hyundai Chuanghu XCIENT Heavy Truck 300 hp 8X4(12 wheels) 7.6m Dump Truck suited for?

Sichuan Hyundai Chuanghu XCIENT Heavy Truck 300 hp 8X4(12 wheels) 7.6m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sichuan Hyundai Chuanghu XCIENT Heavy Truck 300 hp 8X4(12 wheels) 7.6m Dump Truck differ from other variants in the same series?

Sichuan Hyundai Chuanghu XCIENT Heavy Truck 300 hp 8X4(12 wheels) 7.6m Dump Truck belongs to Sichuan Hyundai Chuanghu XCIENT Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sichuan Hyundai Chuanghu XCIENT Heavy Truck 300 hp 8X4(12 wheels) 7.6m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sichuan Hyundai Chuanghu XCIENT Heavy Truck 300 hp 8X4(12 wheels) 7.6m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
