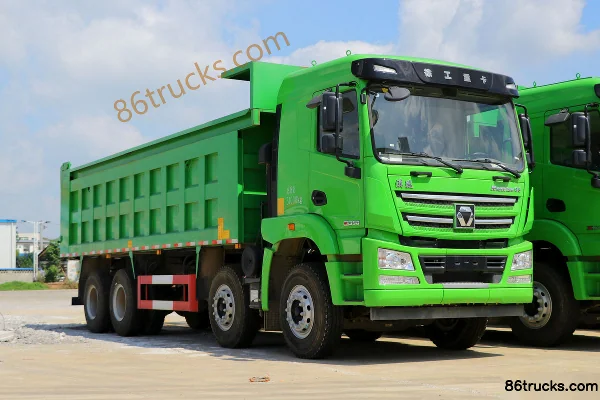

XCMG Hanfeng XG1M 350hp 8X4(12 wheels) 5.8m dump truck
EXW
From $44,486
Export quote
XCMG Truck Hanfeng XG1M (formerly Hanfeng G5) Heavy
Main model photos
306 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| XCMG Hanfeng XG1M 350hp 8X4(12 wheels) 5.8m dump truck | 8x4 / 350hp / China VI | From $44,486 | |
| XCMG Hanfeng XG1M 350hp 8X4(12 wheels) 5.6m dump truck | 8x4 / 350hp / China VI | From $44,486 | |
| XCMG XG1M Shanghai Edition 350 hp 8X4(12 wheels) 5.8m dump truck (China VI) | 8x4 / 350hp / China VI | From $45,972 | |
| XCMG XG1M Shanghai Edition 350 hp 8X4(12 wheels) 5.6m dump truck (China VI) | 8x4 / 350hp / China VI | From $45,847 | |
| XCMG Hanfeng G5 350hp 8X4(12 wheels) 5.6m Dump Truck (China VI)(Fast Gear 12-speed) | 8x4 / 350hp / China VI | From $44,486 |
XCMG Hanfeng XG1M 350hp 8X4(12 wheels) 5.6m dump truck
EXW
From $44,486
Export quote
XCMG XG1M Shanghai Edition 350 hp 8X4(12 wheels) 5.8m dump truck (China VI)
EXW
From $45,972
Export quote
XCMG XG1M Shanghai Edition 350 hp 8X4(12 wheels) 5.6m dump truck (China VI)
EXW
From $45,847
Export quote
XCMG Hanfeng G5 350hp 8X4(12 wheels) 5.6m Dump Truck (China VI)(Fast Gear 12-speed)
EXW
From $44,486
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| XCMG Hanfeng G5 Standard Load Edition 390 hp 6X4(10 wheels) 5.6m LNG Dump-Type Garbage Truck (China VI) | 6x4 / 390hp / China VI | ||
| XCMG Hanfeng G5 Standard Load Edition 390 hp 6X4(10 wheels) 5.4m LNG Dump-Type Garbage Truck (China VI) | 6x4 / 390hp / China VI | ||
| XCMG Hanfeng G5N 350 hp 8X4(12 wheels) 5.6m dump truck (16t rear axle) | 8x4 / 350hp / China VI | ||
| XCMG Hanfeng G5N 350 hp 8X4(12 wheels) 5.6m dump truck | 8x4 / 350hp / China VI | ||
| XCMG Hanfeng G5 350hp 8X4(12 wheels) 5.8m Dump Truck (China VI)(Fast Gear 12-speed) | 8x4 / 350hp / China VI |
XCMG Hanfeng G5 Standard Load Edition 390 hp 6X4(10 wheels) 5.6m LNG Dump-Type Garbage Truck (China VI)
EXW
Export quote
XCMG Hanfeng G5 Standard Load Edition 390 hp 6X4(10 wheels) 5.4m LNG Dump-Type Garbage Truck (China VI)
EXW
Export quote
XCMG Hanfeng G5N 350 hp 8X4(12 wheels) 5.6m dump truck (16t rear axle)
EXW
Export quote
XCMG Hanfeng G5N 350 hp 8X4(12 wheels) 5.6m dump truck
EXW
Export quote
XCMG Hanfeng G5 350hp 8X4(12 wheels) 5.8m Dump Truck (China VI)(Fast Gear 12-speed)
EXW
Export quote
Series Specs
Basic Info
Model code (announced): XGA3311D6NE / XGA5251ZLJN6NC / XGA3311D6NEA / XGA3310N6NE / XGA5250ZLJN6NC / XGA3310D6NE / NXG3310D5NEL / NXG3310D5NEM / XGA5311ZLJD6NE / XGA5310ZLJN6WE / XGA5250ZLJN5
Drive type: 8X4 / 6X4
Wheelbase: 1950+2400+1400 / 3800+1400 / 1950+2700+1400 / 1950+3300+1350 / 1950+2700+1350 / 1950+3000+1400 / 1950+3000+1350 / 1950+2550+1400 / 1950+2800+1350 / 4000+1400 / 1950+4000+1350 / 1950+3600+1350mm
Engine Model: WeichaiWP8.350E62 / WeichaiWP10.5HNG390E62 / YuchaiYCK08350-60 / WeichaiWP8.350E61 / WeichaiWP7.300E61 / WeichaiWP10HNG350E60 / WeichaiWP7.270E61 / WeichaiWP10.350E53 / WeichaiWP10.310E53 / WeichaiWP8.340E50 / WeichaiWP10H375E62 / SinotrukD10.38-50 / WeichaiWP8.340E51
Transmission Model: Fast Gear10JSD140T / Fast Gear10JSD180T / Fast Gear12JSD160T / Fast Gear10JSD140TB / Fast Gear10JSD160 / Fast Gear10JSD140B / Fast Gear8JS125T / 12JSD160T / Fast Gear9JS135TB / Fast Gear12JSD180T / Fast Gear10JSD180TA
Rear Axle Ratio: 4.769 / 4.8 / 5.571 / 5.286 / 5.143 / 5.262 / 4.875
Cab length: 8.77 / 8.67 / 8.6 / 8.4 / 9.1 / 9 / 9.725 / 9.575 / 9.16 / 9.63 / 8.785 / 8.68 / 8.48 / 8.38 / 8.78 / 10.98 / 10.78 / 10.68 / 10.38m
Cab width: 2.55m
Cab height: 3.51 / 3.57 / 3.5 / 3.6m
Front track width: 2060/2060 / 2060 / 2032/2032 / 2032mm
rear track: 1860/1860mm
Curb Weight: 12.8 / 12.48 / 14.4 / 12.43 / 15.18 / 14.8 / 12.2 / 15.5ton
Rated payload: 18.07 / 12.325 / 18.005 / 16.47 / 12.44 / 15.69 / 16.07 / 18.67 / 15.37ton
GVWR: 31 / 25ton
Origin: Xuzhou, Jiangsu
tonnage class: Heavy truck
Approach angle: 17 / 18 / 15 / 22 / 19 / 24°
departure angle: 21 / 22 / 23 / 37 / 18°
Remarks: 500L fuel tank, stainless steel; optional: 12JSD160TA aluminum transmission, ratio 4.6255, 3/3/4 leaf springs / 500L fuel tank, stainless steel; optional: 12JSD160TA aluminum transmission, ratio 4.875, 3/3/4 leaf springs / 450L fuel tank material is stainless steel / Optional: ratio 5.143, 435 rear axle / Optional: ratio 5.262, 4.8/13T Steyr rear axle / Optional: 5.262 ratio / Optional: 4.769/5.73/4.8/5.286 ratio / Optional: 5.286 ratio / Optional: 4.8, 5.262 ratio
Version: Shanghai Edition / Standard Load Edition / composite version
Energy Type: Diesel / LNG (liquefied natural gas)
Engine parameters
Engine Brand: Weichai / Yuchai / Sinotruk
Number of cylinders: 6cylinder
Displacement: 7.8 / 10.5 / 7.7 / 7.5 / 9.5 / 7.47 / 9.726L
Emission standard: China VI / China V
Max output power: 220 / 287 / 257 / 199 / 228 / 250 / 276kW
Max hp: 350 / 390 / 300 / 270 / 310 / 340 / 375 / 380Horsepower
Max torque: 1785 / 1450 / 1400 / 1300 / 1600 / 1160 / 1500 / 1800 / 1560N·m
Max torque speed: 1100-1400 / 1300-1500 / 1200-1600 / 1100-1500 / 1200-1500 / 1200-1700 / 1000-1400rpm
Rated speed: 1900 / 2200 / 2100 / 2000rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC / Inline 6-cylinder, water-cooled, 4-stroke, high-pressure common rail, turbocharged intercooled, EGR / CR+EGR+DOC+DPF+SCR / SPI+ER+EGR+TWC / Electronic high-pressure common rail + SCR / Inline 6-cylinder, electronic high-pressure common rail, SCR / High-pressure common rail+EGR / CR+DOC+DPF+Hi_SCR / Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, high-pressure common rail
Transmission Parameters
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10 / 12 / 8 / 9Gear
Number of Reverse Gears: 2 / 1pcs
Housing Material: Steel shell / aluminum housing
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 5.8 / 5.6 / 5.4 / 6.2 / 6 / 6.8 / 6.5 / 8 / 7.8 / 7.6 / 7.4m
Cargo box width: 2.35 / 2.3m
FAQ
What kind of truck is XCMG Truck XCMG Truck Hanfeng XG1M (formerly Hanfeng G5) Heavy Truck Dump Trucks?
XCMG Truck XCMG Truck Hanfeng XG1M (formerly Hanfeng G5) Heavy Truck is an export-oriented Dump Trucks lineup with about 67 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for XCMG Truck Hanfeng XG1M (formerly Hanfeng G5) Heavy?
XCMG Truck Hanfeng XG1M (formerly Hanfeng G5) Heavy export reference is about $37,611 – $50,833. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does XCMG Truck Hanfeng XG1M (formerly Hanfeng G5) Heavy cover?
XCMG Truck Hanfeng XG1M (formerly Hanfeng G5) Heavy mainly covers: Drive: 6x4 / 8x4; Horsepower: 350 hp / 390 hp; Emission: China VI; Fuel: Diesel / LNG (liquefied natural gas). Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in XCMG Truck Hanfeng XG1M (formerly Hanfeng G5) Heavy?
For XCMG Truck Hanfeng XG1M (formerly Hanfeng G5) Heavy: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does XCMG Truck Hanfeng XG1M (formerly Hanfeng G5) Heavy include?
XCMG Truck Hanfeng XG1M (formerly Hanfeng G5) Heavy currently lists about 67 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for XCMG Truck Hanfeng XG1M (formerly Hanfeng G5) Heavy?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
