XCMG Hanfeng G5N 350 hp 8X4(12 wheels) 5.6m dump truck (16t rear axle)

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 12.8ton
Wheelbase:: 1950+2400+1400mm
Tire Size:: 11.00R20 18PR,12R22.5 18PR,12.00R20 18PR
Rated payload: 18.005ton
Drive 8X4 (12 wheels)
Horsepower 350
Cargo box length: 5.6m

Overview

The XCMG Hanfeng G5N 350 hp 8X4(12 wheels) 5.6m dump truck (16t rear axle) is a Heavy truck featuring 18.005t payload, 31t GVW, 5.6m cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a YuchaiYCK08350-60 engine, 350 hp, China VI emissions and Fast Gear transmission.

China VI 350 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): XGA3311D6NEA
Drive type: 8X4
Wheelbase: 1950+2400+1400mm
engine: YuchaiYCK08350-60
transmission: Fast Gear10JSD140T
Rear Axle Ratio: 4.8
Cab length: 8.67m
Cab width: 2.55m
Cab height: 3.51m
Front track width: 2060/2060mm
rear track: 1860/1860mm
Curb Weight: 12.8ton
Rated payload: 18.005ton
GVWR: 31ton
Origin: Xuzhou, Jiangsu
tonnage class: Heavy truck
Approach angle: 17°
departure angle: 21°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCK08350-60
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.7L
Emission standard: China VI
Max output power: 257kW
Max hp: 350Horsepower
Max torque: 1450N·m
Max torque speed: 1300-1500rpm
Rated speed: 2200rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: Fast Gear10JSD140T
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Housing Material: Steel shell
Cargo box parameters
Cargo box length: 5.6m
Cargo box width: 2.35m
Cargo box height: 0.9m
Cab parameters
Cab: G5NSD
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 350L
Chassis Specs
Front axle description: 5.5t front axle
Front axle allowable load: 6500/6500kg
Frame Dimensions: 280×80×(8+5)mm
rear axle description: 16t dual-stage (Steyr)
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 4.8
Leaf spring count: 9/9/12
Tire
Tire Size: 11.00R20 18PR,12R22.5 18PR,12.00R20 18PR
Number of tires: 12pcs
Control configuration
ABS:
Service brake
Front wheel brake: Drum Type

Photos

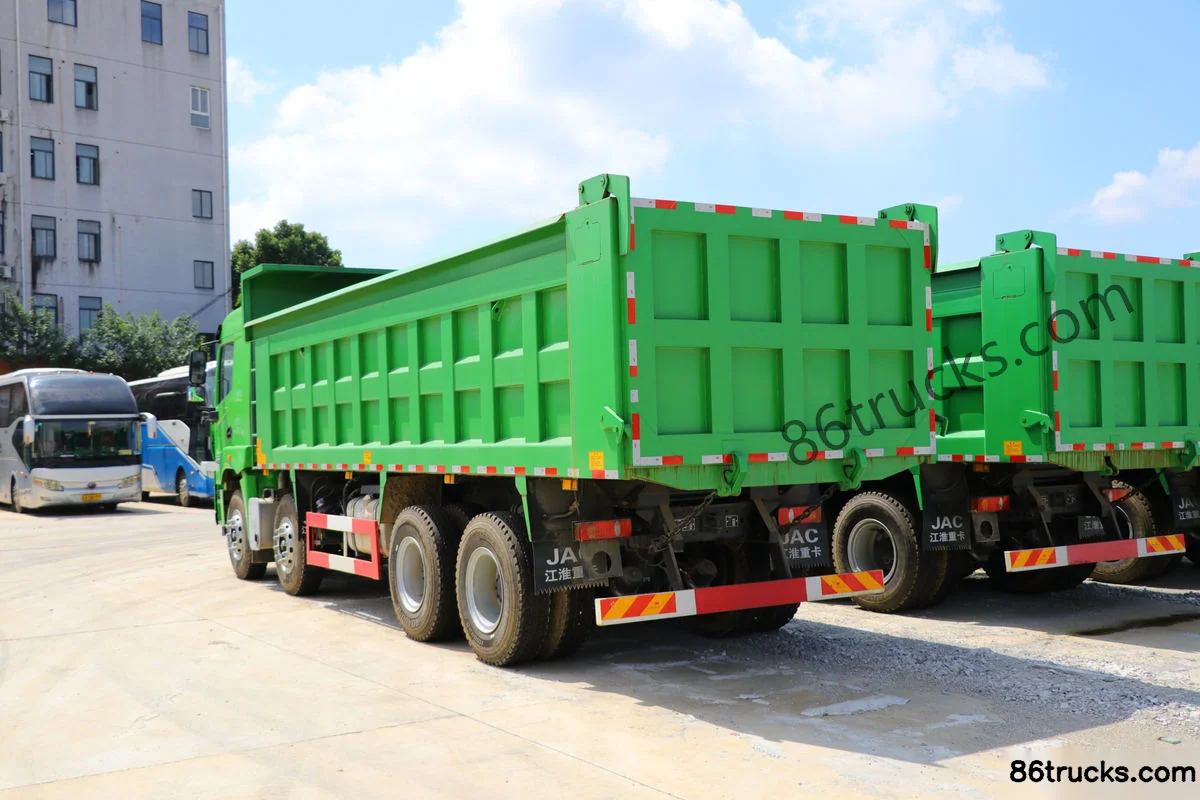

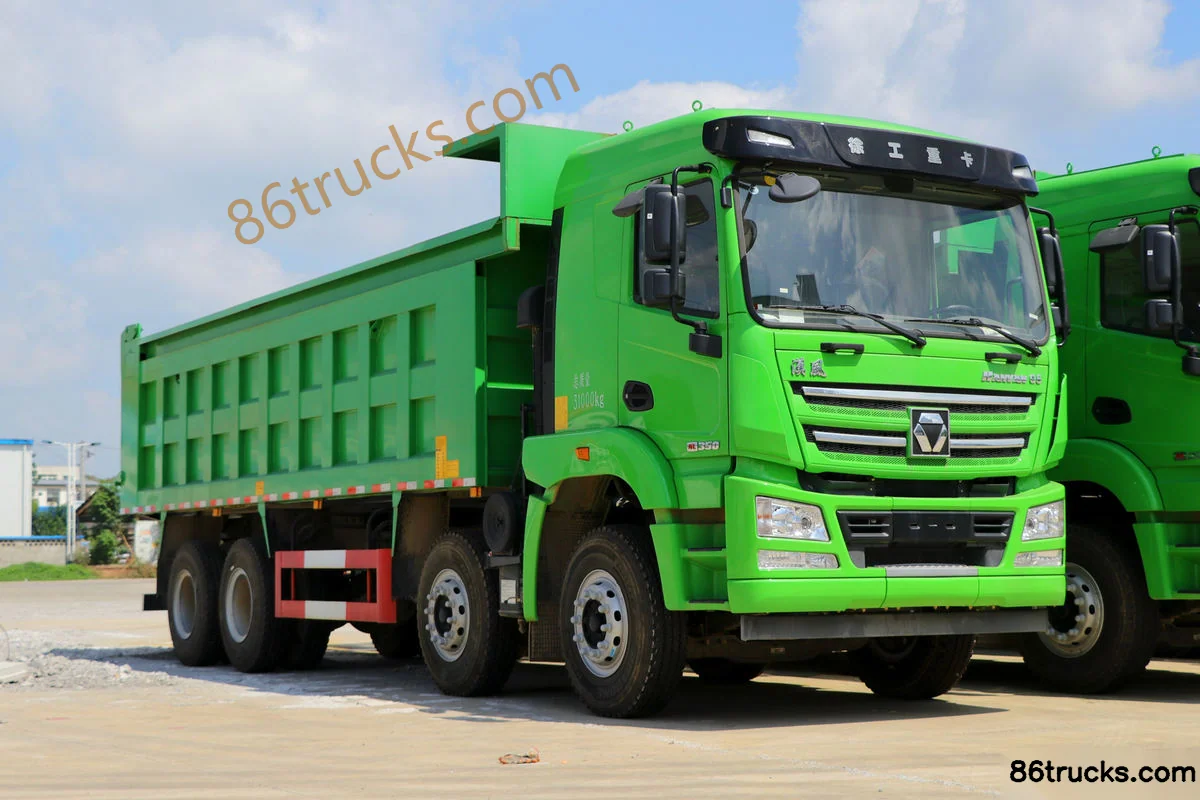

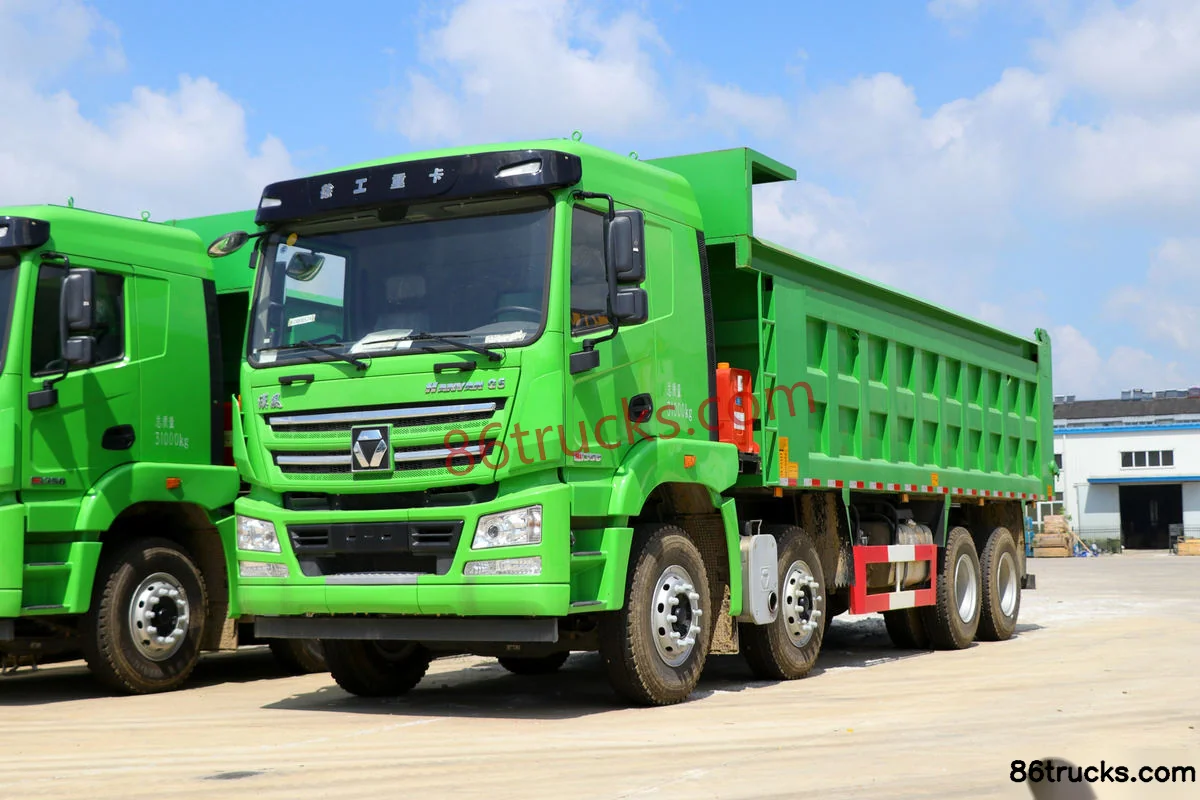

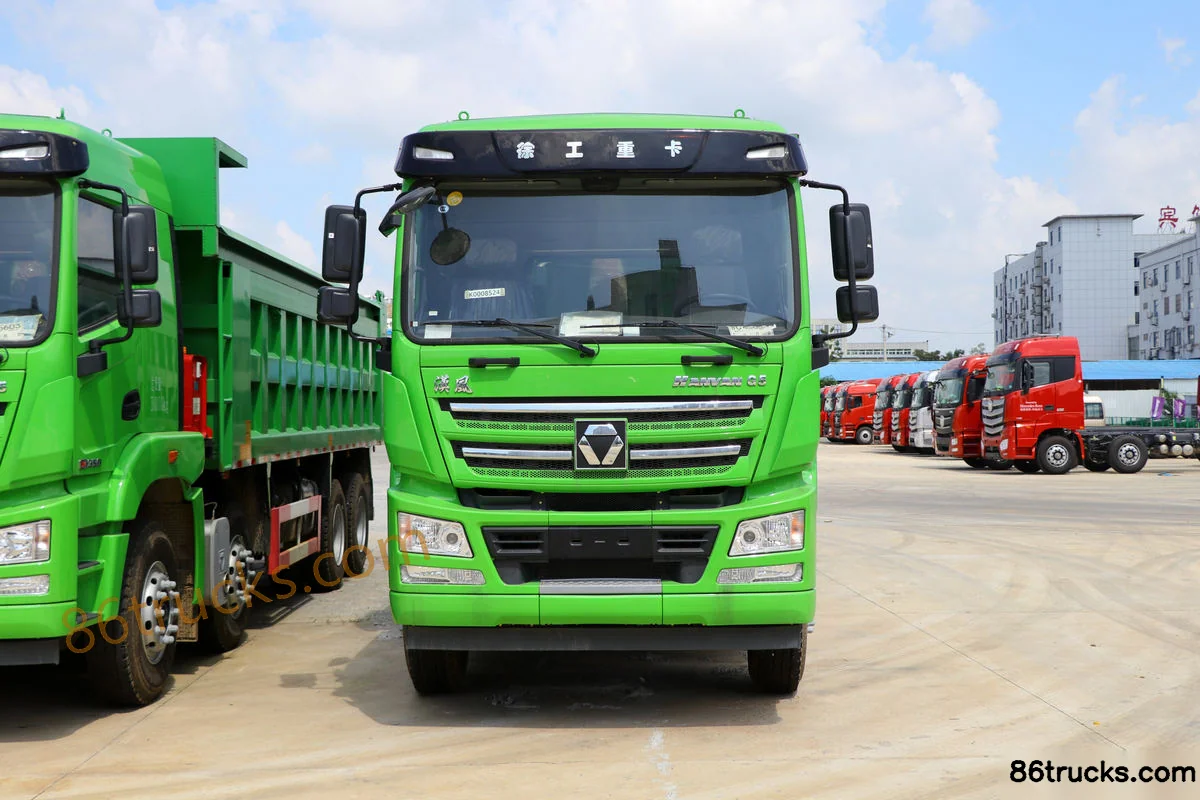

Exterior3

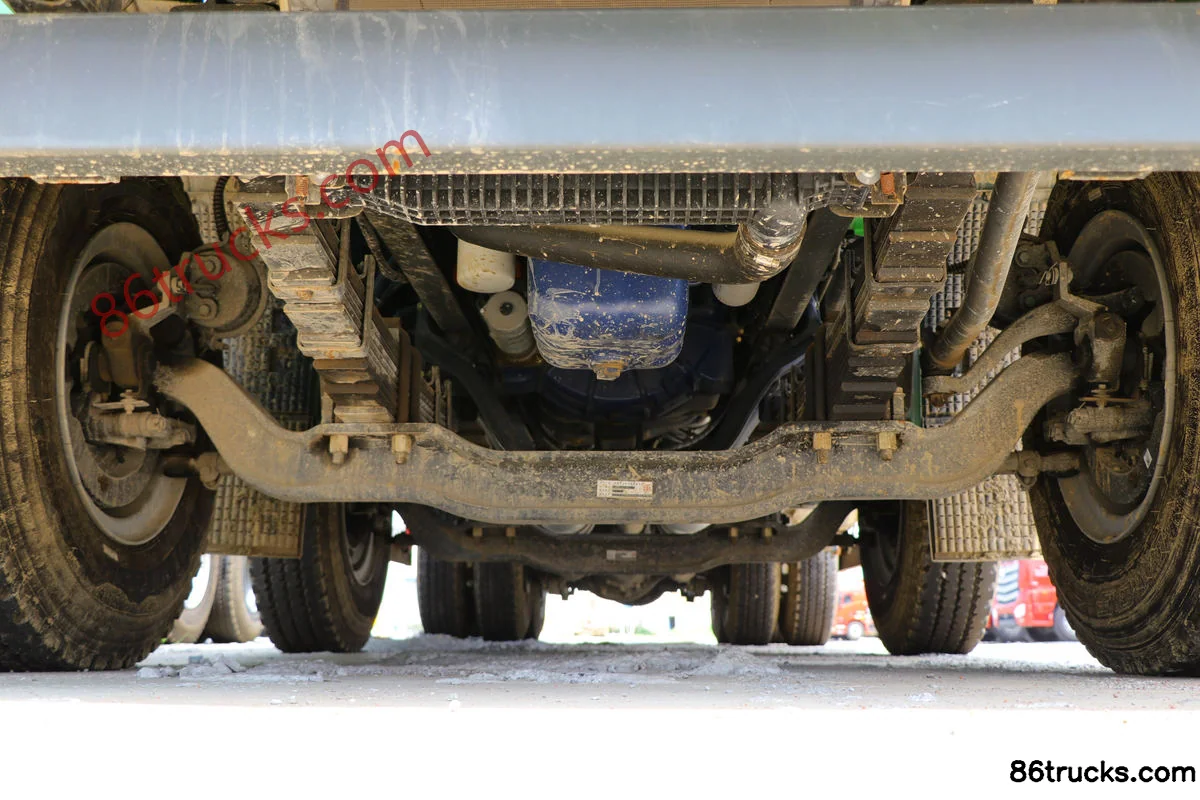

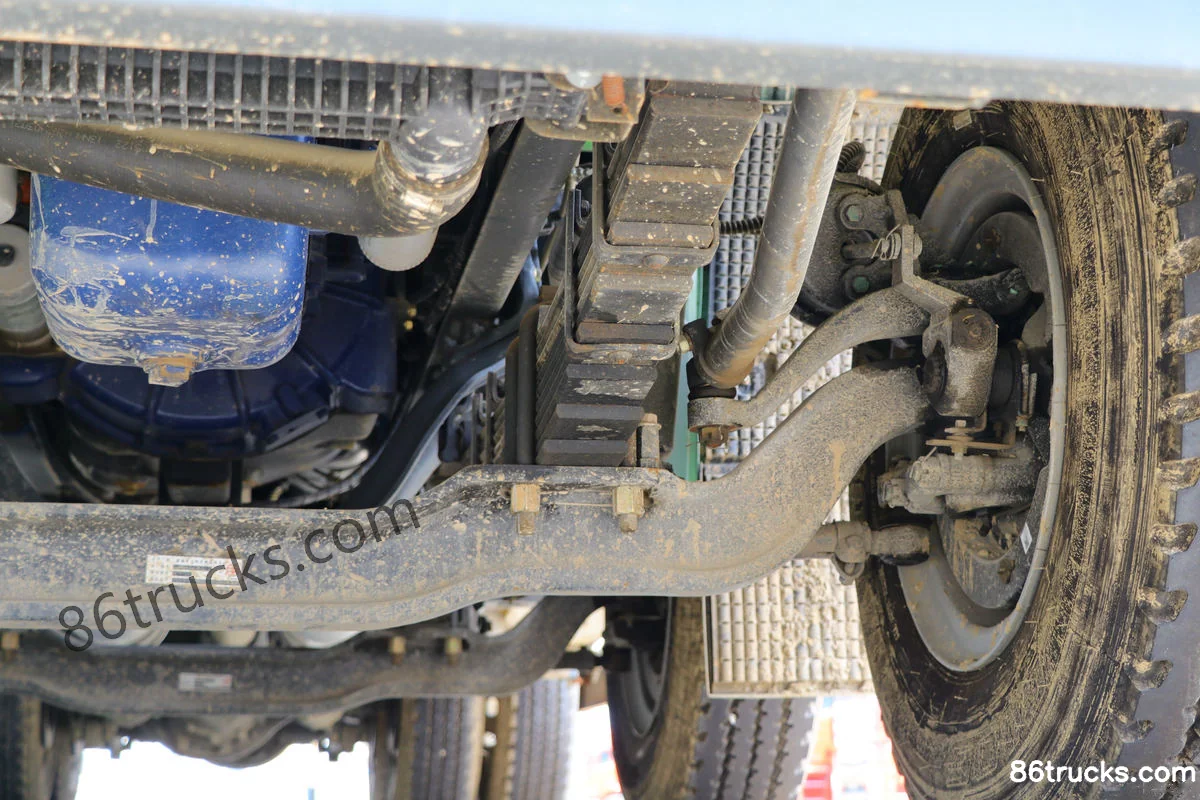

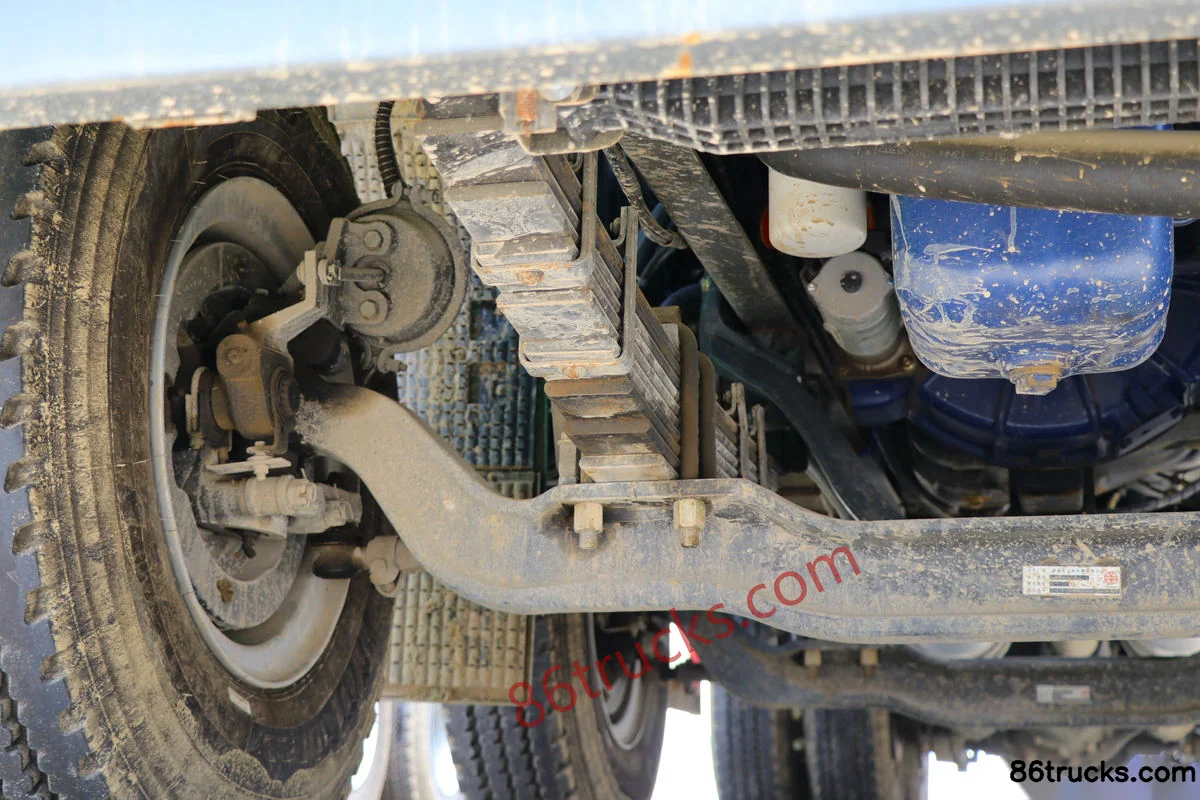

Chassis3

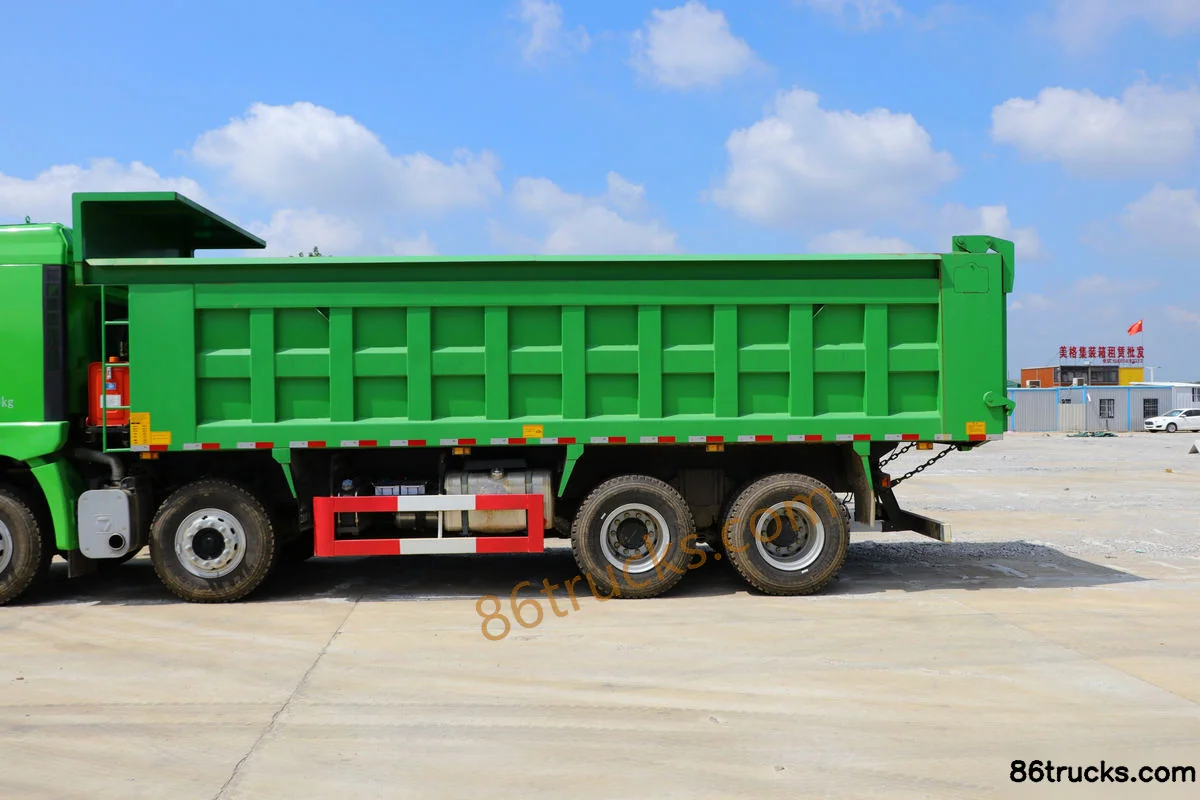

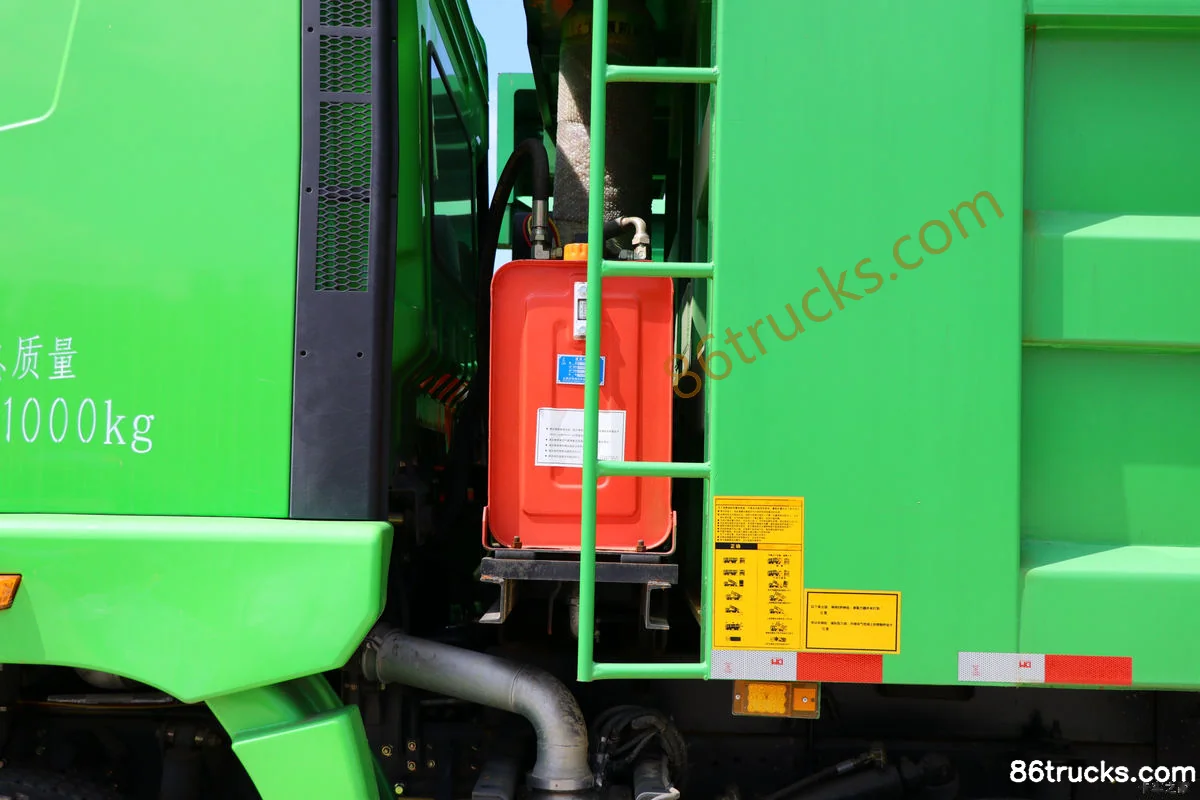

Body3

9 photos

FAQ

What emission standard does XCMG Hanfeng G5N 350 hp 8X4(12 wheels) 5.6m dump truck (16t rear axle) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of XCMG Hanfeng G5N 350 hp 8X4(12 wheels) 5.6m dump truck (16t rear axle)?

Key specs of XCMG Hanfeng G5N 350 hp 8X4(12 wheels) 5.6m dump truck (16t rear axle): Drive: 8x4; Horsepower: 350 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is XCMG Hanfeng G5N 350 hp 8X4(12 wheels) 5.6m dump truck (16t rear axle) suited for?

XCMG Hanfeng G5N 350 hp 8X4(12 wheels) 5.6m dump truck (16t rear axle) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does XCMG Hanfeng G5N 350 hp 8X4(12 wheels) 5.6m dump truck (16t rear axle) differ from other variants in the same series?

XCMG Hanfeng G5N 350 hp 8X4(12 wheels) 5.6m dump truck (16t rear axle) belongs to XCMG Truck Hanfeng XG1M (formerly Hanfeng G5) Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for XCMG Hanfeng G5N 350 hp 8X4(12 wheels) 5.6m dump truck (16t rear axle)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export XCMG Hanfeng G5N 350 hp 8X4(12 wheels) 5.6m dump truck (16t rear axle)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
