JAC Haoyun G340 129hp 4X2(6 wheels) 4m Dump Truck
EXW
From $18,278
Export quote
JAC Haoyun light truck Dump Trucks
Main model photos
161 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JAC Haoyun G340 129hp 4X2(6 wheels) 4m Dump Truck | 4x2 / 129hp / China IV | From $18,278 | |
| JAC Haoyun 129hp 4X2(6 wheels) 4m Dump Truck | 4x2 / 129hp / China IV | ||
| JAC Haoyun 82 hp 4X2(6 wheels) 2.75m Dump Truck | 4x2 / 82hp / China IV | From $6,944 |

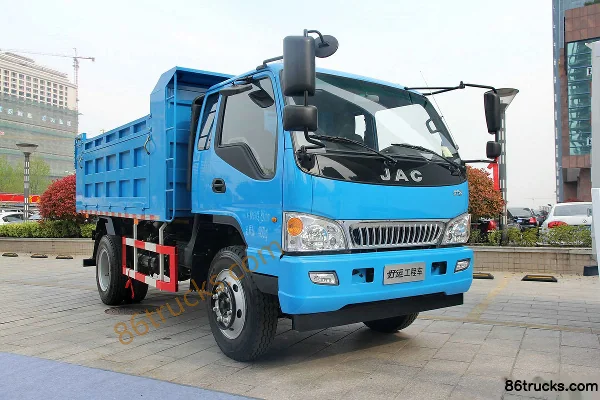

JAC Haoyun 129hp 4X2(6 wheels) 4m Dump Truck
EXW
Export quote

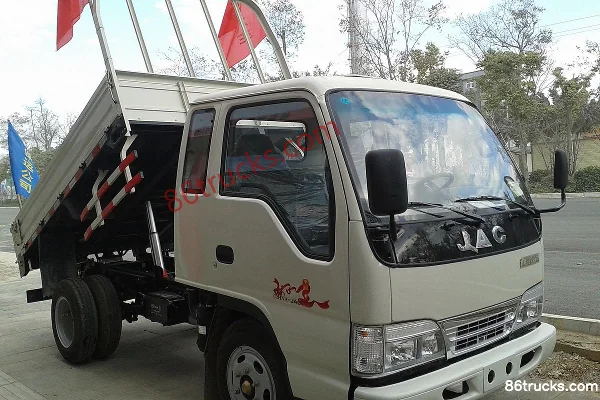

JAC Haoyun 82 hp 4X2(6 wheels) 2.75m Dump Truck
EXW
From $6,944
Export quote
Series Specs
Basic Info
Model code (announced): HFC3120PB91K1C7 / HFC3040PB91K2C7 / HFC3030P93K1B3
Drive type: 4X2
Wheelbase: 3400 / 2600mm
Engine Model: Yunnei PowerYN38CRD1 / YangchaiYZ4DC1-40
Transmission Model: WLYWLY1046H / WLYWLY10H46-38-173 / Lu'an MSC-5S
Cab length: 6.295 / 4.83m
Cab width: 2.35 / 1.81m
Cab height: 2.6 / 2.15m
Front track width: 1665 / 1693 / 1420mm
rear track: 1724 / 1395mm
Curb Weight: 5.53 / 2.605 / 2ton
Rated payload: 5.99 / 1.65 / 0.995ton
GVWR: 11.715 / 4.45 / 3.125ton
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 30 / 18°
departure angle: 17 / 18°
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power / Yangchai
Number of cylinders: 4cylinder
Displacement: 3.76 / 2.16L
Emission standard: China IV
Max output power: 95 / 60kW
Max hp: 129 / 82Horsepower
Max torque: 315 / 200N·m
Max torque speed: 1600-2400 / 1000-2000rpm
Rated speed: 3000 / 3200rpm
Engine Type: Electronic control, water-cooled EGR technology, electronic high-pressure common rail fuel injection technology, aftertreatment DOC+POC / Inline, water-cooled, 4-stroke, turbocharged with intercooler
Transmission Parameters
Transmission Brand: WLY / Lu'an
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Rear-dump body / Dump type
Cargo box length: 4 / 2.75m
Cargo box width: 2.15 / 1.71m
Cargo box height: 0.8 / 0.37m
fuel tank
Fuel tank capacity: 120 / 40L
Chassis Specs
Front axle allowable load: 4220kg
rear axle description: One-piece
rear axle allowable load: 7495 / 2850 / 2000kg
Leaf spring count: 7/10/10 / 7/10+10 / 3/5+3
FAQ
What kind of truck is JAC JAC Haoyun light truck Dump Trucks?
JAC JAC Haoyun light truck is an export-oriented Dump Trucks lineup with about 3 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for JAC Haoyun light truck Dump Trucks?
JAC Haoyun light truck Dump Trucks export reference is about $6,944 – $18,278. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does JAC Haoyun light truck Dump Trucks cover?
JAC Haoyun light truck Dump Trucks mainly covers: Drive: 4x2; Horsepower: 82 hp / 129 hp; Emission: China IV; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in JAC Haoyun light truck Dump Trucks?
For JAC Haoyun light truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does JAC Haoyun light truck Dump Trucks include?
JAC Haoyun light truck Dump Trucks currently lists about 3 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for JAC Haoyun light truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
