JAC Haoyun 129hp 4X2(6 wheels) 4m Dump Truck

Export reference
MSRP N/A
Emission: China IV
Fuel: Diesel
Transmission: WLY
Curb Weight:: 2.605ton
Wheelbase:: 3400mm
Tire Size:: 8.25R16 6PR
Rated payload: 1.65ton
Drive 4X2 (6 wheels)
Horsepower 129
Cargo box type: Dump type

Overview

The JAC Haoyun 129hp 4X2(6 wheels) 4m Dump Truck is a Light Truck featuring 1.65t payload, 4.45t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerYN38CRD1 engine, 129 hp, China IV emissions and WLY transmission.

China IV 129 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC3040PB91K2C7
Drive type: 4X2
Wheelbase: 3400mm
engine: Yunnei PowerYN38CRD1
transmission: WLYWLY10H46-38-173
Cab length: 6.295m
Cab width: 2.35m
Cab height: 2.6m
Front track width: 1693mm
rear track: 1724mm
Curb Weight: 2.605ton
Rated payload: 1.65ton
GVWR: 4.45ton
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 30°
departure angle: 17°
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYN38CRD1
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3.76L
Emission standard: China IV
Max output power: 95kW
Max hp: 129Horsepower
Max torque: 315N·m
Max torque speed: 1600-2400rpm
Rated speed: 3000rpm
Engine Type: Electronic control, water-cooled EGR technology, electronic high-pressure common rail fuel injection technology, aftertreatment DOC+POC
Transmission Parameters
Transmission Model: WLYWLY10H46-38-173
Transmission Brand: WLY
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4m
Cargo box width: 2.15m
Cargo box height: 0.8m
fuel tank
Fuel tank capacity: 120L
Chassis Specs
rear axle allowable load: 2850kg
Leaf spring count: 7/10+10
Tire
Tire Size: 8.25R16 6PR
Number of tires: 6pcs

Photos

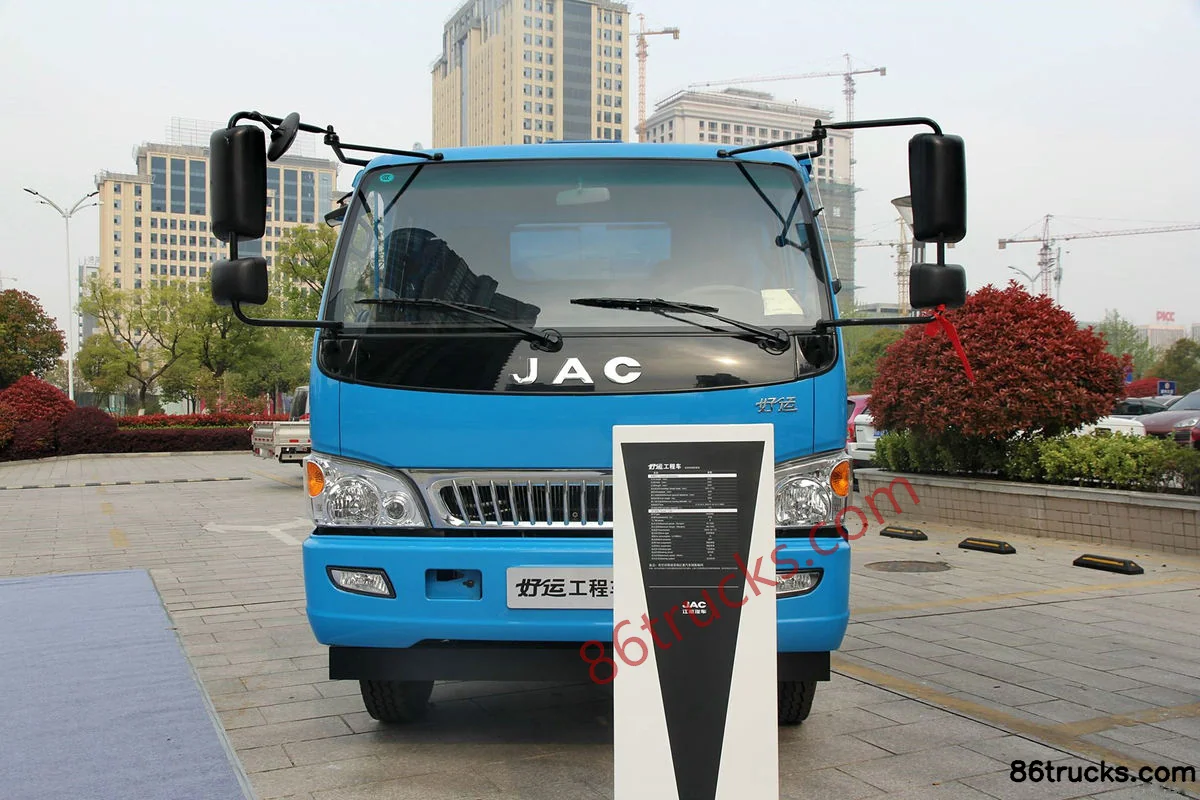

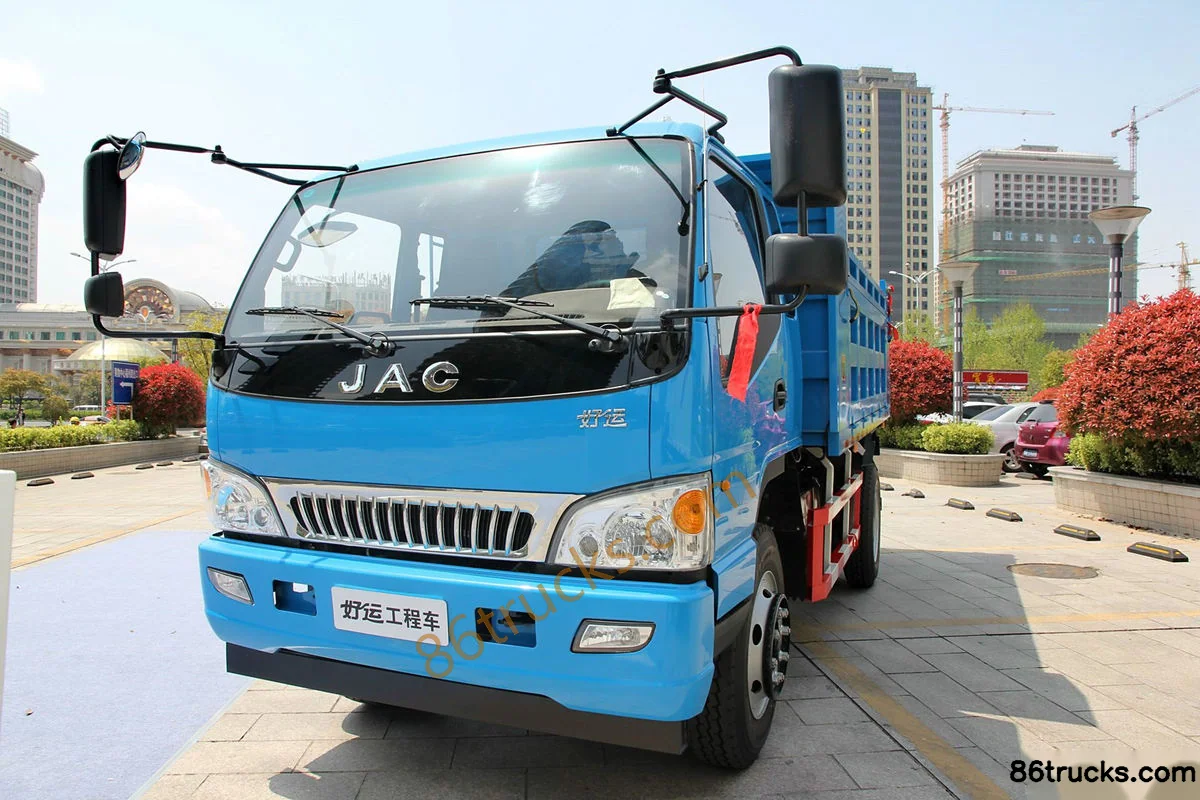

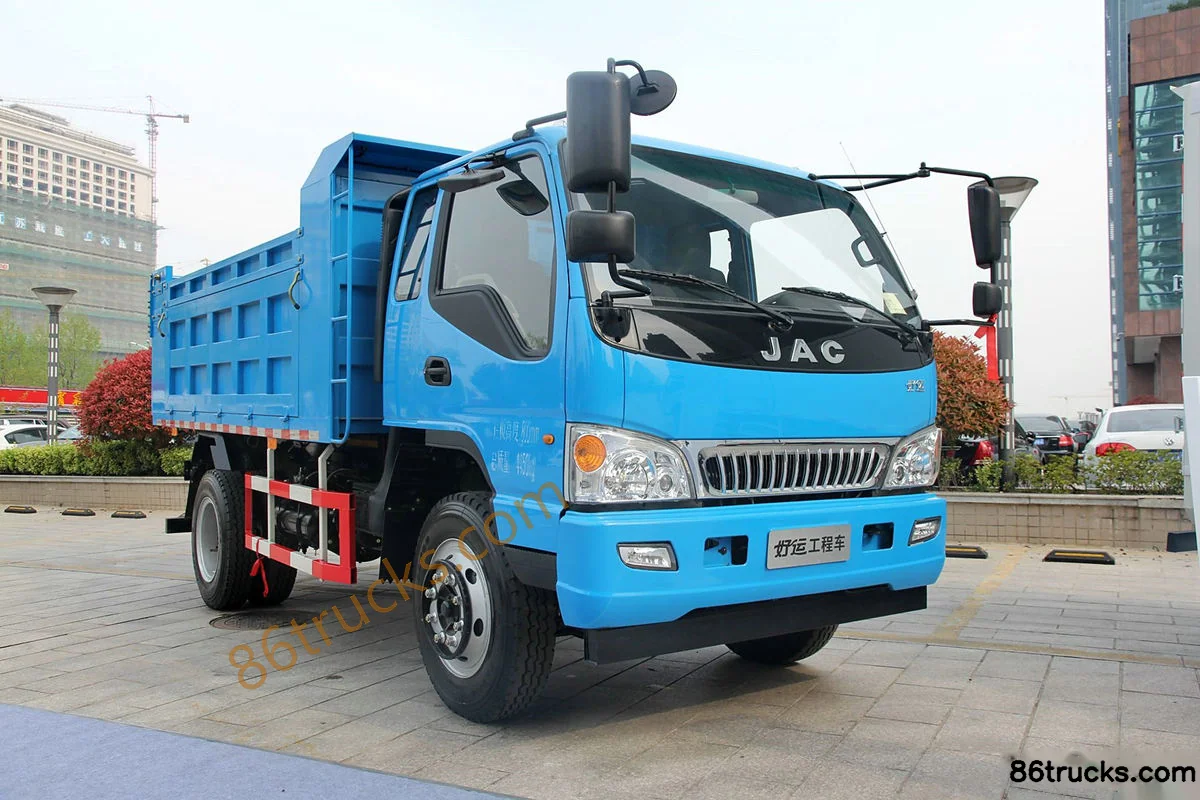

Exterior3

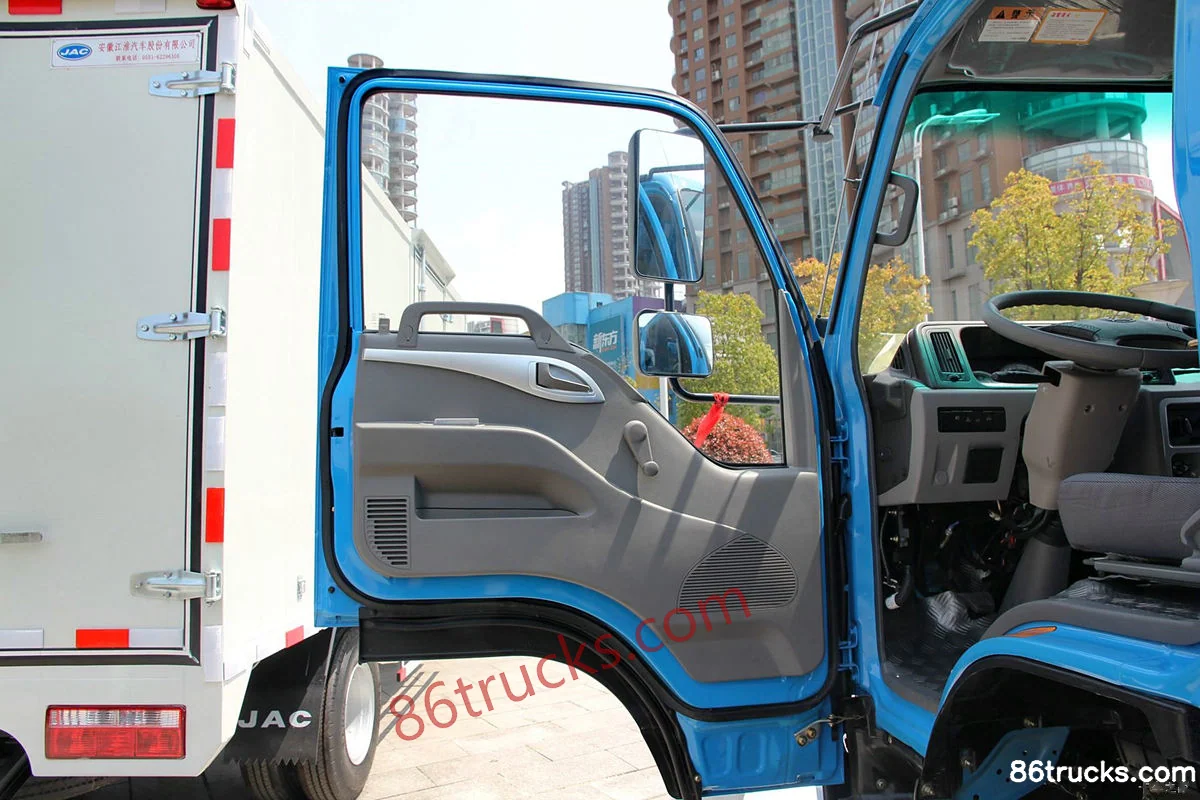

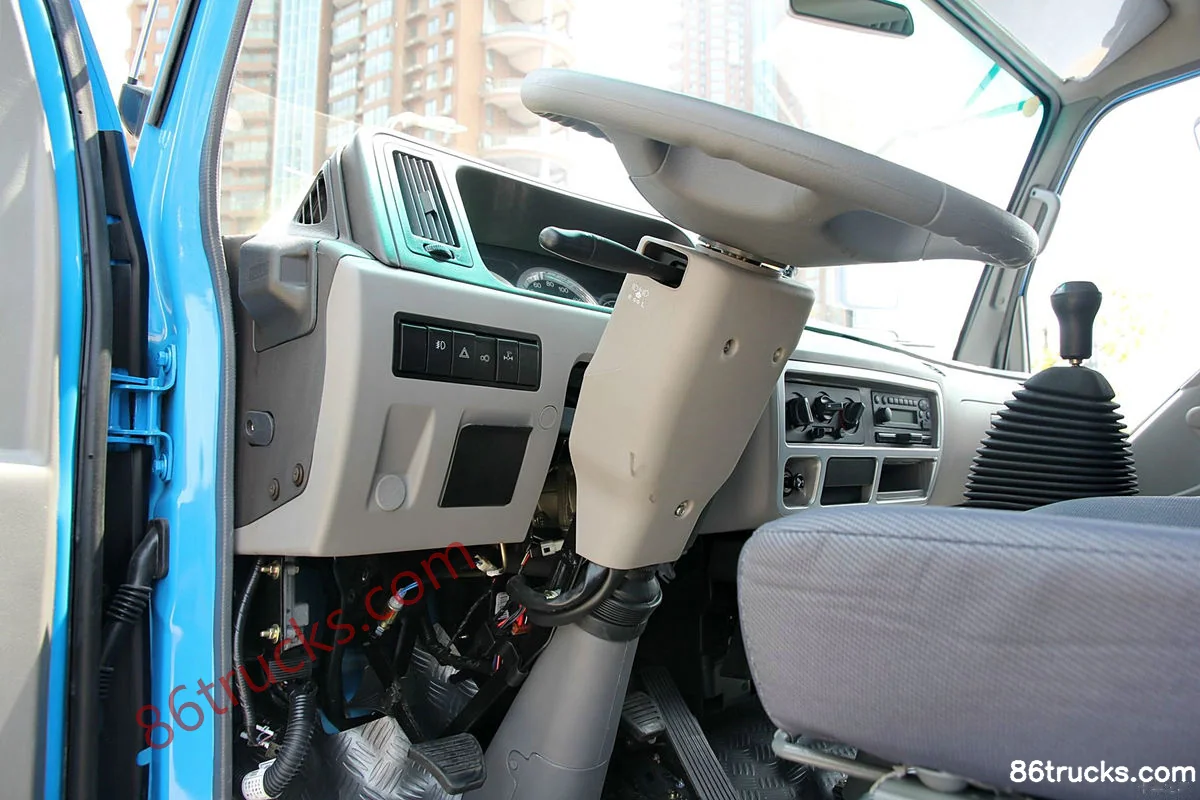

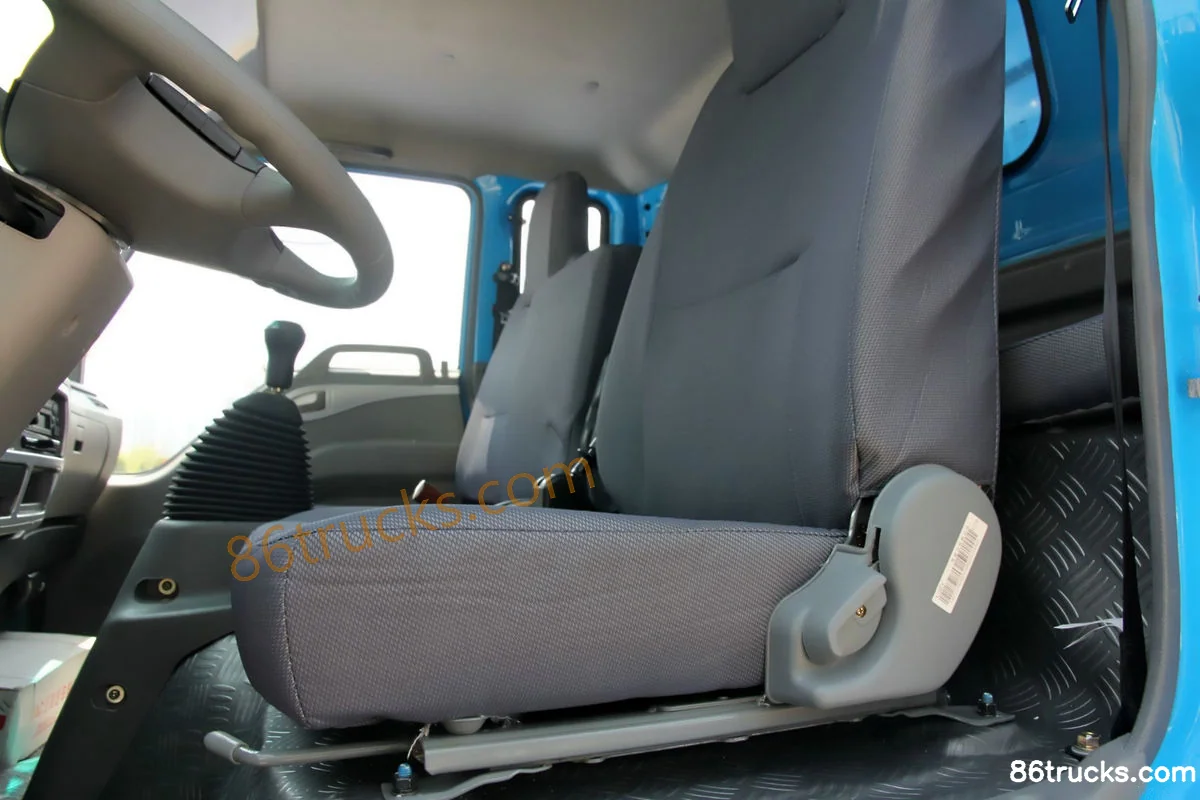

Cab3

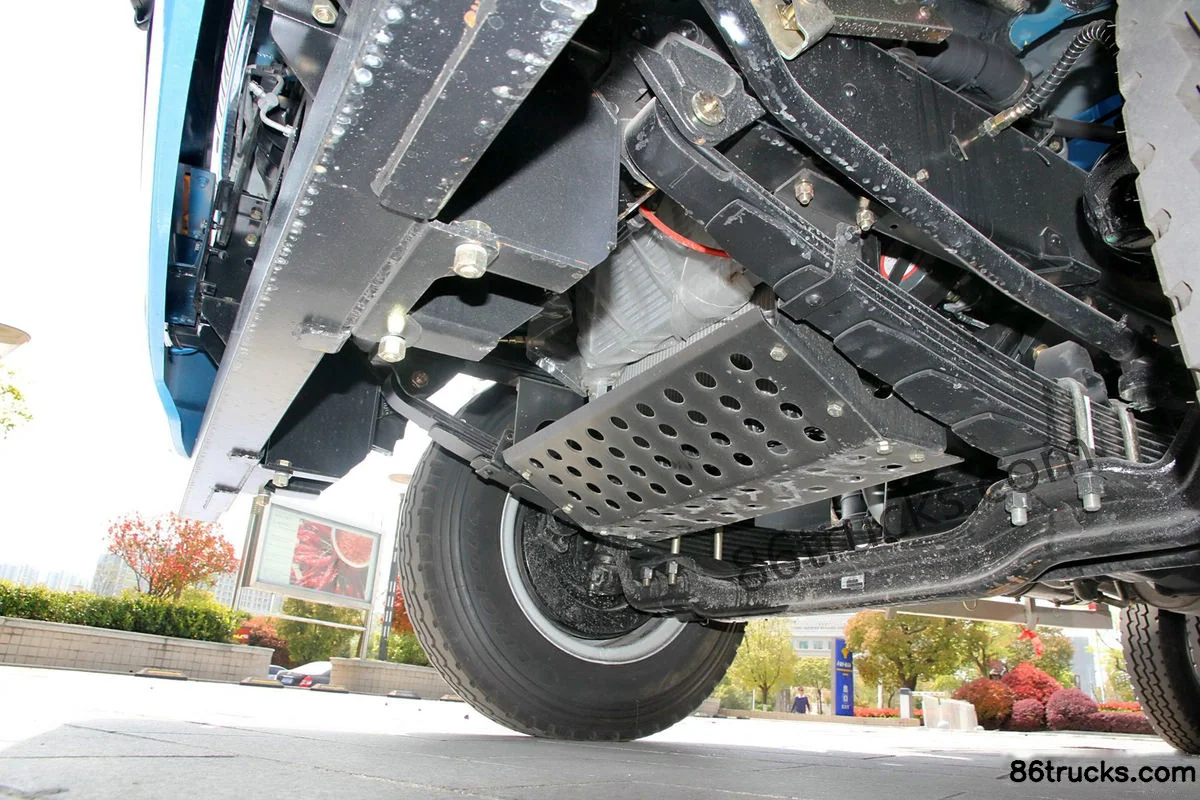

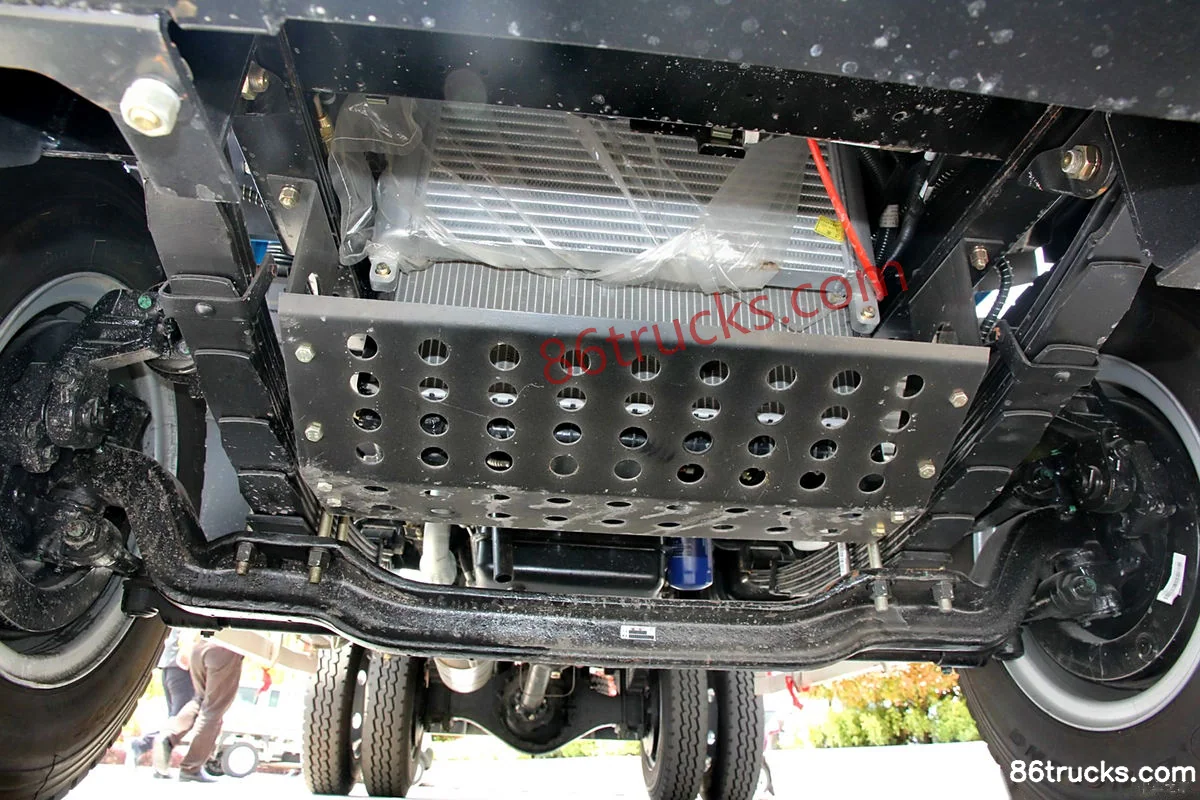

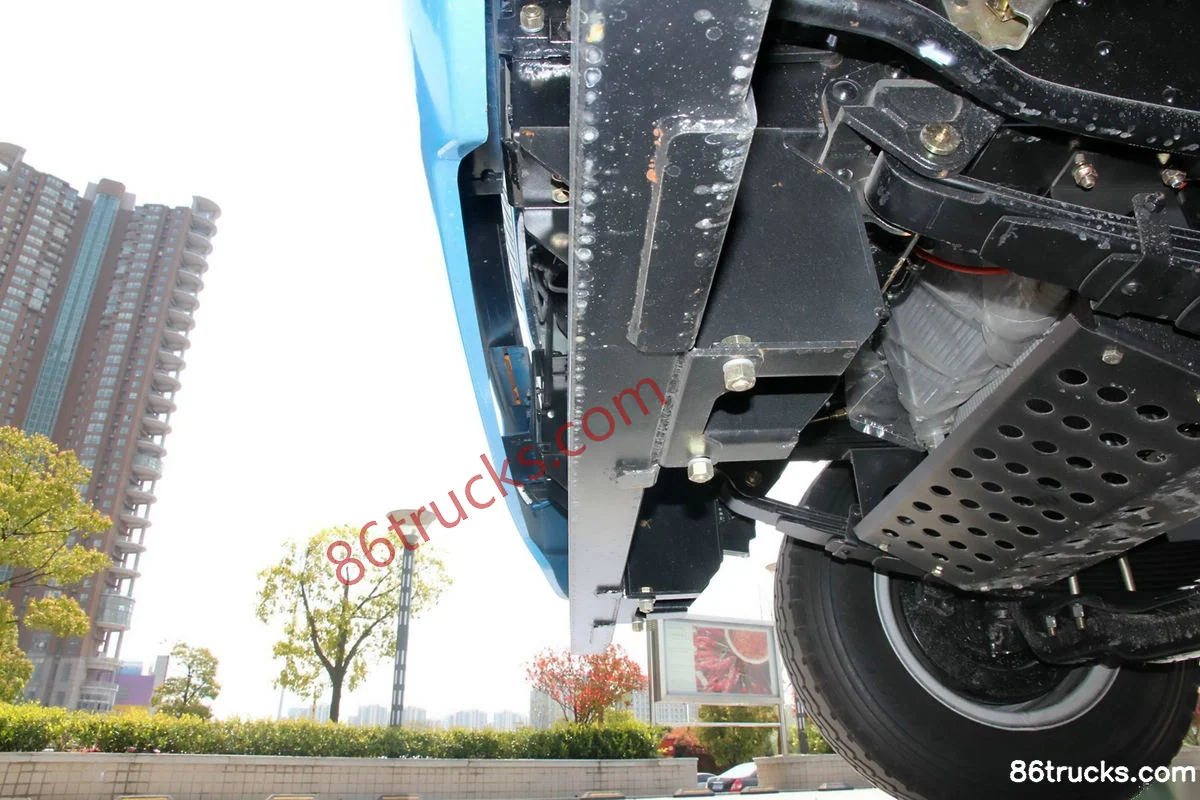

Chassis3

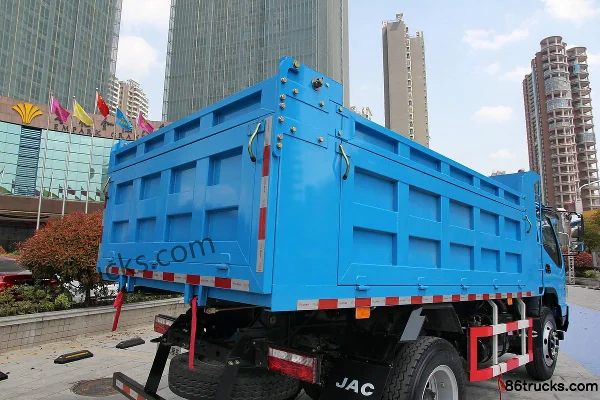

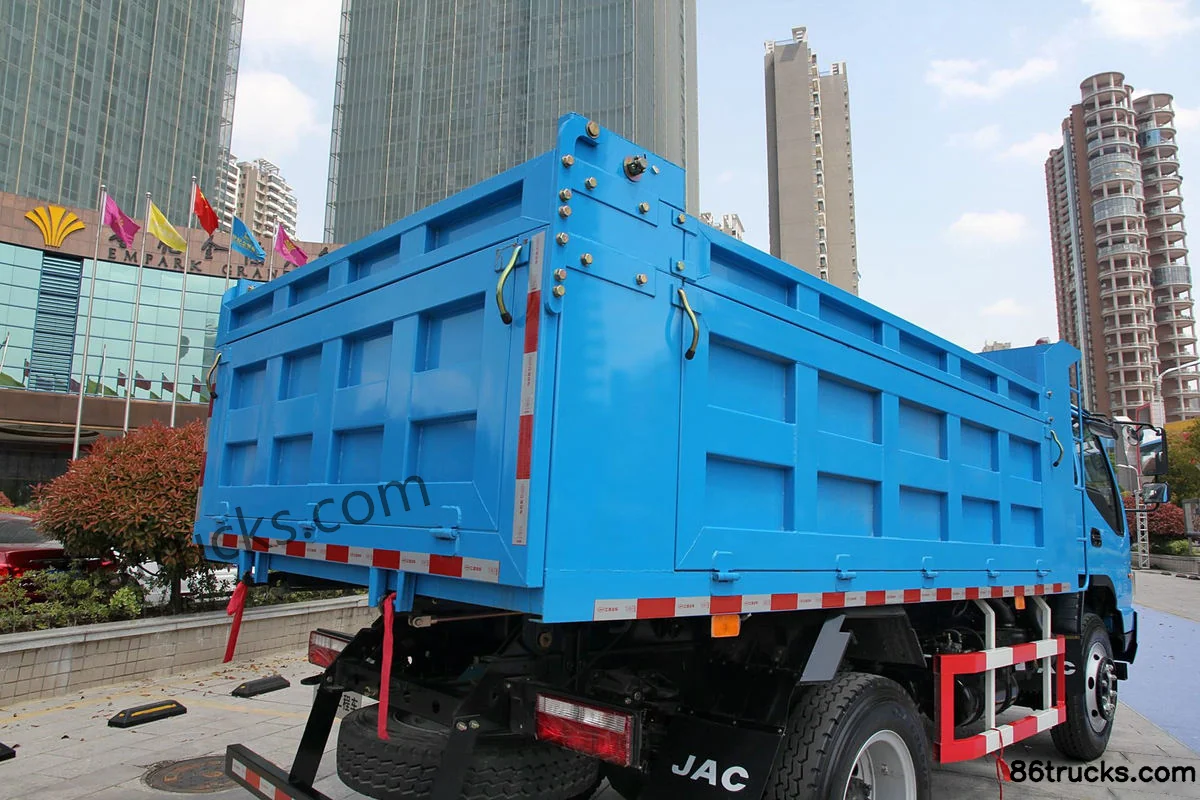

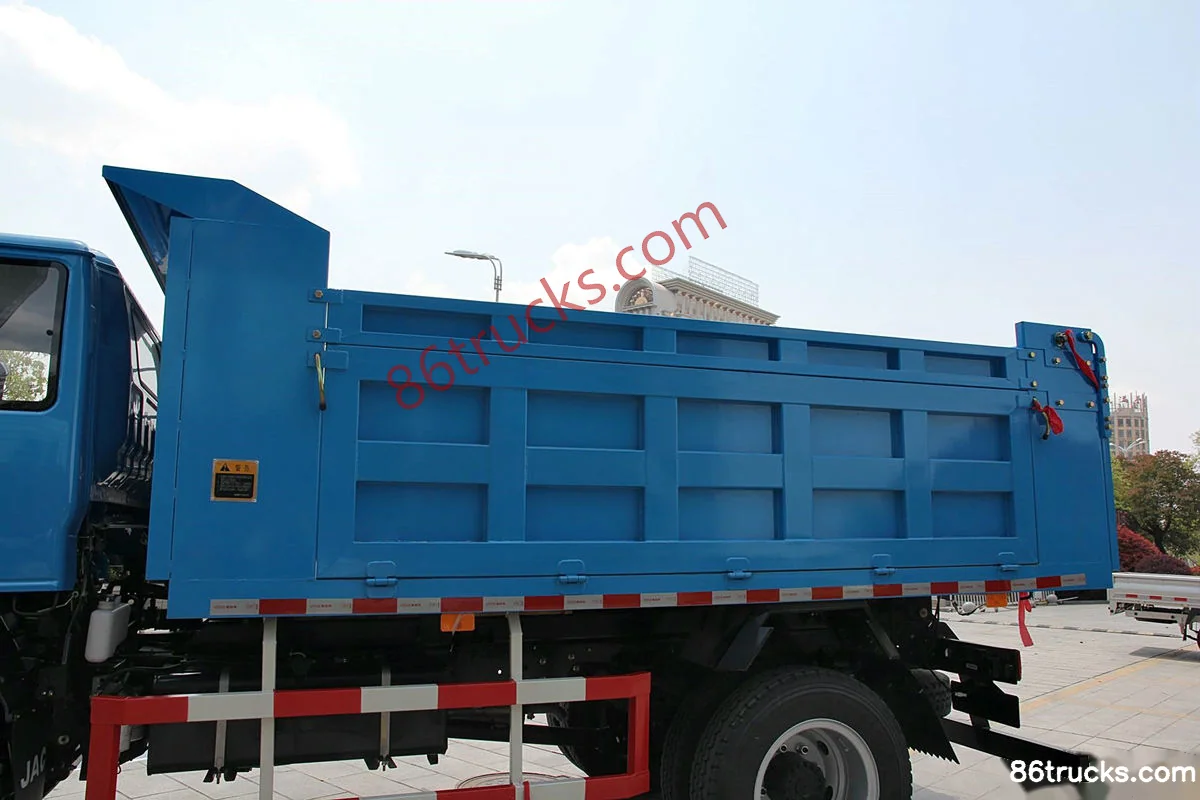

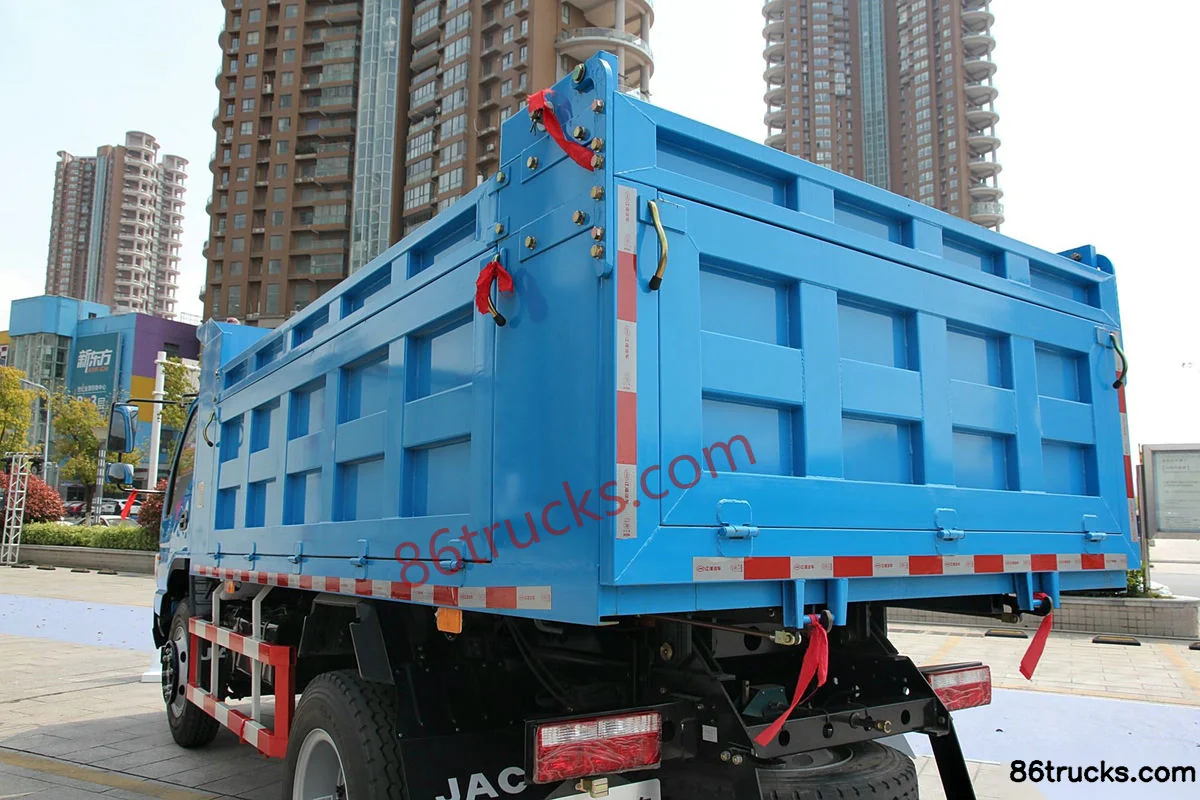

Body3

12 photos

FAQ

What emission standard does JAC Haoyun 129hp 4X2(6 wheels) 4m Dump Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Haoyun 129hp 4X2(6 wheels) 4m Dump Truck?

Key specs of JAC Haoyun 129hp 4X2(6 wheels) 4m Dump Truck: Drive: 4x2; Horsepower: 129 hp; Emission: China IV; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Haoyun 129hp 4X2(6 wheels) 4m Dump Truck suited for?

JAC Haoyun 129hp 4X2(6 wheels) 4m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does JAC Haoyun 129hp 4X2(6 wheels) 4m Dump Truck differ from other variants in the same series?

JAC Haoyun 129hp 4X2(6 wheels) 4m Dump Truck belongs to JAC Haoyun light truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Haoyun 129hp 4X2(6 wheels) 4m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Haoyun 129hp 4X2(6 wheels) 4m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
