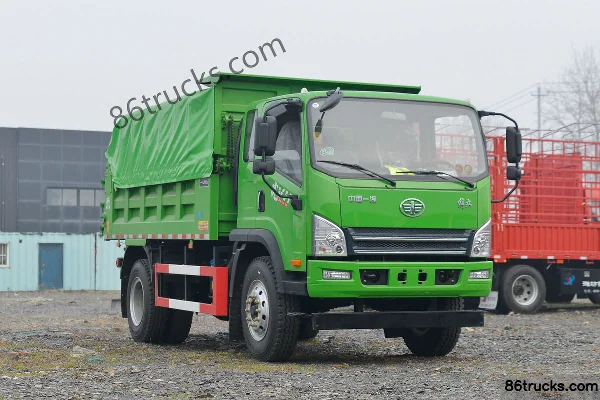

FAW Jiefang Hu VH 3L diesel 160hp 4X2(6 wheels) Fast Gear 8-speed 3.8m dump truck
EXW
From $20,361
Export quote
FAW Jiefang Hu V Light-duty Truck Dump Trucks
Main model photos
2,335 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| FAW Jiefang Hu VH 3L diesel 160hp 4X2(6 wheels) Fast Gear 8-speed 3.8m dump truck | 4x2 / 160hp / China VI | From $20,361 | |
| FAW Jiefang Hu VH King Arrives 4.3L Diesel 205hp 4X2(6 wheels) Fast Gear 8-Speed 4.15m Semi-Cab Dump Truck | 4x2 / 205hp / China VI | From $20,708 | |
| FAW Jiefang Hu VH King Arrives 4.3L Diesel 205hp 4X2(6 wheels) Fast Gear 8-Speed 4.45m Semi-Cab Dump Truck | 4x2 / 205hp / China VI | From $20,708 | |
| FAW Jiefang Hu VH King Arrives 4.1L Diesel 190hp 4X2(6 wheels) Fast Gear 8-speed 3.8m Semi-row Dump Truck | 4x2 / 190hp / China VI | From $20,361 | |
| FAW Jiefang Hu VH King Arrives 4.1L Diesel 190hp 4X2(6 wheels) Fast Gear 8-speed 4.15m Semi-row Dump Truck | 4x2 / 190hp / China VI | From $20,875 |
FAW Jiefang Hu VH King Arrives 4.3L Diesel 205hp 4X2(6 wheels) Fast Gear 8-Speed 4.15m Semi-Cab Dump Truck
EXW
From $20,708
Export quote

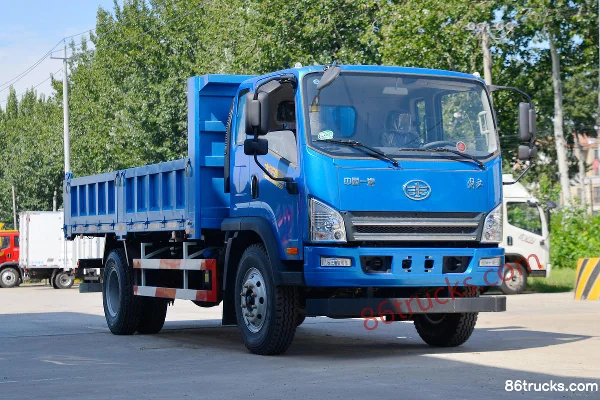

FAW Jiefang Hu VH King Arrives 4.3L Diesel 205hp 4X2(6 wheels) Fast Gear 8-Speed 4.45m Semi-Cab Dump Truck
EXW
From $20,708
Export quote
FAW Jiefang Hu VH King Arrives 4.1L Diesel 190hp 4X2(6 wheels) Fast Gear 8-speed 3.8m Semi-row Dump Truck
EXW
From $20,361
Export quote
FAW Jiefang Hu VH King Arrives 4.1L Diesel 190hp 4X2(6 wheels) Fast Gear 8-speed 4.15m Semi-row Dump Truck
EXW
From $20,875
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| FAW Jiefang Hu VN 160 hp 4X2(6 wheels) 4.15 m dump truck (Fast Gear) | 4x2 / 160hp / China V | From $19,278 | |
| FAW Jiefang Hu V 190 hp 4X2(6 wheels) 5.2m dump truck | 4x2 / 190hp / China VI | From $34,278 | |
| FAW Jiefang Hu VH 190hp 4X2(6 wheels) 5.2m dump truck | 4x2 / 190hp / China VI | From $20,833 | |
| FAW Jiefang Hu VH 160 hp 4X2(6 wheels) 4.2m Dump Truck (10-speed) | 4x2 / 160hp / China V | ||
| FAW Jiefang Hu VN 150hp 4X2(6 wheels) 4.15m Dump Truck | 4x2 / 150hp / China V | From $16,389 |
FAW Jiefang Hu VN 160 hp 4X2(6 wheels) 4.15 m dump truck (Fast Gear)
EXW
From $19,278
Export quote
FAW Jiefang Hu V 190 hp 4X2(6 wheels) 5.2m dump truck
EXW
From $34,278
Export quote
FAW Jiefang Hu VH 190hp 4X2(6 wheels) 5.2m dump truck
EXW
From $20,833
Export quote
FAW Jiefang Hu VH 160 hp 4X2(6 wheels) 4.2m Dump Truck (10-speed)
EXW
Export quote
FAW Jiefang Hu VN 150hp 4X2(6 wheels) 4.15m Dump Truck
EXW
From $16,389
Export quote
Series Specs
Basic Info
Model code (announced): CA3110P40K59L2E6A84 / CA3180P40K62L3E6A85 / CA3160P40K62L2E6A84 / CA3181P40K62L4E6A85 / CA3120P40K15L3E6A90 / CA3180P40K15L3E6A90 / CA3100P40K62L1E5A84 / CA3161P40K62L4E6A85 / CA3181P40K62L3E5A90 / CA3041P40K2L1E5A84 / CA3160P40K62L2E5A84
Drive type: 4X2
Wheelbase: 3300 / 3750 / 3400 / 4200 / 3800 / 3650mm
Engine Model: WeichaiWP3NQ160E61 / Yunnei PowerD43TCIF1 / WeichaiWP4.1NQ190E61 / YuchaiYCS04200-68 / WP4.1NQ190E61 / WeichaiWP4.1Q160E50 / YuchaiYC4E160-56 / DachaiCA4DD1-15E5 / YuchaiYC4S160-50 / WeichaiWP3.7Q140E50 / D43TCIF1
Transmission Model: Fast Gear8JS75E / Fast Gear8JS85F / Fast Gear8JS85E / Fast Gear10JS90A-B / Fast Gear 10-Speed / Fast Gear 8-speed / Fast Gear8JS75C / Fast Gear8JS75 / WLY 6-speed / WLYWLY5TS32C / Fast Gear8JS75F / WLYWLY6-speed / 8JS85F
Rear Axle Ratio: 5.286 / 5.571 / 6.5 / 4.875 / 6.833 / 5.125 / 4.33
Cab length: 5.8 / 6.35 / 6.65 / 6 / 7.4 / 6.05 / 6.83 / 6.63 / 6.53 / 6.33 / 6.13 / 5.995 / 7.61 / 6.78 / 5.998 / 7.08m
Cab width: 2.45 / 2.408 / 2.4 / 2.42 / 2.5 / 2.48 / 2.38 / 2010m
Cab height: 2.5 / 2.66 / 2.58 / 2.6 / 2.8 / 2.75 / 2.7 / 2.63 / 2.495 / 2.9m
Front track width: 1808 / 1795 / 1770 / 1830 / 1750 / 1751 / 1640 / 1768 / 1640,1665,1706,1730,1800 / 1800mm
rear track: 1740 / 1800 / 1760 / 1720 / 1750 / 1540 / 1540,1600,1658,1740mm
Curb Weight: 6.01 / 7.81 / 4.995 / 7.11 / 4.81 / 6.58 / 8.19 / 2.72 / 6.7ton
Rated payload: 4.995 / 9.995 / 7.995 / 6.8 / 10.695 / 9.255 / 9.615 / 1.58 / 9.105ton
GVWR: 11.2 / 18 / 16 / 11.99 / 10 / 4.495ton
Origin: Qingdao, Shandong / Liuzhou, Guangxi / Qingdao/Chengdu / Qingdao, Chengdu
tonnage class: Medium-duty truck / Light Truck / Heavy truck
Approach angle: 22 / 20 / 21°
departure angle: 15 / 13 / 17 / 16 / 19°
Remarks: 20L urea tank, desert air filter, radiator guard, internal spline PTO, Φ102 clutch booster, Φ100 end-face drive shaft, Φ95 steering gear, 90AH battery / Front-mounted hydraulic cylinder, stable lifting, low center of gravity, four longitudinal beams, four tail seats for stable lifting, suitable for transporting steel, timber, cement, grain, etc. / Optional ratio 4.875
Version: King Arrival / King Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai / Yunnei Power / Yuchai / Dachai
Number of cylinders: 4cylinder
Displacement: 2.97 / 4.3 / 4.088 / 4.16 / 4.26 / 2.999 / 3.767 / 3.66L
Emission standard: China VI / China V
Max output power: 118 / 151 / 140 / 147 / 115 / 113 / 103kW
Max hp: 160 / 205 / 190 / 200 / 150 / 140Horsepower
Max torque: 480 / 720 / 680 / 520 / 600 / 400 / 550 / 430N·m
Max torque speed: 1400-2300 / 1200-1900 / 1300-1900 / 1200-1600 / 1400-1800 / 1300-1600 / 1300-1800rpm
Rated speed: 3000 / 2300 / 2600 / 2900rpm
Engine Type: Inline, direct injection, water-cooled, 4-stroke, turbocharged, intercooled, electronically controlled high-pressure common rail / High-pressure common rail, EGR+DOC+DPF+SCR / High-pressure common rail + EGR + DOC + DPF + SCR + ASC / Common Rail+SCR / Vertical, inline, water-cooled, four-stroke / SCR / Inline 4-cylinder, 4-stroke, high-pressure common rail + SCR
Transmission Parameters
Transmission Brand: Fast Gear / WLY
shift method: Manual
Forward gears: 8 / 10 / 6 / 5Gear
Number of Reverse Gears: 2 / 1pcs
Cargo box parameters
Unloading Type: Rear-dump body / Dump type
Cargo box thickness: floor 5mm, side 3mm
Cargo box length: 3.8 / 4.15 / 4.45 / 5.1 / 4.5 / 4.2 / 4.3 / 4 / 5.2 / 3.77m
Cargo box width: 2.3 / 2.2 / 2.35 / 2.1m
Body Parameters
Lifting type: Front lift
FAQ
What kind of truck is FAW Jiefang FAW Jiefang Hu V Light-duty Truck Dump Trucks?
FAW Jiefang FAW Jiefang Hu V Light-duty Truck is an export-oriented Dump Trucks lineup with about 34 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for FAW Jiefang Hu V Light-duty Truck Dump Trucks?
FAW Jiefang Hu V Light-duty Truck Dump Trucks export reference is about $16,389 – $34,278. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does FAW Jiefang Hu V Light-duty Truck Dump Trucks cover?
FAW Jiefang Hu V Light-duty Truck Dump Trucks mainly covers: Drive: 4x2; Horsepower: 150 hp / 160 hp / 190 hp / 205 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in FAW Jiefang Hu V Light-duty Truck Dump Trucks?
For FAW Jiefang Hu V Light-duty Truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does FAW Jiefang Hu V Light-duty Truck Dump Trucks include?
FAW Jiefang Hu V Light-duty Truck Dump Trucks currently lists about 34 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for FAW Jiefang Hu V Light-duty Truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
